Side 1/2

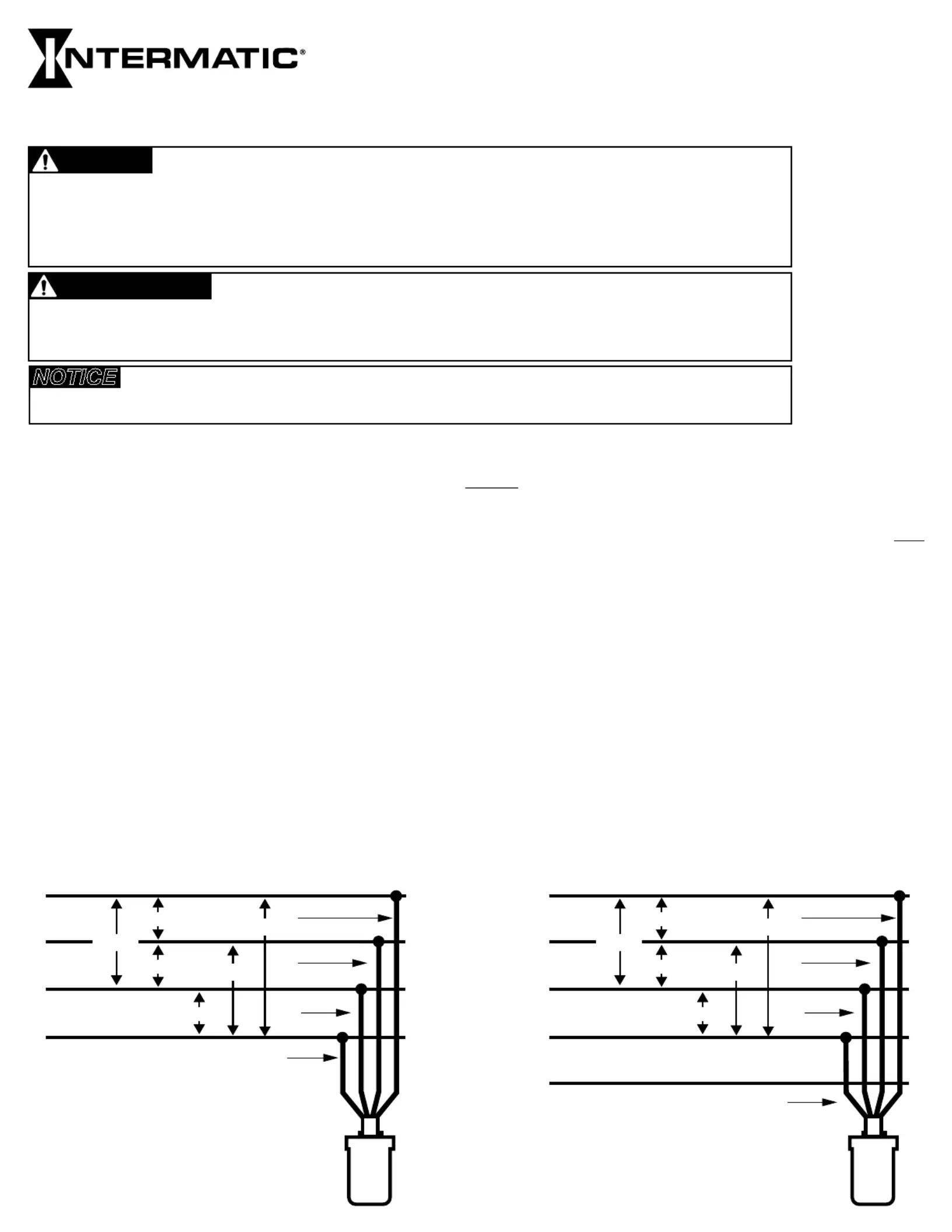

120/208 VAC Four wire plus Ground

Found in Main Disconnect Switches,

Main Distribution panels, Load Centers

Sub panels and equipment locations.

Line

Neutral

Ground

WHITE

BLACK

120 V

208 V

120 V

120/208 VAC Three wire plus Ground

Found at Service Entrances and

Meter Cabinets.

Line

Neutral/Grounded

WHITE

BLACK

120 V

208 V

120 V

Type 1 installation:

A typical installation of a type 1 SPD will be connected between the secondary of the service transformer and the line side of

the service panel. This installation is intended to be installed without overcurrent protection to the SPD.

Type 2 installation:

A typical installation of a type 2 SPD will be connected to the load side of the service panel and is intended to be installed with

overcurrent protection to the SPD.

1. Determining location:

• Ensure conductor lengths are as short and straight as possible for best performance. Do not coil excess wire. The SPD

functions best if all bends in wires are rounded, ideally to a 4” radius. Hard 90 degree bend will reduce efﬁciency. Cut

all leads to the correct length. Do not coil excess leads.

• Install appropriate weatherproof ﬁttings if the unit is to be mounted outside.

• Bracket part number AG1BRKT is also available if needed.

2. Connect wires as shown within diagrams. If your application does not match one of the diagrams below consult your

supplier.

3. Ensure all mounting and electrical connections are correct and securely fastened. Once energized the green indicator

LED will be ON.

Maintenance:

• AC Voltage SPD:

• Periodically check SPD to ensure green indicator LED is ON. If green LED is OFF, protection has diminished and the

SPD should be replaced immediately.

INSTALLATION INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS • SAVE THESE INSTRUCTIONS

Model AG2083C3

Type 1 or Type 2 Surge Protection Device (SPD)

120/208 VAC WYE 3 PHASE

• Disconnect power at the circuit breaker(s) or disconnect switch(es) before installing or servicing.

• Intended for indoor or outdoor use.

• Installation and/or wiring must be in accordance with national and local electrical code and/or Canadian Electrical Code requirements.

• Installation and service to be performed by a qualied licensed technician or electrician.

• Suitable for use on a circuit capable of delivering not more than 50,000 rms symmetrical amperes.

• This unit contains no serviceable parts.

WARNING

Risk of Fire or Electric Shock

NOTICE

• Thoroughly read instructions before installing SPD Unit.

• This product does not protect against lightning strikes.

• L’installation et/ou le câblage doivent être conformes aux exigences du code de l’électricité local en vigueur et/ou du Code canadien de l’électricité.
