Side 1/4
COMPLIANCE
This device complies with part 15 of the FCC. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC NOTE: The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to this equipment.
Such modifications could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
requirements, no change to the antenna or the device is permitted.
Any change to the antenna or the device could result in the device
exceeding the RF exposure requirements and void user ’s authority to
operate the device.
This Class B digital apparatus complies with ICES-005 of Canada.
WARNINGS/SAFETY
WARNING
Risk of Fire or Electric Shock
• Disconnect power at the circuit breaker(s) or disconnect
switch(es) before installing or servicing.
• Installation and/or wiring must be in accordance with national
and local electrical code requirements.
• Only use copper conductors rated 105° C minimum
• Battery is not user replaceable.
• Do NOT use timer to control devices that could have dangerous
consequences due to inaccurate timing, such assun lamps,
saunas, heaters, and crock pots.
• Class 2 connections shall be torqued to 4.5 lb-in.
NOTICE
Dispose of product per local regulations on the disposal of lithium
batteries.
Ratings
1
Operating Voltage 120-277 VAC, 50/60 Hz
Electronic Ballast/LED 5 A, 120-277 VAC, 50/60 Hz
Tungsten 5 A, 120-277 VAC, 50/60 Hz
MLV 450 VA, Minimum 5W, 120 VAC, 50/60 Hz
ELV 600W, 120 VAC, 50/60 Hz
Class 2 24 VDC, 135mA Total
Operating Temperature 0° to 55° C (32° to 131° F)
Dimensions 5.00” H x 4.21” W x 2.05” D (Including stem)
1
The ALC1-P is suitable for plenum use.
1
Type 1 action, operating control, PD2 pollution degree, Impulse voltage 4000V, Independantly mounted.
INSTALLATION
1. Turn off power to the controlling circuit.
2. Determine the electrical junction box that will be used for
mounting. (Standard or Deep 4” junction box is recommended).
3. Determine the proper ½” knockout to be used.
4. Remove the knockout from the electrical box.
5. Insert nipple with wire leads through the knockout opening.
6. Use provided locknut to secure the ALC1-P to the electrical box.
7. Tighten locknut accordingly to make sure ALC1-P is secured.
8. Connect wiring following the wiring diagrams provided below.
9. Turn power ON to the controlling circuit.
10. Verify the Green LED indicator activates and deactivates upon
press of the Power button.
Notes: For programming instructions please visit www.Intermatic.com.
The ARISTA
®
App is available on The App and Google Play stores.
(Search for ARISTA by Intermatic)
Bluetooth
®
wireless operations have a maximum range of 100’
This device communicates with other devices and should not be
installed in a metal enclosure.

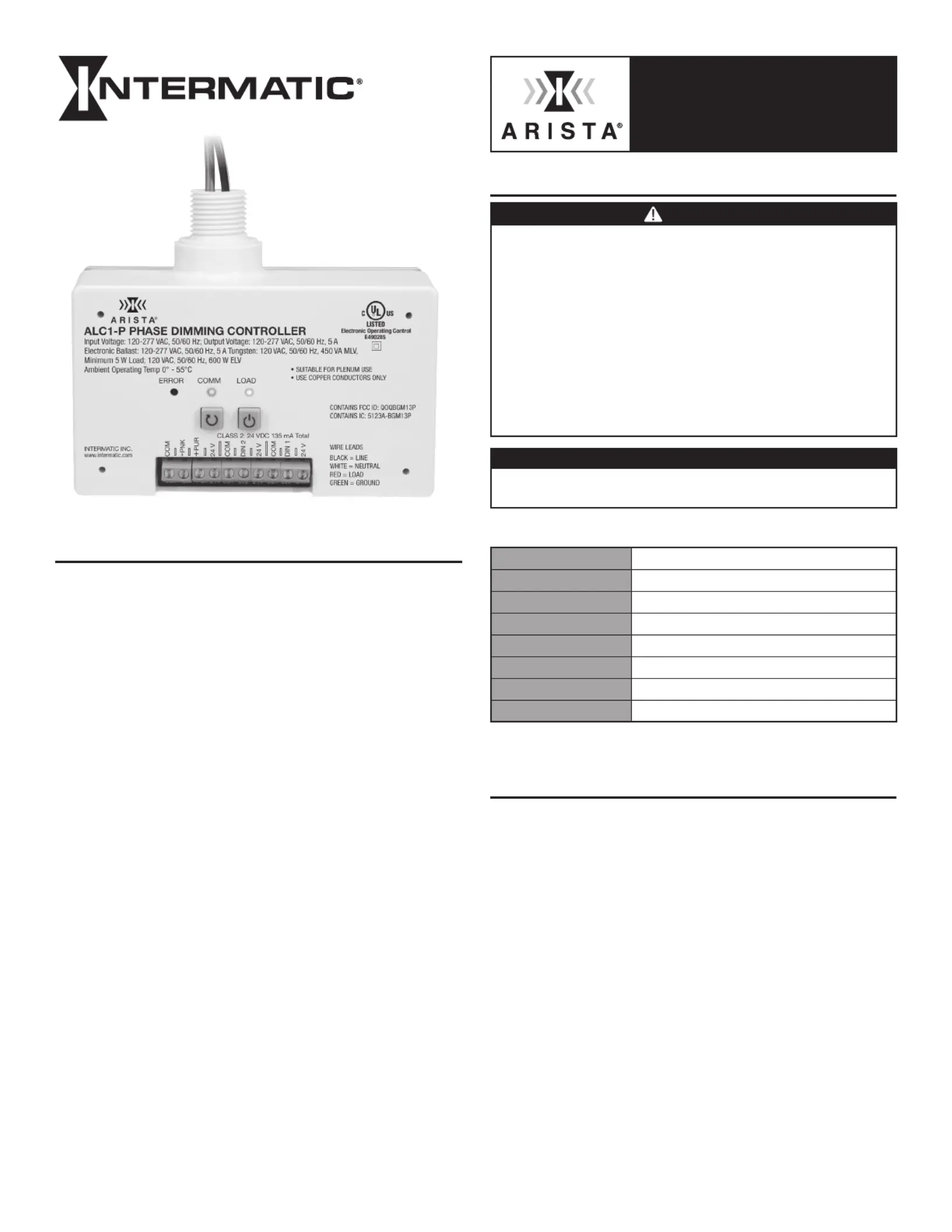

ALC1-P
Phase Dimming Controller
ALC1-P

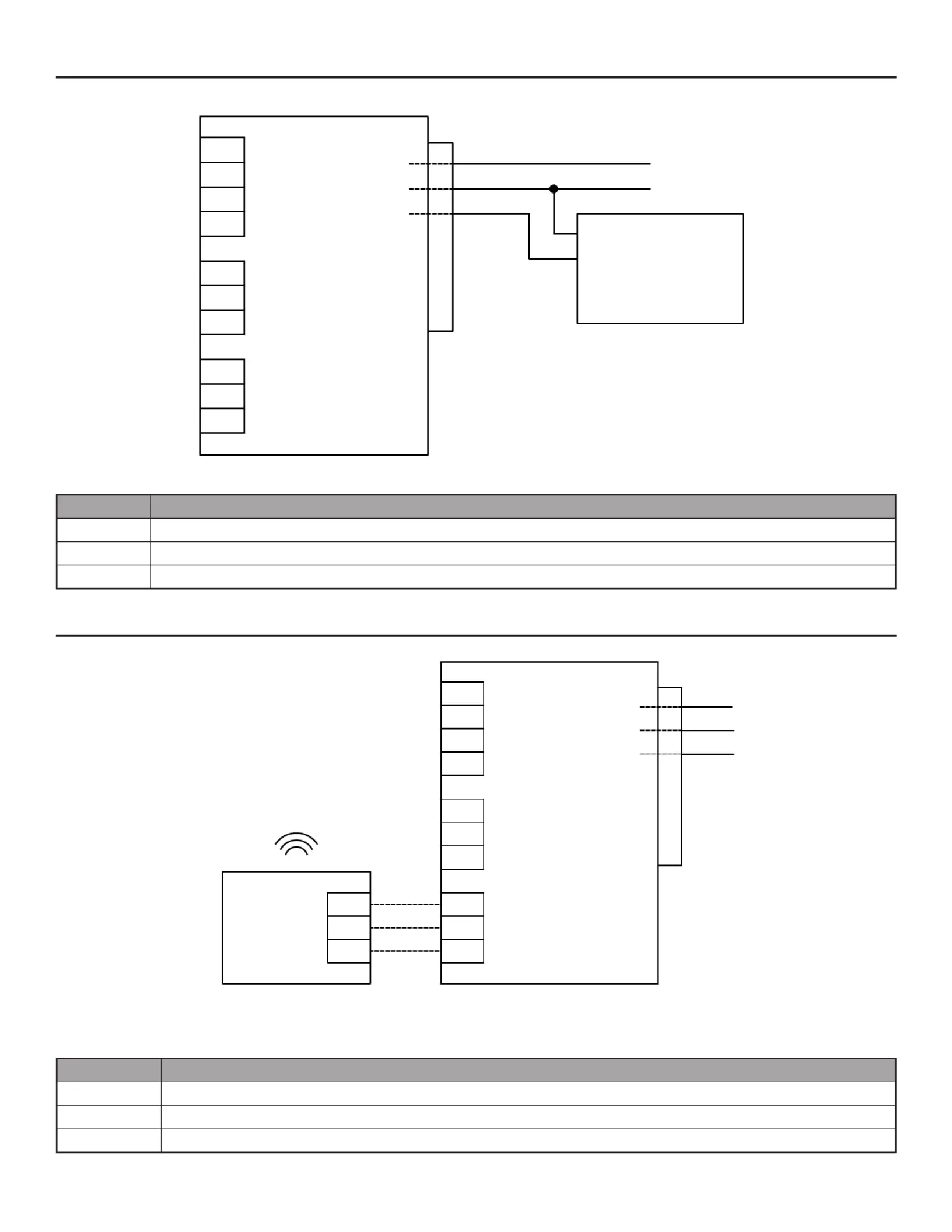

ALC1-P CLASS 1 WIRING DIAGRAM
Wire Description
Red Connects to black wire from load
White Connects to white (neutral) wire from load and power source
Black Connects to black (hot) wire from power source
BLK
WHT
RED
LINE
NEUTRAL
LOAD
COM
-PNK
+PUR
24 V
COM
DIN 2
24 V
COM
DIN 1
24 V
LIGHT INPUT
/ DIMMER
SWITCH /
OCC SENSOR
SWITCH /
OCC SENSOR
CLASS 2 WIRING
ARISTA OCCUPANCY/
VACANCY SENSORS
24 V
DO
COM
BLUETOOTH
Note: Communications can be done through the Bluetooth
®
mesh network or be wired when using 24 VDC.
Terminal Description
COM Connect to COM (Common) from switch/sensor
DIN1 or DIN2 Connect to DO (Digital Output) from switch/sensor
24 V Connect to 24 V (Power) from switch/sensor
Note: Maximum distance <= 200’ with a minimum wire size of 24 AWG; maximum wire size of 16 AWG.
ALC1-P DIGITAL INPUT WIRING DIAGRAM
BLK
WHT
RED
DIMMING
LIGHTING
LOAD
UNSWITCHED LINE
NEUTRAL
LINE
NEUTRAL
LOAD
COM
-PNK
+PUR
24 V
COM
DIN 2
24 V
COM
DIN 1
24 V
LIGHT INPUT
/ DIMMER
SWITCH /
OCC SENSOR
SWITCH /
OCC SENSOR
WHT
BLK
CLASS 2 WIRING
