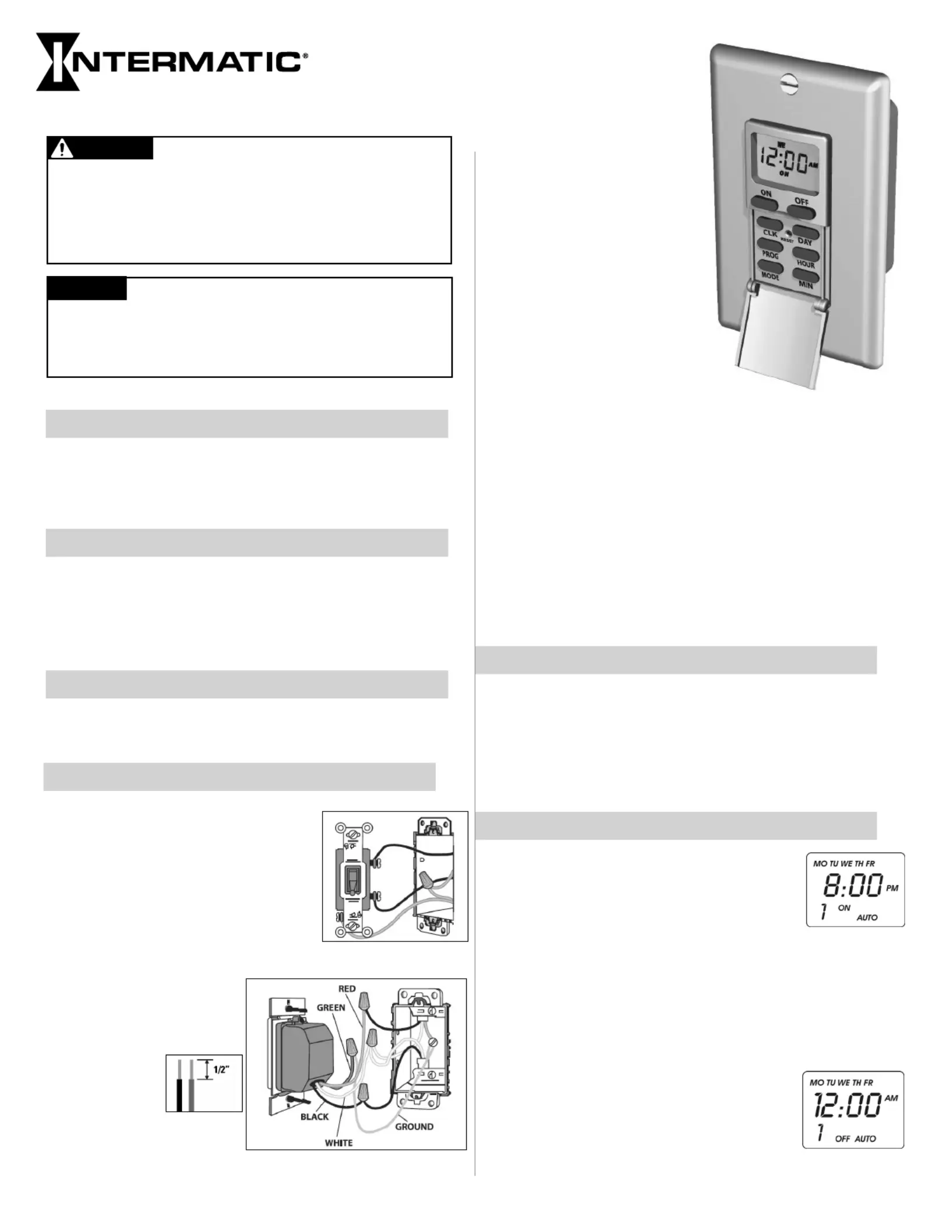

Electronic

7-Day

In-Wall

Time Switch

MODEL EI500 Series

1. Remove wall plate and disconnect

existing light switch.

2. Make sure both “hot” and

“neutral” wires are present in the

junction box. If both wires are not

present, additional wiring will be

necessary before installation can be

completed.

3. Connect red timer wire to wire from

ﬁxture using wire connector.

4. Connect black timer

wire to the “hot” (usually

black or red) wire in

junction box using wire

connector.

5. Cut white

wire in

j u n c t i o n

box (or

open splice) and strip

½” of insulation on both

wires.

Installation Instructions

• All Ratings 125 VAC, 60 Hz

• 15 A / 1875 W Resistive / Heater

• 15 A, General Purpose

• 8 A / 1000 W Tungsten

• 8 A / 1000 VA Inductive / STD Ballast

• 500 VA Electronic Ballast

• 1/4 HP Motor

Installation and User Instructions

• 7-Day Control Schedule

• Up to 7 ON and 7 OFF Events per day

• Works with multiple load types including: incandescent,

compact ﬂuorescent, HID, motors, and heaters

• Available in White, Ivory, and Light Almond

Ratings

Features

• Black = Line

• White = Neutral

• Red = Load

• Green = Ground

Leads

6. Connect white timer wire to white wires in junction box

using wire connector.

7. If the wall switch you are replacing had separate grounding

conductors connected to the GREEN screw on the switch,

make sure to connect these to the green wire from the timer

with a wire connector.

8. Check that all wire connections are secure.

9. Place all wires inside junction box.

10. Fit timer into junction box and install using two (2) mounting

screws (furnished).

11. Reconnect the electrical power.

Setting the Clock

1. Press and the (Clock) button.HOLD CLK

2. Press the button until the display shows the current day.DAY

3. Press the HOUR button until the display shows the current

hour.

4. Press the MIN (Minute) button until the display shows the

current minute.

Setting Programs

1. Press the (Program) button once. ThePROG

display will look as shown at the right.

You will now set up the time in which you

want your device turned ON.

The number 1 in the lower left hand corner

indicates that you are now programming

EVENT 1.

2. Press the button repeatedly until the display shows theDAY

day(s) when you want the timer to turn on. The options are:

- All days of the week (MO TU WE TH FR SA SU)

- Individual days of the week (MO etc.)

- Weekdays only (MO TU WE TH FR)

- Weekends only (SA SU)

3. Press the and (Minute) buttonsHOUR MIN

to set the time when you want the timer to

turn on.

4. Press the (Program) button again. ThePROG

display reads as shown at the right.

• Disconnect power at the circuit breaker(s) or disconnect

switch(es) before installing or servicing.

• Installation and/or wiring must be in accordance with national and

local electrical code requirements.

• Use COPPER conductors ONLY.

WARNING Risk of Fire or Electric Shock

• No user-serviceable parts.

• The internal battery requires up to 30 minutes to charge. If the

battery is not charged and power is lost, schedule information

may have to be re-conﬁgured.

NOTICE

Reviewing Events Programmed

1. In the current time display, press the (Program) button PROG

repeatedly to check your settings.

2. When ﬁnished, press the CLK (Clock) button to return the

display to the time of day.

LIMITED ONE-YEAR WARRANTY

If within the warranty period specied, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace it, at its

sole option, free of charge. This warranty is extended to the original household purchaser only and is not transferable. This warranty does not apply to: (a)

damage to units caused by accident, dropping or abuse in handling, acts of God or any negligent use; (b) units which have been subject to unauthorized

repair, opened, taken apart or otherwise modied; (c) units not used in accordance with instructions; (d) damages exceeding the cost of the product; (e)

sealed lamps and/or lamp bulbs, LED’s and batteries; (f) the nish on any portion of the product,such as surface and/or weathering, as this is considered

normal wear and tear; (g) transit damage, initial installation costs, removal costs, or reinstallation costs.

INTERMATIC INCORPORATED WILL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF

INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS OR

IMPLIED WARRANTIES. ALL IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY AND THE WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE

HEREBY MODIFIED TO EXIST ONLY AS CONTAINED IN THIS LIMITED WARRANTY, AND SHALL BE OF THE SAME DURATION AS THE WARRANTY PERIOD STATED ABOVE. SOME

STATES DO NOT ALLOW LIMITATIONS ON THE DURATION OF AN IMPLIED WARRANTY, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

This warranty service is available by either (a) returning the product to the dealer from whom the unit was purchased or (b) completing a warranty claim

online at www.intermatic.com.

This warranty is made by: Intermatic Incorporated, Customer Service 7777 Winn Rd., Spring Grove, Illinois 60081-9698. For warranty service go to:

http://www.Intermatic.com or call 815-675-7000.

INTERMATIC INCORPORATED, SPRING GROVE, ILLINOIS 60081-9698

5. Repeat Steps 2-3 to set the OFF time for Event 1.

• You can repeat the ON and OFF programming procedures

outlined above for up to 7 events, as needed.

• Do not set ON / OFF events within 30 minutes or less from

one another if you are going to use the timer in the Random

Mode. The Random Mode interval is ± 30 minutes from the

programmed times, and programs set too close together

may overlap one another.

6. When programming is complete, press the (Clock) CLK

button to display the current time.

Clearing (Deleting) an Event

1. Press the PROG (Program) button as many times as necessary

to locate the setting you want to clear.

2. Press and hold the button.MODE

3. Press the button to clear the setting.PROG

4. When ﬁnished, press the CLK (Clock) button to return the

display to the time of day.

Operating the Time Switch

Press the button repeatedly to set the timer to Automatic, MODE

Random or Manual mode.

NOTE: For the time switch to run programmed events, it

must be set to “AUTO” or “RDM” (Random) mode.

NOTE: After setting events, the timer may turn on the load if

you press the button. MODE

• AUTO — runs all events automatically, according to the

schedule you have set. The word “AUTO” appears in the

display.

• RDM (Random) — runs all events in a RANDOM mode. This

is a security feature in which ON and OFF times randomly

differ ± 30 minutes from the programmed times, creating a

more “lived-in” look. The word “RDM” appears in the display.

• MANUAL — turns ON and OFF only when the user presses

the ON or OFF button. The display is blank, showing neither

RDM or AUTO.

Overriding Timer Settings

The ON or OFF buttons override the current programmed events.

To override the current program (either ON or OFF), press the

ON OFF or button.

NOTE: If the timer is not in “Manual” mode, it will obey the

next programmed event. This allows the user to manually

turn a light on and allow the program to shut the light back

off at a preset time.

Resetting the Timer

In case of an operational failure of the timer, press the RESET

button to clear all settings and restart.

Printed in China
