Side 1/2
8. The hours digit of the
current day’s DAWN time
flashes on the display.
• Press + or - to adjust the
hour, as necessary.
• Press ON/OFF to confirm
and advance to the DAWN
minutes digit.
• Press + or - to adjust the minutes, as
necessary
• Press ON/OFF to confirm and advance to the
DUSK hours digit.
• Use the same process for setting the DAWN
time to set the time for DUSK.
Note: Locate the current day’s dusk and dawn times in a
local paper or online. You may deliberately adjust
DUSK and/or DAWN settings up to +/- 120 minutes,
if desired, to cause Astronomic events to always
occur a predictable amount of time before or after the
actual dusk or dawn.
9. The timer loops to the beginning of the SETUP
mode.
• Press ON/OFF repeatedly to review/revise your
settings, or press MODE to exit SETUP.
Programming Events
Note: Program ON and OFF events as separate events.
1. Press MODE until PGM
appears on the display.
2. Press ON/OFF to confirm. An
event number flashes on the
display.
Note: If this is the first event,
you will see 01.
3. Press ON/OFF to confirm the
event number. An event type
flashes on the display.
4. Use + to select the event type.
• ON - sets an ON event
• SKIP - stops the event
• OFF - sets an OFF event
5. Press ON/OFF to confirm. An
event time type flashes on the display.
6. Use + to select a time type.
• DAWN
• DUSK
• Fixed Time
Note: To set a Fixed Time, press ON/OFF, then + or - to
adjust the hour. Press ON/OFF. Use the same
process to set minutes.
7. Press ON/OFF to confirm. A day selection flashes
on the display.

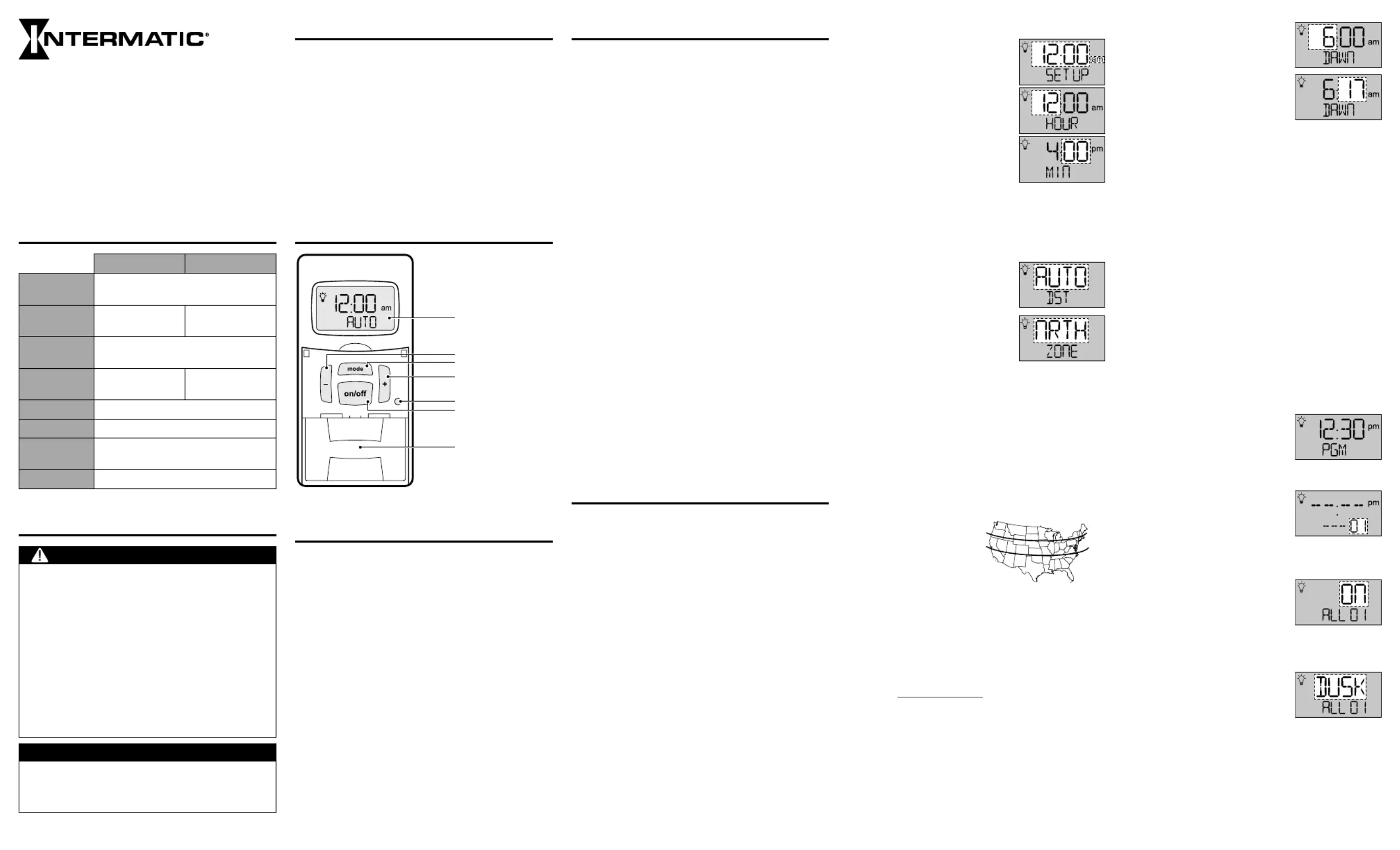

ST01/ST01K/EI600
In-Wall Timer with Astro Feature
Installation and User Guide
RATINGS
ST01/ST01K EI600
Operating
Voltage 120-277 VAC, 50/60 Hz
Resistive
(heater) 15 A, 120-277 VAC 20 A, 120-277 VAC
Tungsten
(incandescent) 15 A, 120 VAC; 6 A, 208-277 VAC
Ballast
(fluorescent)
8 A, 120 VAC;
4 A, 208-277 VAC 16 A, 120-277 VAC
Motors 1 HP, 120 VAC; 2 HP, 240 VAC
DC Loads 4 A, 12 VDC; 2 A, 28 VDC
Operating
Temperature 32° F to 104° F (0° C to 40° C)
Dimensions 4 1⁄8” H x 1 3⁄4” W x 1 13⁄16” D
SAFETY SECTION
WARNING
Risk of Fire or Electric Shock
• Disconnect power at the circuit breaker(s) or disconnect
switch(es) before installing or servicing (including replacing the
battery).
• Installation and/or wiring must be in accordance with national
and local electrical code requirements.
• Use COPPER conductors ONLY.
• Do Not recharge, disassemble, heat above 212° F (100° C),
crush, or incinerate the Lithium battery. Keep out of reach of
children.
• Replace battery with Type CR2 only that is certified by
Underwriters Laboratories (UL).
• Do NOT use timer to control devices that could have dangerous
consequences due to inaccurate timing, such as: sun lamps,
saunas, heaters, slow cookers, etc.
NOTICE
• Risk of timer damage due to leakage if weak battery is not
replaced promptly.
• Dispose of product per local regulations for disposal of Lithium
batteries.
Spring Grove, Illinois 60081
www.intermatic.com
PRODUCT DESCRIPTION
The ST01 Series and EI600 Series In-Wall Timers
give you versatility in a simple to install, 24/7
programmable package. These timers allow you to
customize your timer schedule with automatic dusk/
dawn, random, and Daylight Saving Time (DST)
programming options for up to 40 ON/OFF events.
The ST01 Series and EI600 Series are incandescent/
fluorescent/CFL/LED compatible. In addition, these
timers can handle any load type and require no
neutral wire connection, making them ideal for any
application, regardless of complexity.
TIMER INTERFACE
Display
Mode button
On/Off button
– button (Decrease)
+ button (Increase)
Reset button
Access door to
battery tray
PRE-INSTALLATION
Before mounting the timer in the wall, install the
supplied battery.
1. Gently pry open the access door, located below
ON/OFF, and remove the battery tray from the
timer.
2. Place the supplied CR2 battery into the battery
tray, matching the battery and markings to + –
the and markings on the tray, then place the + –
battery tray back in the timer.
3. The display initializes, then flashes 12:00 am in
manual mode.
4. Press ON/OFF. The timer “clicks” to confirm it is
ready for programming.
Note: If the display doesn’t flash 12:00 am, check/replace
the battery before proceeding.
NOTES
Read these notes before continuing with the timer
installation and programming process.
• The timer is battery-powered and does not need
AC power for initial setup and programming. For
new installations, it is recommended that you setup
and program your timer before installing it.
• The battery controls the ON/OFF function (“click-
ing” sound) and maintains the time and date. The
screen flashes BATT when the battery strength is
low. When replacing the battery, disconnect AC
power. You will have a few minutes to insert new
batteries before the date and time settings are lost.
All other settings will remain in memory, without
battery or AC power.
• Each ON or OFF setting is an event. Each event
must be programmed separately.
• The MODE menu includes SETUP, PGM (program),
AUTO (automatic), RAND (random), and MAN
(manual). AUTO and RAND modes do not appear
on the menu options until the time of day is set and
at least one ON or OFF event is programmed.
• All menus loop (repeat options when you get to the
end of the menu). When in a specific Mode, press
ON/OFF to loop within that Mode.
• When using the or buttons to change a flashing + –
setting, hold the button to make the numbers scroll
faster.
• When advancing to the next setting, the timer au-
tomatically saves the data from the previous screen
whether you changed a setting or not. All settings
save automatically after five minutes.
PROGRAMMING
Follow these steps for initial setup and programming
of the ST01 Series and EI600 Series timers.
Clear All Existing Settings
When first setting the timer, it is recommended that
any existing settings be cleared.
1. Press and hold ON/OFF button.
2. Using a paper clip or pen, press and release
the RESET button. The timer displays INIT after
approximately five seconds.
3. Release the ON/OFF button. All previous settings
are removed.
Initial Setup
1. Press MODE until SETUP
appears on the display.
2. Press ON/OFF to advance to
the next menu item (HOUR).
3. Press + or - to adjust the
flashing menuitem (HOUR).
4. Press ON/OFF to advance to
the next menu item (MINUTES).
5. Repeat steps 3 & 4 to set the
MINUTES, YEAR, MONTH,
andDATE.
Note: After setting the DATE, thecurrent day of the week
flashes. Verify the DAY. If wrong, press + or - to review
and adjust the YEAR, MONTH, and DAY. Press ON/
OFF to confirm.
6. The DST selections (AUTO
or MAN) flash on the display.
• Press + to change the
selection.
–Select AUTO if your
location observes DST.
–Select MAN to disable
automatic DST
adjustment.
• Press ON/OFF to confirm and advance to
ZONE selection.
Note: The remaining settings for initial setup (ZONE, DAWN,
and DUSK settings) are only used for regulating
Astronomic events. There is no need to adjust these
settings if you are not scheduling an Astronomic
event.
7. The ZONE selections* (CENT, SOU, or NRTH)
flash on the display.
• Press + to change the
selection to match
your location on the
map.
• Press ON/OFF to
confirm and advance
to DAWN/DUSK selection.
Note: Astronomic adjustment on this product is designed
for the continental United States. Astronomic
schedules are not recommended for locations
substantially beyond the continental US borders,
including Alaska. For southern Canada, select “NRTH”
zone. For northern Mexico, select “SOU” zone. Please
visit www.intermatic.com for other timer models
offering expanded Astronomic geographic coverage.
NORT
H
CENTRA
L
SOUTH
158--01934
8. Use + to select the days
the event runs.
• ALL - all seven days of the
week
• M-F - Monday through Friday
• WKD - Saturday and Sunday
• Individual day - select: SUN, MON, TUE, WED,
THU, FRI, or SAT
9. Press ON/OFF to confirm. The display reads
SAVE, then flashes the event number to indicate
the event is saved.
Note: To continue programming events, use + to advance to
the next event number, then repeat steps 3 through 9.
Selecting Operating Modes
AUTO Timer operates per your programmed
schedule of ON/OFF events.
RAND Timer operates your schedule at +/- 15
minutes from the programmed time.
MAN Operates like a manual ON/OFF switch,
disregards any programmed events.
Note: To set the timer to recognize your programmed
events, press MODE to scroll to AUTO or RAND only.
Reviewing/Changing Clock Time,
Calendar, or Astronomic Settings
Repeat the steps under “Initial Setup” to review and
make setting changes, as needed.
Changing Events
1. Press MODE until PGM
appears on the display.
2. Press ON/OFF to confirm.
Anevent number flashes.
Use+ tofind the correct
eventnumber.
3. Press ON/OFF to confirm.
• To change the ON/OFF
status of an event, use
+ to select the event type.
–ON - sets a previously
OFF event to ON
–SKIP - suppresses the selected event so it
is not initiated by the timer. This is helpful for
unusual programming needs, like vacation
settings.
–OFF - sets a previously ON event to OFF
• To update an existing setting, press ON/OFF
until the setting to be updated displays.
–Press + to adjust the setting.
4. Press ON/OFF to cycle through the program until
the display reads SAVE.
5. Press MODE to exit the programming menu.
INSTALLATION
1. Disconnect the power at the service panel.
2. Remove wall switches, if applicable.
3.
7/16"
Strip the existing wire ends
to7/16".
4. Wire the timer into the wall box.
An example of single-pole and three-way wiring
follow. For other three-way wiring scenarios, go
towww.intermatic.com.
Single-Pole Wiring
Line Wi Are
Wi Dre
Wi Bre
Wi Cre
Neutral Load
Timer
ABlack — Connects to the hot (black) wire from the
Power Source
BBlue — Connects to the other wire (black) from the
load
CRed — This wire is not used in single-switch
installations. Capwith a twist connector
DGreen — Connects to the supplied ground
Three-Way Wiring
Note: The distance between the timer and the remote
switch must not exceed 100 feet.
The wiring shown is for a timer replacing a three-way
switch at the line side. For other installations, visit
www.intermatic.com or consult a qualified electrician.
Wi Ere
Line Wi Are
Wi Dre
Wi Bre
Wi Cre
Neutral Load
Timer 3-Way
Switch
ABlack — Connect to the wire removed from the
“COMMON” terminal of the switch being
replaced
BBlue — Connect to one of the other wires removed
from the switch being replaced. Record the
wire color connected to the blue wire for use
during load-side installation
CRed — Connect to the remaining wire removed from
the switch being replaced. Record the wire
color connected to the red wire for use during
load-side installation
DGreen — Connect to the supplied ground
EJumper Wire — At the other three-way switch, install
the supplied jumper wire between
wire B and the common terminal
Finalizing Installation
1. Make sure the provided twist-on wire connectors
are secure, then tuck the wires into the timer wall
box, leaving room for the timer.
2. Using the provided screws, secure the timer to
the wall box.
3. Cover the timer with the wall plate and secure
using the provided screws.
4. For three-way wiring, install the remote switch in
wall box. Cover the switch with the wall plate and
secure.
5. Reconnect the power at the service panel.
TESTING THE TIMER
Make sure the timer displays MAN MODE during
testing.
Single-Pole Wiring Test
To test the timer, press ON/OFF several times. The
timer should “click” and the controlled light or device
(load) should turn ON or OFF.
Three-Way Wiring Test
1. To test the timer, test with the remote switch in
each of its two positions.
2. Press ON/OFF several times. The timer should
“click” and the controlled light or device (load)
should turn ON or OFF.
3. If the timer clicks, but the load does not operate:
a. Disconnect the power at the service panel.
b. Re-check your wiring and make sure the load
is functional.
c. Reconnect the power at the service panel.
d. Retest.
4. If the timer clicks, but the load only operates
when the remote switch is in one of its two
positions, repeat Step 3, a-d, but interchange the
two traveler wires (wires between the timer and
the remote three-way switch) connected to the
red and blue timer wires.
Note: Consult a qualified electrician if the switch and timer
fail to operate as intended.
5. When the timer “clicks” and the controlled
device turns ON and OFF as appropriate,
congratulations, the timer is successfully installed!
Enjoy your new timer!
TROUBLESHOOTING
Observed Problem Possible Cause What To Do
Timer display is
blank and the timer
does not “click”
when the ON/OFF
button is pushed.
Battery is missing,
has no charge, or was
installed incorrectly.
Attempt to
reinsert the
battery. If the
problem persists,
insert a fresh
battery.
Timer does not
switch ON/OFF
but display looks
normal.
Timer is not set in
AUTO, RAND, or MAN
mode.
Press MODE
to select the
operational
mode you want
to use.
Timer resets to
12:00.
Timer is installed in
conjunction with a
contactor or motor
load.
Install a line
filter.
Timer won’t enter
Auto or Random
mode when you
press Mode.
No schedule is
selected.
Define a
schedule of
events.
Timer switches
at incorrect times
or skips some of
the programmed
times.
The active schedule
has a conflicting
setting.
Review the
settings and
revise them as
necessary.
Timer is in Random
mode, which varies
switching times up to
+/-15 minutes.
Select the Auto
Mode.
The Astronomic and
Defined switching
times are in conflict,
your DST may or may
not be turned on, and/
or your Astronomic
Zone is not set to
Center, North, or
South.
Note: Your timer
automatically skips
any conflicting ON
event as summer
approaches to prevent
unwanted operation
of lights or other
controlled devices.
Review your
program settings
and revise them
as necessary.
Switching inductive
loads, such as
electrical contactor or
motor load.
Add a noise
filter e.g., ET-NF.
Connect filter
across load’s
coil.
Load only operates
when the remote
(three-way) switch
is in one position or
the timer ignores
the remote switch.
The remote switch is
wired incorrectly.
Recheck the
wiring,
especially for the
jumper.
TROUBLESHOOTING (CONT.)
Observed Problem Possible Cause What To Do
The timer ignores a
three-way remote
switch even though
it is wired correctly
or the load turns
off immediately
after being turned
ON.
• The remote switch
or timer is wired
wrong.
• There is an
excessive length of
wire (greater than
100 feet).
• There is buried
wire to the remote
switch.
• The remote switch
is not functioning
properly or worn out.
Contact a
qualified
electrician.
The battery tray is
difficult to replace.
Battery is not seated
in the tray.
• The tray is
misaligned.
• The contact tabs of
the tray are bent
Seat the battery
in the tray, then
reinstall.
The timer operation
is sluggish or not
switching
ON/OFF at all.
Though the “BATT”
message is not being
displayed, the battery
is getting weak.
Replace the
battery. To test
the battery,
press the ON/
OFF button. The
timer should
“click.”
Timer shows ON
but the light or
other controlled
device is OFF.
The light or controlled
device itself may be
switched OFF.
Make sure
the light or
controlled device
is switched ON
and plugged in.
Note: When installing a timer with either a contactor or
motor load, a line filter is recommended.
LIMITED WARRANTY
For detailed warranty information, refer to the
Intermatic website at www.intermatic.com, contact
Intermatic by mail at Intermatic Incorporated
Customer Service / 7777 Winn Rd., Spring Grove,
Illinois 60081–9698, or by phone at: 815-675-7000.

Produkt Specifikationer

Mærke: Intermatic
Kategori: Ikke kategoriseret
Model: EI600

Har du brug for hjælp?

Hvis du har brug for hjælp til Intermatic EI600 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Ikke kategoriseret Intermatic Manualer

Intermatic

Intermatic K121 Manual

8 Juni 2025
Intermatic

Intermatic EK4227S Manual

8 Juni 2025
Intermatic

Intermatic IG1240RC3 Manual

8 Juni 2025
Intermatic

Intermatic LC4523 Manual

8 Juni 2025
Intermatic

Intermatic IG3240RC3 Manual

8 Juni 2025
Intermatic

Intermatic IG2280 Manual

8 Juni 2025
Intermatic

Intermatic KPT0170 Manual

8 Juni 2025
Intermatic

Intermatic EK4135S Manual

8 Juni 2025
Intermatic

Intermatic EK4336S Manual

8 Juni 2025
Intermatic

Intermatic EK4127S Manual

7 Juni 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Vulcan

Vulcan 1024W Manual

15 Juni 2025
Backyard Pro

Backyard Pro 554PL2030 Manual

15 Juni 2025
Haier

Haier 1U18TE2HDA Manual

15 Juni 2025
AEG

AEG EWKEXT1 Manual

15 Juni 2025
Planet

Planet XGPN-400AXV Manual

15 Juni 2025
Cadac

Cadac 3 Cook Turbo Manual

15 Juni 2025
Bobrick

Bobrick B-3944 Manual

15 Juni 2025
Sony

Sony SZC-4008 Manual

15 Juni 2025
Watts

Watts ETX-15 Manual

15 Juni 2025
Sigma

Sigma REMOTE ONE Manual

15 Juni 2025
