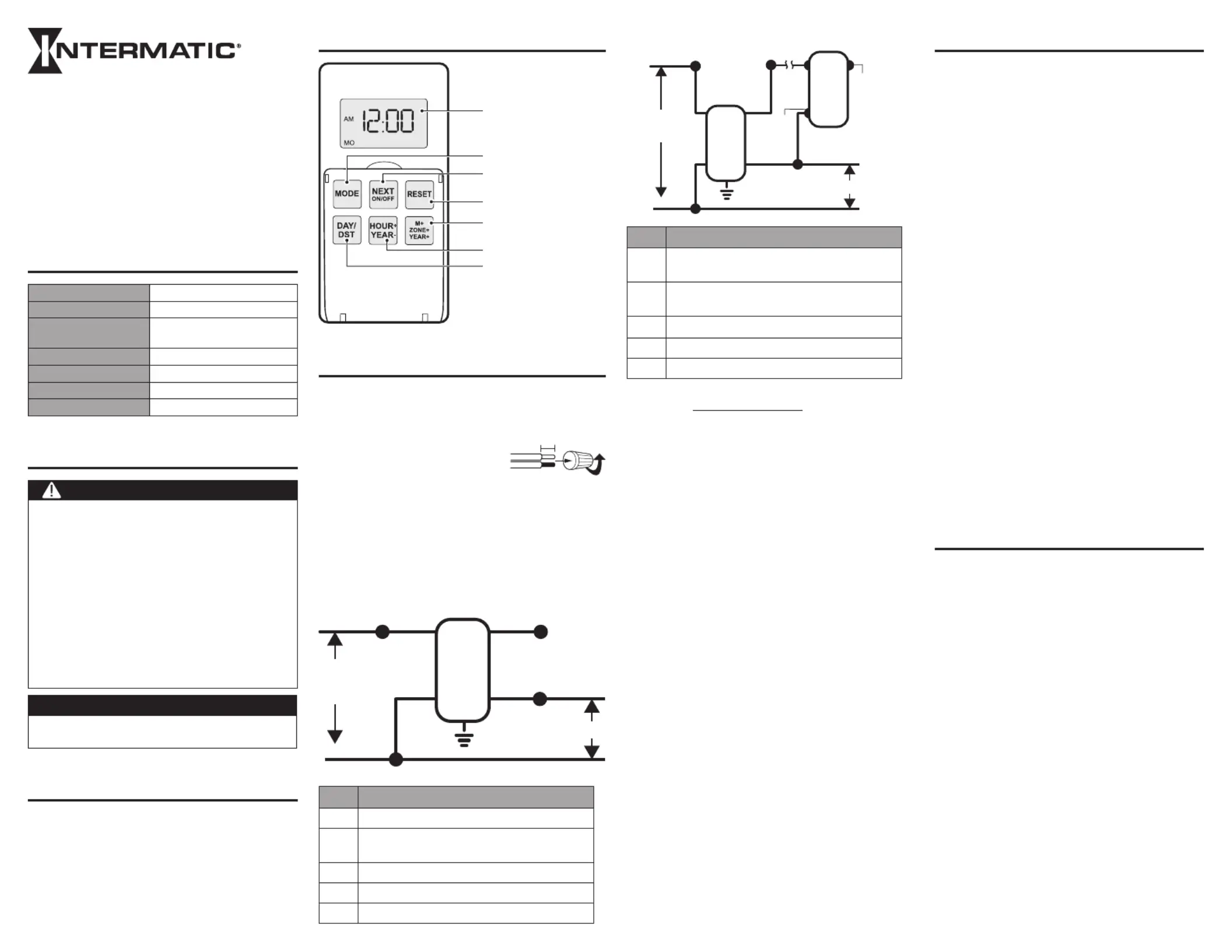

EJ600 Series
Digital In-Wall Astronomic Timer
Installation and User Guide
RATINGS
Operating Voltage
120 VAC, 60 Hz
Resistive
12 A
Incandescent
12 A (Multi-gang)
Ballast (uorescent)
500 VA
Motor
1/2 HP
Operating Temperature
32° F to 104° F (0° C to 40° C)
Dimensions
4 1⁄8” H x 1 3⁄4” W x 1 7⁄16” D
SAFETY SECTION
WARNING
Risk of Fire or Electric Shock
• Disconnect power at the circuit breaker(s) or disconnect
switch(es) before installing or servicing.
• Installation and/or wiring must be in accordance with
national and local electrical code requirements.
• Do not replace, recharge, disassemble, heat above 212° F
(100° C), crush, or incinerate the Lithium battery. Keep out
of reach of children.
• Do not use timer to control devices that could have
dangerous consequences due to inaccurate timing, such
as: sun lamps, saunas, heaters, slow cookers, appliances,
radios, televisions, stereos, etc.
• Only suitable for up to 3-gang installations.
NOTICE
• Dispose of product per local regulations for disposal of
Lithium batteries.
PRODUCT DESCRIPTION
The EJ600 Series In-Wall Timers provide
schedule customization with automatic dusk/
dawn, random, and Daylight Saving Time (DST)
programming options for up to 14 ON/OFF
events. The EJ600 Series are incandescent/
fluorescent compatible and have a built-in
rechargeable, non-serviceable battery backup.
Libertyville Illinois 60048
www.intermatic.com
TIMER INTERFACE
Display
NEXT/ON/OFF button
HOUR+/YEAR– button
MODE button
RESET button
M+/ZONE+/YEAR+ button
DAY/DST button
INSTALLATION
1. Disconnect the power at the circuit breaker(s) or
disconnect switch(es).
2. Remove wall switches, if applicable.
3. Strip the existing wire ends
to7/16”.
4. Wire the timer into the wall box.
• For an example of single-pole wiring,refer to
“Single-Pole Wiring”.
• For an example of three-way wiring, refer to
“Three-Way Wiring”.
• For other three-way wiring scenarios, go
towww.intermatic.com.
Single-Pole Wiring
120 V
Power
Source
White
Black
Blue
Green
Red
Neutral
Line
Timer
Load
Wire Description
Blue Connects to black wire from Load
White Connects to white (neutral) wire from Load and Power
Source
Black Connects to black (hot) wire from Power Source
Green Connects to ground
Red Not used in single-pole installations
7/16"
Three-Way Wiring
120 V
Power
Source
White
Black
Blue
Green
Red
Neutral
Line
Timer
Existing
Remote
Switch
Common
Terminal
No Longe
r
Used
Load
100 ft.
MAX
Black
Wire Description
Blue Connects to black wire from Load and common
terminal of remote switch
White Connects to white (neutral) wire from Load and Power
Source
Black Connects to black (hot) wire from Power Source
Green Connects to ground
Red Connects through remote switch to blue (Load) wire
Note: For other three-way wiring scenarios,
go to www.Intermatic.com
Notes:
• Connect the timer on the line-side.
• Consult a qualified electrician:
–If you have trouble differentiating the wiring
colors for the building.
–When using a single-pole switch at the
remote location for new construction or to
replace a dimmer switch, a lighted switch,
or a three-way switch without screw
terminals.
Finalizing Installation
1. Make sure the twist-on wire connectors
(provided) are secure, then tuck the wires into the
timer wall box, leaving room for the timer.
2. Using the provided screws, secure the timer to
the wall box.
3. Cover the timer with the wall plate and secure
using the provided screws.
4. For three-way wiring, install the remote switch in
a wall box. Cover the switch with the wall plate
and secure.
5. Reconnect the power at the circuit breaker(s) or
disconnect switch(es).
TESTING THE TIMER
1. Make sure the timer displays MAN mode
during testing.
2. For three-way wiring, test the remote switch in
each of its two positions by pressing ON/OFF
several times. The timer should “click” and the
controlled light or device (load) should turn ON
or OFF.
3. For three-way wiring, if the timer clicks, but
the load does not operate:
a. Disconnect the power at the circuit
breaker(s) or disconnect switch(es).
b. Re-check your wiring and make sure
the load is functional.
c. Reconnect power at the circuit
breaker(s) or disconnect switch(es).
d. Retest.
4. For three-way wiring, if the timer clicks, but
the load only operates when the remote
switch is in one of its two positions, repeat
Step 3, a-d, paying close attention to the
wiring that connects with the red and blue
wires of the timer.
Note: Consult a qualified electrician if the switch
and timer fail to operate as intended.
When the controlled device turns ON and OFF
as appropriate, congratulations, the timer is
successfully installed and ready for programming!
NOTES
Read these notes before continuing with the timer
programming process.
• Your timer contains a built-in, non-replaceable,
rechargeable battery to maintain the date and
time of day information for at least 4 consec-
utive days of AC power interruption. All other
user settings are maintained indefinitely without
AC power. The built-in battery will fully charge
within a day of connection to AC power. After
an extended power outage, if the display is
flashing “12:00 AM”, you will need to re-enter
the calendar, time, and day information.
• The CAL and CLK settings must be pro-
grammed before ON or OFF events can be set.
• Each ON or OFF setting is an event. Each event
must be programmed separately.
• All menus loop (repeat options when you get to
the end of the menu).
• When advancing to the next setting, the timer
automatically saves the data from the previous
screen regardless of setting changes. All set-
tings save automatically after five minutes.
158--02287REF
8.
Press NEXT/ON/OFF. The
sunrise hour displays.
• To offset the hour, press
HOUR+/YEAR-.
• To offset the minutes, press
M+/ZONE+/YEAR+.
9. Press NEXT/ON/OFF to
confirm the sunrise time.
Use the same process when
adjusting the time for DUSK.
Setting the Time of Day
1. Press MODE until CLK displays on the screen.
• To set the hour, press
HOUR+/YEAR-.
• To set the minutes, press
M+/ZONE+/YEAR+.
Programming Events
1. Press MODE until PGM
appears on the display.
2. Press DAY/DST to select the
time for an ON event:
•
Fixed Time (HH:MM,
e.g., 12:00 a.m.)
• SNST (sunset)
Note: Events are automatically
scheduled to occur daily.
3. Customize occurrence as desired:
a. Select individual days:
• Press DAY/DST to cycle through the options
until the desired day(s) appear.
• Press NEXT/ON/OFF to confirm your selection
and advance to setting an OFF event.
b. Set a fixed time:
• Press HOUR+/YEAR- to change the hour
• Press M+/ZONE+/YEAR+ to change the
minutes.
• Press NEXT/ON/OFF to confirm your selection
and advance to setting an OFF event.
4. Press DAY/DST to select the time for an OFF
event:
• SNUP (sunup)
• Fixed Time (HH:MM,
e.g., 12:00 a.m.)
Note: Events are automatically
scheduled to occur daily.
5. Repeat Step 3 to customize the OFF event, as
desired.
6. Press NEXT/ON/OFF to continue programming
ON and OFF events.
7. Press MODE to exit the programming menu. The
display shows AUTO mode and the current time.
Setting a Mode
AUTO
Timer operates per your programmed schedule of
ON/OFF events.
RAND
Timer varies your programmed schedule +/- 20
minutes from the programmed time.
MAN
Operates like a manual ON/OFF switch, disregards
any programmed events.
Changing Events
1.
Press MODE until PGM
appears on the display.
2. Press NEXT/ON/OFF to view/
select ON events (ON 1-7) or
OFF events (OFF 1-7).
3. Update events using the steps
outlined in the “Programming
Events” section.
TROUBLESHOOTING
Observed Problem Possible Cause What To Do
Timer does not
switch ON/OFF
but display looks
normal.
Timer is not set in AUTO, RAND,
or MAN mode.
Press MODE
to select the
operational mode
you want to use.
Timer is blank until
a button is pushed
and the display
changes between
ON and OFF when
the door is pressed,
but the light stays
OFF or flickers.
There may be no power (fuse or
circuit breaker blown)
Make sure the
fuse is not blown
and that the circuit
breaker is on.
Replace the fuse, if
necessary.
The timer may have a loose wire
connection.
Contact a qualified
electrician.
The light may have burned
out bulbs.
Confirm the bulbs
are functional.
Replace bulbs, as
necessary.
Timer resets to
12:00.
Timer is installed in conjunction
with a contactor or motor load.
Install a line filter.
Timer won’t enter
Auto or Random
mode when you
press Mode.
The time of day and/or event
times are not programmed.
Review your
program settings
and revise them as
necessary.
Timer switches at
incorrect times or
skips some of the
programmed times.
The active schedule has a
conflicting setting.
Review the settings
and revise them as
necessary.
Timer is in Random mode, which
varies switching times up to
+/-15 minutes.
Select the Auto
Mode.
The Astronomic and Defined
switching times are in conflict,
your DST may or may not
be turned on, and/or your
Astronomic Zone is not set to
Center, North, or South.
Note: Your timer automatically
skips any conflicting ON event as
summer approaches to prevent
unwanted operation of lights or
other controlled devices.
Review your
program settings
and revise them as
necessary.
Switching inductive loads,
such as electrical contactor or
motor load.
Add a noise filter
e.g., ET-NF. Connect
filter across load’s
coil.
Observed Problem Possible Cause What To Do
Load only operates
when the remote
(three-way) switch
is in one position or
the timer ignores the
remote switch.
The remote switch is wired
incorrectly.
Recheck the wiring,
specifically for the
jumper.
The timer ignores a
three-way remote
switch even though
it is wired correctly
or the load turns off
immediately after
being turned ON.
• The remote switch or timer is
wired wrong.
• There is an excessive length of
wire (greater than 100 feet).
• There is buried wire to the
remote switch.
• The remote switch is not
functioning properly or
worn out.
Contact a qualified
electrician.
Timer shows ON but
the light or other
controlled device
is OFF.
The light or controlled device
itself may be switched OFF.
Make sure the light
or controlled device
is switched ON and
plugged in.
Note: When installing a timer with a contactor or
motor load, a line filter is recommended.
LIMITED WARRANTY
Warranty service is available by either (a) returning
the product to the dealer from whom the unit was
purchased or (b) completing a warranty claim online
at www.intermatic.com. This warranty is made by:
Intermatic Incorporated, 1950 Innovation Way, Suite 300,
Libertyville, IL 60048. For additional product or warranty
information go to: http://www.Intermatic.com or call
815-675-7000.
PROGRAMMING
Follow these steps for initial setup and
programming of the EJ600 Series timers.
Reset
1. Press and hold NEXT/ON/OFF and RESET for
five seconds.
2. Release RESET.
3. When the display flashes 12:00 am, release
NEXT/ON/OFF to complete the reset.
Initial Setup
1.
Press MODE until CAL and
YEAR alternate on the
display.
2. Press M+/ZONE+/YEAR+
until the current year
displays.
Note: To scroll backward
through the years, press HOUR+/YEAR-.
3. Press NEXT/ON/OFF. A date (MMDD)
displays.
4. Press M+/ZONE+/YEAR+
until the correct month
displays.
Note: To scroll through the months,
press M+/ZONE+/YEAR+.
5. Press DAY/DST until the correct day displays.
Note: To scroll through the days, press DAY/DST.
6.
Press NEXT/ON/OFF. DST
and AUTO alternate on the
display.
• If you live in a state that
DOES NOT observe
DST, press DAY/DST to
change DST to MAN,
then press
NEXT/ON/OFF.
• If you observe DST,
press NEXT/ON/OFF to set.
7. Press M+/ZONE+/YEAR+ to select a ZONE.
Note:
NORT
H
CENTRA
L
SOUTH
Your ZONE is astronomically based on how
far North, Center
or South you are
in North America.
Canada, select
North. Mexico,
select South.

Produkt Specifikationer

Mærke: Intermatic
Kategori: Ikke kategoriseret
Model: EJ600A

Har du brug for hjælp?

Hvis du har brug for hjælp til Intermatic EJ600A stil et spørgsmål nedenfor, og andre brugere vil svare dig


Ikke kategoriseret Intermatic Manualer

Intermatic

Intermatic ET2825CR Manual

31 Juli 2025
Intermatic

Intermatic EI230W Manual

30 Juli 2025
Intermatic

Intermatic WH40 Manual

30 Juli 2025
Intermatic

Intermatic R8806P101C Manual

30 Juli 2025
Intermatic

Intermatic LC4527 Manual

30 Juli 2025
Intermatic

Intermatic Arista ALC-4B-BT Manual

30 Juli 2025
Intermatic

Intermatic ET2105CR Manual

30 Juli 2025
Intermatic

Intermatic RC4G Manual

30 Juli 2025
Intermatic

Intermatic FD46H Manual

30 Juli 2025
Intermatic

Intermatic FM1D20-24U Manual

30 Juli 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Advantech

Advantech WISE-2410 Manual

12 August 2025
Rowenta

Rowenta Semi Shielded BU5520 Manual

12 August 2025
Milwaukee

Milwaukee M18 HAMMERVAC 2715-DE Manual

12 August 2025
Ingenico

Ingenico AXIUM DX8000 Manual

12 August 2025
Gazebo Penguin

Gazebo Penguin 41212MR-12 Manual

12 August 2025
Rowenta

Rowenta Compacteo RO173301 Manual

12 August 2025
Flex

Flex MWL 150 4 Manual

12 August 2025
Rowenta

Rowenta Gourmet OC7850 Manual

12 August 2025
Dito Sama

Dito Sama 600450 Manual

12 August 2025
Advantech

Advantech MIC-711D-OX3A1 Manual

12 August 2025
