Side 1/12

Electronic 4-Circuit

Astronomic 365/7-Day Time Switch

Installation and Setup Instructions

With 100-Hour Backup

Federal Communications Commission (FCC) Notice for ET2000 Series Time Switches

Description

This document explains the setup and conguration of the Intermatic ET2845

4-Circuit Electronic Astronomic 365/7-Day Time Switch. The ET2845 time switch

automatically switches loads according to the weekly schedule that is entered.

The time switch can support up to 48 xed ON and 48 xed OFF events (96 total)

and up to 8 Astro events. Each xed event can be applied to any combination of

circuits and days.

The time switch features an LCD and panel-mounted control buttons to set,

review, and monitor the time switch functions, including setting date and time,

schedule creation, enabling or disabling Daylight Saving Time (DST) and

conguring DST switchover dates.

Follow these instructions to complete the installation and programming of the

ET2845 time switch.

This device complies with part 15 of the FCC rules. Operation of this device is subject to the following two conditions: (1) This device

may not cause harmful interference, and (2) This device must accept any interference, including interference that may cause

undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates, uses and radiates radio frequency energy and, if

not installed and used in ac-cordance with instructions, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference that requires the user to correct at his or her own expense.

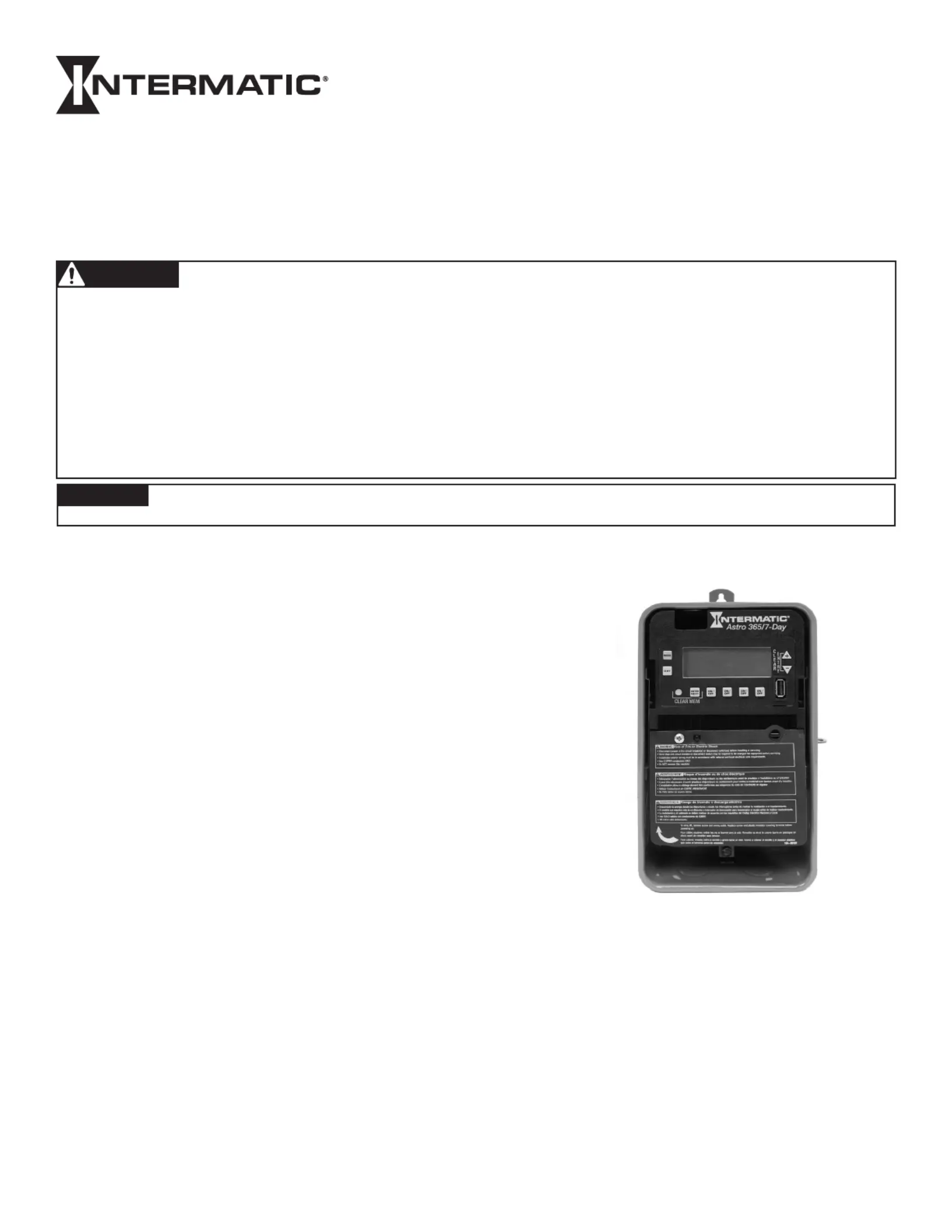

MODELS ET2845C, ET2845CR, ET2845CP

Shown in indoor/outdoor

lockable metal enclosure

NOTICE

• Do NOT touch circuit board components, contact can create a static discharge, which can damage these electronic components.

• Disconnect power at the circuit breaker(s) or disconnect switch(es) before installing or servicing.

• More than one circuit breaker or disconnect switch may be required to de-energize the equipment before servicing.

• For plastic enclosures, bonding between conduit connections is not automatic and must be provided as part of the installation.

• Installation and/or wiring must be in accordance with National and Local Electrical Code requirements.

• Use #14-#8 AWG wires, rated at least 105°C - COPPER conductors ONLY.

• If the power disconnect point is out of sight, lock it in the OFF position and tag it to prevent unexpected application power.

• Make sure there is no wire insulation under the terminal plate on the time switch connector. Firmly tighten terminal screws.

• For outdoor locations or wet locations (rain-tight), conduit hubs that comply with requirements of the UL514B (standard for fitting conduit and

outlet boxes) are to be used.

• Do not remove insulator that is covering terminals.

• Do NOT exceed maximum current carrying capacity.

• KEEP DOOR CLOSED AT ALL TIMES when not servicing.

Risk of Fire or Electric Shock

WARNING

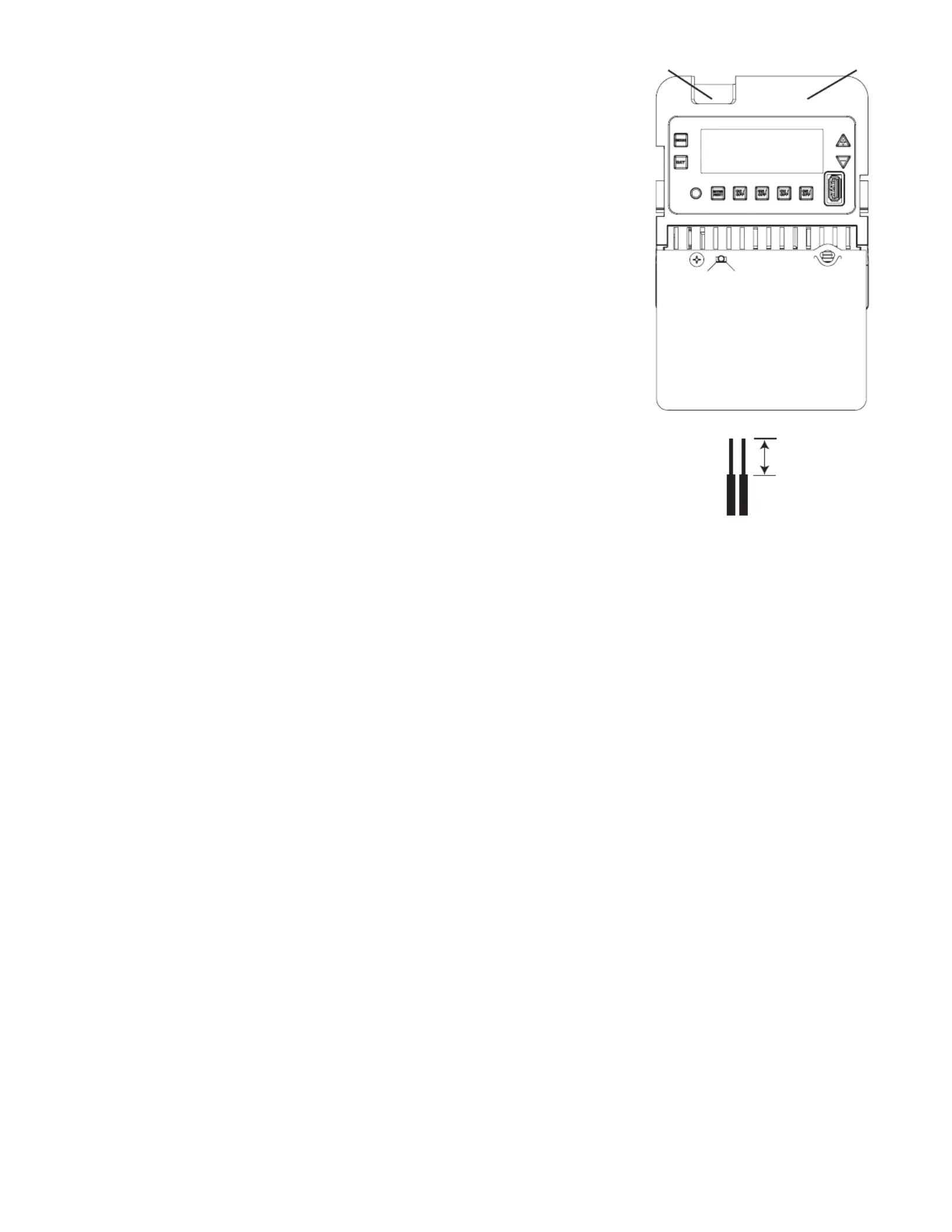

Latch location

Tilt top forward

Installation

Follow these instructions to install the time switch.

1. Open the time switch enclosure door.

2. Remove and retain the screw that secures the plastic insulator.

3. Lift the left side of the plastic insulator and pivot away to expose the terminal strip.

4. Press the latch at the top of the enclosure and pull out the mechanism from the

enclosure.

5. Choose and remove the selected knockout(s) from the enclosure.

NOTE: There are ve 1/2 inch to 3/4 inch combination knockouts available. There are

two on the bottom of the enclosure, one on each side, and one on the rear. If a 3/4

inch knockout is needed, remove the 1/2 inch knockout rst, then the 3/4 knockout.

6. Place the enclosure in the desired location providing space for the enclosure door to

swing open fully.

7. Securely mount enclosure using provided mounting holes.

8. Use appropriately rated ttings for the installation.

9. Snap the mechanism back into the enclosure.

10. Strip 1/2 inch off the supply and load wires. Use AWG #14 - #8 copper conductors

rated at least 105ºC. Torque to 15.6 lbf-in.

11. Connect the wires to the proper terminals on the time switch and tighten the screws

rmly (See wiring diagrams).

12. Connect ground wire to grounding terminal at the bottom of metal enclosures.

13. Return the insulator to its original position and replace the screw.

14. Close enclosure door.

15. Apply power to the time switch.

1/2 inch
