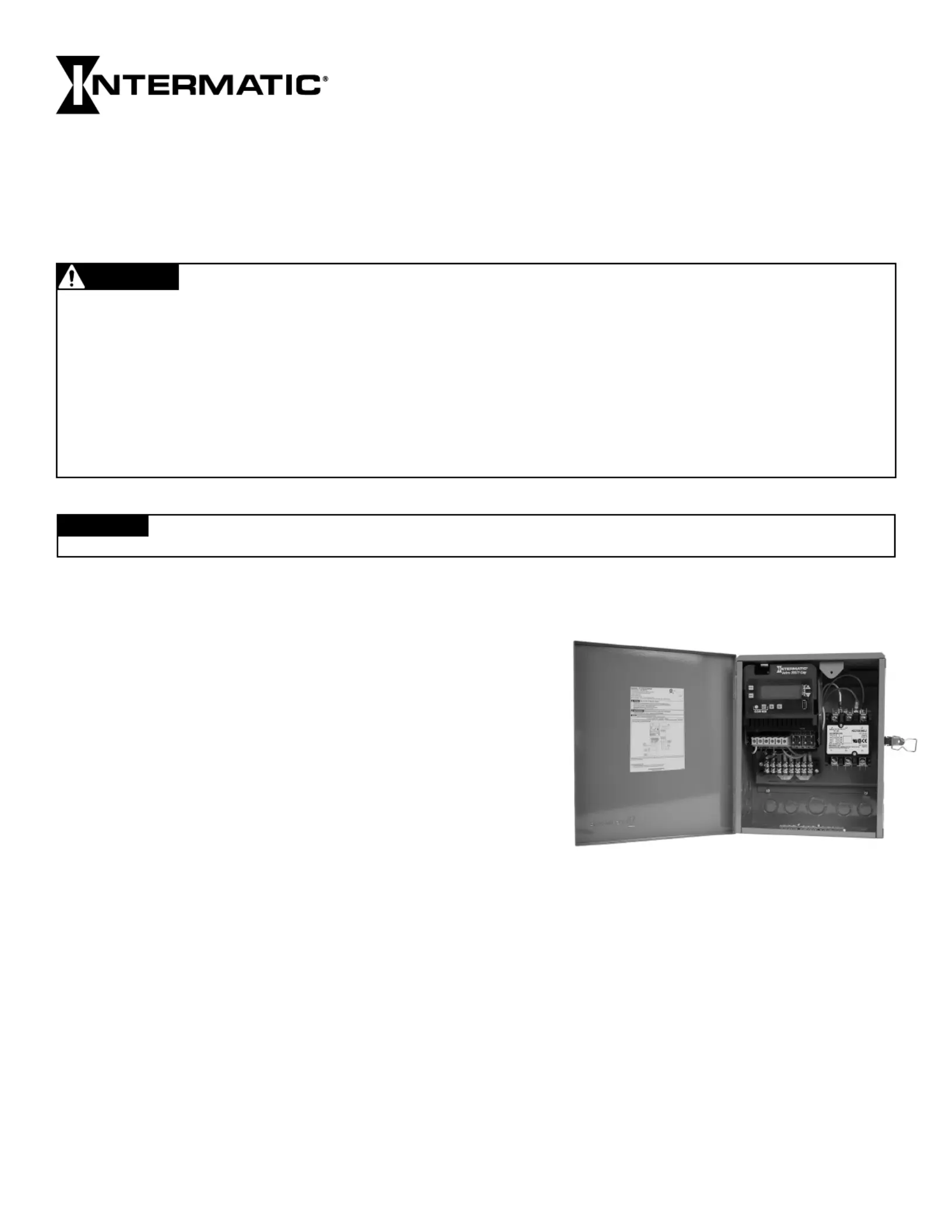

Side 1/12

Electronic All-Purpose

Contractor Box

Installation and Setup Instructions

With 100-Hour Backup

Federal Communications Commission (FCC) Notice for ETCB28253PCR Time Switch

Description

This document explains the setup and conguration of the Intermatic

ETCB28253PCR Electronic All-Purpose Contractor Box with an Indoor/Outdoor

Type 3 enclosure. The ETCB28253PCR’s built-in time switch automatically

switches loads according to the entered weekly schedule, holiday schedule, or

from a remote override. The time switch can support up to 48 xed ON and 48

xed OFF events (96 total), up to 4 Astro events, and 50 holiday events. Each

xed event can be applied to any combination of days.

Contractor box features a built-in time switch, a 60 A 3-Pole contactor, a

remote input for a photocontrol, input location for a surge device, as well as an

input for a standard switch to be used. The built-in time clock features an LCD

and panel-mounted control buttons to set, review, and monitor the time switch

functions, including setting date and time, schedule creation, enabling or

disabling Daylight Saving Time (DST) and conguring DST switchover dates.

Follow these instructions to complete the installation and programming of the

ETCB28253PCR Electronic All-Purpose Contractor Box.

This device complies with part 15 of the FCC rules. Operation of this device is subject to the following two conditions: (1) This device

may not cause harmful interference, and (2) This device must accept any interference, including interference that may cause

undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates, uses and radiates radio frequency energy and, if

not installed and used in accordance with instructions, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference that requires the user to correct at his or her own expense.

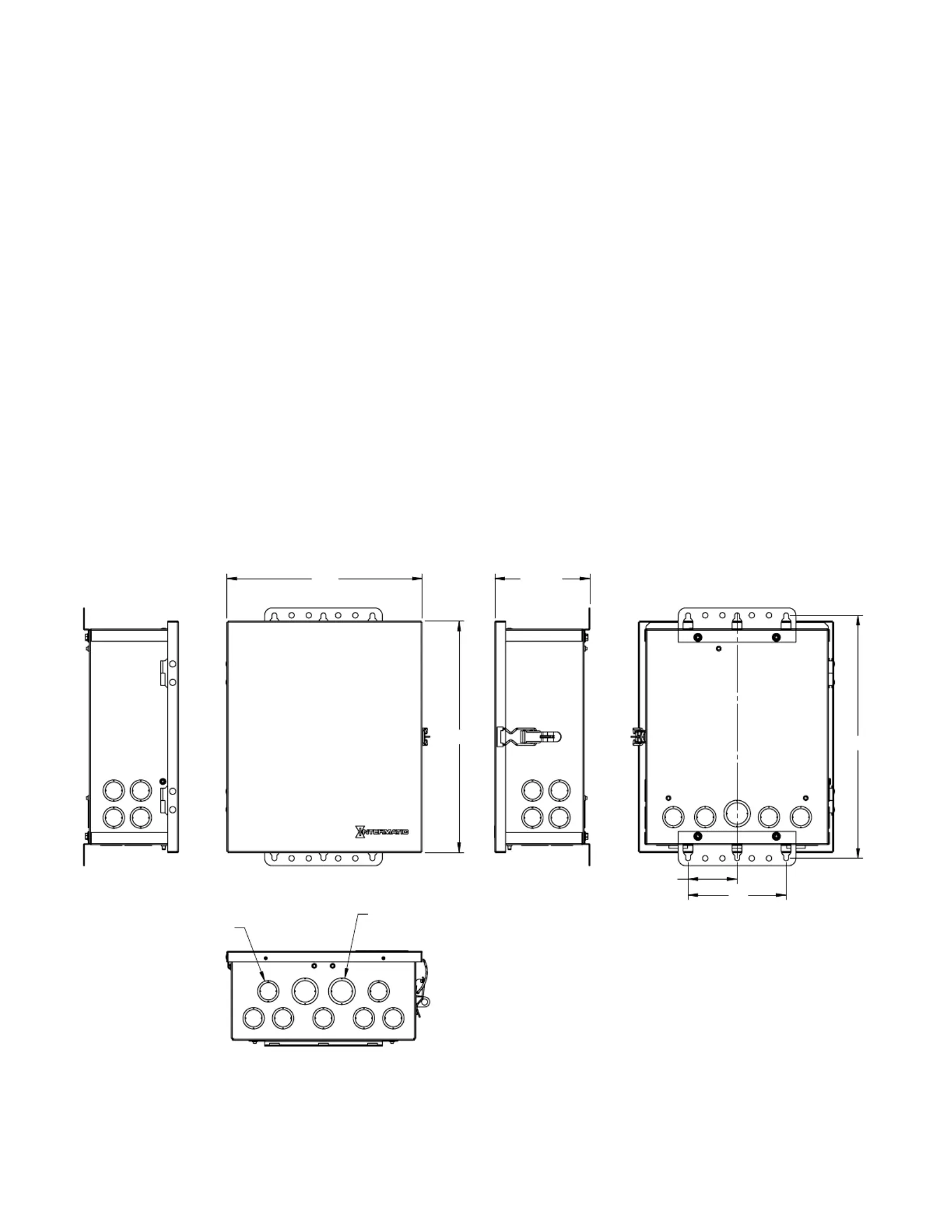

MODEL ETCB28253PCR

Shown in indoor/outdoor

lockable metal enclosure

NOTICE

• Do NOT touch circuit board components, contact can create a static discharge, which can damage these electronic components.

• Disconnect power at the circuit breaker(s) or disconnect switch(es) before installing or servicing.

• More than one circuit breaker or disconnect switch may be required to de-energize the equipment before servicing.

• For plastic enclosures, bonding between conduit connections is not automatic and must be provided as part of the installation.

• Installation and/or wiring must be in accordance with National and Local Electrical Code requirements.

• Load Voltage lead sizes #14 - #4 AWG, rated at least 105°C - USE COPPER CONDUCTORS ONLY.

• If the power disconnect point is out of sight, lock it in the OFF position and tag it to prevent unexpected application power.

• Make sure there is no wire insulation under the terminal plate on the time switch connector. Firmly tighten terminal screws.

• For outdoor locations or wet locations (rain-tight), conduit hubs that comply with requirements of the UL514B (standard for fitting conduit and

outlet boxes) are to be used.

• Do NOT exceed maximum current carrying capacity.

• Dead front must be secured in place when not servicing.

• KEEP DOOR CLOSED AT ALL TIMES when not servicing.

Risk of Fire or Electric Shock

WARNING
