Risk of Fire or Electric Shock

• Disconnect power at the circuit breaker(s) or disconnect switch(es) before installing or servicing.

• Installation and service to be performed by a qualiﬁed licensed technician or electrician.

• Installation and/or wiring must be in accordance with national and local electrical code requirements.

• Conﬁrm Consumable Surge Protective Device (SPD) is rated for the correct voltage and current for your application.

•

Bonding between conduit connection and enclosure is not automatic and must be provided as part of the installation. Only one connection may be made to SPD enclosure.

• For outdoor locations or wet locations (rain-tight), conduit hubs that comply with requirements of the UL514B (standard for ﬁtting conduit and outlet boxes) are to be used.

• KEEP DOOR CLOSED AT ALL TIMES when not servicing.

IMPORTANT SAFETY INSTRUCTIONS • SAVE THESE INSTRUCTIONS

INSTALLATION INSTRUCTIONS

IG2200 CONSUMABLE SURGE SERIES

TYPE 2 SURGE PROTECTIVE DEVICES

WARNING

APPLICATION NOTES

1. Thoroughly read instructions before installing SPD unit.

2. This product is designed to protect against momentary transient overvoltage events.

3. This product does not protect against nearby lightning strikes.

4. This device features internal protection that will disconnect the surge protective component at the end of its useful life but will maintain power to the load-now unprotected. If this situation is undesirable

for the application, follow the manufacturers instructions for replacing Consumable SPD module(s).

5. Observe warnings and instructions on front panel and unit label of product.

DEFINITIONS

Type 2 SPD: A typical Type 2 SPD installation will be connected to the load side of the service panel and is intended to be installed with overcurrent protection to the SPD.

INSTALLATION:

1. Verify system voltage.

2. Make sure SPD is correctly rated for system.

3. Determine mounting location of SPD unit.

The SPD unit should be located as close as possible to the load to be protected to minimize all wire lengths.

4. Mount enclosure

- Remove dead front from SPD unit.

- Disconnect power at power source before installation.

- Remove needed knockout from SPD unit, once wire routing has been determined.

- Only one conduit connection may be made to SPD unit enclosure.

- Mount enclosure using suitable fasteners in locations shown below. Do not rely on conduit ﬁtting to support SPD.

5. Follow wiring diagram for all connections (Located within instruction sheet and SPD unit).

- Cut all wires to a minimum suitable length while maintaining a 4” recommended bend radius.

- Do not coil excess wire.

- Make sure all connections are secure.

- Replace dead front.

6. Energize SPD unit

- Flip circuit breaker to ON position at main service panel or disconnect switch(es).

- Indicators: Each Consumable SPD Module has a blue LED to indicate the SPD unit has

power and a green LED to indicate that the Consumable SPD Module is providing protection.

*C/B

GND (green)

Neutral (white)

Line (black)

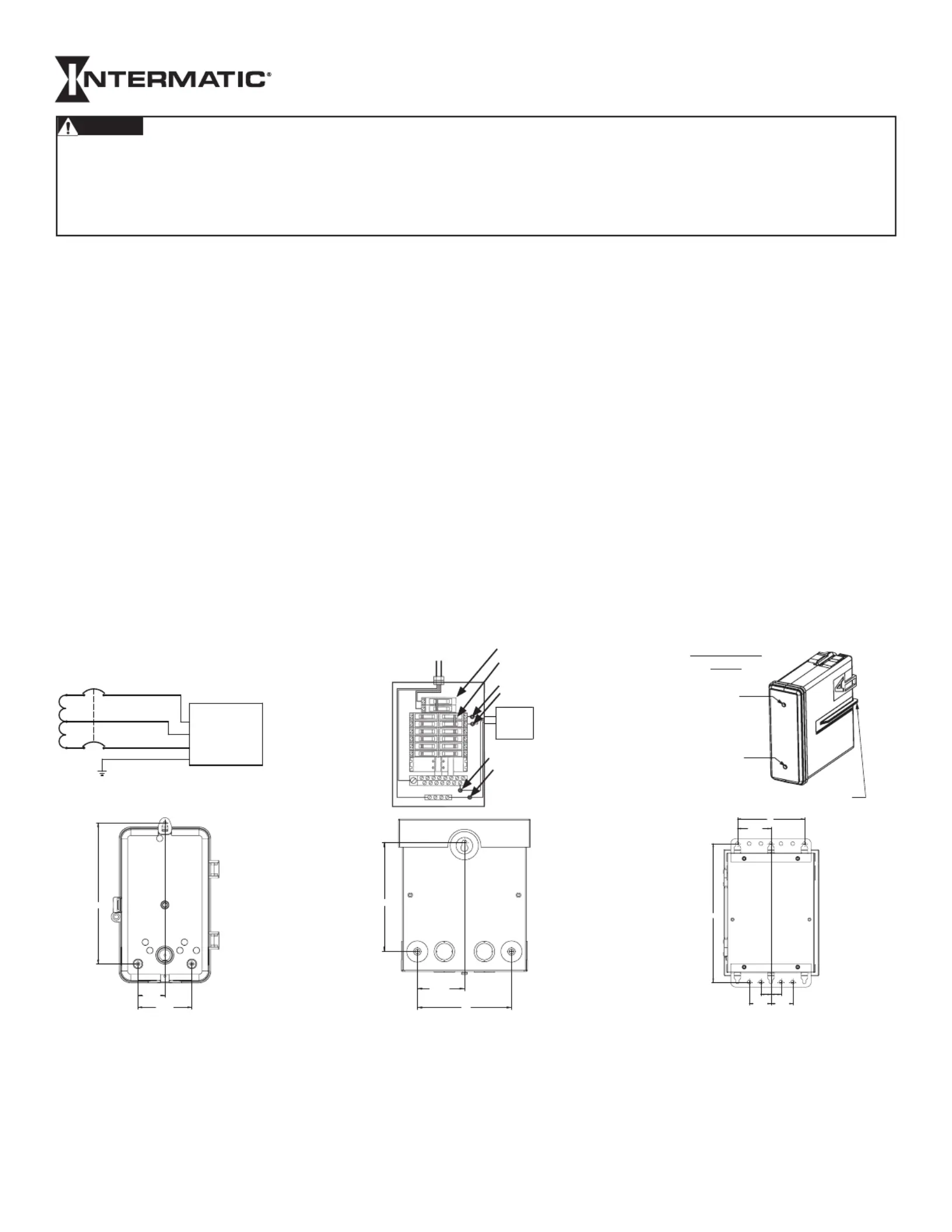

SPD TYPE 2 WIRING DIAGRAM

120/240 VAC SINGLE-PHASE

SPD

*2 Pole 30 A circuit breaker in Service Panel.

8 1/2"

3 1/4"

1 5/8"

5 3/4"

2 1/2"

1 5/8"

3/4" 3/4"

1 5/8"

10 3/8"

Plastic outdoor enclosure

Metal indoor enclosure

(Flush mount kit IG2200--FMK)

Metal outdoor enclosure

Blue LED: Power indicator

Green LED: Status indicator

Alignment key of module

ON: Protection is being provided.

OFF: Module is no longer providing

protection. Replace Consumable SPD

Module as soon as possible.

Consumable SPD

Module

SERVICING INSTRUCTIONS:

The Consumable SPD Module will absorb the energy of the surges to protect the connected load. If the green LED is OFF, the Consumable SPD module is no longer providing protection and should be replaced

as soon as possible.

TO REPLACE CONSUMABLE SPD MODULE:

1. POWER MUST BE REMOVED FROM THE CONSUMABLE SPD MODULE BEFORE REPLACING.

2. Disconnect power at the POWER SOURCE before removing Consumable SPD Module from the SPD unit.

3. Remove Consumable SPD Module to be replaced by ﬁrmly pulling straight out from SPD unit. The module door within the unit will close once the module is removed.

4. Make sure Consumable SPD Module is correctly rated for system.

5. Place new Consumable SPD Module back into SPD unit. Make sure module alignment key is oriented correctly when inserting.

6. Make sure the Consumable SPD Module is fully seated.

7. Re-energize SPD unit.

8. Verify the blue and green LED’s within each Consumable SPD Module are lit.

SPD

UNIT

Main Breaker

2-Pole, 30 A circuit

breaker

Green (Ground)

Type 2 Installation
