POOL/SPA CONTROL ACCESSORIES

INSTALLATION

& OPERATING

INSTRUCTIONS

Model: RC4G Air Button

for Gunite / In-Wall Applications

This Air Button is especially suited for gunite/concrete

type construction and it is designed to slip-fit inside of

a schedule 40 PVC conduit. Because of its low profile,

it is the perfect choice for both the vertical and the

horizontal mounting arrangements. It will operate any

Intermatic relay type Air Control up to 100 feet away.

1. Make sure the distance between the Air Control and

Air Button is not over 100 feet.

2. Install PVC conduit between the Air Control and Air

Button, using sweep elbows or forming large radius

curves with heat gun.

3. At pool/spa side, make sure the conduit is the 1 inch

I.D., either rigid or the flexible type, and extends well

beyond the intended finished surface.

4. When the pool/spa deck work is complete, cut

conduit flush with finished surface. Try Air Button for

fit. Due to irregularities and variations in conduit I.D.

some sanding of I.D. may be required.

5. Pull 1/8 inch I.D. vinyl tubing between Air Control

and Air Button, allowing 6 to 10 extra inches at both

ends. Make sure the tubing is especially formulated

for such an application (we recommend using tubing

supplied by ), free of kinks, splices and Intermatic

protected from chemicals and rough edges. Do

not allow water or other contaminants to enter

tubing.

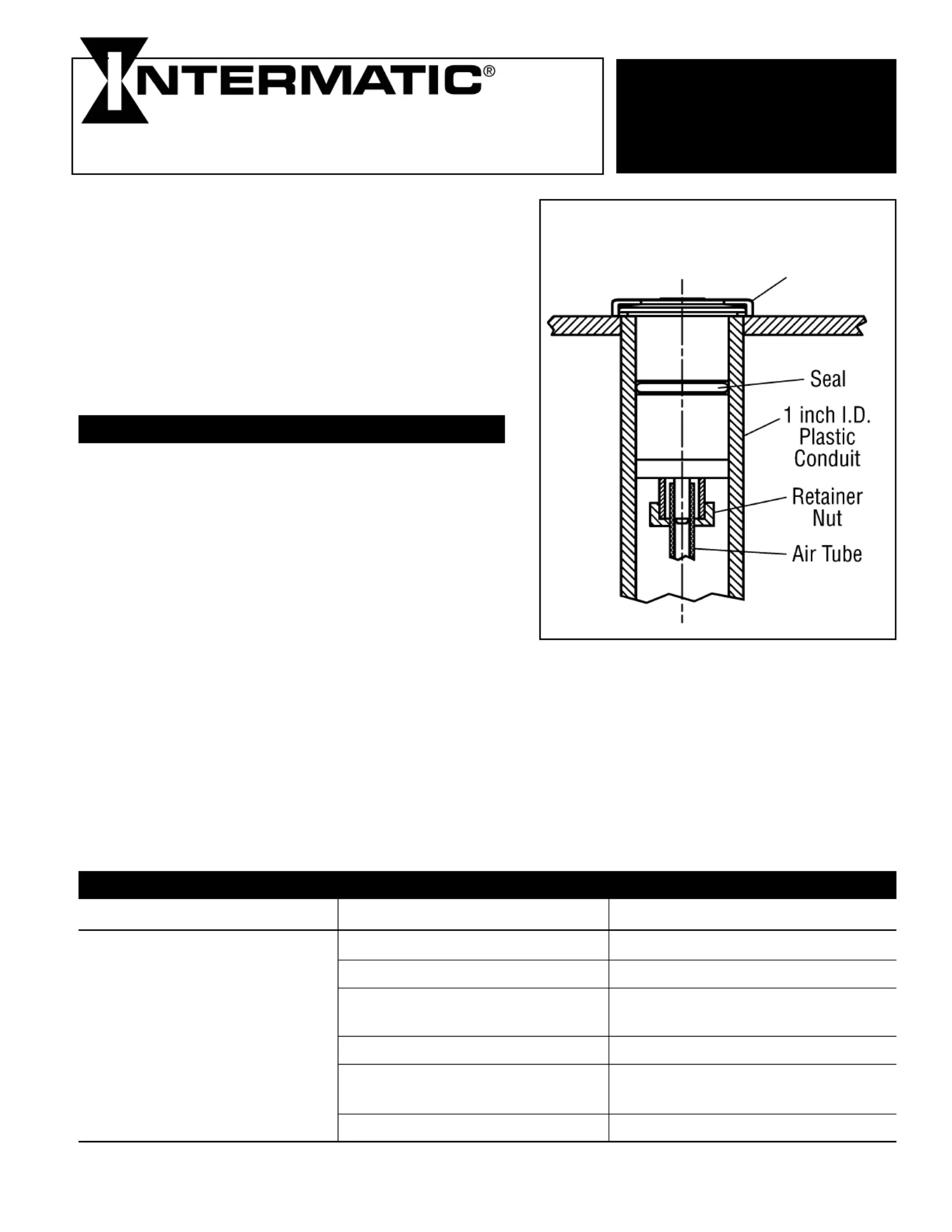

6. Slide retaining nut over tube and firmly

press tube over air buttons connecting

nipple. Hand tighten nut over the threaded

portion of Air Button (see illustration

above).

7. Push excess tubing back into conduit

and press Air Button into conduit. Apply

small amount of silicone sealer around the

flange of Air Button and snap bezel over

flange. The use of permanent glue is not

recommended.

Instructions

Troubleshooting

SYMPTOM CAUSE(S) CORRECTIVE ACTION

Air Button would not operate 1. Loose air tube connection. Check connections.

equipment. (See also “Useful

2. Water in air tube. Blow out tube.

Information” on back).

3. Air Control is too far from Change Air Button to larger size.

Air Button.

4. Defective Air Button. Change out Air Button.

5. Defective control and/or Check out installation.

equipment.

6. No power to control. Turn breaker ON.

Bezel

Because of our commitment to continuing research and improvements, Intermatic Incorporated reserves the

right to make changes, without notice, in the specifications and material contained herein and shall not be

responsible for any damages, direct or consequential, caused by reliance on the material presented.

INTERMATIC INCORPORATED, LIBERTYVILLE, IL 60048

158--02214

LIMITED WARRANTY

Warranty service is available by either (a) returning the product to the dealer from whom the unit was

purchased or (b) completing a warranty claim online at www.intermatic.com. This warranty is made

by: Intermatic Incorporated, Customer Service 1950 Innovation Way, Suite 300, Libertyville, IL 60048.

For warranty service go to: http://www.Intermatic.com or call 815-675-7000.

List of Accessories and Applicable Products

Useful Information

This Air Button requires no service but other components of the system may, therefore a periodic check of

the entire system is advised.

The Air Control System consists of an air button, a pulse switch and a relay. The air button is connected

to the pulse switch by the air tube. By pressing on the air button at one end of the air tube, the increased

pressure will momentarily close the contacts of the pulse switch at the other end, thus electrically

energizing the coil of the relay. The relay turns ON or OFF the connected equipment. Water in air tube will

damage the pulse switch. Water can enter the tube through a faulty air button or by way of condensation.

In either case, it must be drained and the cause found and corrected. To reduce condensation, protect the

air hose from exposure to direct sun, ice or frequent temperature fluctuations.

PART NUMBER DESCRIPTION

RC4G Air Button for gunite construction - 100 ft. range

RC6F Air Button for gunite/fiberglass construction - 150 ft. range

RC117 Air tubing - 75 ft. long

RC127B Air tubing - 75 ft. long with RC4G Air Button

RC150 Air tubing - 500 ft. long

RC510 Tube coupler - 10 units
