Model T8805M101C

PROGRAM TIME SWITCH MECHANISM

WITH 14-DAY “SKIPPER

” WHEEL

FOR UP TO 60 OPERATIONS PER DAY

SWITCH RATING: DOUBLE POLE SINGLE THROW

15 AMP., 1/2 H.P.125 VOLTS A.C.

PROGRAMMING INSTRUCTIONS:

1. For watering, push gold pin into slot on yellow TO SET FIRST ZONE:

dial at desired ON time. For each 12 minutes of additional watering

add one pin WITHOUT skipping a slot.

2. Leave one blank slot on yellow dial after ONTO CHANGE ZONES:

line (gold pin), and valve will automatically advance to next zone.

3. Repeat steps 1 and 2. REMEMBERTO SET ADDITIONAL ZONES:

to leave blank space between zones

4. Turn yellow dial CLOCKWISE, until correctTO SET TIME OF DAY:

line is at end of silver time pointer. Do NOT turn silver pointer.

5. Turn black skipper wheel COUNTER-CLOCKWISETO SKIP DAYS:

until todays day is in front of “14” arrow. Press pins DOWN on days

of NO watering. The skipper wheel must have all pins UP for daily

watering.

6. This switch can be used to turnPUT SELECTOR SWITCH IN AUTO:

the system ON or OFF for manual operation without affecting the set

program.

IMPORTANT NOTICE: Use the one silver pin that is located at Midnight

on the yellow dial, it advances the skipper wheel automatically. Do NOT

use multiple silver pins.

Follow The National Electrical Code and local code requirements when

installing this time switch.

CAUTION: Always disconnect power at main panel before servicing

this Switch or the equipment it controls.

INTERMATIC INCORPORATED

SPRING GROVE, ILLINOIS 60081-9698

158T10361

TIME

POINTER

DIAL

SKIPPER

AUTO

TIME

DAY

SELECTOR

SWITCH

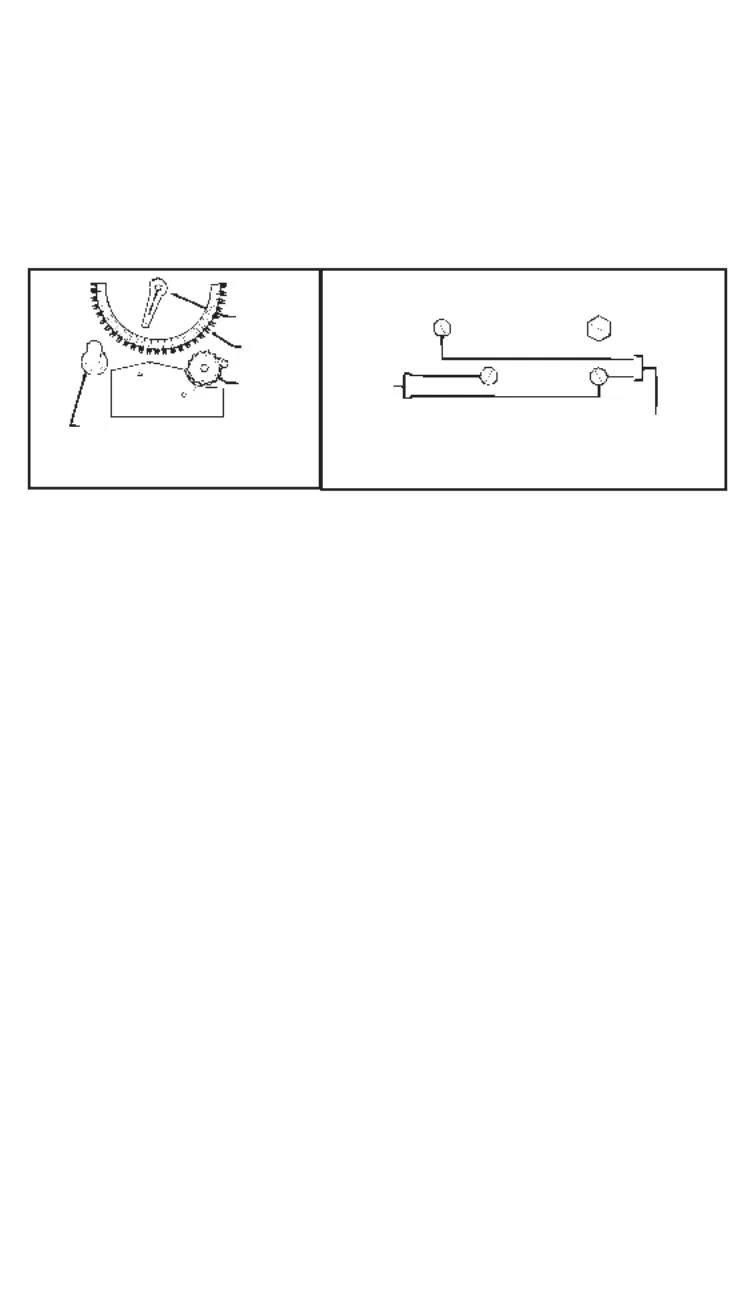

FIGURE 1

WIRING DIAGRAM

GROUND TO GREEN

GROUND WIRE

120 VOLT

POWER

SUPPLY

NOT FOR DIRECT PUMP CONTROL

SOLENOID

COMMON CLOCK

NEUTRAL

(WHITE)

LINE

(BLACK)
