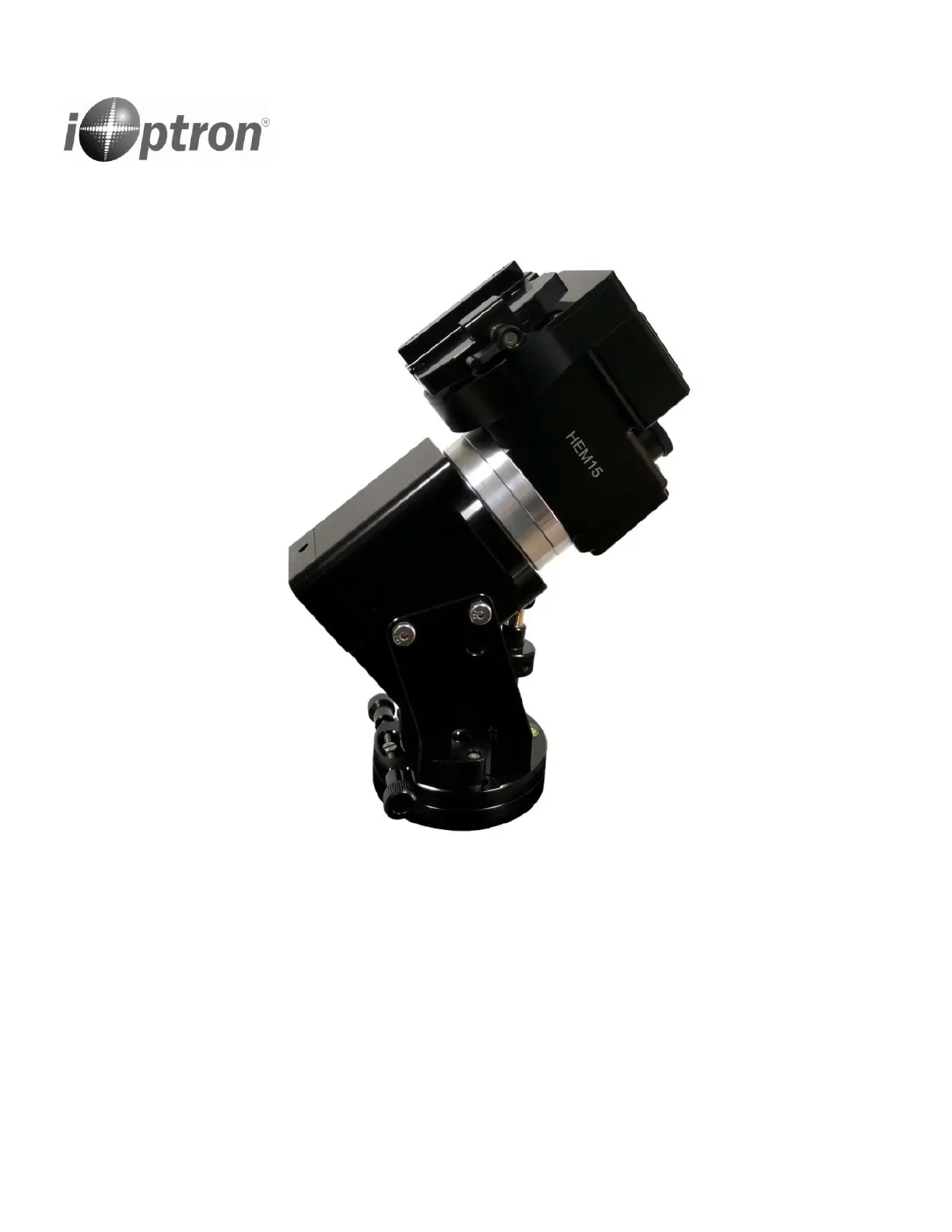

Quick Start Guide

HEM15™ Hybrid Strain Wave GoTo Equatorial Mount

PACKAGE CONTENTS1

 Telescope mount HEM with or without iPolar15, TM electronic polar scope

 Hand controller (HC) Go2Nova®8409 with built-in WiFi –

 6P6C hand controller cable

 USB 2.0 cable

 AC adapter -240V, 12V 5A DC output (for indoor use only) –100

 Carrying case

 Oponal carbon ber tripod (#8061)

 Oponal external iGuider for autoguiding (#3360-HEM)

 Oponal counterweight sha P-SGP-CWS and counterweight 3006- ) (# ) (# 05

ONLINE RESOURCES www.iOptron.com ( )

 User’s Manual

 Hand controller and mount rmware upgrades (check online for the latest version)

 ASCOM drive, Commander, Commander Lite and other computer control

1Contents and design may change from me to me without noce.

Please hold the telescope when disengaging the DEC Gear Switch. HEM is operated under

unbalanced condions and could be pped o if the tripod is not secured.

1. Remove mount head from package:

2. Set up tripod: An HEM15 mount uses 3/8”-16

threaded hole for aachment. So a camera tripod or

other tripod with a 3/8”-16 mounng post can be

used. Shown here is an iOptron carbon ber tripod

#8061.

3. Aach mount head: Thread the mount head onto the

tripod head and secure it.

Level the mount by adjusng the tripod legs Use the .

built-in Bubble Level Indicator or an external level er

for this purpose.

4. Adjust latitude: Without any payload, slightly loosen

the 4x Latude Locking Screws. Use the Latude

Adjustment Knob to set the correct latude value, as

displayed in the Latude Mark Window.

Insert the Allen wrench into the Latude Adjustment

Knob for more turning torque.

Two latude ranges, 15~41° and 39~65°, can be set

up for the mount head. To change the latude range

from one to the other, both the Latude Posion Bolt

and the Latude Locking Screws need to be moved to

the correct locaons.

To switch the latude range:

 Loosen the Latude Locking Screws just enough

to adjust the latude seng to between 39～

41°. Tighten Latude Locking Screws.

Lat. Lock Screw

Lat. Mark

Lat. Adj. Knob

3/8”-16 mounting post

Lat. Mark

Wrench
