Quick Start Guide

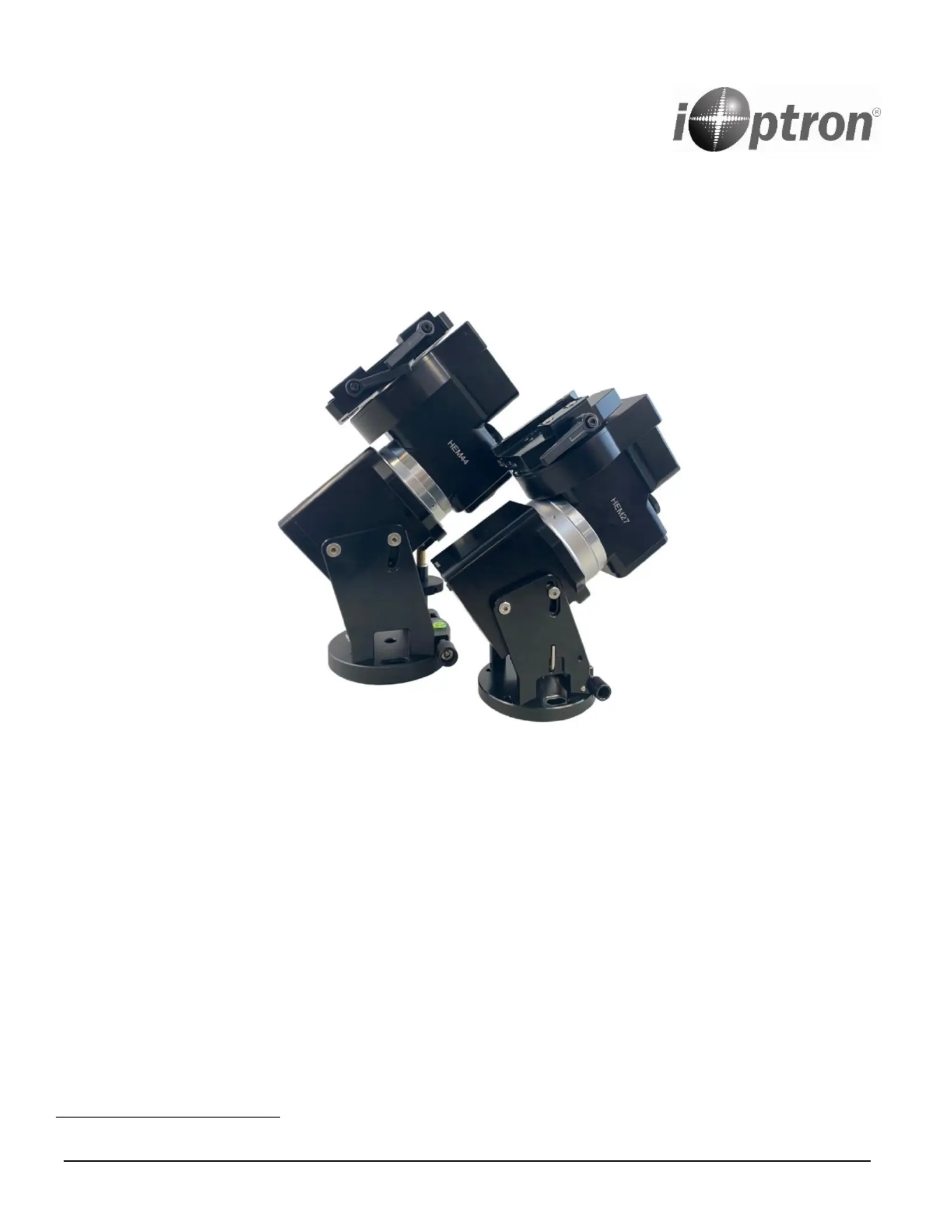

HEM™ Hybrid Strain Wave GoTo Equatorial Mount

Models: HEM27, HEM27 , HEM44 and HEM Series

EC 44EC

PACKAGE CONTENTS1

 Telescope mount HEM, with or without iPolarTM electronic polar scope

 Hand controller (HC) Go2Nova®8409 with built-in WiFi –

 6P6C hand controller cable

 USB 2.0 cable

 AC adapter -240V, 12V 5A DC output (for indoor use only) –100

 Carrying case

 Oponal carbon ber tripod (#8061)

 Oponal external iGuider for autoguiding (#3360-HEM)

 Oponal counterweight sha (#8456SL) and counterweight (#3006-10)

 Oponal pier extension (#8040)

ONLINE RESOURCES www.iOptron.com ( )

 User’s Manual

 Hand controller and mount rmware upgrades (check online for the latest version)

 ASCOM drive, Commander, Commander Lite and other computer control

1Contents and design may change from me to me without noce.

HEM is operated under unbalanced condion and could be pped over if tripod is not secured.

Please use “Search Zero Posion” to set the mount before each session to avoid scope hit the tripod.

To avoid cable management system damage, there is a RA mechanical stopper designed to prevent the mount rotang over 360°.

Do not slew ° past the meridian or the stopper may be deformed due to a large torque of the strain wave gear system.20

1. Remove mount head from package:

HEM27

HEM44

2. Set up tripod: Setup and level the tripod. Adjust the

tripod height. Tighten tripod locking knob to secure

the tripod. Thread the onto the tripod Alignment Peg

head. It can be installed using a threaded hole on top

of a tripod leg or between two legs (as shown) for low

latude.

3. Aach mount head: Retract the 2x Azimuth (Azi)

Adjustment Screws from both sides to leave ample

space for the alignment peg to be ed in between

the 2x Azi Adjustment Screws .

Remove the 2x Azi Locking Screws from the mount base.

Secure the mount head by ghtening the Azi Locking

Screws into the M6 holes on the tripod There is an Allen .

wrench stored on the mount base for ghtening the

screws or adjusng the latude.

Level the mount by adjusng the tripod legs Use the .

built-in Bubble Level Indicator or an external level er

for this purpose.

4. Adjust latude: Without any payload, slightly loosen

4X Latude Locking Screws. Use the Latude

Adjustment Knob to set the correct latude value, as

displayed in the Latude Mark Window.

Azi. Adj. Screw

Azi. Locking Screw

Allen wrench

For HEM27

For HEM44
