SAFETY INSTRUCTIONS
WARNING! TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
SERIOUS PERSONAL INJURY:
This product shall not be exposed to dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on the apparatus.
Situate this product away from heat sources such as radiators, heat registers, stoves, or
other appliances (including amplifiers) that produce heat.
Clean the product only as recommended by the manufacturer (see “Maintenance”)
section for details). Unplug the power cord from the wall outlet before cleaning.
Unplug the power cord from the wall outlet when left unused for an extended period.
Prevent objects/liquids from falling or spilled on the product.
Operate the product only with the supplied power cord. Route power cords so they are
not likely to be walked on or pinched by items placed upon or against them, paying
particular attention to plugs, convenience receptacles, and the point where they exit
from the product.
Where the MAINS plug or an appliance coupler is used as the disconnect device, the
disconnect device shall remain readily operable.
Do not operate this product under the following conditions.
- When the power-supply cord or plug is damaged.
- If liquid has been spilled into or objects have fallen into the product.
- If the product has been exposed to rain or water.
- If the product does not operate when used according to the operating instructions.
- If the product has been dropped or damaged in any way.
Do not attempt to service the product; take it to the electronics repair shop of your
choice for any servicing or repair.
Do not overload wall outlets, extension cords, or integral convenience receptacles.
IMPORTANT INSTRUCTIONS
2
CAUTION! TO REDUCE THE RISK OR PERSONAL INJURY OR
PRODUCT/PROPERTY DAMAGE:
This product is intended solely for non-commercial, non-industrial, personal use as a
television. Do not use this product for any other purpose.
Do not subject the product to violent shocks, extreme temperatures, or lengthy periods
or direct sunlight.
Keep the product away from magnetic objects, motors, and transformers.
Do not use outdoors in inclement weather.
Do not use the TV while driving; this is dangerous and is illegal in some areas.
At full volume, prolonged listening may damage the user’s
hearing.
BATTERY HANDLING AND USAGE:
Keep batteries away from children and pets. Only adults should handle batteries.
Never throw batteries into a fire or expose them to fire or other heat sources.
Follow the battery satiety and usage instructions provided by the manufacturer.
Instruction Manual x 1
Remote Control x 1
ACCESSORIES
3
TABLE OF CONTENTS
GETTING STARTED
IMPORTANT INSTRUCTIONS ............................................................................................ 1
ACCESSORIES .................................................................................................................. 2
FEATURES ......................................................................................................................... 4
GENERAL PARTS ............................................................................................................ 5-6
REMOTE CONTROL ........................................................................................................ 7-8
REMOTE CONTROL PREPARATION ................................................................................. 9
BASIC CONNECTION .................................................................................................. 10-14
OPERATIONS
BASIC OPERATIONS .................................................................................................. 15-23
MAIN MENU ................................................................................................................. 23-38
DTV MODE ................................................................................................................ 25-36
ATV AND OTHER MODES ............................................................................................. 37
PC MODE .................................................................................................................. 37-38
FOR REFERENCE
MAINTENANCE ................................................................................................................ 39
SPECIFICATIONS ............................................................................................................. 39
WALL MOUNTING ............................................................................................................ 40
TV STAND INSTALLATION GUIDE ................................................................................... 41
TROUBLESHOOTING ...................................................................................................... 42
SERVICE PROCEDURE ................................................................................................... 43
4
54 cm (21.5") TFT DISPLAY
This unit has a built-in 54 cm (21.5”) TFT display to provide clear vision and low radiation.
AUTO TV SCANNING
DIGITAL BROADCASTING RECEPTION (TVB-T & DVB-C)
SUPPPORTS H.264 (HIGH-DEFINITION) VIDEO
EPG (Electric Program Guide) FUNCTION
TELETEXT (EUROPE) FUNCTION
USB MULTIMEDIA PLAYBACK
MULTI-LANGUAGE ON-SCREEN-DISPLAY
FULL FUNCTION REMOTE CONTROL
HDMI, YPbPr, AV, CI, VGA, PC AUDIO, AND SCART INPUT
COAXIAL OUTPUT
EARPHONE OUTPUT
DETACHABLE STAND HOLDER
EXTERNAL ANTENNA JACK
BUILT-IN SPEAKERS
FEATURES
5
MAIN UNIT
Front View
Back View

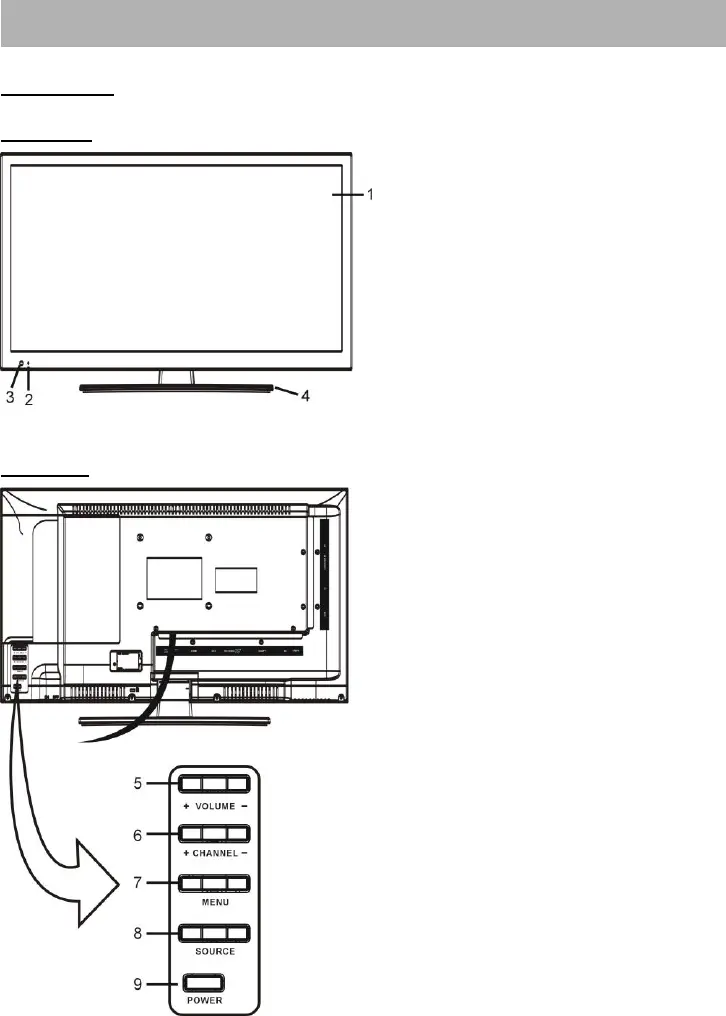

GENERAL PARTS
1. TFT display screen
2. Power indicator:
In standby mode the indicator
light will display red color; when
switching on the unit the
indicator light will display blue
color.
3. Remote control sensor
4. Stand holder
5. VOLUME +/- button:
To increase/decrease the volume
level or move left/right.
6. CHANNEL +/- button:
To select next/ previous channel
or move up/down.
7. MENU button:
To enter menu setting page.
8. SOURCE button:
To select the input source.
9. POWER button:
To turn ON/OFF the TV.
6

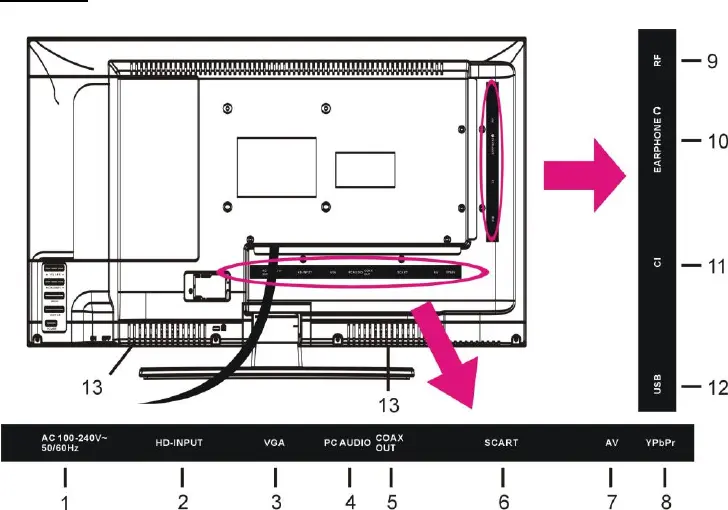

Back View
1. POWER input
2. HDMI input terminals
3. VGA input terminal
4. PC AUDIO input terminal
5. COAXIAL output terminal
6. SCART input terminal
7. AV input terminal
8. YPbPr input terminal
9. RF input terminal - To connect the external antenna
10. EARPHONE output terminal
11. CI input terminal
12. USB input slot - For multimedia files playback
13. Built-in speakers
7

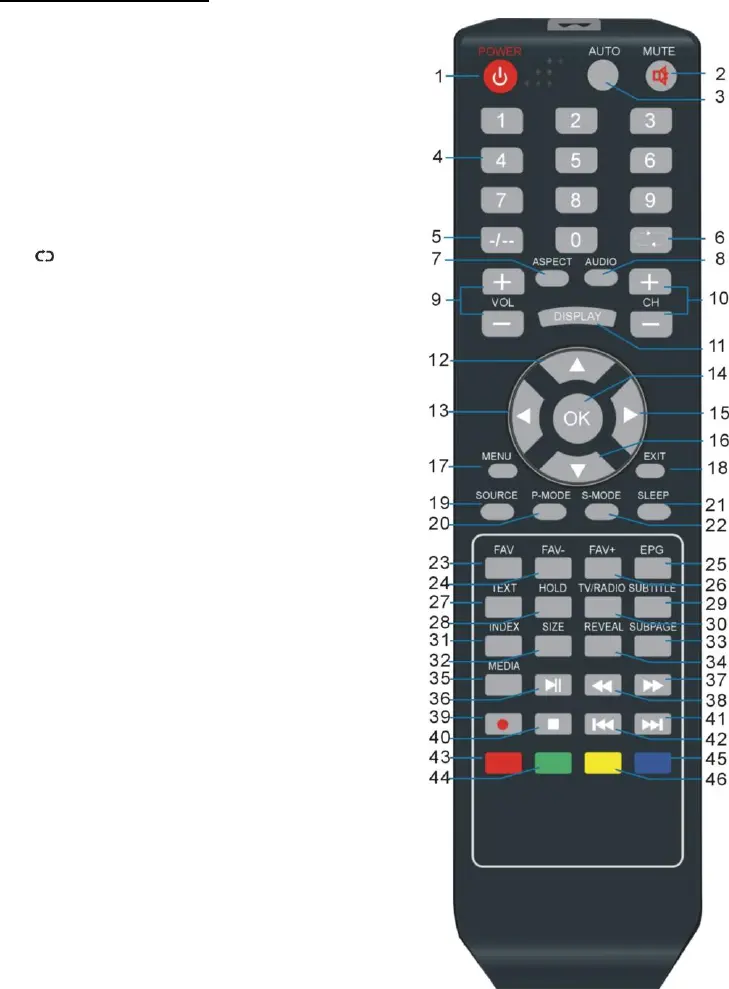

REMOTE CONTROL
1. POWER: To set the unit in standby mode;
press it again to switch it on.
2. MUTE: To mute the sound.
3. AUTO: To adjust the screen automatically (in
PC/VGA mode).
4. NUMBERIC BUTTONS (0-9): To input the
number information, such as channel number
and so on.
5. -/--: To switch the digit.
6. : To return to previous channel or input
source.
7. ASPECT: Press this button repeatedly to
select desired aspect ratio of screen.
8. AUDIO: To select different soundtrack.
9. VOL +/-: To turn up/down the volume.
10. CH+/-: To play the next/previous channel.
11. DISPLAY: To display information of current
program.
12. ▲ : Up navigation button.
13. ◄ : Left navigation button.
14. OK: To confirm selection.
15. ►: Right navigation button.
16. ▼ : Down navigation button.
17. MENU: To display the main menu. Press it
again to return to previous menu page.
18. EXIT: To exit menu page.
19. SOURCE: To switch the input source.
20. P-MODE: To select desired picture mode.
21. SLEEP: To set the sleep time as desired.
22. S-MODE: To select desired sound mode.
23. FAV: To enter the favorite channels list page.
24. FAV-: To play previous favorite channel.
25. EPG: To display electronic program guide
information.
26. FAV+: To play next favorite channel.
27. TEXT: To display the teletext.
28. HOLD: To hold the teletext.
29. SUBTITLE: To open the subtitle. Press it again
to close subtitle.
8
30. TV/RADIO: To switch the unit between TV and radio.
31. INDEX: To enter index page.
32. SIZE: To switch teletext size.
33. SUBPAGE: To enter the subpage of teletext.
34. REVEAL: To hide teletext, or display hidden characters.
35. MEDIA: To enter MEDIA mode directly.
36. : To play or pause playing.
37. : To move fast forward.
38. : To move fast backward.
39. ● : RECORD (No function on this model)
40. ■ : To stop playing.
41. : To play next chapter.
42. : To play previous chapter.
43. RED button
44. GREEN button
45. BLUE button
46. YELLOW button
9
REMOTE CONTROL PREPARATION

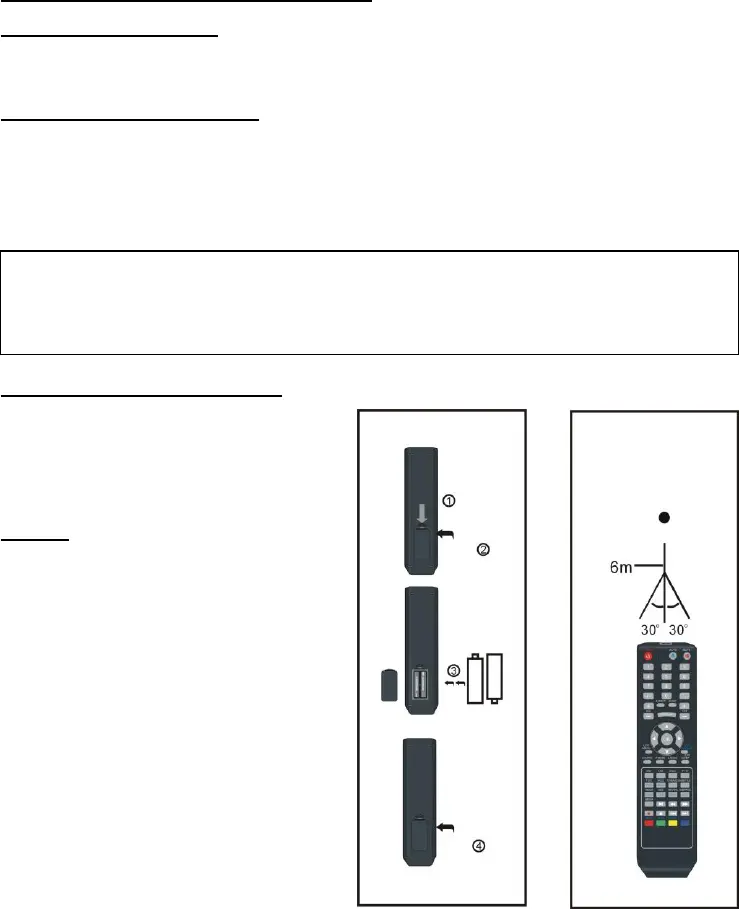

BATTERY INSTALLATION
Install the batteries as the following pictures. Be sure + and – terminals are positioned as
indicated in the battery compartment (Fig1).
SERVICE LIFE OF BATTERIES
The batteries normally last for one year although this depends on how often the remote
control is used.
If the remote control fails to work even when it is operated near the player, replace the
batteries.
Use two size AAA dry batteries.
NOTE:
Do not drop, step on or otherwise impact the remote control. This may damage the
parts or lead to malfunction.
If the remote control is not going to be used for a long time, remove the batteries.
REMOTE CONTROL OPERATION
Point the remote control from no more
than about 6 m from the remote control
sensor and within about 60° of the front
of the player (Fig2).
NOTES:
The operating distance may vary
according to the brightness of the
room.
Do not point bright light at remote
control sensor.
Do not place objects between the
Remote control and the remote
control Sensor.
Do not use this remote control while
simultaneously operating the remote
control of any other equipment.
Fig1 Fig2
Remote Control
Sensor
Push
Open
Press
10
Ensure all the cables are disconnected from the main unit before connecting to AC
power source.
Read through the instructions before connecting other equipments.

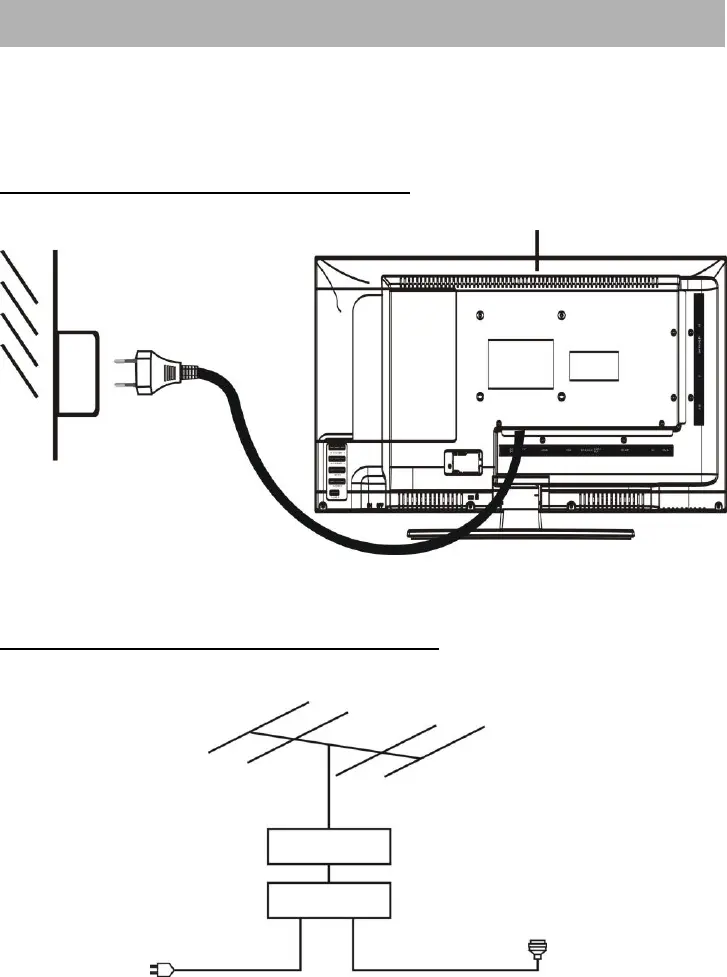

CONNECTING TO AC POWER SOURCE
CONNECT EXTERNAL ANTENNA TO UNIT
Install external antenna into antenna jack for best picture.
BASIC CONNECTION
Main Unit
To power outlet
Antenna
Outdoor
antenna
amplifier
Indoor
antenna
amplifier
Power plug of
antenna amplifier
75 OHM
antenna plug
11

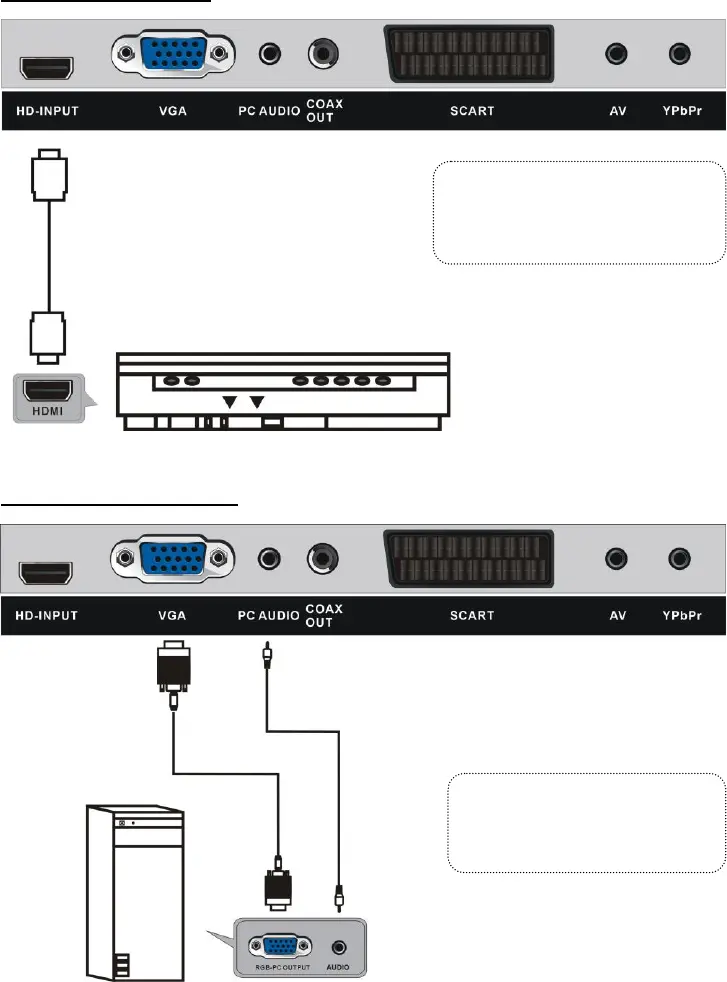

HDMI CONNECTION
PC/VGA CONNECTION
HDMI cable
(Not included)
Use HDMI cable (not included) to
connect the unit with other
devices to receive high-definition
multimedia signal.
Back of DVD/VCR
PC
Use VGA cable and Audio cable
(not included) to connect the
unit with TV or PC, and use this
product as a monitor.
Audio cable
(Not included)
VGA cable
(Not included)
12

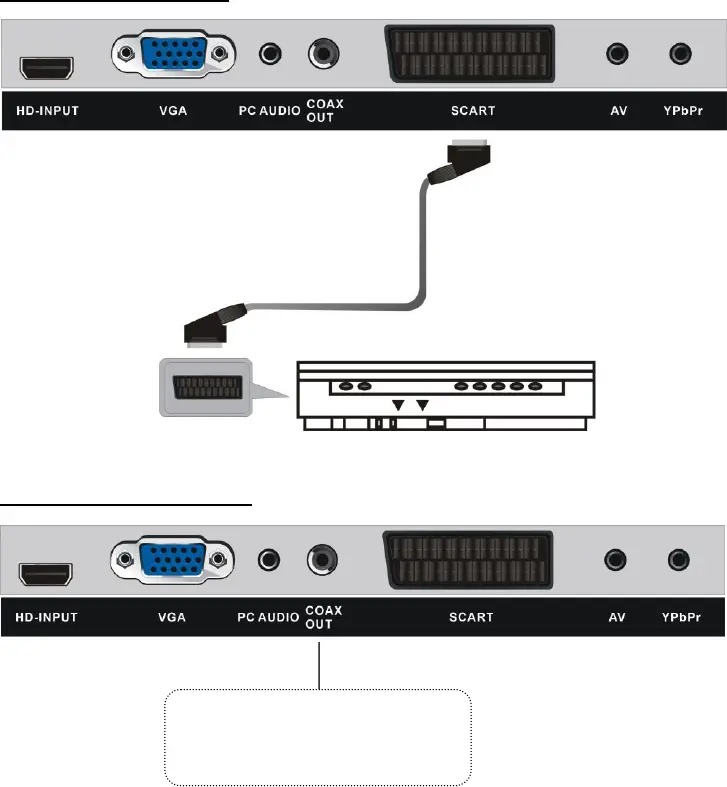

SCART CONNECTION
COAXIAL CONNECTION
Back of DVD/VCR
Use coaxial cable (not included) to
connect the unit with amplifier or
other audio decoding devices for
coaxial audio signal output.
SCART cable
(Not included)
13

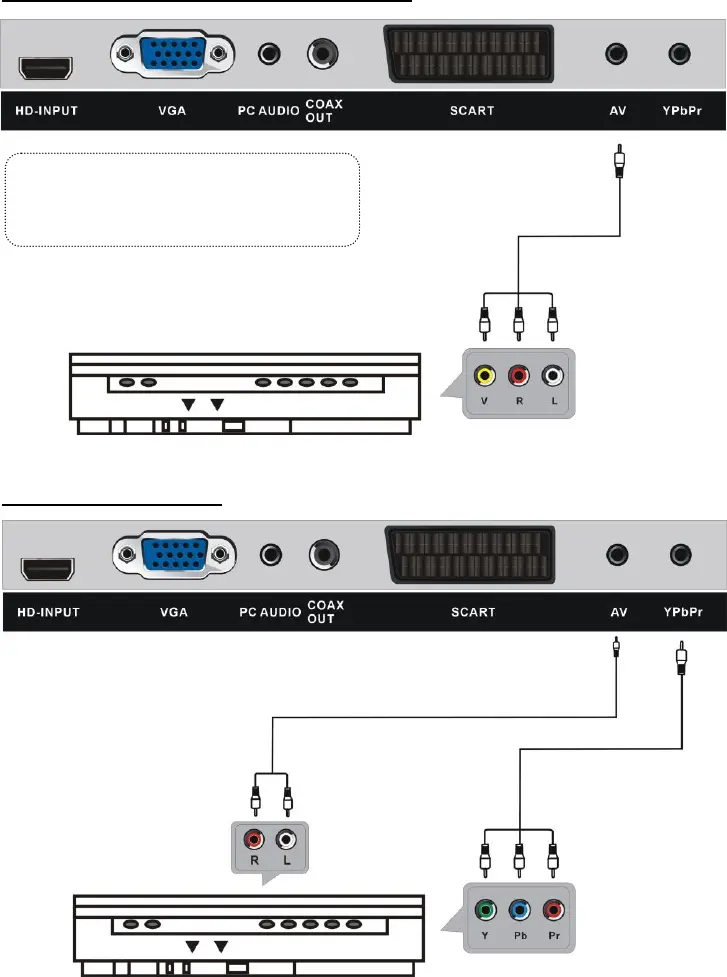

AV (COMPOSITE VIDEO) CONNECTION
YPbPr CONNECTION
Back of DVD/VCR
YPbPr cable
(Not included)
Audio cable
(Not included)
Back of DVD/VCR
AV cable
(Not included)
For basic connection, use the composite
Audio L/R (white/red) and CVBS (yellow)
cable (not included) to connect the unit
with other devices.
14

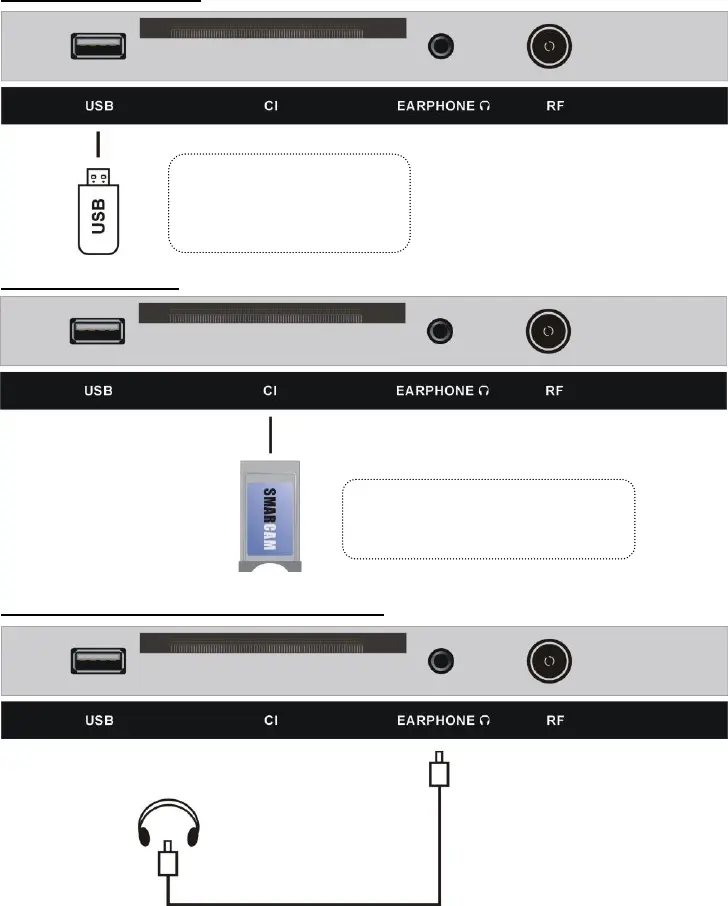

USB CONNECTION

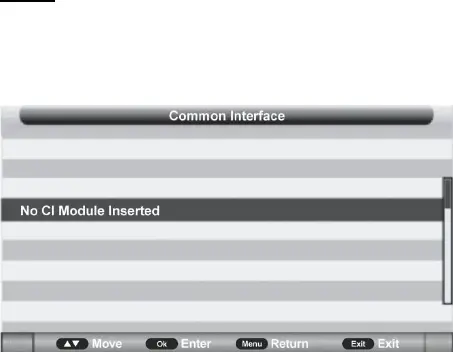

INSERT CI CARD
CONNECT EARPHONE TO THE UNIT
MAKE SURE ALL THE EQUIPMENTS AND POWER CORDS ARE CONNECTED
PROPERLY AND THE UNIT IS SET IN CORRECT MODE BEFORE OPERATION.
Earphone cable
(Not included)
Insert an USB memory
device (not included) to
playback MOVIE / MUSIC /
PHOTO / Multimedia files.
Insert your CI card (Conditional
Access Module) to watch special
digital channels in your area.
15
- Press POWER button on unit or remote control to power ON the unit (indicator will glow
blue); press it again to power OFF (standby mode) the unit (indicator will glow red).
- Press SOURCE button on unit top or remote control to set the unit in DTV or TV mode.
SELECT DESIRED PROGRAM
- Press CH+ button to play next channel.
- Press CH- button to play previous channel.
- Press number buttons on remote control directly to select wanted program.
NOTE: Press -/-- button repeatedly to switch digit.
VOLUME CONTROL
- Press VOL+ or VOL- to adjust the level of current volume.
- Available range: 0-100.
MUTE CONTROL
Press MUTE button to mute the sound, press it again to turn on the sound.
SOURCE SETTING
- Press SOURCE button on unit or remote control to display the sources list.
- Press UP or DOWN navigation button to select desired input source, and then press OK
button to confirm selection.
- Available options: DTV, ATV, AV, SCART, YPbPr, HDMI, PC, MEDIA.
PICTURE MODE
- Press P-MODE button on remote control repeatedly to select desired PICTURE mode
directly.
- Available options: Standard, Mild, User, Dynamic.
SOUND MODE
- Press S-MODE button on remote control repeatedly to select SOUND mode directly.
- Available options: Standard, Movie, Music, Speech, User.
SLEEP TIME SETTING
- Press SLEEP button on remote control repeatedly to select SLEEP TIMER directly.
- Available options: Off, 10min, 20min, 30min, 60min, 90min, 120min, 180min, 240min.
VIDEO SIZE SETTING
- Press ASPECT button on remote control repeatedly to select VIDEO SIZE directly.
- Available options: Auto, 4:3, 16:9, Zoom1, Zoom2.
BASIC OPERATIONS
16
NOTE: If there’s no signal, pressing ASPECT button will not work. And the available video
size may be different in different input sources.

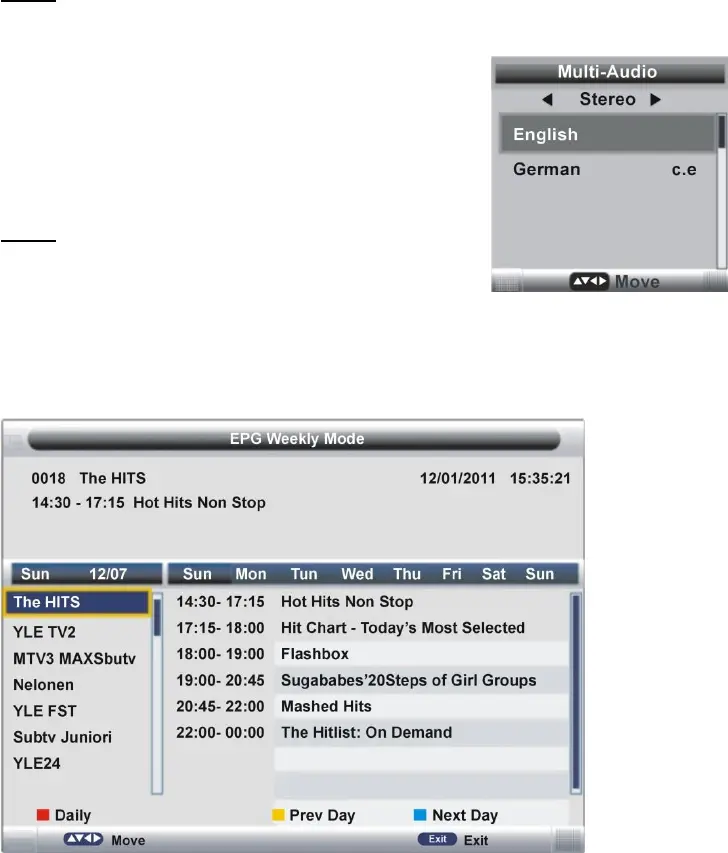

MULTIAUDIO SETTING
- Press AUDIO button on remote control to enter
Multi-Audio menu page.
- Press LEFT/RIGHT navigation buttons to select the
available soundtrack.
- Press UP/DOWN navigation buttons to select the
available audio language.
NOTE: To enable this function, make sure that the channel
you are viewing supports multi-audio languages.
INFORMATION DISPLAY
Press DISPLAY button on remote control to display information of current program.
TV GUIDE (FOR DTV MODE ONLY)
Press EPG button on remote control to enter EPG menu page.
- Press UP/DOWN navigation buttons to select preferred channel.
- Press LEFT/RIGHT navigation buttons to switch between left column and right column.
- Press RED button to switch between weekly mode and daily mode.
- Press YELLOW button to display the TV guide of previous day.
- Press BLUE button to display the TV guide of next day.
17
FAVORITE LIST

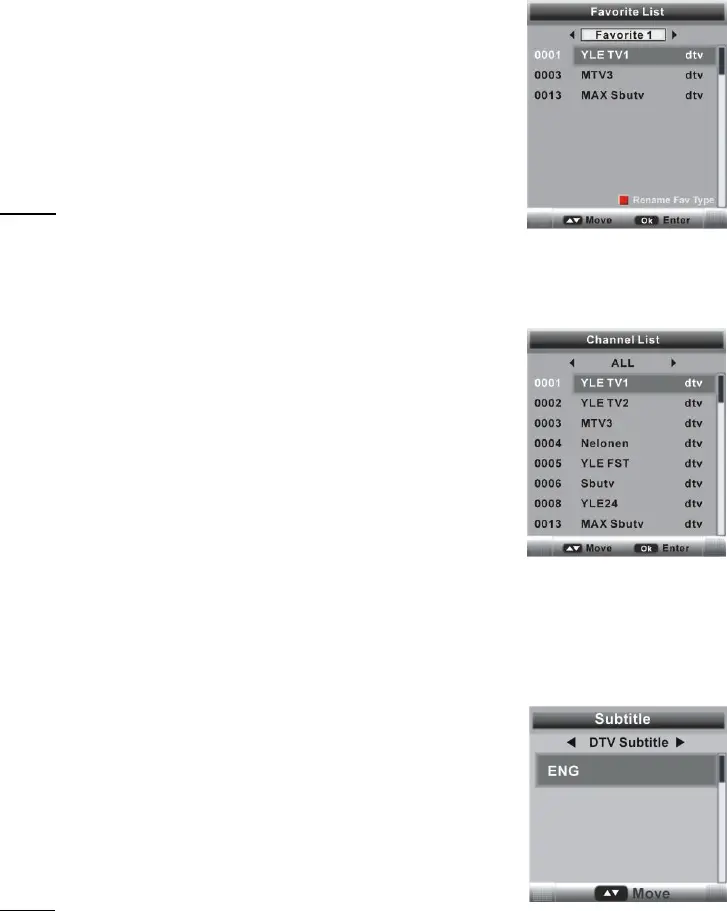

When viewing an available channel, press FAV button on remote
control to enter Favorite List menu page.
- Press UP or DOWN navigation buttons to select preferred
channel.
- Press LEFT/RIGHT navigation buttons to select preferred
favorite group.
- Press OK button to confirm the selection.
NOTE:
To add/remove a channel from Favorite List, please see
Favorite Management on page 29.

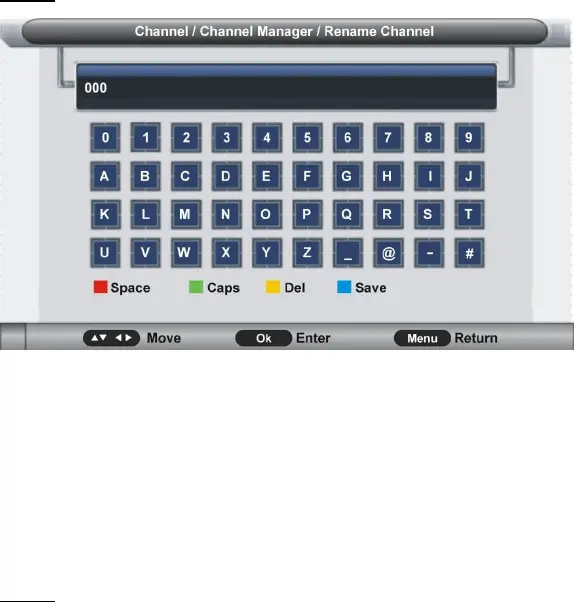

Press RED button on remote control to display the keyboard. Then you can rename a
desired favorite type using navigation buttons.
QUICK SELECT
When viewing an available channel, press OK button on remote
control to enter Channel List menu page.
- Press UP or DOWN navigation buttons to select preferred
channel.
- Press OK button to confirm the selection.
TELETEXT
Press TEXT button on remote control to display the available
teletext information and press it again to stop playing the
teletext.
TV/RADIO (FOR DTV MODE ONLY)
Press TV/RAIDO button on remote control to switch between TV and radio mode.
SUBTITLE
- Press SUBTITLE button on remote control to enter Subtitle
menu page.
- Press LEFT/RIGHT navigation buttons to select preferred
option.
- Press UP/DOWN navigation buttons to select available
subtitle.
- Press OK button to confirm the selection.
NOTE: To enable this function, make sure that the channel you
are viewing supports multi-subtitle.
18
MEDIA PLAYBACK
- Press SOURCE button on the TV or the remote control to set the TV in MEDIA mode.
- Insert a USB memory device before following operations.
- Press UP/DOWN/LEFT/RIGHT navigation buttons to move the cursor.
- Press EXIT button to return to previous menu page.
NOTE: You can press MEDIA button on the remote control to enter MEDIA mode directly.

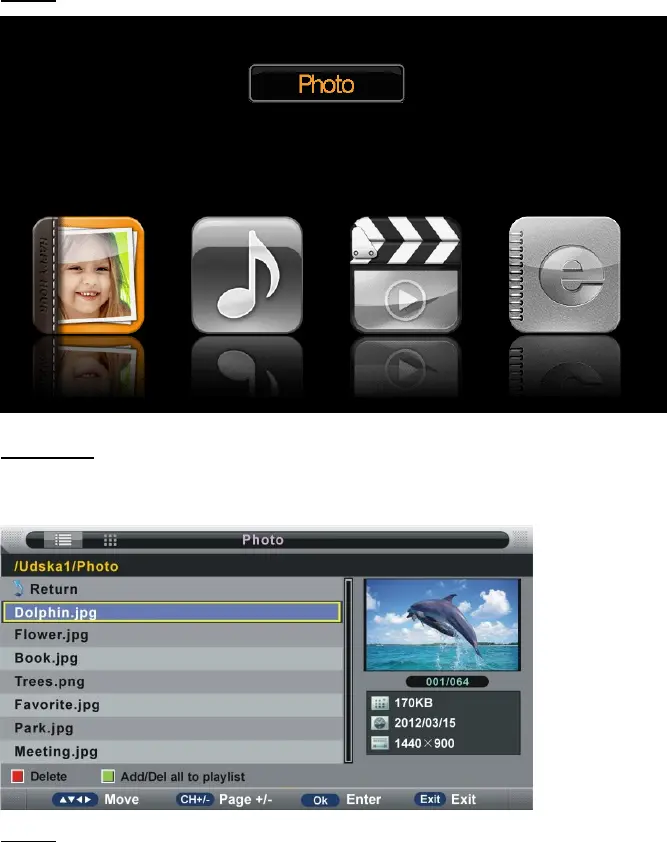

1. PHOTO
Press LEFT/RIGHT navigation buttons to select Photo in the main menu and press OK
button to enter.
NOTE: When selecting Photo files, press EXIT button to move the cursor to TITLE and then
press RIGHT navigation button to view files in thumbnail mode.
19
- Use navigation buttons to select preferred file.
- Press RED button to enter a dialog box, and select Yes to delete highlighted file; select
No to cancel this operation.
- Press GREEN button to add/remove all the files from play list.
- Press OK button to add/remove highlighted file from play list.
- Press button to start playing.
During photo normal playing:
- Press OK button on remote control to display the tool bar; press EXIT button to hide it.
- Press LEFT/RIGHT navigation buttons to select preferred option in the tool bar and
press OK button to confirm selection/enter submenu.
- Press button on remote control to play or pause playing.
- Press button on remote control to stop playing.
- Press button on remote control to play previous file.
- Press button on remote control to play next file.
2. MUSIC
Press LEFT/RIGHT navigation buttons to select Music in the main menu and press OK
button to enter.
- Use navigation buttons to select preferred file.
- Press RED button to enter a dialog box, and select Yes to delete highlighted file; select
20
No to cancel this operation.
- Press GREEN button to add/remove all the files from play list.
- Press OK button to add/remove highlighted file from play list.
- Press button to start playing.

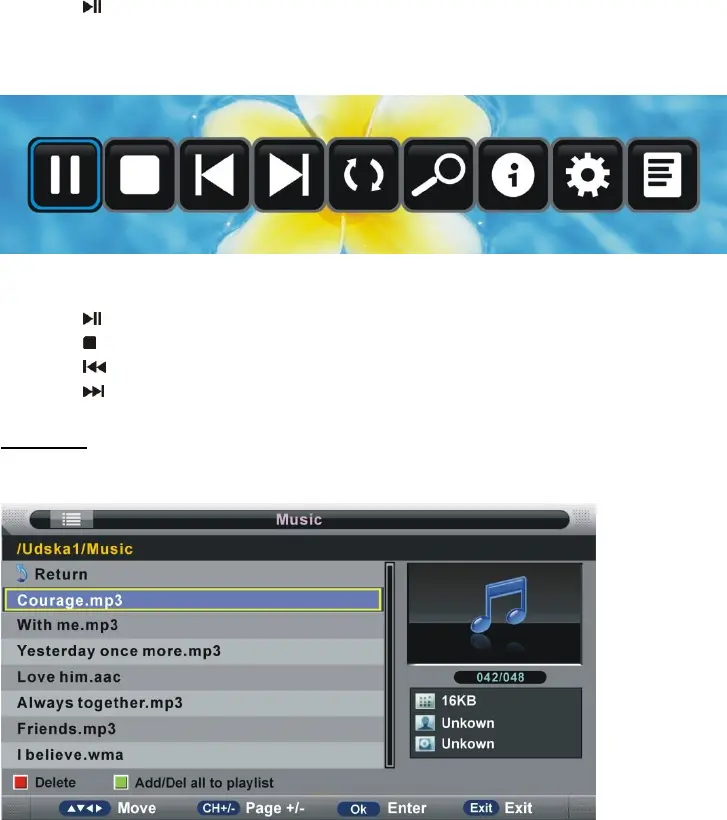

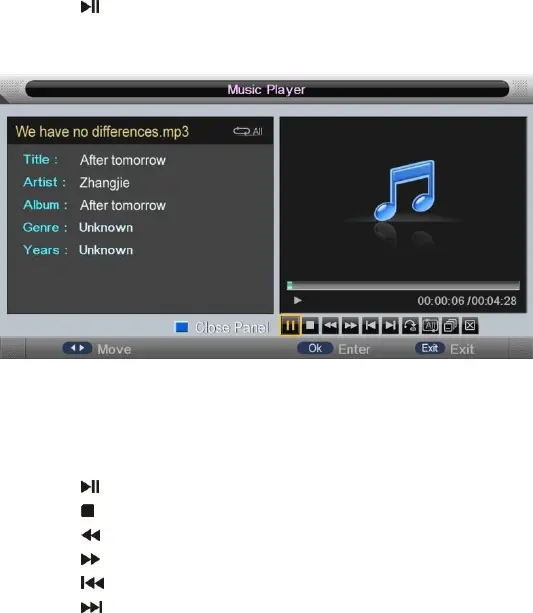

During music playing:
- Press LEFT/RIGHT navigation buttons to select preferred option in the tool bar and
press OK button to confirm selection/enter submenu.
- Press BLUE button on remote control to close the on-screen display; press any button
on remote control to display it again.
- Press button on remote control to play or pause playing.
- Press button on remote control to stop playing.
- Press button on remote control to move fast backward.
- Press button on remote control to move fast forward.
- Press button on remote control to play previous file.
- Press button on remote control to play next file.
21
3. MOVIE
Press LEFT/RIGHT navigation buttons to select Movie in the main menu and press OK
button to enter.
- Use navigation buttons to select preferred file.
- Press RED button to enter a dialog box, and select Yes to delete highlighted file; select
No to cancel this operation.
- Press GREEN button to add/remove all the files from play list.
- Press OK button to add/remove highlighted file from play list.
- Press button to start playing.

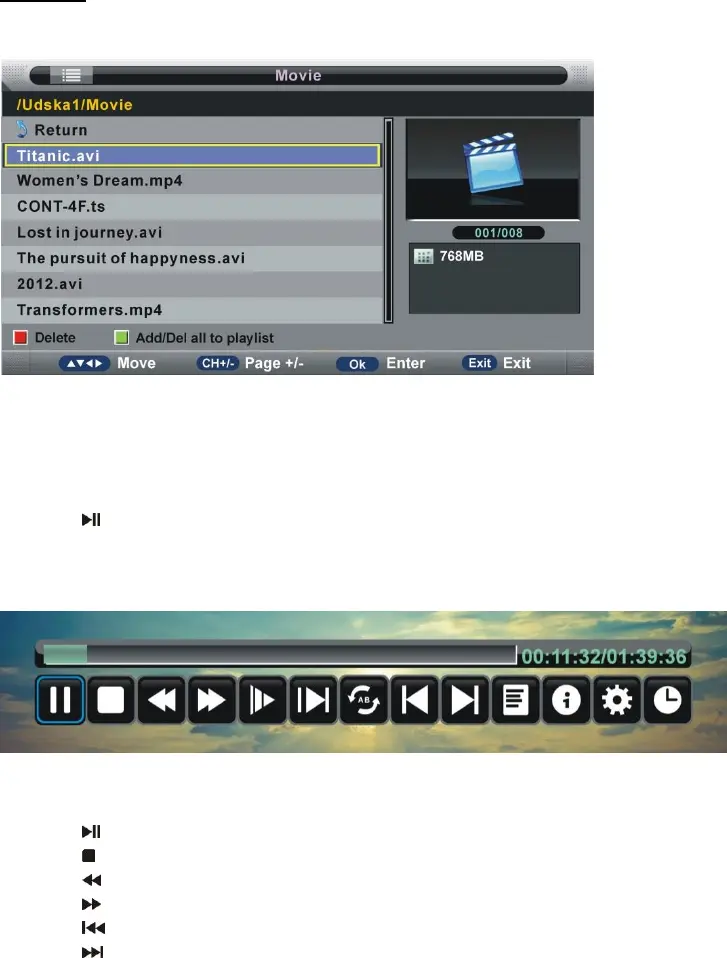

During movie playing:
- Press OK button on remote control to display the tool bar; press EXIT button to hide it.
- Press LEFT/RIGHT navigation buttons to select preferred option in the tool bar and
press OK button to confirm selection/enter submenu.
- Press button on remote control to play or pause playing.
- Press button on remote control to stop playing.
- Press button on remote control to move fast backward.
- Press button on remote control to move fast forward.
- Press button on remote control to play previous file.
- Press button on remote control to play next file.
22

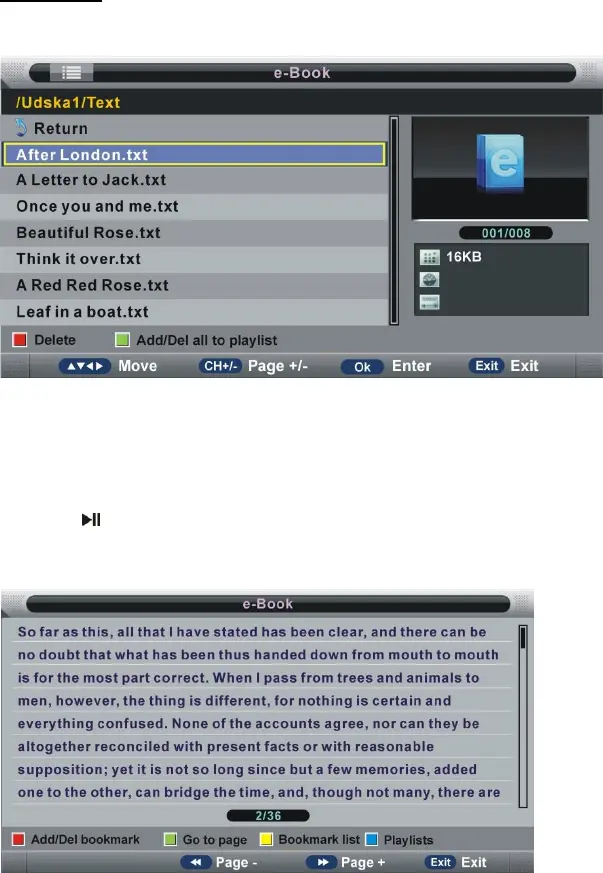

4. E-BOOK
- Press LEFT/RIGHT navigation buttons to select e-Book in the main menu and press OK
button to enter.
- Use navigation buttons to select preferred file.
- Press RED button to enter a dialog box, and select YES to delete highlighted file; select
No to cancel this operation.
- Press GREEN button to add/remove all the files from play list.
- Press OK button to add/remove highlighted file from play list.
- Press button to start playing.
During e-book playing:
- Press RED button on remote control to add/remove current page from Bookmark List.
- Press GREEN button on remote control to enter GOTO mode. Input valid number and
press OK button to enter desired page directly.
- Press YELLOW button on remote control to display the Bookmark list.
23
- Press BLUE button on remote control to display the play list.
- Press button on remote control to play previous page.
- Press button on remote control to play next page.
NOTE:
To play your multimedia files, make sure you have selected corresponding icon in the main
menu of MEDIA PLAYBACK. That is to say, you can only play Photo files in PHOTO item
and play audio file in MUSIC, etc.
There are different setting menus. Once the initial programming is entered, it will be
remained in the memory even when the TV is in the standby model until it has been
changed.
Common procedure for initial settings
- Press MENU button on the TV or remote control to display the main menu.
- Press UP or DOWN navigation button to select submenus.
- Press OK or RIGHT navigation button to enter submenu page.
- Press UP or DOWN navigation button to select preferred option.
- Press LEFT or RIGHT navigation button to adjust the value.
- Press OK button to confirm selection.
- Press MENU button to return to previous menu page.
- Press EXIT button to exit menu page.
First Time Installation
Connect to power source and turn on the TV and below installation menu page will display
on the screen:

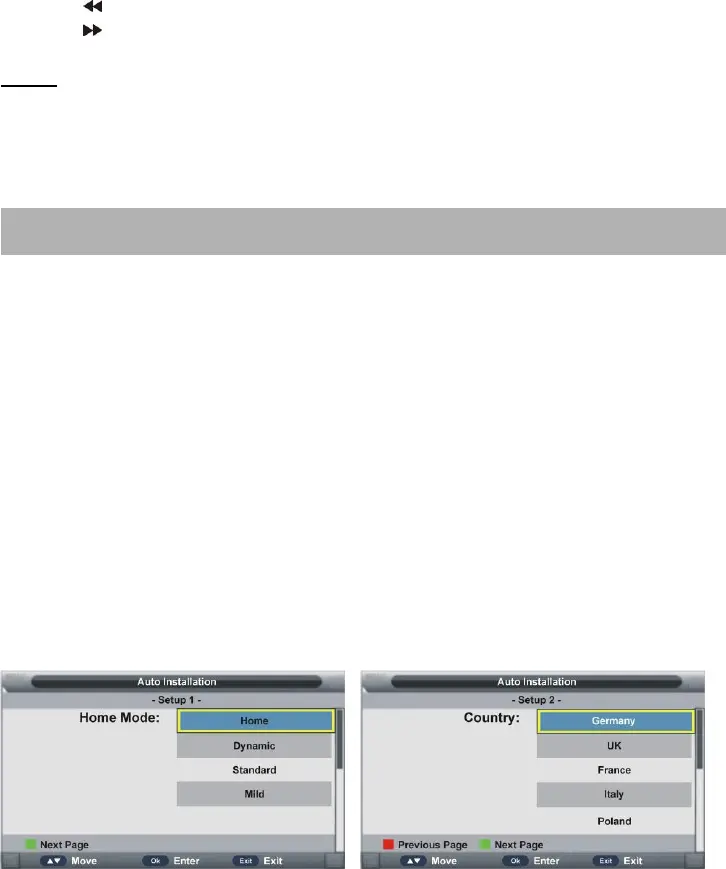

Setup 1
- Press UP/DOWN navigation button to select desired picture Mode.
- Press OK button to call out a dialog box. Select OK to confirm selection and turn to next
page; select Cancel to dismiss the dialog box.
MAIN MENU
24
Setup 2
- Press UP/DOWN navigation buttons to select the country that you are living in.
- Press OK button to confirm the selection and go to next page.

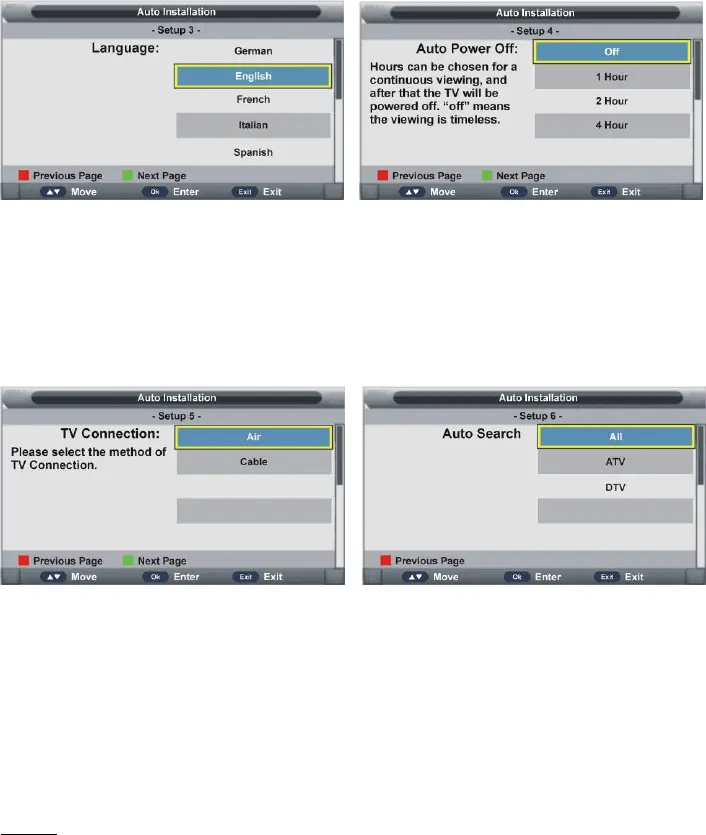

Setup 3
- Press UP/DOWN navigation buttons to select desired menu language.
- Press OK button to confirm the selection and go to next page.
Setup 4
- Press UP/DOWN navigation buttons to select desired auto power off time.
- Press OK button to confirm selection and go to next page.
Setup 5
- Press UP/DOWN navigation buttons to select desired connection type.
- Press OK button to confirm selection and go to next page.
Setup 6
- Press UP/DOWN navigation buttons to select desired searching type.
- Press OK button to confirm the selection and then the TV will search programs
automatically.
NOTE:
If you want to skip ATV or DTV channel tuning, press MENU button and use
LEFT/RIGHT navigation buttons and select OK; select CANCEL to continue tuning.
If you want to exit all the tuning, press EXIT button and use LEFT/RIGHT navigation
buttons and select OK; select CANCEL to continue tuning.
25
DTV MODE
Press SOURCE button on the TV or remote control to select DTV input source.

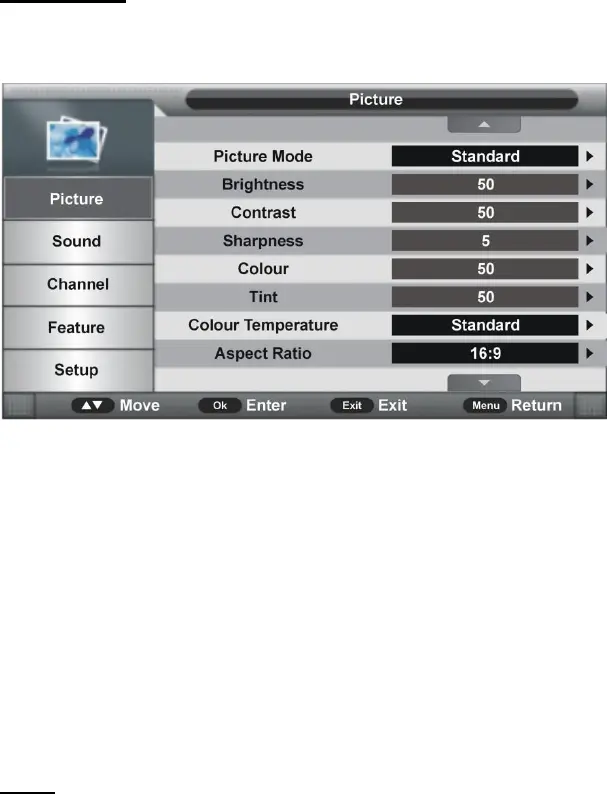

1. Picture
1.1 Picture Mode
Available options: Standard, Mild, User, Dynamic.
1.2 Brightness
The brightness value of picture can be adjusted from 0-100.
1.3 Contrast
The contrast value of picture can be adjusted from 0-100.
1.4 Sharpness
The sharpness value of picture can be adjusted from 0-10.
1.5 Colour
The color saturation value of picture can be adjusted from 0-100.
NOTE: The value of Brightness, Contrast, Sharpness, and Color is adjustable only in User
picture mode.
1.6 Tint
This item is used to adjust the tone of color in NTSC system from 0-100.
1.7 Colour Temperature
This item is used to adjust the optimum color temperature for suitable viewing.
Available options: Standard, Cold, Warm.
26
1.8 Aspect Ratio
Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation
buttons to select preferred option.
Available options: Auto, 4:3, 16:9, Zoom1, Zoom2.
NOTE: If there’s no signal, pressing ASPECT button on remote control will not work. And
the available video size may be different in different input sources.
1.9 Noise Reduction
This item is used to eliminate the image noise to gain better image effect.
Available options: Off, Low, Middle, High.

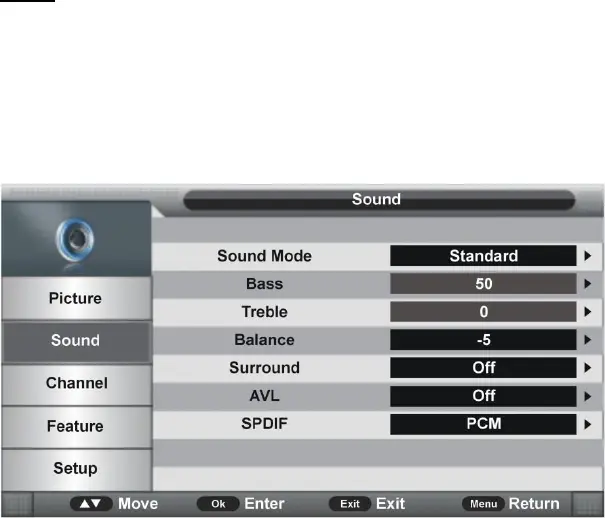

2. SOUND
2.1 Sound Mode
Available options: Standard, Movie, Music, Speech, User.
2.2 Bass
This item is used to adjust the level of lower-pitched sounds from 0-100.
2.3 Treble
This item is used to adjust the level of higher-pitched sounds from 0-100.
NOTE: The value of Bass and Treble is adjustable only in User sound mode.
2.4 Balance
This item is used to adjust the audio output between left and right speaker from -50 to 50.
2.5 Surround
This item is used to turn on/off Surround function.
27
2.6 AVL (Auto Volume Level)
This item is used to turn on/off AVL function.
2.7 SPDIF
This item is used to select desired SPDIF audio output type.
Available options: Off, PCM, Auto.
3. CHANNEL
3.1 Channel Management

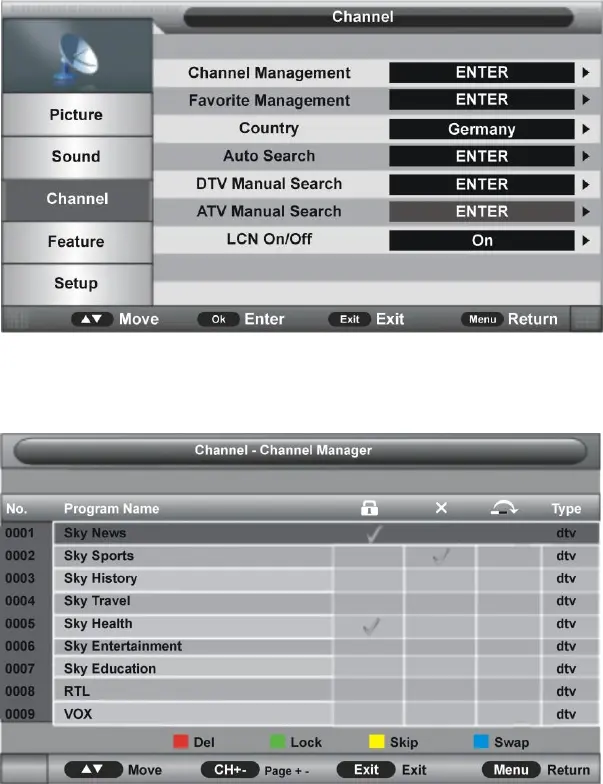

Press UP/DOWN navigation buttons to select this item and press OK or RIGHT navigation
button to enter submenu.
28
Press UP/DOWN navigation buttons to select preferred program.
a) Press RED button on remote control and use number buttons to input the password if
“Lock Channel” is on. Then press RED button to add/remove a delete mark on
highlighted program. After that, press MENU button to enter a dialogue box. Select OK
to delete it; select Cancel to cancel this operation.
b) Press GREEN button on remote control and use number buttons to input the password if
“Lock Channel” is on. Then press GREEN button to lock/unlock a program.
c) Press YELLOW button on remote control to add/remove skip mark.
d) Press BLUE button on remote control to enter MOVE mode. Then use UP/DOWN
navigation buttons to select preferred position and press OK button to move it.
e) Press UP/DOWN navigation buttons to select preferred program. Then press OK button
to enter Rename menu page.
NOTE: The factory default password is “0000”.
Rename operations:
- Press UP/DOWN/LEFT/RIGHT navigation buttons to select preferred option and press
OK button to input it.
- Press RED button on remote control to add a space.
- Press GREEN button on remote control to switch between capital letters and lower case
letters.
- Press YELLOW button on remote control to delete an input.
- Press BLUE button on remote control to save settings.
NOTE: RENAME function is available only for analog programs.
29

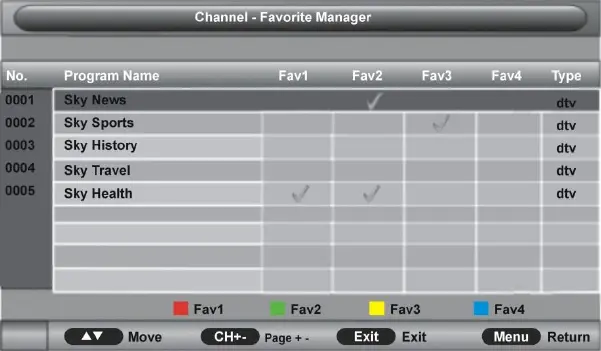

3.2 Favorite Management
Press UP/DOWN navigation buttons to select preferred program.
a) Press RED button on remote control to add/remove highlighted channel to Favorite 1
list.
b) Press GREEN button on remote control to add/remove highlighted channel to Favorite 2
list.
c) Press YELLOW button on remote control to add/remove highlighted channel to Favorite
3 list.
d) Press BLUE button on remote control to add/remove highlighted channel to Favorite 4
list.
3.3 Country
This item is used to select the country that you are living in.
3.4 TV Connection
This item is used to select the connection type of your TV.
Available options: Air, Cable.
3.5 Auto Search
- Press UP/DOWN navigation buttons to select this item and press OK or RIGHT
navigation button to enter submenu.
- Then press UP/DOWN navigation button to select All, DTV or ATV and press OK or
RIGHT navigation button to enter a dialog box. Select OK to start auto searching or
select Cancel to cancel this operation.
30
To exit auto tuning, press MENU or EXIT button and select OK in the menu.

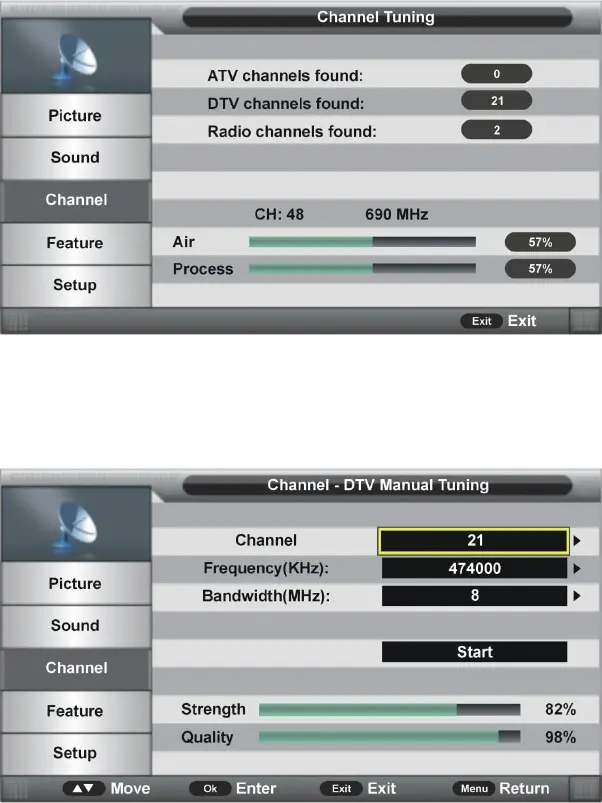

3.6 DTV Manual Search
When TV Connection is Air:
a) Channel
- Press OK or RIGHT navigation button to enter submenu and press UP/DOWN
navigation buttons to select preferred program
b) Frequency (KHz)
- Press OK or RIGHT navigation button to enter submenu.
- Press LEFT/RIGHT navigation buttons to move the cursor; press number buttons on
remote control to input desired value.
31
C) Bandwidth (MHz)
- Press OK or RIGHT navigation button to enter submenu and press UP/DOWN
navigation buttons to select preferred bandwidth.

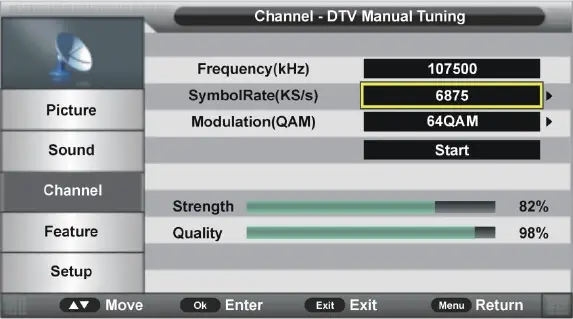

When TV Connection is Cable:
a) Frequency (kHz)
- This item is not user adjustable.
b) Symbol Rate (KS/s)
- Press OK or RIGHT navigation button to enter submenu.
- Press LEFT/RIGHT navigation buttons to move the cursor; press number buttons on
remote control to input desired value.
c) Modulation (QAM)
- Press OK or RIGHT navigation button to enter submenu and press UP/DOWN
navigation buttons to select preferred modulation.
Once the settings of a) to c) are finished, select START in the menu and press OK button to
start searching.
32

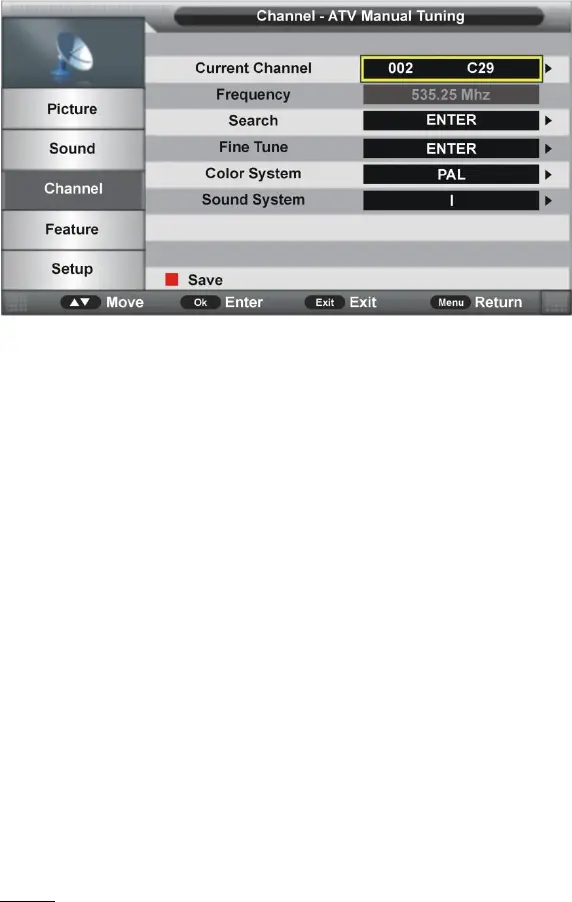

3.7 ATV Manual Search (for ATV input source only)
3.7.1 Current Channel
Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation
buttons to select preferred program.
3.7.2 Frequency
This item is not user adjustable.
3.7.3 Search
This item is used to start searching.
3.7.4 Fine Tune
Press OK or RIGHT navigation button to enter submenu and press LEFT/RIGHT navigation
buttons to fine tune it.
3.7.5 Color System
Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation
buttons to select preferred color system.
Available options: Auto, PAL, SECAM.
3.7.6 Sound System
Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation
buttons to select preferred sound system.
Available options: BG, DK, I, L, L’.
NOTE: The Sound System options may vary due to different Color System settings.
3.8 LCN On/Off
This item is used to turn on/off LCN (Logic Channel Number).
33
4. Feature

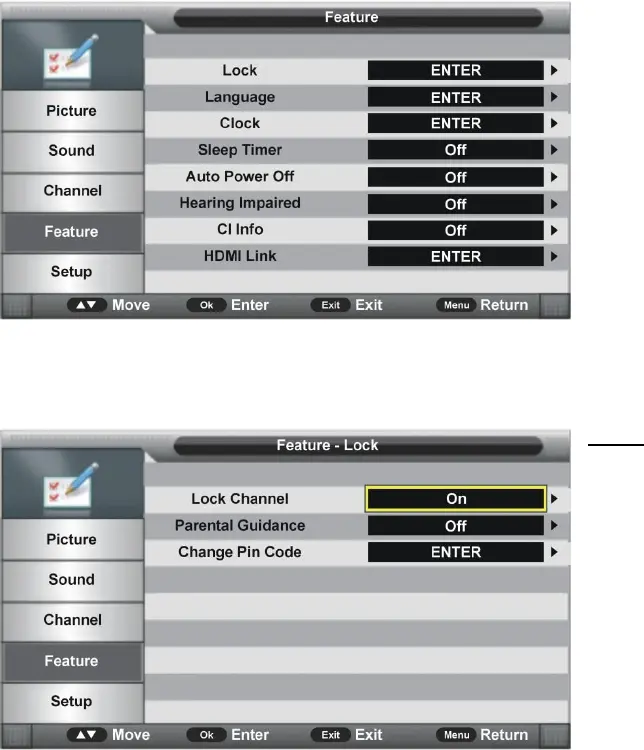

4.1 Lock
- Press OK or RIGHT navigation button to enter submenu.
- Input the password using number buttons on remote control.
- Press UP/DOWN navigation buttons to select preferred item.
NOTE: The
factory default
password is
“0000”.
4.1.1 Lock Channel
This item is used to turn on/off Lock Channel function.
4.1.2 Parental Guidance
Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation
buttons to select preferred option.
Available options: Off, from 4 to 18.
34

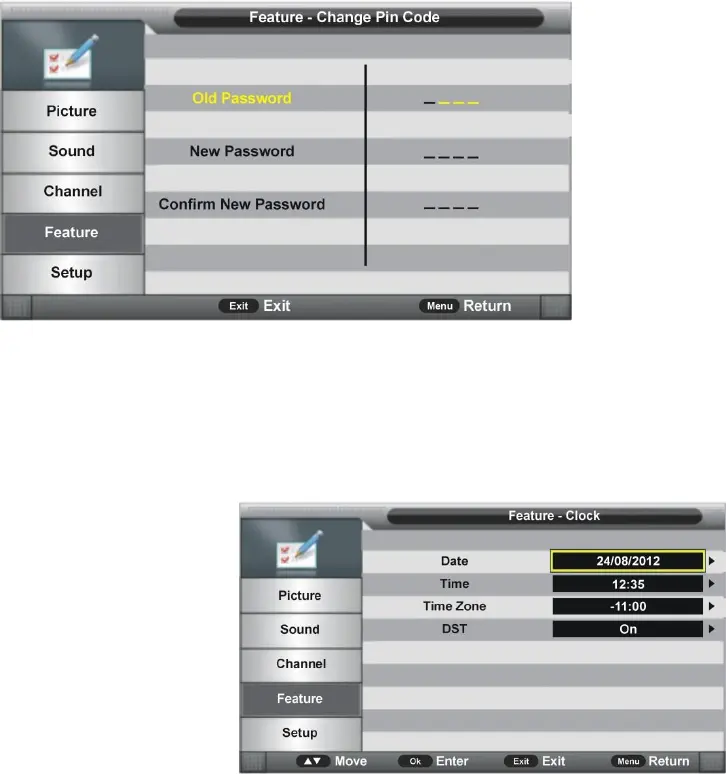

4.1.3 Change PIN Code
- Press OK or RIGHT navigation button to enter submenu.
- Input the Old Password, New Password, and Confirm New Password. After that, the
new password will be saved automatically.
4.2 Language
Press OK or RIGHT navigation button to enter submenu. Then select preferred OSD menu
language, subtitle language, audio language, and DTV/ATV Teletext language using
navigation buttons.
4.3 Clock
- Press OK or RIGHT
navigation button to
enter submenu.
- Press UP/DOWN
navigations button to
select preferred item.
4.3.1 Date
When auto searching is done, this unit will get the date from the signal and save it
automatically.
4.3.2 Time
When auto searching is done, this unit will get the time from the signal and save it
automatically.
35
4.3.3 Time Zone
Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation
buttons to select preferred value.
4.3.4 DST (Daylight Saving Time)
This item is used to turn on/off DST function.
4.4 Sleep Timer
This item is used to set the automatic sleep time in standby mode.
Available options: Off, 10 Min, 20 Min, 30 Min, 60 Min, 90 Min, 120 Min, 180 Min, 240 Min.
4.5 Auto Power Off
This item is used to set the Auto Power Off time.
Available options: Off, 1 Hour, 2 Hours, 4 Hours.
4.6 Hearing Impaired
This item is used to turn on/off Hearing Impaired function. For Hearing Impaired users, this
function can assist them to know a certain scene or action through the caption, instead of
hearing it.
NOTE: Hearing Impair function works only when you are viewing programs that contain
related caption information.
4.7 CI Info
This item is used to display the CI information.
36

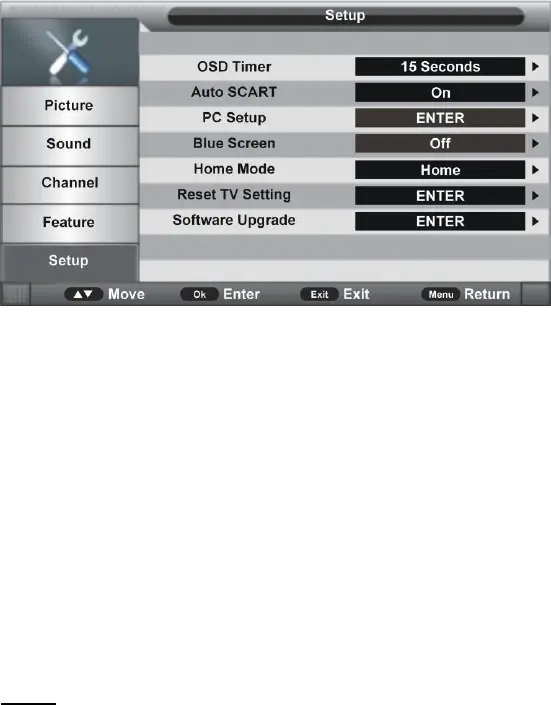

5. Setup
5.1 OSD Timer
Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation
buttons to select preferred option.
Available options: 5/10/15/20/25/30 Seconds and Never.
5.2 Auto SCART
This item is used to turn on/off Auto SCART function. If Auto SCART is on, you can view the
programs by SCART automatically when SCART cable (not included) is connected.
5.3 PC Setup (for PC input source only)
This item is adjustable only with PC input signal.
5.4 Blue Screen
This item is used to turn on/off blue background function. The screen background will turn
blue at very weak or no signal condition, if Blue Screen is being set at ON.
NOTE: This item is not adjustable in DTV mode.
5.5 Home Mode
This item is used to select desired picture mode.
Available options: Home, Dynamic, Standard, Mild.
5.6 Reset TV Setting
This item is used to reset to factory default settings.
37
ATV AND OTHER MODES
- Press SOURCE button on the TV or remote control to select desired input source.
- For menu operations in these modes, please refer to the menu operations of DTV mode.

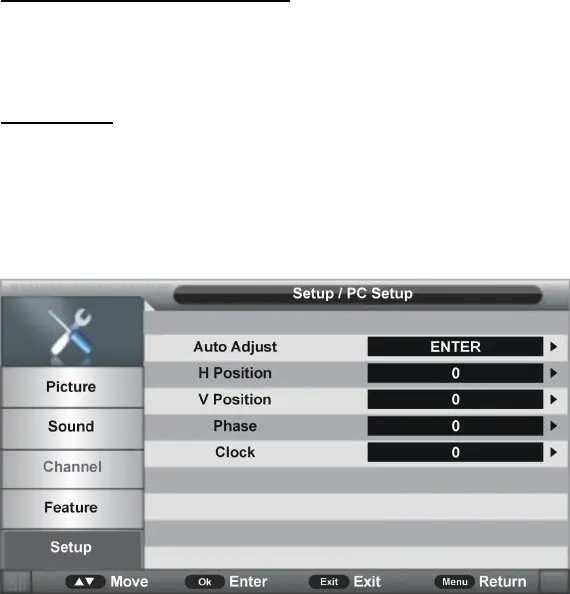

PC MODE
- Connect a personal computer to the TV.
- Power on your computer and the TV.
- Press SOURCE button on the TV or remote control to select PC input source.
- Press MENU button to display the main menu. Select Setup using UP/DOWN navigation
buttons. Then press OK or RIGHT navigation button to enter submenu.
- Select PC Setup and enter it.
- Press UP/DOWN navigation buttons to select preferred item.
- Press OK or RIGHT navigation button to enter submenu. Press LEFT/RIGHT navigation
buttons to adjust the value.
1. Auto Adjust
This item is used to adjust the PC screen automatically.
2. H Position
This item is used to adjust the value of horizontal position.
Available range: -16 to 16.
3. V Position
This item is used to adjust the value of vertical position.
Available range: -16 to 16.
41

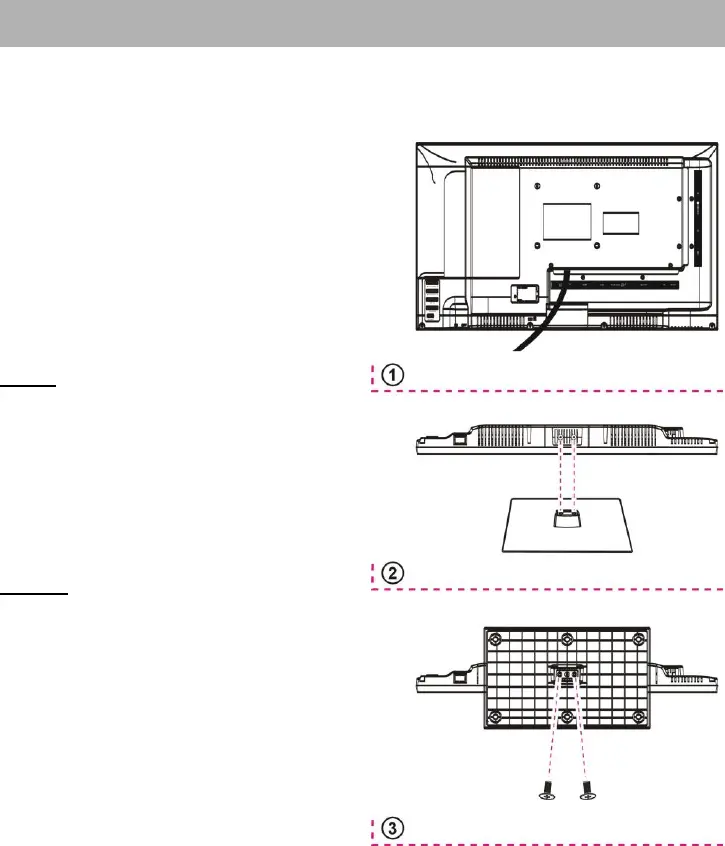

Your TV is packaged with the Stand and the Cabinet separated. Before enjoying this TV,
please carry out the Stand Installation according to the instructions below.
Step 1
Place the TV faced down on a soft cloth or
cushion to prevent the panel from being
damaged.
Step 2
Align the stand and TV, and then force the
end of stand until the TV is fully seated on
the stand.
NOTE:
Make sure the orientation of trapezoid head
on stand is corresponding to the trapezoid
slot on TV bottom.
Step 3
Tighten the included screws with a screw
driver.
NOTES:
1) Unplug the power cord first when
installing or removing the TV Stand.
2) Contact one or more partner for
assistance when installing or removing
the TV stand.
TV STAND INSTALLATION GUIDE
42
Check the following points before assuming malfunctions of this unit:
Symptom
Remedy
No power
Insert the power plug securely into the power outlet.
No picture
Ensure that the equipment is connected properly.
● No sound
● Distorted sound
● Ensure that the equipment is connected properly.
● Ensure that the input setting for the TV and stereo system
are correct.
● Adjust the master volume to a suitable volume by pressing
VOL+/VOL- button.
No operations can be
performed with the remote
control unit
● Check the batteries are installed with the correct polarities.
● The batteries are exhausted: Replace them with new ones.
● Point remote control at the remote control sensor and
operate it again.
● Operate the remote control unit at a distance of no more
than 6m from the remote control sensor.
● Remove the obstacles between the remote control and
remote control sensor.
No key operation (by the
main unit and/or the
remote control unit) is
effective
Disconnect the power plug and then reconnect it. (The player
may not be operating properly due to lightning, static electricity
or some other factors.)
Symptom (TV)
Remedy
No or poor picture
● Adjust antenna or use an external antenna.
● Relocate the unit near a window (if inside a building).
● Move units away from this product that causes interference.
● Do Auto Tuning again.
● Try another channel.
No sound or poor sound
● Check the audio settings.
● Press MUTE button on remote control to cancel mute
function.
● Unplug the headphone.
Noise or other interface
Electronic equipment near the unit is causing interface.
Relocate the unit or move the equipment.
GENERAL TROUBLESHOOTING
43
If you have reason for complaint, or your device is defective, please contact your dealer or
the service division of JAY-tech GmbH to make arrangements for service procedures.
Service Hours: Monday - Thursday from 8:00 am to 5:00 pm
Friday from 8:00 am to 2:00 pm.
Phone No.: 02161 / 575 8950
Email: info@jay-tech.de
Please do not send your product to our address unless requested to do so by our service
team. All costs and the risk of loss are the responsibility of the sender.
We reserve the right to reject unrequested deliveries, or return the package at the sender’s
expense.
EC Declaration of Conformity
The product complies with the protective requirements of European
Directives 2004/108/EC.
The conformity declaration for this product is available under
www.jay-tech.de.
Directive 2002/96/EC on Waste Electrical and Electronic
Equipment (WEEE)
This symbol on the product or in the instructions means that your electrical
and electronic equipment should be disposed at the end of its life
separately from your household waste. There are separate collection
systems for recycling in the EU. For more information, please contact the
local authority or your retailer where you purchased the product.
SERVICE PROCEDURE
Produkt Specifikationer
| Mærke: | Jay-tech |
| Kategori: | televisión |
| Model: | LED TV JTC 822C |
Har du brug for hjælp?
Hvis du har brug for hjælp til Jay-tech LED TV JTC 822C stil et spørgsmål nedenfor, og andre brugere vil svare dig
televisión Jay-tech Manualer
9 Januar 2025
28 August 2024
21 August 2024
15 August 2024
14 August 2024
14 August 2024
13 August 2024
12 August 2024
12 August 2024
12 August 2024
televisión Manualer
- E-motion
- Furrion
- Zalman
- Siemens
- Odys
- Arçelik
- Nevir
- Pantel
- Alden
- Optoma
- Orion
- Lexibook
- Philco
- Cecotec
- Kogan
Nyeste televisión Manualer
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
