Twist the top part of the enclosure in a

clock-wise direction until it disengages

from the bottom part.

Lift o the top section.

Control 80 Series Mushroom Landscape Speaker

Installation Instructions

Control 85M, 88M, and 89MS

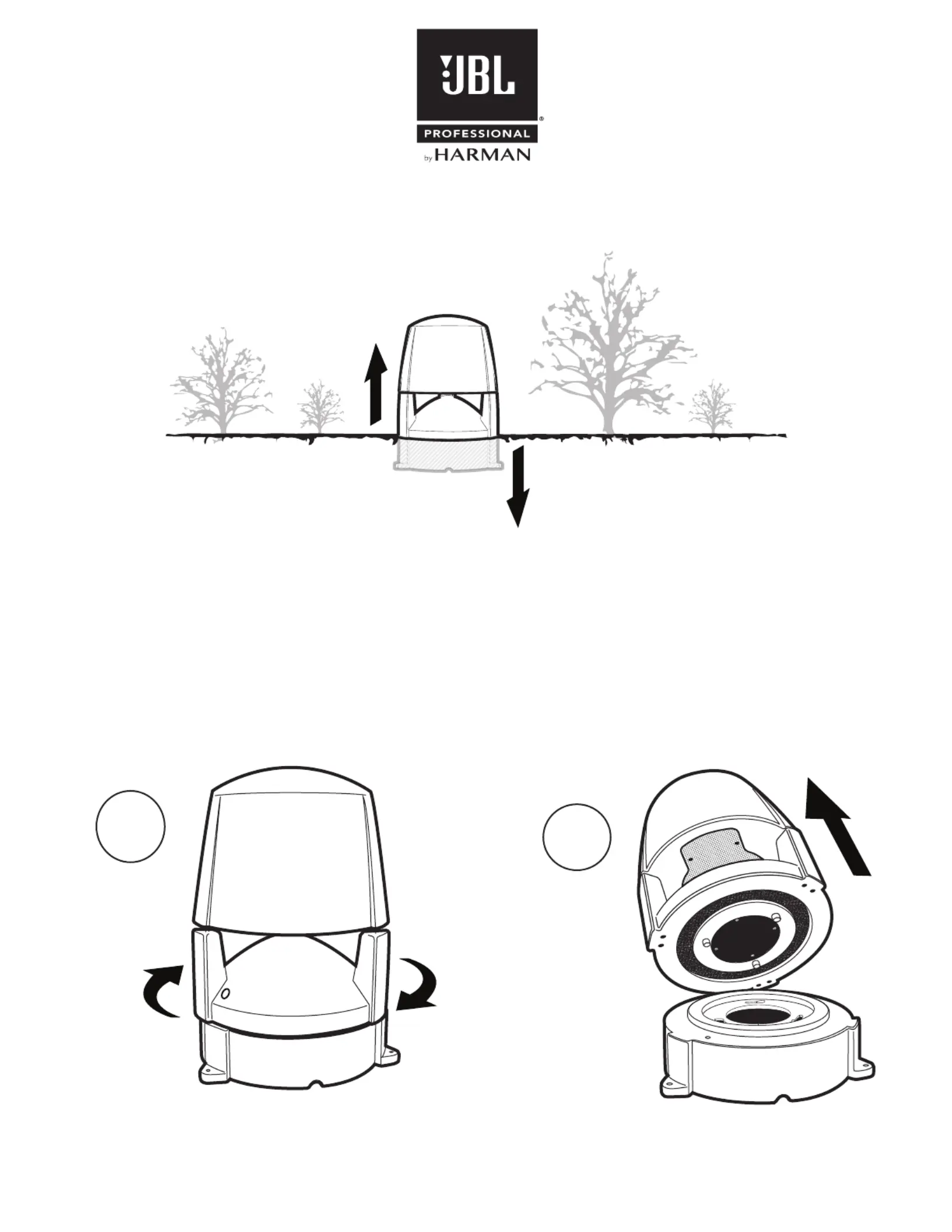

Before nal assembly and installation of the Landsape speaker, it is important to prepare the installation site. The speaker is

designed to be able to sit below grade, with the lower half burried in the soil no deeper than the boundary point where the

two parts of the speaker meet. Another installation method is to place the speaker on the surface and use ground cover

materials to “berm up” to the boundary between the two sections, being careful not to cover the ared waveguide in the upper

half of the speaker, or the speaker can be installed on the top surface of wooden decks or cement slabs. There are three

recessed pathways on the bottom of the speaker to allow for entrance and exit when using mutiple speakers on distributed

lines.

Anchoring the speaker for stability and security can be accomplished using after-market stakes placed through one, two or all

three pre-drilled holes located at the base of each of the legs on the bottom section.

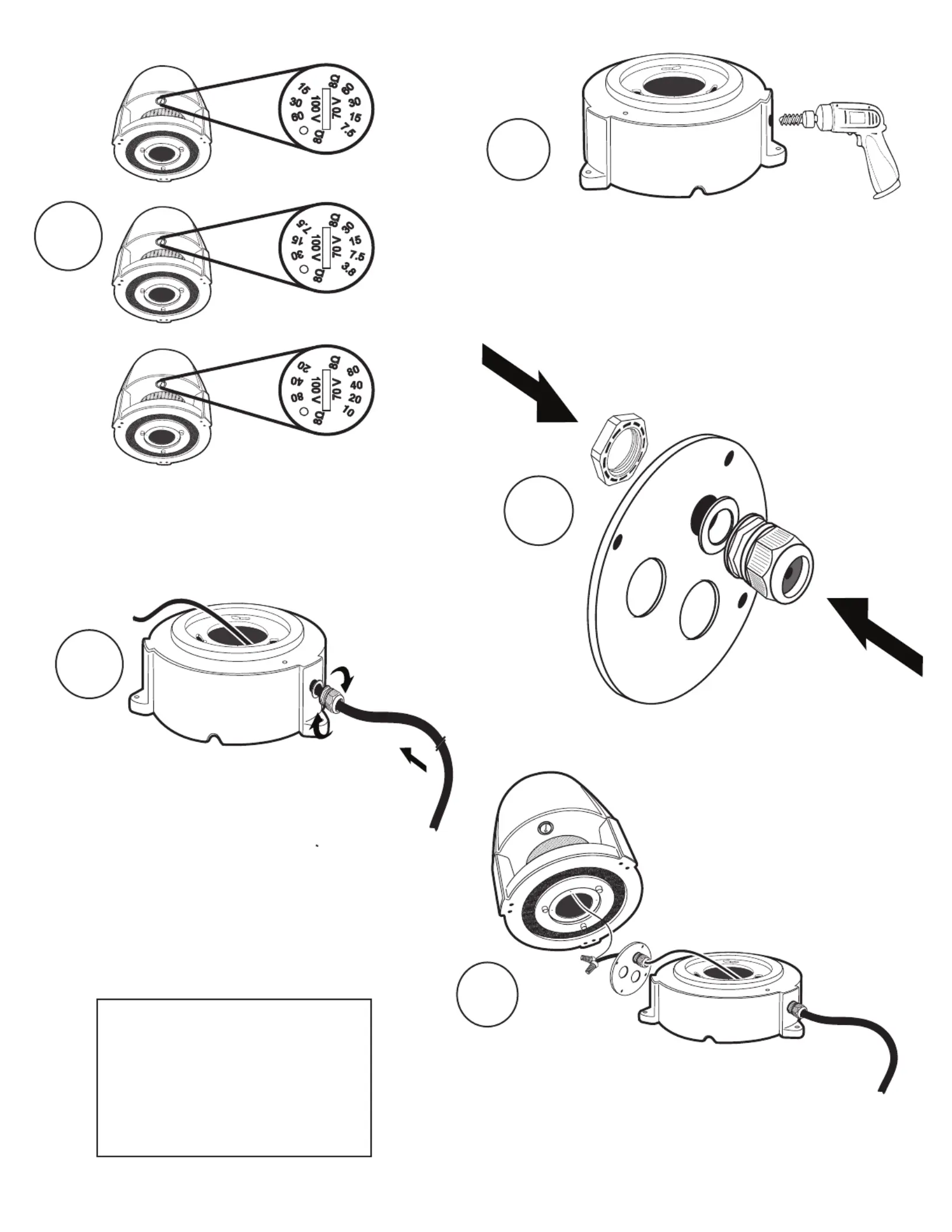

The second gland nut can be installed by drilling a 22 mm

(7/8 in, 0.875 in) hole on the side of the bottom half of the

enclosure, in one of three recesses on the underside of the

enclosure, or other locations as needed, while taking care

that the location chosen does not interfere with the

locking parts so both halfs of the enclosure will mate and

close properly.

Attach one of the two included Gland Nuts into the open

hole on the seal plate as shown above.

Install the gland nut into the hole as shown

above in #6 and feed external wire from

outside through the gland nut and up through

the center hole in the lower half of the speaker

as shown above.

Close-up view of tap setting for the Control 85M,

Control 88M, and Control 89MS. **Adjusting tap

setting required before powering up system.

88M

85M

89MS

Continue to extend external wire up through the gland

nut installed on the seal plate and attach to pre-existing

wires from the top section of the speaker with included

gel-lled wire nuts.

** To achieve a watertight

seal with these gland nuts,

use only round jacketed

cable with outside diameter

(O.D.) between 4.0mm (0.16”)

and 9.0 mm (0.36”).

IMPORTANT: WIRE SIZE
