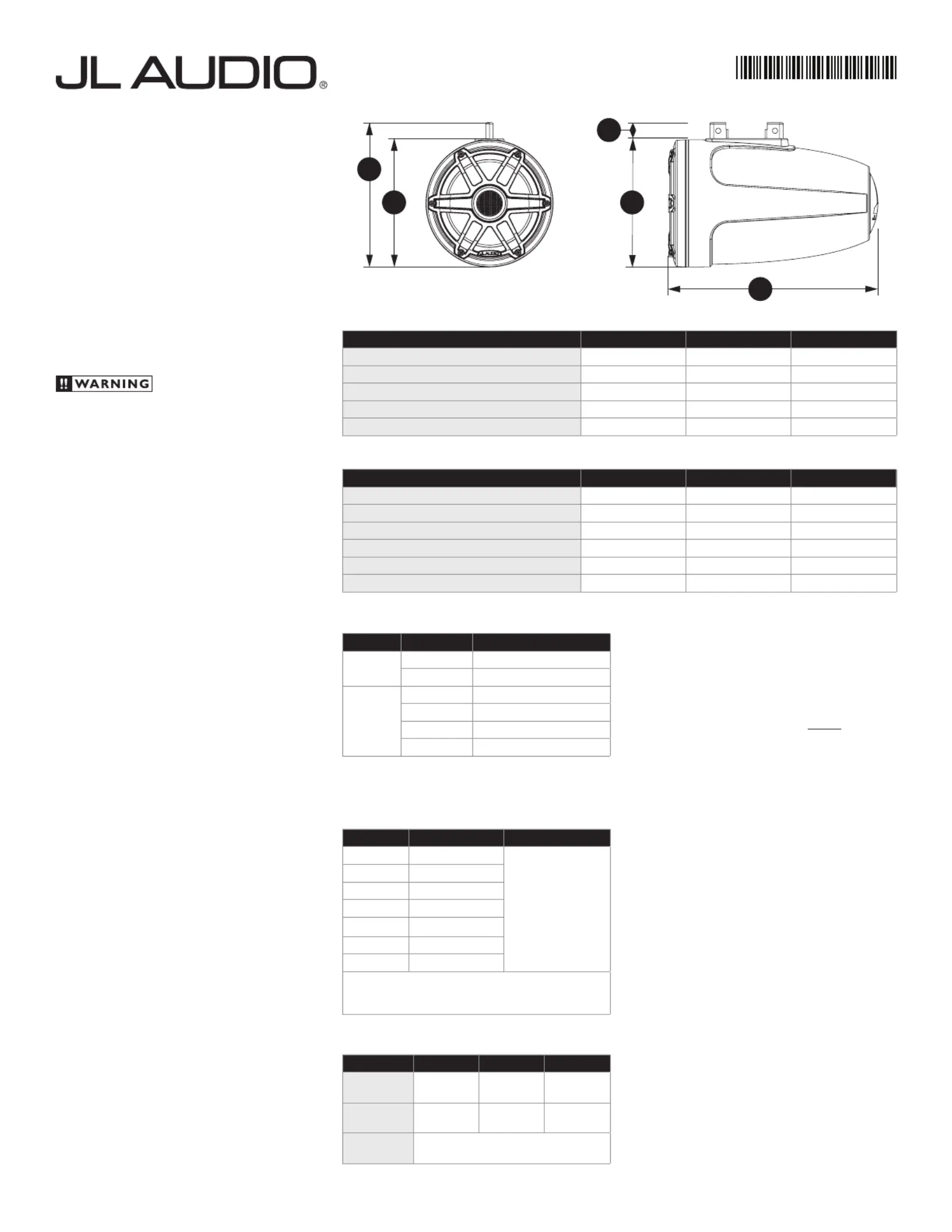

M3/M6-ETXv3 - Enclosed Speaker Systems

with Integrated RGB LED Lighting (optional)

Physical Specifications M3-770ETXv3 M6-770ETXv3 M6-880ETXv3

Enclosure Diameter (A)

7.70 in / 196 mm 7.70 in / 196 mm 8.80 in / 224 mm

Enclosure Depth-Classic (B)

12.62 in / 321 mm 12.62 in / 321 mm 14.73 in / 374 mm

Enclosure Depth-Sport (B)

12.69 in / 323 mm 12.67 in / 322 mm 14.80 in / 376 mm

Height including Mounting Fixture Receiver* (C)

8.74 in / 222 mm 8.74 in / 222 mm 9.67 in / 246 mm

Mounting Fixture Receiver / Enclosure Offset (D)

1.04 in / 26 mm 1.04 in / 26 mm 0.87 in / 22 mm

*Mounting Fixtures Required (sold separately)

General Specifications M3-770ETXv3 M6-770ETXv3 M6-880ETXv3

System Nominal Impedance

4 Ω 4 Ω 4 Ω

System Frequency Response

45 Hz - 25 KHz ± 3 dB 45 Hz - 25 KHz ± 3 dB 38 Hz - 20 KHz ± 3 dB

System Efficiency

90.5 dB @ 1 W / 1 m 91.0 dB @ 1 W / 1 m 90.5 dB @ 1 W / 1 m

Continuous Power Handling (RMS)

70 W 100 W 125 W

Peak Music Power

140 W 200 W 250 W

Recommended RMS Amplifier Power (per Ch.)

20 - 140 W 40 - 200 W 50 - 250 W

Thank you for choosing JL Audio Marine

Enclosed Speaker Systems. With proper

installation, your new speakers will deliver years

of listening pleasure.

We strongly recommend that you have your

Enclosed Speaker Systems installed by your

authorized JL Audio dealer. The installation

professionals employed by your dealer have the

necessary tools and experience to properly install

this product. If you prefer to perform your own

installation, please read this and the instructions

included with your Mounting Fixtures (sold

separately) completely before beginning the process.

Installation of this product requires use of

JL Audio® Mounting Fixtures (sold separately).

No other method of installation should be

attempted. To avoid injury, installation

instructions included with the JL Audio®.

Mounting Fixtures MUST be followed precisely.

Do not attempt to remove the LEDs from from the

speakers. The LEDs are permanently fixed and

attempting to remove them will cause damage and

this damage will not be covered under warranty.

LED EQUIPPED MODELS

Illuminated speaker models are outfitted with

multi-color RGB LEDs to produce vibrant accent

lighting. Refer to the Wiring Harness Info table for

individual RGB wire connection info.

Note: Wiring connections at each speaker location

are required for LED functionality.

Adjustable control of RGB lighting may be

achieved with the use of an RGB lighting controller

(sold separately). Note: When selecting an RGB

lighting controller, make sure that the total

amperage demands of all LED circuits does not

exceed the output capacity of the controller.

Refer to the RGB LED Specifications table for the

individual current draw amounts and sum (add)

the total. For optimal performance, we recommend

using the JL Audio marine lighting controller

(MLC-RW).

DIRECT LED WIRING

Alternatively, you may hard wire individual leads

or a combination of leads to achieve up to seven

different LED color assortments. Refer to the Direct

LED Wiring Info table for the wire colors used to

achieve specific LED colors.

Wiring Harness Info

Wire Size Wire Color Use

16 AWG

Red/Stripe Speaker Positive (+)

Black/Stripe

Speaker Negative (–)

20 AWG

Red Red RGB LED Negative (–)

Green Green RGB LED Negative (–)

Blue Blue RGB LED Negative (–)

Yellow Main RGB LED Positive (+12V)

Note: Not all wires may be used in normal applications. Refer to the

instructions of your RGB lighting controller for specific connection info.

Direct LED Wiring Info

LED Color Wire Color(s) Connection

Red Red

Combine selected

wires from all

speakers and connect

to negative ground

or to the negative (–)

battery post.

Green Green

Blue Blue

Yellow Red and Green

Pink Red and Blue

Aqua Green and Blue

White Red, Green and Blue

Combine all YELLOW (+12V) leads together (parallel)

and connect to a switched +12V supply. See below for

additional info.

RGB LED Specifications

Specification

M3-770ETXv3 M6-770ETXv3 M6-880ETXv3

LED Current

Draw at 12V DC

108 mA 324 mA 486 mA

Recommended

Fuse Value

150 mA 500 mA 750 mA

LED Voltage

Range

10 - 14.4V DC

LED WIRING CONSIDERATIONS

• Do not connect to 24V electrical systems.

• Do not connect the speakers’ LED lights to the

vessel’s navigational lighting circuits.

• For short-circuit protection, we recommend

installing a fuse (not included) at EACH speaker’s

YELLOW (+12V) LED power connection lead.

Refer to the RGB LED Specifications table for

recommended fuse ratings.

• We recommend a minimum of 16AWG wire size

for each speaker’s LED connection circuits.

• In addition to the above, we recommend

activating the speakers’ LEDs thru a cabin/

interior lighting circuit that supplies +12V via an

existing switch. If an existing switched circuit

is not available, you may install a dedicated

toggle/rocker style switch that will supply

positive (+12V) power. Fuse this main +12V

connection according to the total amperage

demands of all LED circuits. Refer to the RGB

LED Specifications table for individual current

draw amounts and recommended fuse ratings.

INCLUDED PARTS

• Two Aluminum Logo Caps

• One Tube of Silicone Adhesive

• Eight Red Butt Splice Connectors (#22-18 AWG)

• Four Blue Butt Splice Connectors (#16-14 AWG)

M3-M6-ETXv3_061219_SKU#011540

NOTE: Illustration may not be to scale.

M6 Sport Grille Shown.
