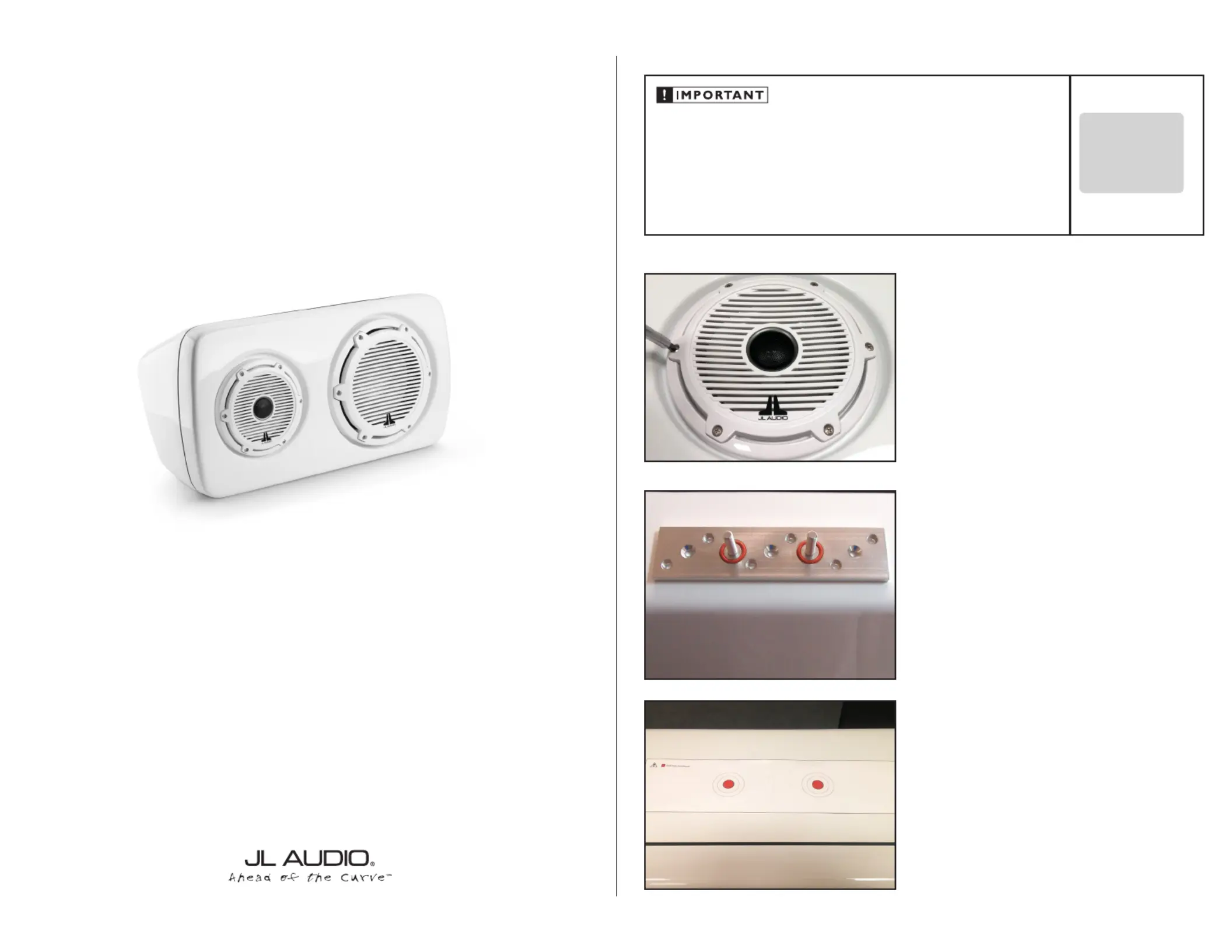

Side 1/3

I N S T A L L A T I O N G U I D E

for the

M6-103EWS-Gw-C-GwGw-R

M6-103EWS-Gw-C-GwGw-L

SKU# 90131 & 90132

If you choose to perform the installation yourself, it is absolutely vital that the

enclosure be properly mounted according to these instructions. Failure to

mount the enclosure properly presents two problems:

1) The sub-bass performance will suffer due to the movement of the enclosure

caused by the force exerted by the woofer(s).

2) A loose enclosure presents a serious safety hazard in the event of a collision

or other such accident.

S T E P 1

Remove the #8 - 18 x 1-1/4” Phillips Pan Head Screws and

#8 Flat Washers from the speaker, and remove the speaker

from the enclosure.

Remove the #10 - 16 x 1-5/8” Phillips Pan Head Screws and

#10 Flat Washers from the subwoofer, and remove the

subwoofer from the enclosure.

Continued on Next Page

S T E P 2

Make sure the Mounting Bracket and enclosure will fit

in the desired installation position. Determine which

side of the enclosure the Mounting Bracket will attach to

based on the installation surface and orientation of the

enclosure.

Be sure that the threaded studs will be accessible from

inside the enclosure in order to secure the mounting

hardware.

S T E P 3

Align the Mounting Bracket Template on the enclosure as

needed. Centering lines are available to aid in placement,

if necessary.

Tape the Mounting Bracket Template in place.

M6-103EWS-Gw-C-GwGw INSTR_SKU# 011543

INSTALLATION

D I F F I C U L T Y :

OUT

ESTIMATED TIME:

1 HOUR

Thank you for choosing a JL Audio Enclosed Full-Range System for your sound system.

These speakers have been designed and manufactured to exacting standards in order to

ensure years of musical enjoyment.

For maximum performance, we strongly recommend that you have your new enclosed

full-range system installed by your authorized JL Audio dealer. Your authorized dealer

has the training, expertise and installation equipment to ensure optimum performance

from this product. Should you decide to install the enclosed full-range system yourself,

please take the time to read this manual thoroughly so as to familiarize yourself with its

installation requirements.

If you have any questions regarding the instructions in this manual, please contact your

authorized JL Audio dealer for assistance.

S T E P 7

Using the appropriate drill bit, drill pilot holes through the

marks made in the previous step.

Permanently secure the Mounting Bracket to the

mounting surface with the appropriate hardware (not

included).

S T E P 6

Position the Mounting Bracket onto the mounting surface

as needed.

Six flush mount holes and three countersunk holes are

available for a variety of applications.

Mark the center locations of the mounting holes as

needed through the Mounting Bracket, onto the

mounting surface. Remove the Mounting Bracket from the

mounting surface.

S T E P 5

Using a 9/16” drill bit, carefully drill through the two marks

made in the previous step.

S T E P 4

Mark the center locations of the two threaded studs

(marked in RED) through the Mounting Bracket Template,

onto the enclosure. Remove the template from the

enclosure.

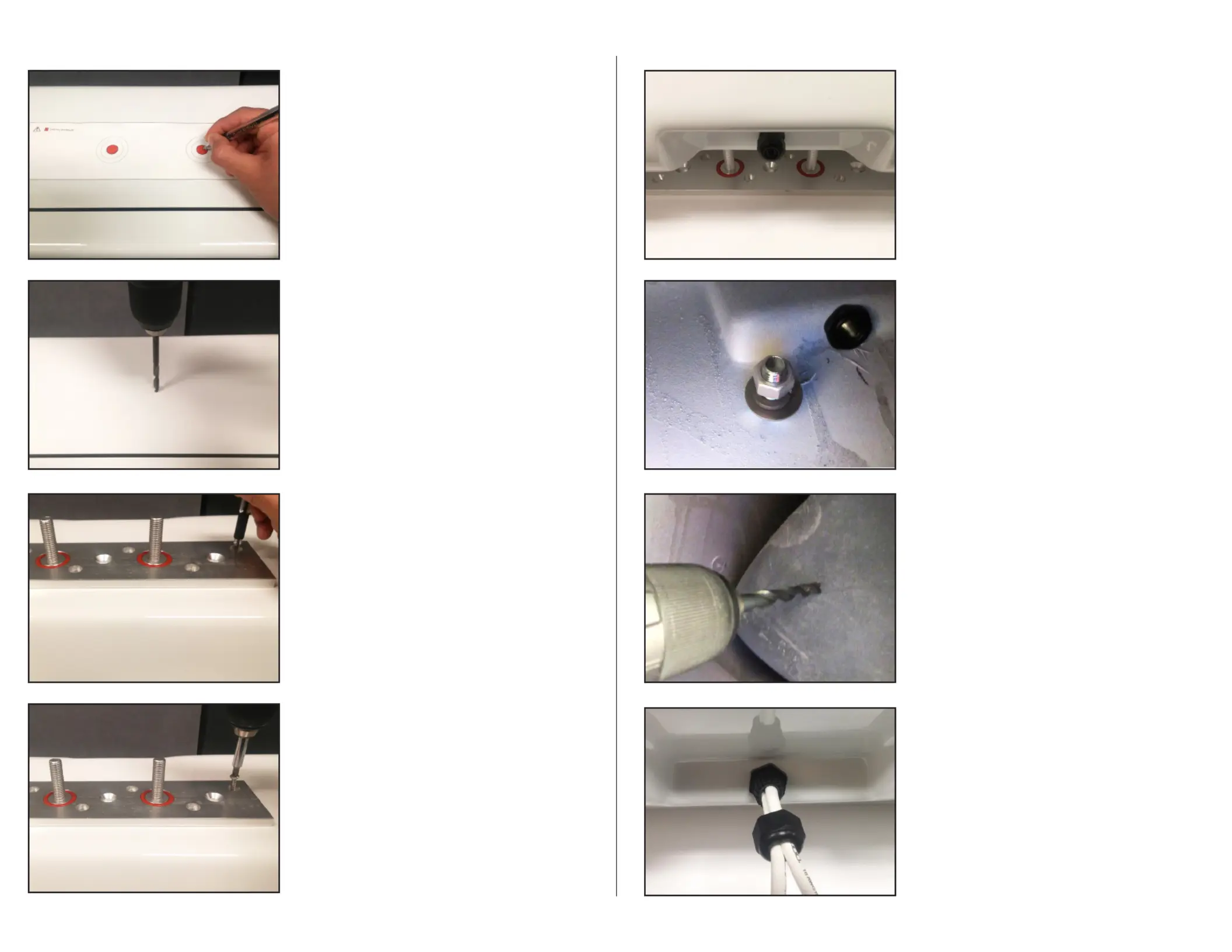

Page 2 • JL Audio, Inc 2019

S T E P 9

From inside the enclosure, place a 1/2” Fender Washer,

1/2” Split Lock Washer, and 1/2” Hex Nut over each of

the threaded studs on the Mounting Bracket, and firmly

tighten.

S T E P 8

Be sure an orange 3/16” O-Ring is installed into each

recess on the Mounting Bracket.

Place the enclosure onto the Mounting Bracket, allowing

the two threaded studs on the bracket to pass through

the holes drilled into the enclosure in Step 5.

S T E P 1 0

Using an appropriately sized drill bit, drill a hole from the

subwoofer enclosure into the speaker enclosure for the

speaker cable.

S T E P 1 1

Unscrew the grommet, and pass two runs of speaker cable

through it and into the enclosure.

Route one into the speaker enclosure.

M6-103EWS-Gw-C-GwGw INSTR_SKU# 011543
