I N S T A L L A T I O N G U I D E

for the

SB-F-EDG/10W3v3

SKU#94376

2007-2014 Ford Edge

Thank you for choosing a JL Audio Stealthbox® for your automotive sound system. With proper installation, your new vehicle-

specific enclosed subwoofer system will deliver years of listening pleasure.

We strongly recommend that you have your new Stealthbox® installed by your authorized JL Audio dealer. The installation

professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle

properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is installed or approved by your

authorized JL Audio dealer. If you prefer to perform your own installation, please read this installation guide completely

before beginning the process.

If you choose to perform the installation yourself, it is absolutely vital that

the Stealthbox ® be properly mounted to the vehicle according to these

instructions. Failure to mount the enclosure properly presents two problems:

1) The sub-bass performance will suffer due to the movement of the enclosure

caused by the force exerted by the woofer(s).

2) A loose enclosure presents a serious safety hazard in the event of a collision

or sudden deceleration.

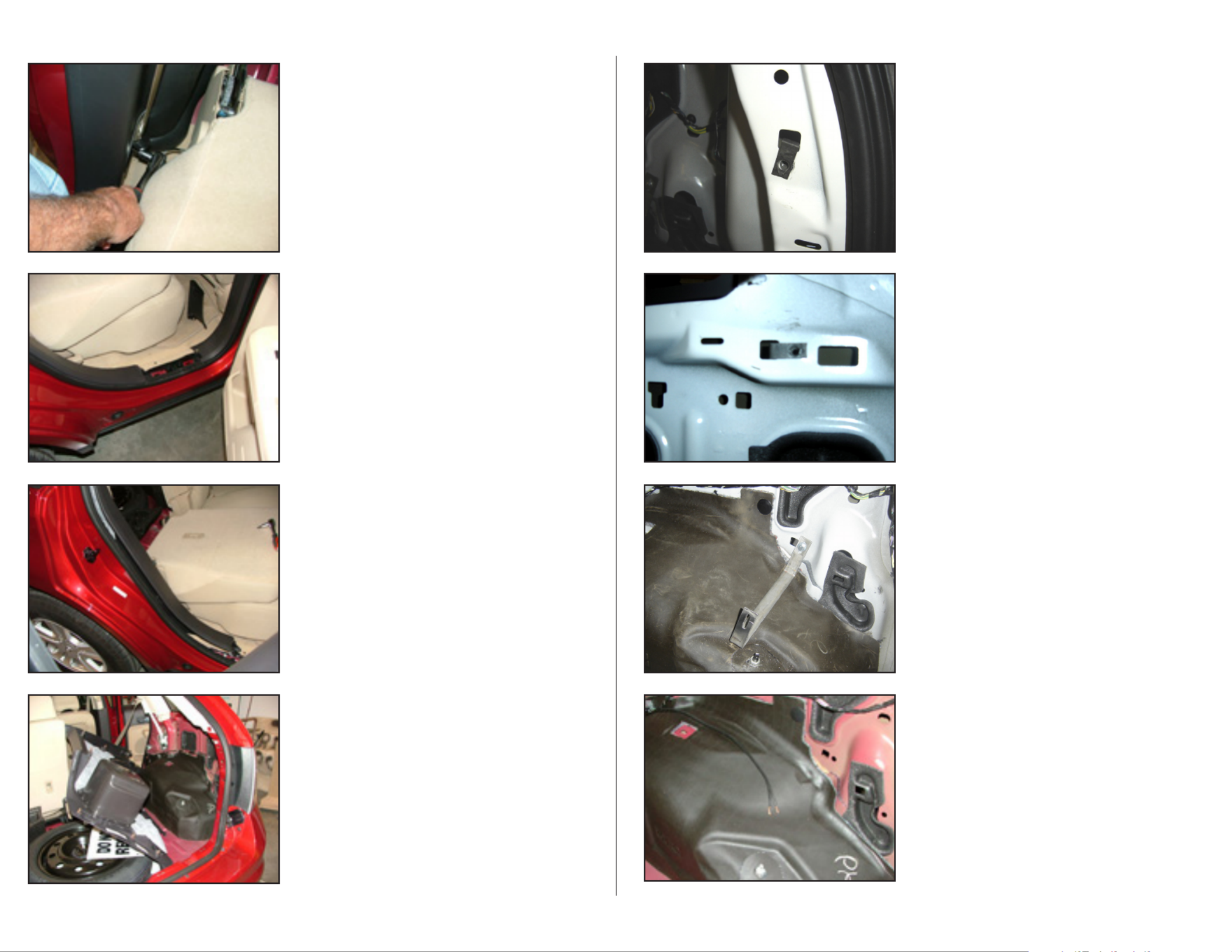

S T E P 1

Remove the floor panel by lifting seat flaps. Carefully tilt

entire panel to exit hatch diagonally.

Continued on Next Page

S T E P 2

Remove threshold plate by lifting directly upward.

S T E P 3

Remove foam filler panel or plastic storage tray from

passenger side of spare tire.

SB-F-EDG/10W3v3 INSTR_SKU# 011254

INSTALLATION

D I F F I C U L T Y :

OUT

ESTIMATED TIME:

23 HOURS

Continued on Next Page

SB-F-EDG/10W3v3_INSTR_SKU# 011254

S T E P 7

Remove passenger side cargo panel by prying away from

side of vehicle and floor. If equipped, unbolt and remove the

factory subwoofer enclosure.

S T E P 6

Pull passenger side cargo panel away from the door jamb.

S T E P 5

Remove passenger side threshold plate.

S T E P 4

Fold passenger side rear seat forward.

Remove bolt securing seat belt at lower front of cargo

side panel.

Page 2 • JL Audio, Inc 2016

S T E P 9

Insert a 1/4”-20 U-Nut into the square hole near the side

window, as shown.

S T E P 1 1

Route speaker cable to the Stealthbox location as necessary.

S T E P 1 0

Insert a 1/4”-20 U-Nut into the square hole just above the

wheel well, and align the Large Bracket, as shown. Place a

1/4” Lock Washer and a 1/4” Flat Washer over a 1/4”-20 x 1

Bolt, and thread the assembly through the hole in the Large

Bracket and into the 1/4”-20 U-Nut, as shown. Firmly tighten

to secure the Large Bracket to the vehicle.

S T E P 8

Insert a 1/4”-20 U-Nut into the square hole near the weather-

stripping as shown.

In vehicles equipped with the factory subwoofer, the existing

U-Nut can be used here instead, as well as in Steps 9-10.
