I n s t a l l a t I o n G u I d e

for the

SB-F-F150SCR/13TW5

sKu#94460,94461,94462

2008+

Thank you for choosing a JL Audio Stealthbox

for your automotive sound system. With proper

installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.

We strongly recommend that you have your new Stealthbox

installed by your authorized JL Audio

dealer. The installation professionals employed by your dealer have the necessary tools and experience

to disassemble and reassemble your vehicle properly. Also, keep in mind that your warranty coverage

extends to 2 years if your system is installed or approved by your authorized JL Audio dealer. If you

prefer to perform your own installation, please read this installation guide completely

before beginning the process.

If you choose to perform the installation yourself, it is absolutely vital that

the Stealthbox

be properly mounted to the vehicle according to these

instructions. Failure to mount the enclosure properly presents two problems:

1) The sub-bass performance will suffer due to the movement of the enclosure

caused by the force exerted by the woofer(s).

2) A loose enclosure presents a serious safety hazard in the event of a collision

or sudden deceleration.

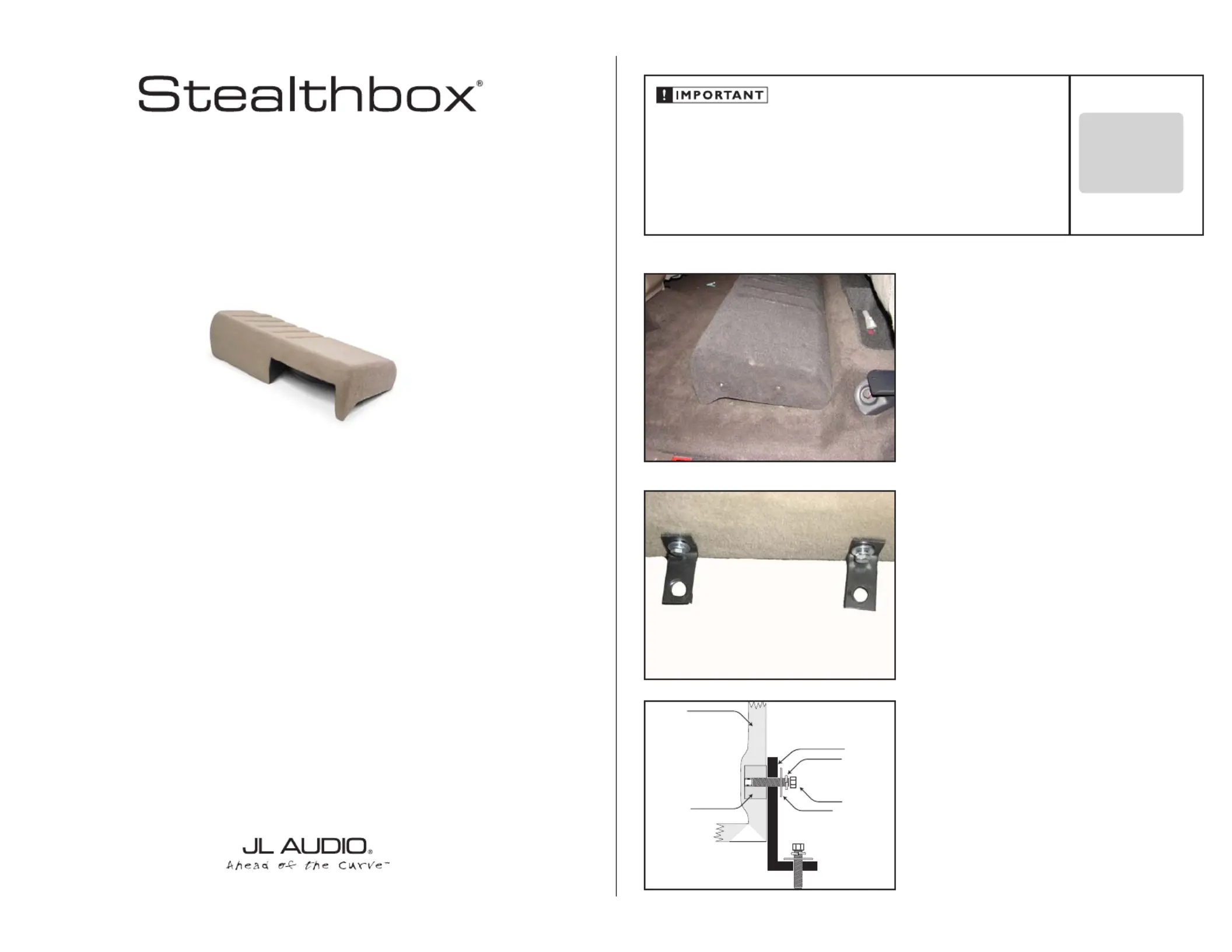

s t e P 1

Remove any contents in the backseat area and flip the seat

up. Place the Stealthbox® on the floor under the drivers side

backseat as shown.

Continued on Next Page

s t e P 2

There are four brackets that need to be installed on the

enclosure, two on each end.

Shown is the end of the enclosure that would be mounted

near the middle of the cab of the truck, at the other end of

the enclosure the brackets are mounted so that the bottom

tabs go under the enclosure.

The long end of the bracket attaches to the enclosure using

the supplied hardware (see

detaIl below). Do not tighten

hardware down at this point, just get it in place.

d e t a I l

SB-F-F150SCR/13TW5 INSTR_SKU# 011297

InstallatIon

d I F F I C u lt Y :

out

estImated tIme:

1 HouR

THREADED INSERT

MOUNTING BRACKET

LOCK WASHER

FLAT WASHER

HEX BOLT

STEALTHBOX WALL

S T E P 5

Insert two 3” x 3” Wax Squares under the outisde feet as

well, make sure not to move the enclosure from the correct

position while inserting the 3” x 3” Wax Squares.

S T E P 4

Align the enclosure so that the inside edge is directly below

the inside seam of the seats as shown and insert the 3” x 3”

Wax Squares under the feet as show.

D E T A I L

S T E P 3

Mount the two outside brackets to the enclosure as shown

in the picture at left and, the DETAIL below. DO NOT

TIGHTEN AT THIS TIME!

Page 2 • JL Audio, Inc 2008

THREADED INSERT

MOUNTING BRACKET

LOCK WASHER

FLAT WASHER

HEX BOLT

STEALTHBOX W ALL

S T E P 9

Install the two outside Mount Brackets to the floor first, using

the hardware included as shown.

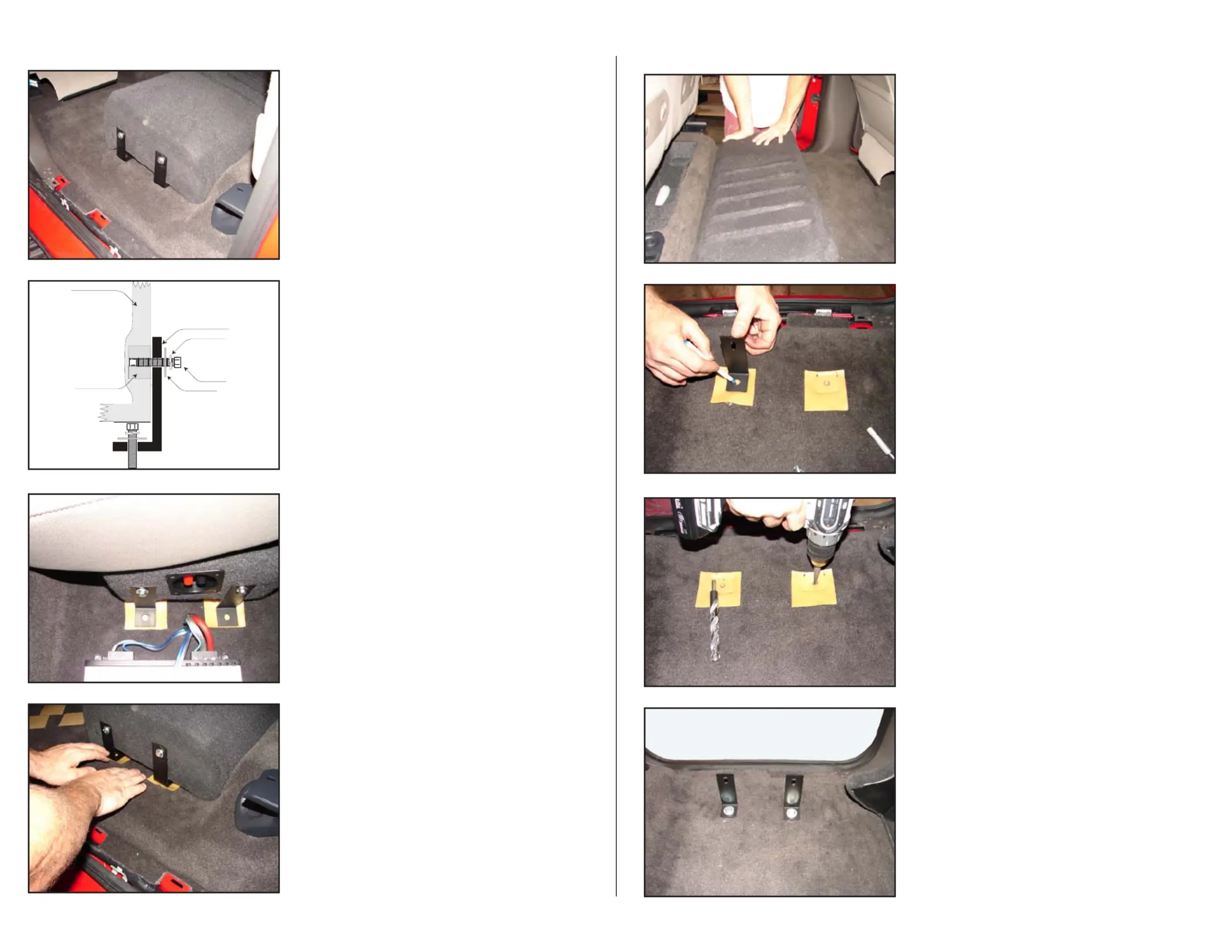

S T E P 8

Drill the four 1/2” holes required to mount the brackets to

the floor.

***CAUTION***

Before drilling, always make sure that you are not

going to be drilling into any gas lines, brake lines,

tires, transmission lines, electrical wiring, exhaust

systems or anything else that might cause a reduction

in your weekly pay. Always wear eye protection when

drilling.

S T E P 7

Remove the Mount Brackets from the enclosure and position

them accordingly (if needed) and mark the holes to be

drilled.

S T E P 6

Making sure that you don’t re-postion the enclosure, press

down on each corner as Bill is shown doing here, creating

depressions in each of the 3” x 3” Wax Squares to identify

where you will drill the four holes through the floor to secure

the enclosure.

SB-F-F150SCR/13TW5 INSTR_SKU#

Continued on Next Page
