I N S T A L L A T I O N G U I D E

for the

SB-F-ESCP/10W1v2

SKU#94440

Ford Escape, Mazda Tribute - 2001+

Mercury Mariner - 2005+

Thank you for choosing a JL Audio Stealthbox

® for your automotive sound system. With proper

installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.

We strongly recommend that you have your new Stealthbox

® installed by your authorized JL Audio

dealer. The installation professionals employed by your dealer have the necessary tools and experience

to disassemble and reassemble your vehicle properly. Also, keep in mind that your warranty coverage

extends to 2 years if your system is installed or approved by your authorized JL Audio dealer. If you

prefer to perform your own installation, please read this installation guide completely

before beginning the process.

If you choose to perform the installation yourself, it is absolutely vital that

the Stealthbox ® be properly mounted to the vehicle according to these

instructions. Failure to mount the enclosure properly presents two problems:

1) The sub-bass performance will suffer due to the movement of the enclosure

caused by the force exerted by the woofer(s).

2) A loose enclosure presents a serious safety hazard in the event of a collision

or sudden deceleration.

S T E P 1

Remove the cover in front of the pocket as shown.

Continued on Next Page

S T E P 2

This is how it looks after removing the cover.

S T E P 3

Remove the woofer from the Stealthbox®. Hold the

enclosure in place and use a marker to mark the interior

panel through the hole in the back of the Stealthbox®

SB-F-ESCP/10W1V2 INSTR_SKU# 011286

INSTALLATION

D I F F I C U LT Y :

OUT

ESTIMATED TIME:

23 HOURS

Continued on Next Page

SB-F-ESCP/10W1V2 INSTR_SKU# 011286

S T E P 6

Remove bottom plastic trim piece from rear left door

opening.

S T E P 4

Drill a 1” hole in the interior panel where marked as STEP 3

as shown.

Note: Before drilling, make sure that you are not

going to be drilling into any gas lines, brake lines,

transmission lines, electrical wiring, transfer case (4x4

vehicles) or anything else that might cause a reduc-

tion in your weekly pay. Always wear eye protection

when drilling!

Page 2 • JL Audio, Inc 2008

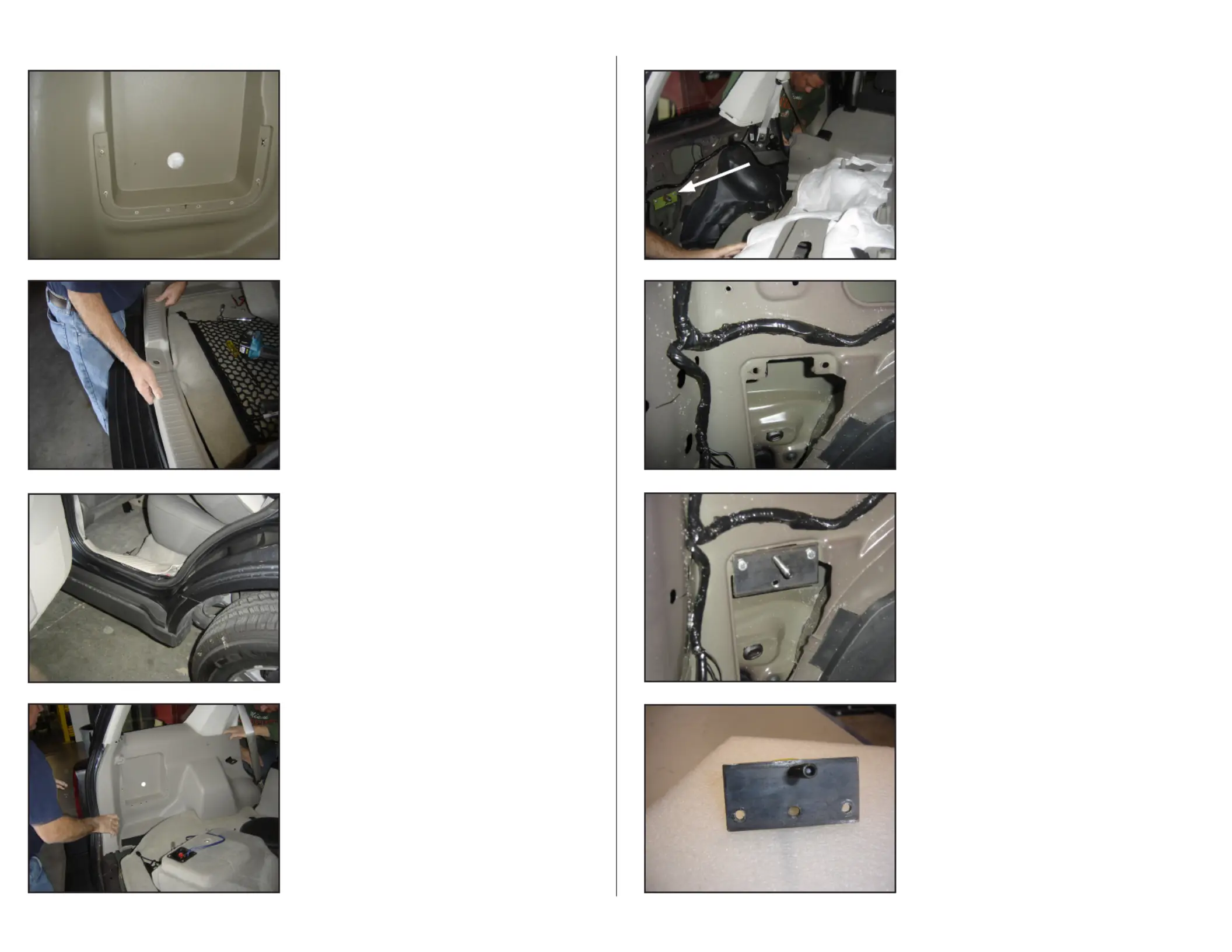

S T E P 9

This shows the holes where the bracket mounts.

S T E P 1 0 D E T A I L  1 

The bracket will be mounted as shown at left in the older

model vehicles.

S T E P 1 0

Mount the bracket.

The bracket will be oriented as shown with all three bolts in a

straight line in the newer vehicles.

For the older models, the bracket will be mounted upside

down to the photo at left with the stud threaded into the

“triangular” hole and, above the two mounting bolts as

shown below

Please refer to the detail pictures for

further clarification.

S T E P 8

The interior with the side panel removed. Note where the

bracket had been previously installed

S T E P 5

Remove bottom trunk plastic trim panel as

shown.

S T E P 7

Remove side panel as shown.
