Side 1/1

800.355.6637

jonesstephens.com

9

10

11

5

7

13

Overflow

Assembly

Test

Membrane

©2024 Jones Stephens 1224 7152024

Installation Instructions – English

Schedule 40 Bath Waste Kits

Schedule 40 Rough-In Bath

Waste Kit with Quick Test

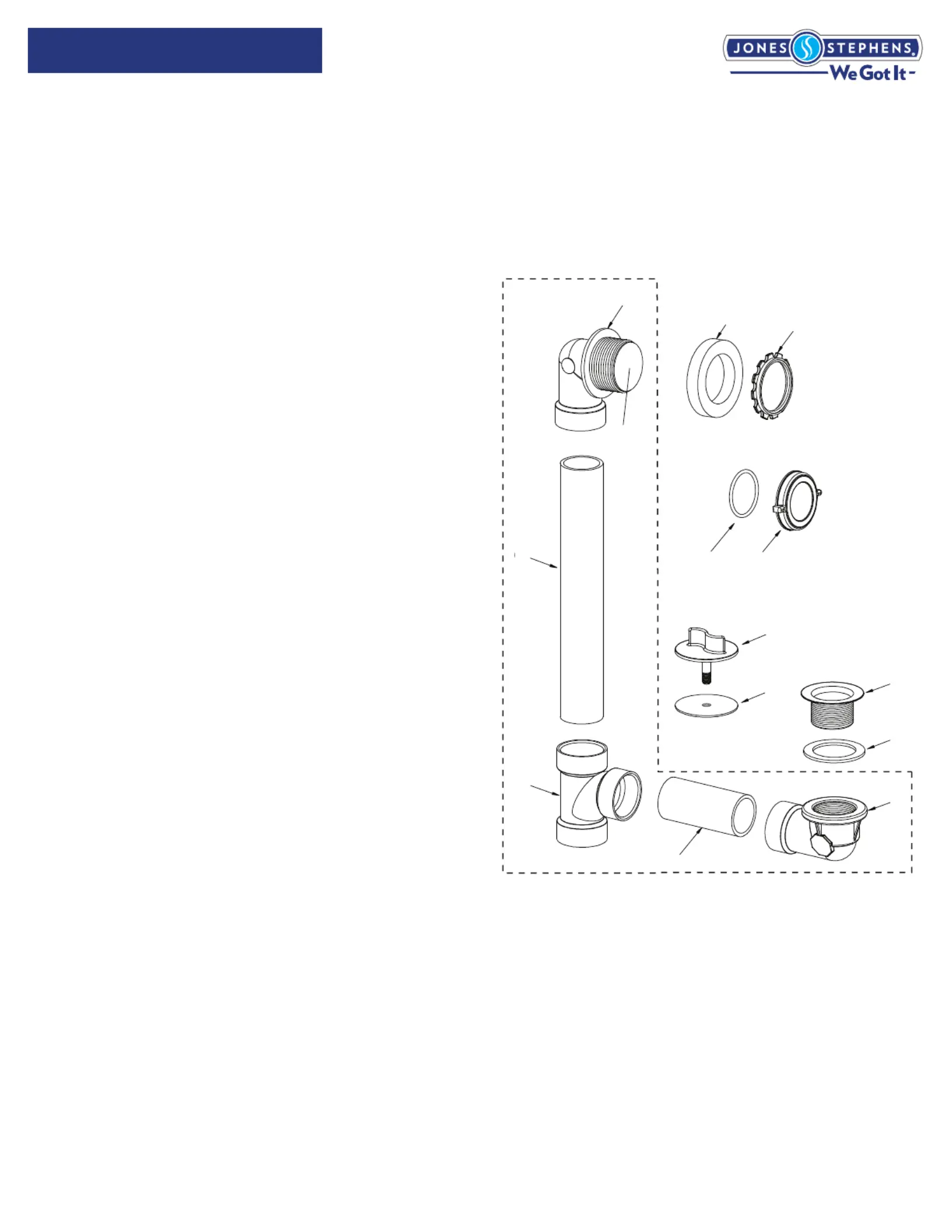

Parts List

A. Spud

B. Drain Gasket

C. Drain Elbow

D. Schedule 40 Pipe

(Drain Tube)

E. 1.5" Tee

F. Schedule 40 Pipe

(Overflow Tube)

G. Overflow Elbow

H. Overflow Gasket

I. Retainer Nut

J. O-Ring

K. Test Nut

L. Test Cap

M. Test Cap Gasket

Additional Parts Needed

•

Pliers

•

PVC Cement

Installation Instructions

1. Cut the 1-1/2" Schedule 40 pipes (D and F) to the desired

lengths to fit the tub.

2. Using the proper solvent cement, assemble the bath drain

pipes and fittings (C–G).

3. Place the overflow gasket (H) onto the overflow elbow

(G) and insert into the tub overflow hole from the back of

the tub.

4. Screw the retainer nut (I) onto the overflow assembly from

the inside of the tub. Hand-tighten only.

5. Secure the drain elbow (C) and drain gasket (B) under the

tub, by screwing in the spud (A) through the tub drain hole

from inside the tub.

If not testing, skip to Step 7.

6. Screw the test cap gasket (M) and the test cap (L) into the

spud (A) and test the system. Once testing is complete,

remove the test cap gasket and the test cap.

Note: If the test membrane on the overflow elbow (G) is

damaged, you can use the O-Ring (J) and the Test Nut (K)

on the overflow elbow (G) to test the system.

7. Cut away the test membrane from the overflow elbow

assembly (G).

A

B

C

D

E

F

G

H

I

J

K

L

M
