20X4 LCD MODUL
20x4 LCD module with 16 pin header
1. GENERAL INFORMATION
Dear customer,
thank you very much for choosing our product.
In the following, we will introduce you to what to observe while starting
up and using this product.
Should you encounter any unexpected problems during use, please do
not hesitate to contact us.
2. USE WITH THE ARDUINO

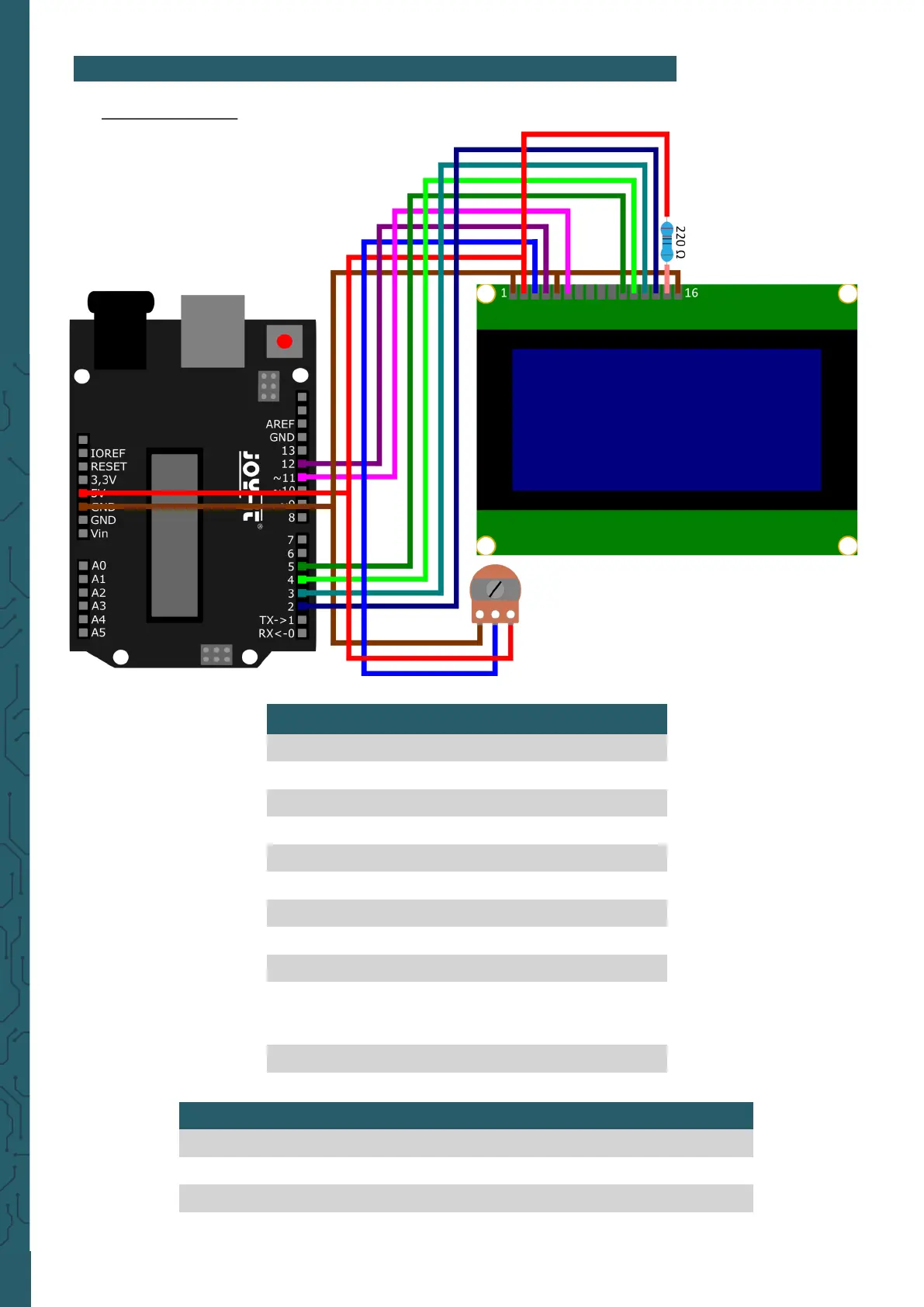

2.1 Connection
Arduino Display
D12 Pin 4
D11 Pin 6
D5 Pin 11
D4 Pin 12
D3 Pin 13
D2 Pin 14
GND Pin 5
GND Pin 1
5V Pin 2
5V through a 220Ω
resistor
Pin 15
GND Pin 16
Arduino Display Potentiometer
GND -
Pin 3 Signal
5V +
