Side 1/4
www.joy-it.net
Pascalstr. 8 47506 Neukirchen-Vluyn

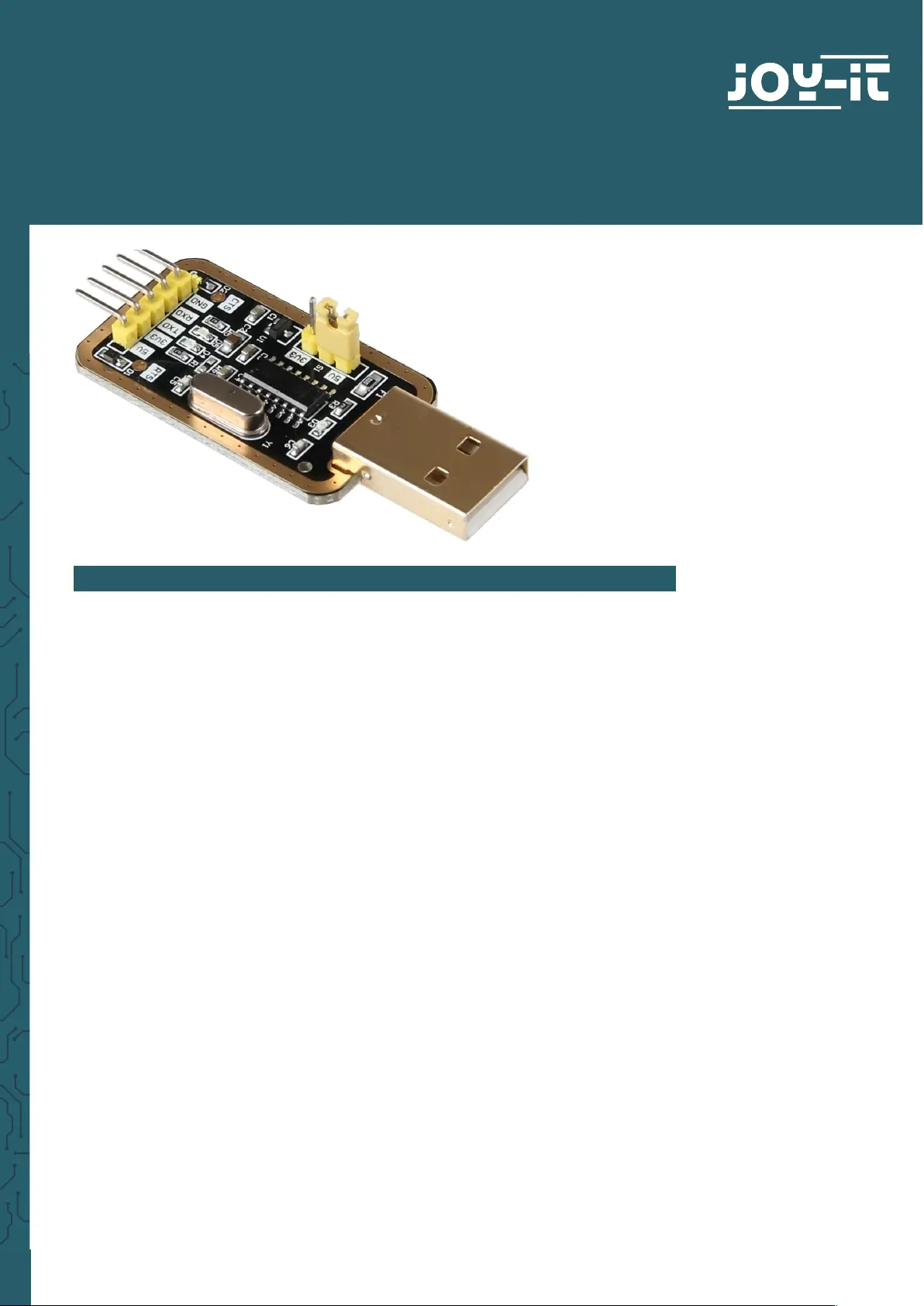

USB - TTL INTERFACE CONVERTER
SBC-TTL
1. GENERAL INFORMATION
Dear costumer,
Thank you for choosing our product.
The USB - TTL interface converter operates as via USB connectable UART
interface which allows the serial communication between two devices.
For example, computer nowadays do not have a serial interface anymore so
that a interface converter is necessary to allow a serial communication.
Here, the RX line is designed to receive and the TX line to send.
This interface converter allows you to adjust the logic level to 3.3 V or 5 V
whereby the converter is compatible to many devices.
In this manual, we will show you how to put the device into operation with
the Raspberry Pi and to what you should pay attention.
Should you encounter any unexpected problems during use, please do not
hesitate to contact us.
www.joy-it.net
Pascalstr. 8 47506 Neukirchen-Vluyn

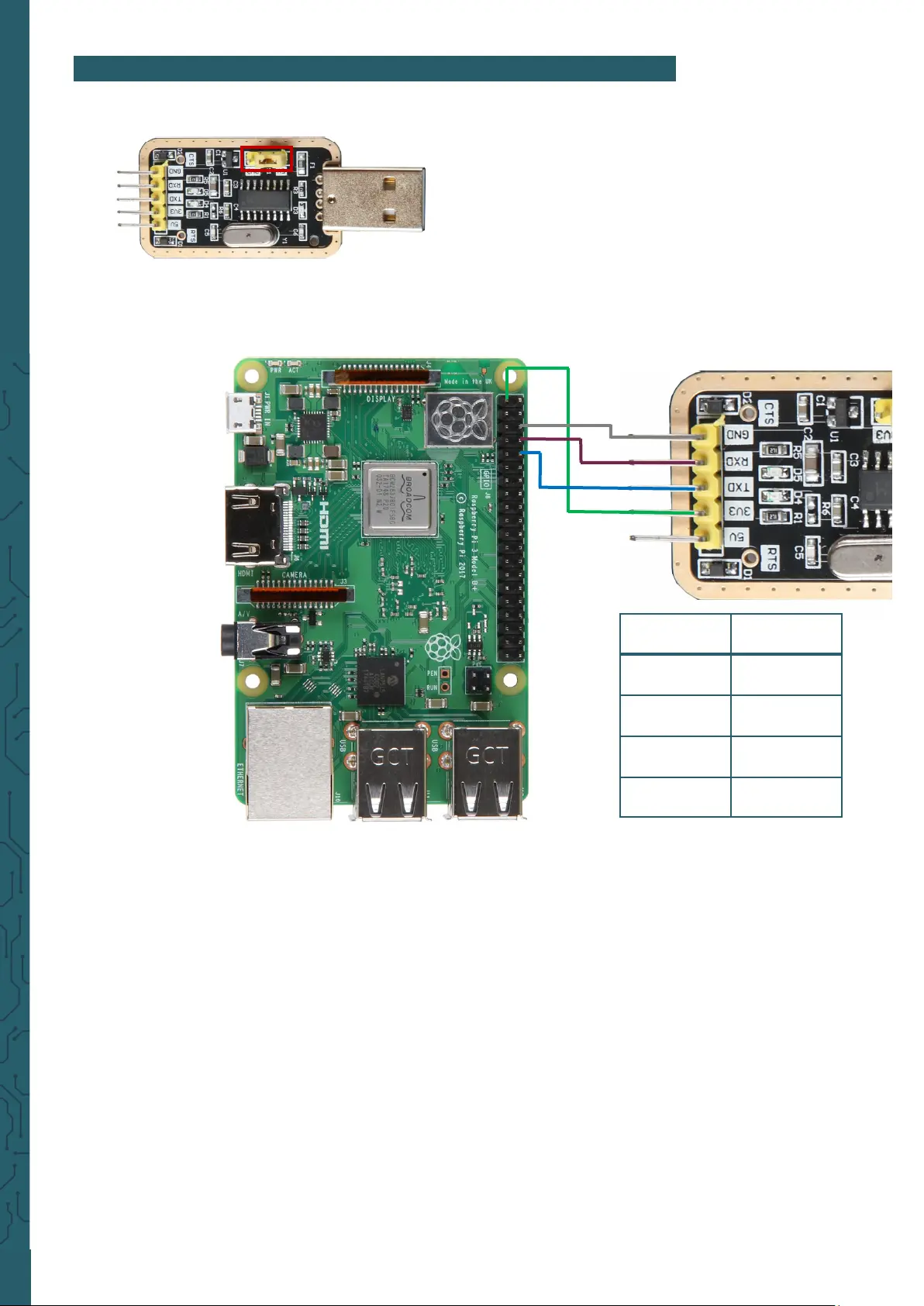

2. CONNECTION TO YOUR RASPBERRY PI
Set the jumper which is marked red in the picture, to 3V3.
Aerwards, connect the USB connection with the USB port of your compu-
ter. Now, you have to use the cables to connect the pins which are included
in the scope of delivery. You can see how to connect the cable in the follo-
wing picture and also in the chart.
Raspberry Pi SBC-TTL
3V3 (Pin1) 3V3
TXD (Pin 8) RXD
RXD (Pin 10) TXD
GND (Pin 6) GND
