RX 30

F I L T E R C O R D

Ground Line Protection

Juice Goose RX Series power protection technology is

particularly valuable because it works against ground

line (common mode) as well as hot to neutral (normal

mode) events. While ground line surges and distur-

bances don’t typically cause catastrophic damage, they

can result in operating failures and improper perform-

ance of digital processing equipment.

Compared with the low operating voltage of processor

logic, a power anomaly of even 1 or 2 volts on data

lines or logic ground can cause problems. That’s why

the RX Series products limit ground line voltage surges

to only 1/2 volt.

RX Series products also protect against more dramatic

events. Connected equipment is safe from surges up to

6,000 volts at 3,000 amps on hot, neutral and ground.

The RX Series design includes a differential transformer,

lots of filtering capacitance and surge diverting compo-

nents. Control circuitry provides protection from external

wiring faults including hot-neutral reversal, missing

ground and over voltage. RX technology delivers per-

formance enhancement and protection comparable to

an isolation transformer – but at a fraction of the price

and in a fraction of the space.

Video Performance

Improve performance of HD monitors and projectors

while protecting your valuable investment. When high

frequency interference reaches your HD image through

the power cord, image quality is lost along with much of

the reason for going HD in the first place. At the same

time, dangerous high energy events you may or may not

notice can shorten the life of your video machine.

Convenience

The Juice Goose RX 30 is built into the middle of a

power cord (“Filtercord”) to provide a convenient, easy

to install package for use with non racked equipment

such as digital signage monitors, media players and pro-

jectors. It can also be used as added protection for a

rack mounted power strip. The RX 30 features a three

foot power source cable with a right angle plug to lie flat

against a wall.

The power outlet side of the RX 30 includes three re-

ceptacles placed 90 degrees from each other to accom-

modate multiple components including AC adapters.

This design allows for better filter module placement and

connection with hard to reach AC outlets.

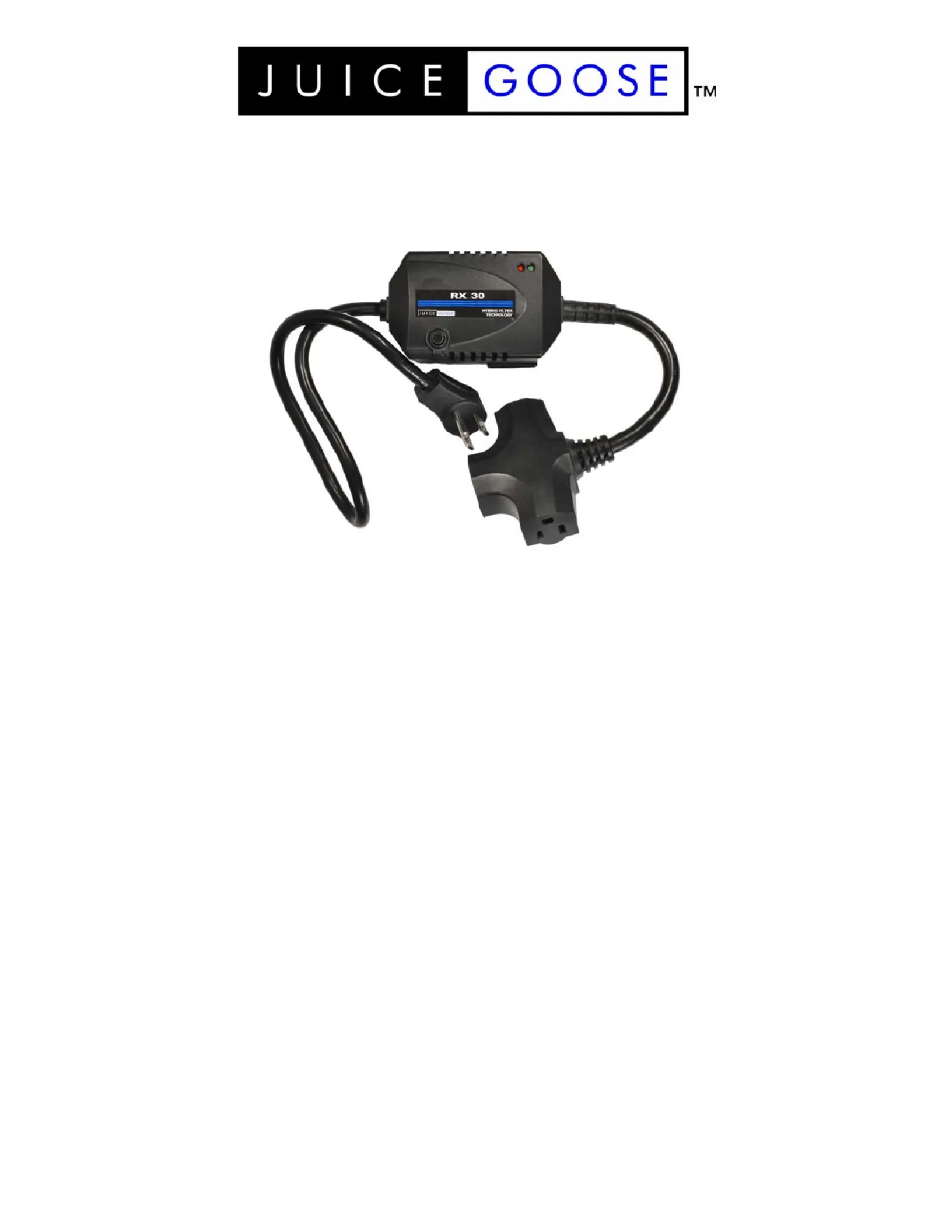

RX 30 Filtercord

(TM)

TRANSIENT ENERGY ABSORPTION (JOULES) 1020

MAXIMUM APPLIED SURGE CURRENT (AMPS) 3000

MAXIMUM APPLIED SURGE PULSE VOLTAGE 6000

LET THROUGH SURGE VOLTAGE (VOLTS)

N-G 0.5

L-N 10

COMMON MODE (N - G) INTERFERENCE FILTER (dB)

300kHz 77

1 MHz 80

10MHz 80

30MHz 80

NORMAL MODE (L-N) INTERFERENCE FILTER (dB)

300kHz 56

1 MHz 60

10MHz 60

30MHz 60

VOLTAGE 120VAC, 60 Hz

MAXIMUM CURRENT LOAD 10 AMPS

PHYSICAL

WEIGHT 3 LBS

POWER CORD LENGTH (INPUT) 3 FEET

PLUG (RIGHT ANGLE) NEMA 5-15P

RECEPTACLES (NEMA 5-15R) THREE

Juice Goose RX Series products use a patented Hy-

brid Filter Technology to clean up both normal mode

(between line and neutral) and common mode

(between neutral and ground) noise without contami-

nating the ground line. Many popular power condition-

ers are less effective on normal mode and provide

little or no protection from common mode interference.

“Series mode” protection circuits are not designed to

protect against common mode disturbances on the

ground line.

The Hybrid Filter Technology includes components

that act as a low pass filter which reduces high fre-

quency interference. Other components absorb or di-

vert high speed, high energy normal and common

mode surges that can cause immediate or eventual

damage to electronic components. Energy impulses as

great as 6,000 volts are reduced to no more than 10

volts between hot and neutral and only 0.5 volts be-

tween neutral and ground.

The RX Series filter circuit also protects against struc-

tural wiring problems. Relays in the RX Series unit pre-

vent operation in conditions of incorrect hot, neutral or

ground wiring connection or in the event of danger-

ously high voltage.

If this unit is plugged into an outlet that is not properly

wired - if hot, neutral and ground are not properly con-

nected - power will not pass to the receptacles and a

light on the front of the unit will indicate a wiring fault.

Therefore, a functioning ground connection is required

to operate any RX Series product. This same safety

measure functions when incoming voltage exceeds

150 volts. In this over voltage situation the unit will not

pass power to connected equipment.

HOW RX SERIES TECHNOLOGY WORKS

For more information

Call 713.772.1404 or go to www.juicegoose.com

PERFORMANCE
