Timer switch insert

Light Management

Timer switch insert

Art. No. : 201 TE

Operating instructions

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.

Serious injuries, fire or property damage possible. Please read and follow manual fully.

Danger of electric shock. Always disconnect before carrying out work on the devise or

load. At the same time, take into account all circuit breakers that supply dangerous

voltage to the device or load.

Danger of electric shock. Device is not suitable for disconnection from supply voltage.

These instructions are an integral part of the product, and must remain with the end

customer.

2 Device components

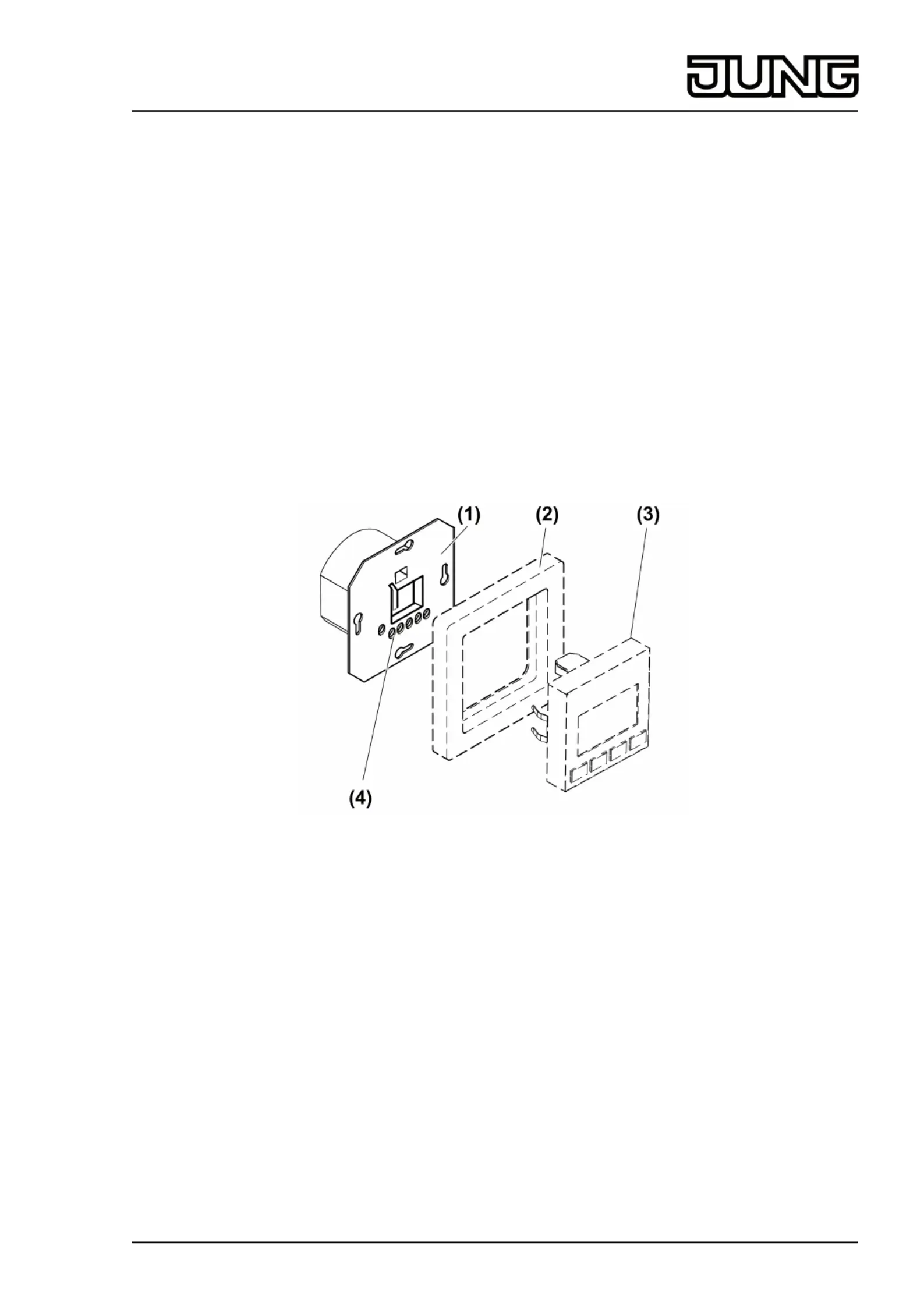

Figure 1

(1) Timer insert

(2) Frame

(3) Timer cover

(4) Terminals

3 Function

Intended use

- Time-controlled switching of lighting

- Operation with suitable timer cover

- Installation in appliance box according to DIN 49073

Product characteristics

- Connection of series button possible as extension

- Potential-free contact

- Supply, switching contact and extension connected to various conductors

1/4

32504933

J:0082504933 28.02.2014

4 Information for electrically skilled persons

4.1 Fitting and electrical connection

DANGER!

Electrical shock when live parts are touched.

Electrical shocks can be fatal.

Before carrying out work on the device or load, disengage all the

corresponding circuit breakers. Cover up live parts in the working environment.

Connecting and mounting the insert

oConnect insert and load according to connection examples (figure 2), (figure 3).

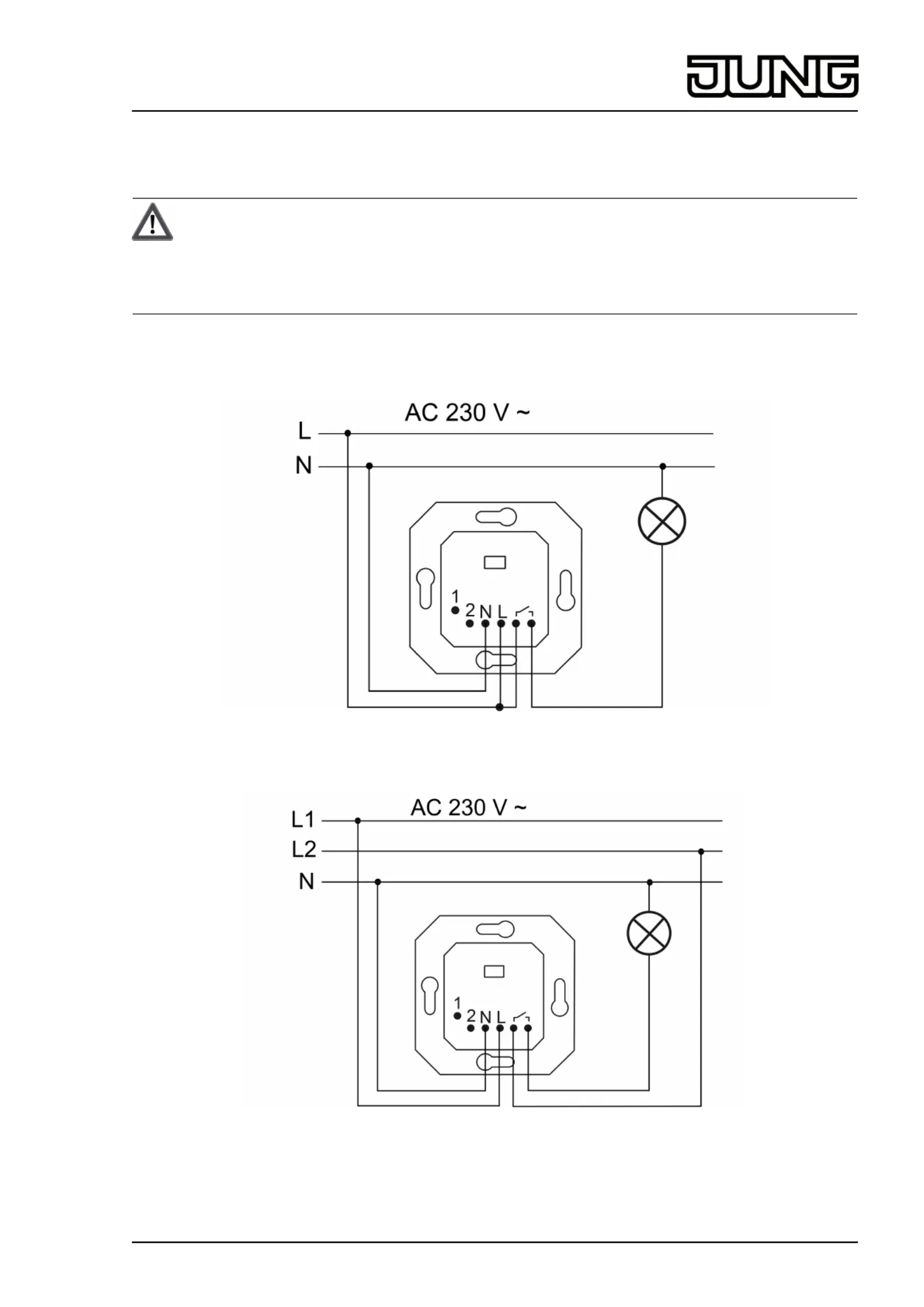

Figure 2: Connection example to a conductor

Figure 3: Connection example to two conductors

oIf multiple miniature circuit breakers supply dangerous voltages to the device or load,

couple the miniature circuit breakers or label them with a warning, to ensure disconnection

is guaranteed.

2/4

32504933

J:0082504933 28.02.2014

Light Management

Timer switch insert
