Side 1/4

Light Management Touch sensor AC/DC 24 V

Ref.-no.: ..2212..,

..2224.., ..2248..

Operating instructions

Touch sensor AC/DC 24 V

1. Safety warnings

Attention! Electrical equipment must be installed and fitted by

qualified electricians only. Failure to observe any of the installation

instructions may cause damage to the device and result in fire or

other hazards.

The sensor is a safety class III device. Connect only SELV circuits of

24 V to the device (no mains potential!).

2. Function

Touch sensors intended for connection to the 8-channel relay station (art.

no. RS8 REG) or other control systems with max. 24 V. One red LED for

each sensor indicates the corresponding status. Connection to the device

is made at the back by means of a terminal block.

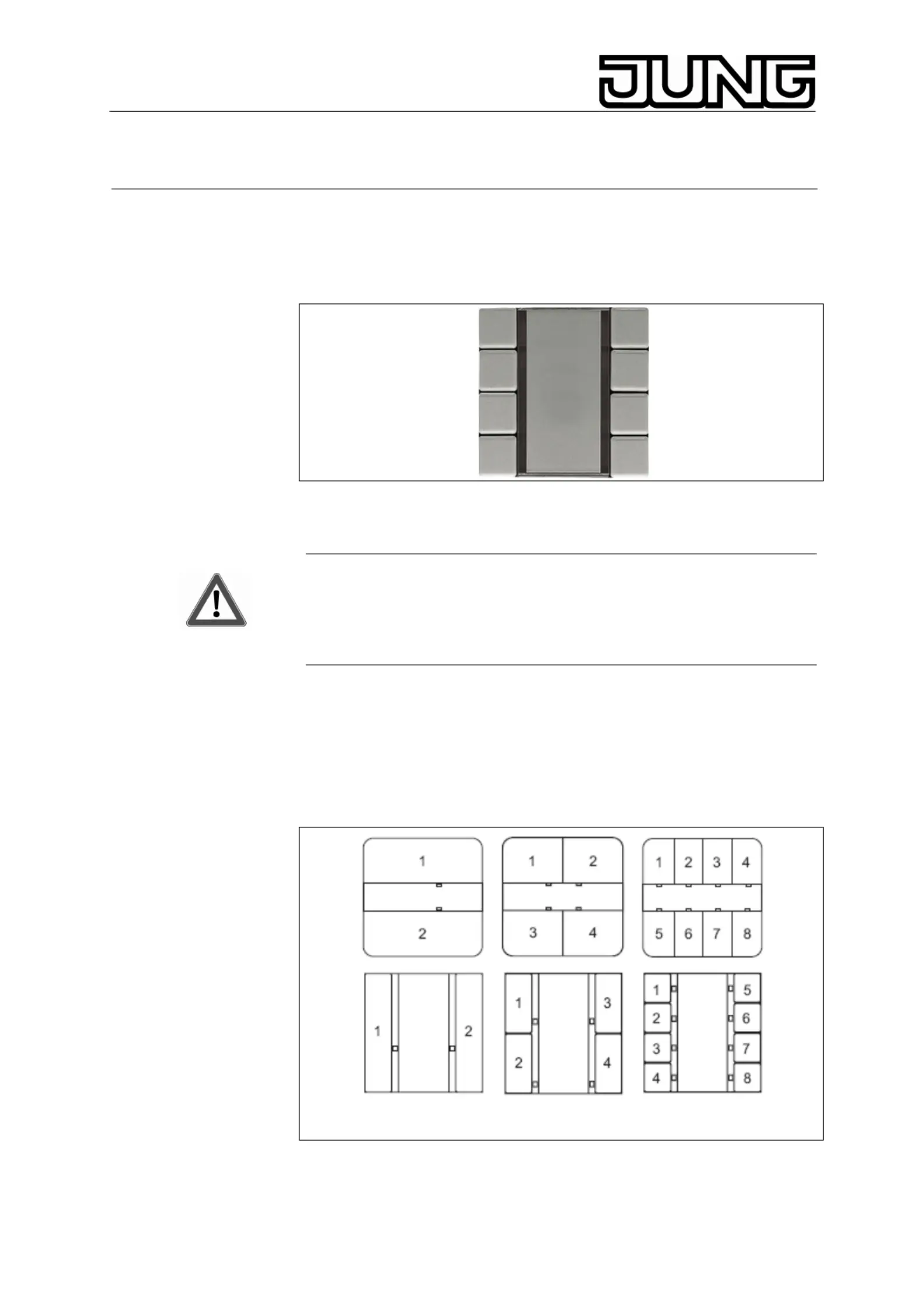

Fig. A

Stand: Jan-09 24098200

Light Management Touch sensor AC/DC 24 V

Ref.-no.: ..2212..,

..2224.., ..2248..

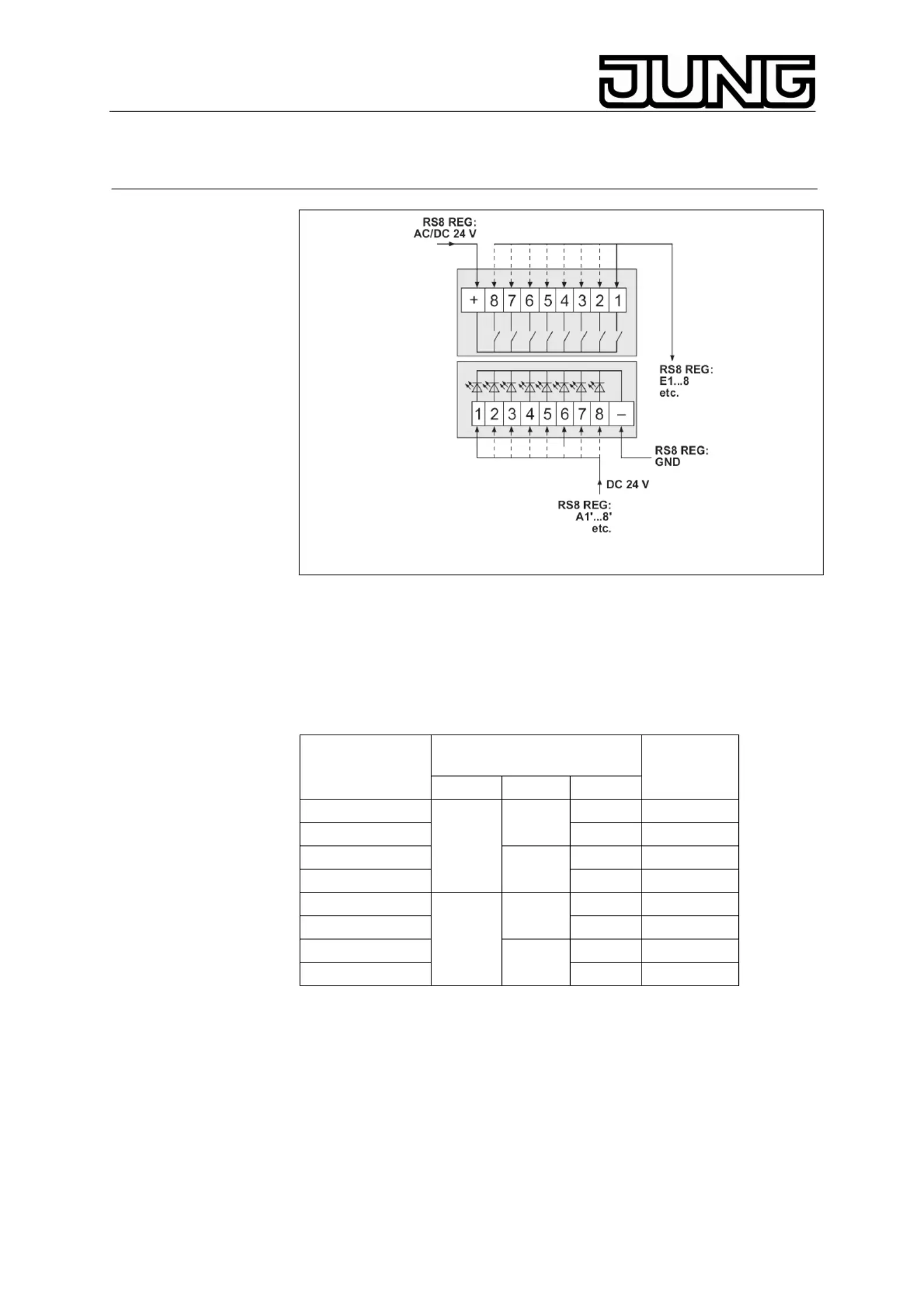

Fig B

3. Connection

Sensor outputs and LED inputs for

• design range A 500: see fig. B

• design ranges CD 500, LS 990, Aluminium, Stainless Steel,

Anthracite: see fig. C

Assigned to following

rocker

Sensor

terminal

1-ch. 2-ch. 4-ch.

LED-

terminal

1 1 1

2

1

2 2

3 3 3

4

1

2

4 4

5 5 5

6

3

6 6

7 7 7

8

2

4

8 8

4. Installation

• Fit the supporting ring in the correct position on a ush-mounting

box (observe the TOP marking).

• Place the decorative frame on the supporting ring.

• Connect the touch sensor to the 8-channel relay station (see table

above).

• Place the touch sensor on the supporting ring.

• Protection against removal is possible.

2
