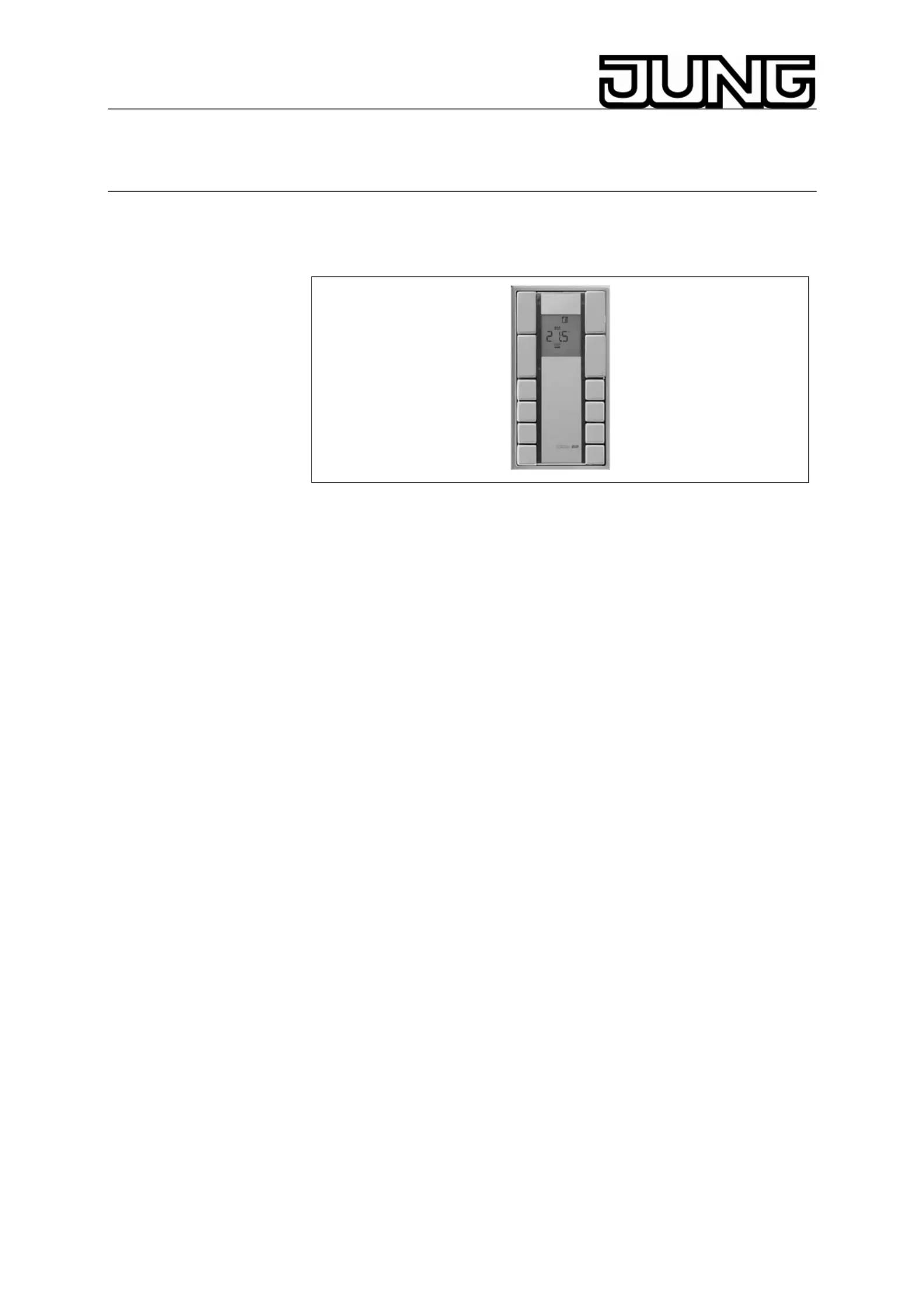

Side 1/6

KNX Room Controller Universal

Ref.-no.: RCD 20xx

Operating Instructions

Room Controller Universal

1. System information

This unit is a product of the KNX/EIB-System and corresponds to the

EIBA Guidelines. Detailed technical knowledge acquired in KNX training

courses is a prerequisite for the understanding of the system. The

functions of the device are software-dependent. Planning, installation and

commissioning of the device are effected with the help of EIBA-certified

software (ETS 2 version 1.2a or 1.3 or ETS3). For the RCD-software and

technical descriptions please refer to the internet at www.jung.de oering

up-to-date information.

2. Funktion

The KNX/EIB room controller RCD 20xx combines the functionality of an

universal push button and a room temperature sensor. Beside it the

device indicates the status and the parameter of the continuous action

regulator and is equipped with a fan coil application. The actual fan coil

status is also indicated on the illuminated LCD.

Functional range of the push button part

Each button can be programmed separately:

switching • toggling • dimming (single level or two level dimming) •

shutter/blind control (single level or two level control) • value transmitter •

Brightness value transmitter (0 - 1500 Lux) • Light mood recall with and

without memory • Saving light mood • presence push-button for

thermostat • Set temperature offset adjustment • fan levels • block

function • Status LED for each push button with separate objects

Functional range of the temperature sensor part

The temperature sensor is used to control single room temperature. It is

possible to choose a steady control or a two step control application to

control an KNX/EIB switching or heating actor in connection with an

electrothermic device.

Depending on settings of continuous PI control, switching PI control, two

step control or switching two step control • heating and/or cooling with

manual or automatic switching and collective or parted actor outputs

possible two step heating and cooling operation • ve operation modes

with the respective set value • comfort extension or operation mode

changes through presence push button • freeze/heating protection •

Stand: Apr-08 825 548 03

KNX Room Controller Universal

Ref.-no.: RCD 20xx

temperature drop detection • external controlled objects for comfort

mode, freeze and heat protection and control lock-out • control status, set

value and actual value through KNX/EIB accessible • set value

adjustment of max. ± 6 K through push button and software possible •

lock-out of the control elements to protect against unauthorised

adjustments

3. Installation

Attention! Electrical equipment must be installed and fitted only by

qualified electricians and in observance of the applicable accident

prevention regulations. Any non-observance of the fitting

instructions may cause fire or other hazards.

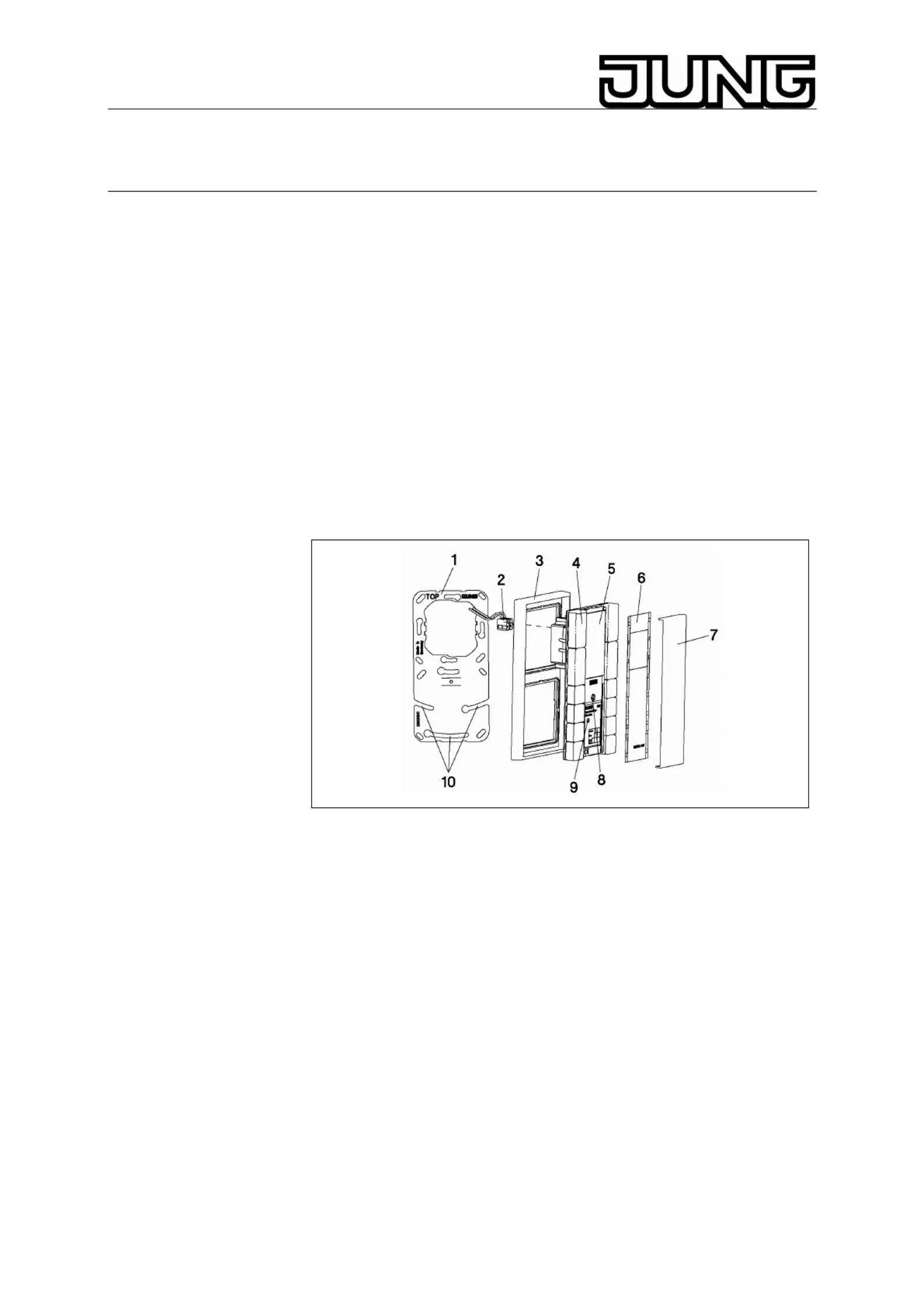

4. Connection and mounting of the RCD 20xx

The RCD has an integrated bus coupling unit. It is connected with a bus

terminal connection block (2).

• 1.Metal plate (1) to be mounted on one or two vertically arranged

wall boxes. When using only one box, the lower part has to be

screwed via the fixing holes (10).

• Attach the frame (3) to the RCD.

• Connect the bus terminal (2) at the back side.

• Attach the RCD (4) and frame (3) on the metal plate (1). Notice:

Do not pen in the terminal wires.

• Screw on the fixing screw (8).

• Remove the protection foil (5) from the display.

• Put on the transparent cover (7) with the inscription foil (6) to the

RCD.

The programming mode is activated by pushing the programming button

(9).

Note: Do not mount the device next to heat sources due to the influence

of the integrated temperature sensor.
