Side 1/5

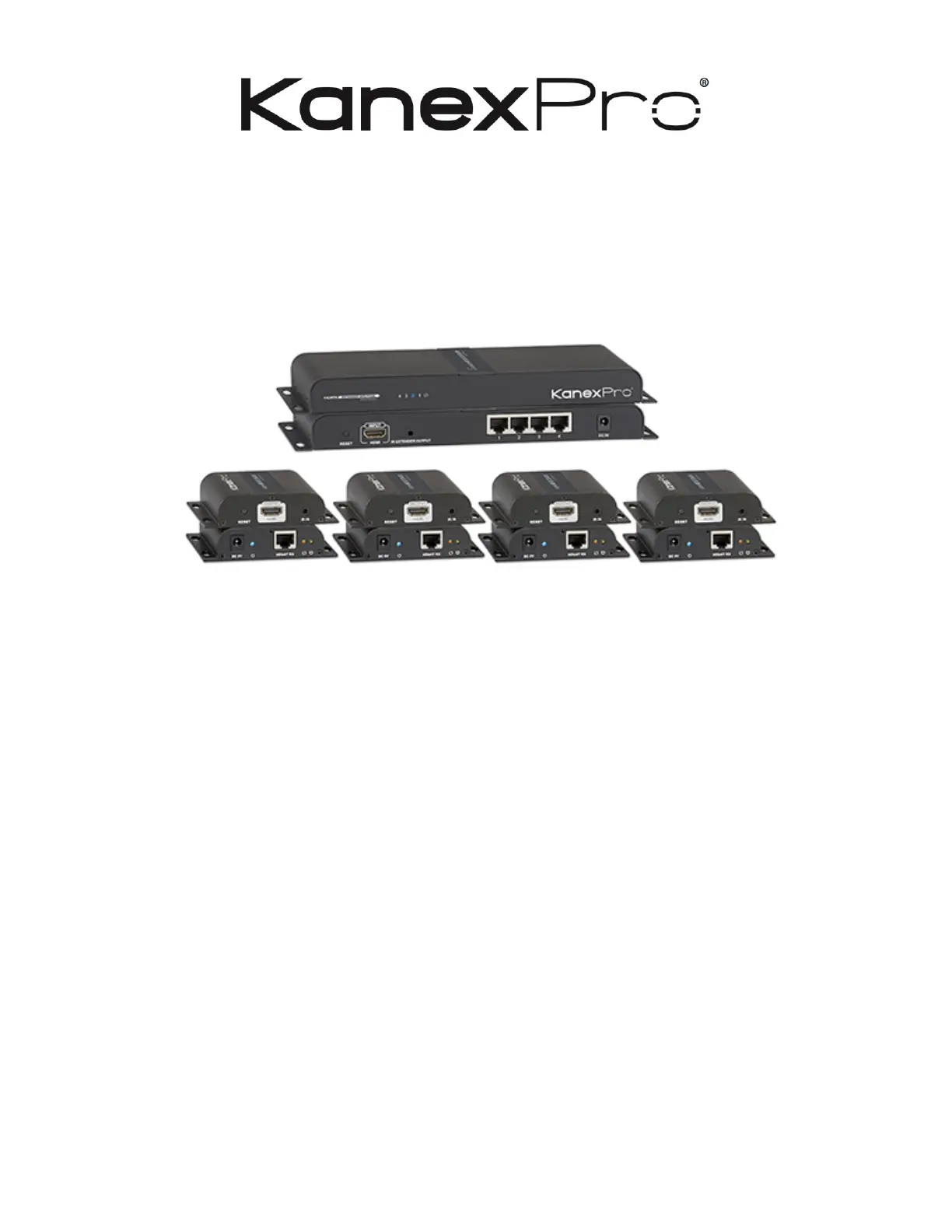

SP-HDCAT1X4!

USER!MANUAL!

HDMI!1x4!Distribution!Amplifier!w/!CAT5e/6!outputs!!

up!to!394ft.!(120!meters)!

KANEXPRO! ! SP-HDCAT1X4!

1. Introduc tio n :! !!

The KanexPro SP-HDCAT1X4 is a 1x4 HDMI splitter with one transmitter and four receivers set amplifier

that, enables HDMI or DVI signals to be routed over distances up to 394ft.(120m) significantly beyond the

capability of standard HDMI or DVI cables. When connected together using four economical and installer

friendly CAT5e/6 cables, the transmitter inputs the HDMI signal into four identical outputs carrying

393ft./1080p resolution simultaneously from the provided receivers.!

This HDMI amplifier offers an ideal, cost effective means for extending digital video, multichannel audio,

and control signals from HDMI equipped devices. Each receiver works with the splitter as a full functional

unit enabling full 1920 x 1080p/60 resolution. This professional HDMI to CAT5e/6 splitter is optimized for

a variety of installation environments including digital signage, classroom and medical imaging markets.

2. Features:

• Distribute HDMI over Single Cat5e/6 - High Resolution audio and video

• Includes 4-independent receivers

• Extend over single CAT5e/6 up to 394ft. (120 meters)

• Supports full HD 1080p (1920 x 1080@60Hz)

• Supports 5.1, 7.1 Digital Audio and uncompressed LPCM

• HDCP 1.4 & EDID support

• IR control

• Metal enclosure

• Quick and easy to set up

3. Package Includes:

• 1x SP-HDCAT1x4 Transmitter

• 4x SP-HDCAT1x4 Receivers

• 1x DC 12v/3A power adapter

• 1x IR transmission Kit

• 1X user manual

4. Installation Requirement:

• HDMI source device (computer graphics card, DVD, PS3, HD monitoring equipment etc)

• HDMI display device like SDTV, HDTV, and projector with HDMI port.

• HDMI extender RX which supports HDBitT transport protocol

• UTP/STP cat5/5e/6 cable, follow standard IEEE-568B Network cable length supported between

every connection: CAT5 80m, CAT5E 100m and CAT6 120m

Produkt Specifikationer

Mærke:	KanexPro
Kategori:	AV forlænger
Model:	SP-HDCAT1X4
Type:	AV -sender og transceiver
Vekselstrømsindgangsspænding:	100-240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	299 mm
Dybde:	110.7 mm
Højde:	29.6 mm
Vægt:	430 g
Produktfarve:	Sort
Understøttede videotilstande:	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Strømforbrug (typisk):	3.5 W
Driftstemperatur (T-T):	0 - 60 °C
Maksimal opløsning:	1920 x 1080 pixel
Forbindelsesteknologi:	Ledningsført
Certificering:	FCC, CE, UL
DC-in-stik:	Ja
LED-indikatorer:	Ja
Udgangsstrøm:	2 A
Modtager vægt:	142 g
Indgangsstrøm:	0.3 A
Driftsspænding:	5 V
HSMI-indgang:	1
RJ-45 indgangs-porte:	1
Antal HDMI-udgange:	1
Modtager dimensioner (BxDxH):	96.8 x 94 x 23.7 mm
Understøttede kabeltyper:	Cat5e, Cat6
RJ-45 udgangs-porte:	4
Strømforbrug (modtager) (maks):	3 W
