KanexPro EXT-50M18G Manual

KanexPro AV forlænger EXT-50M18G

Læs gratis den danske manual til KanexPro EXT-50M18G (8 sider) i kategorien AV forlænger. Denne vejledning er vurderet som hjælpsom af 92 personer og har en gennemsnitlig bedømmelse på 4.2 stjerner ud af 46.5 anmeldelser. Har du et spørgsmål om KanexPro EXT-50M18G, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/8

VER. 1.0

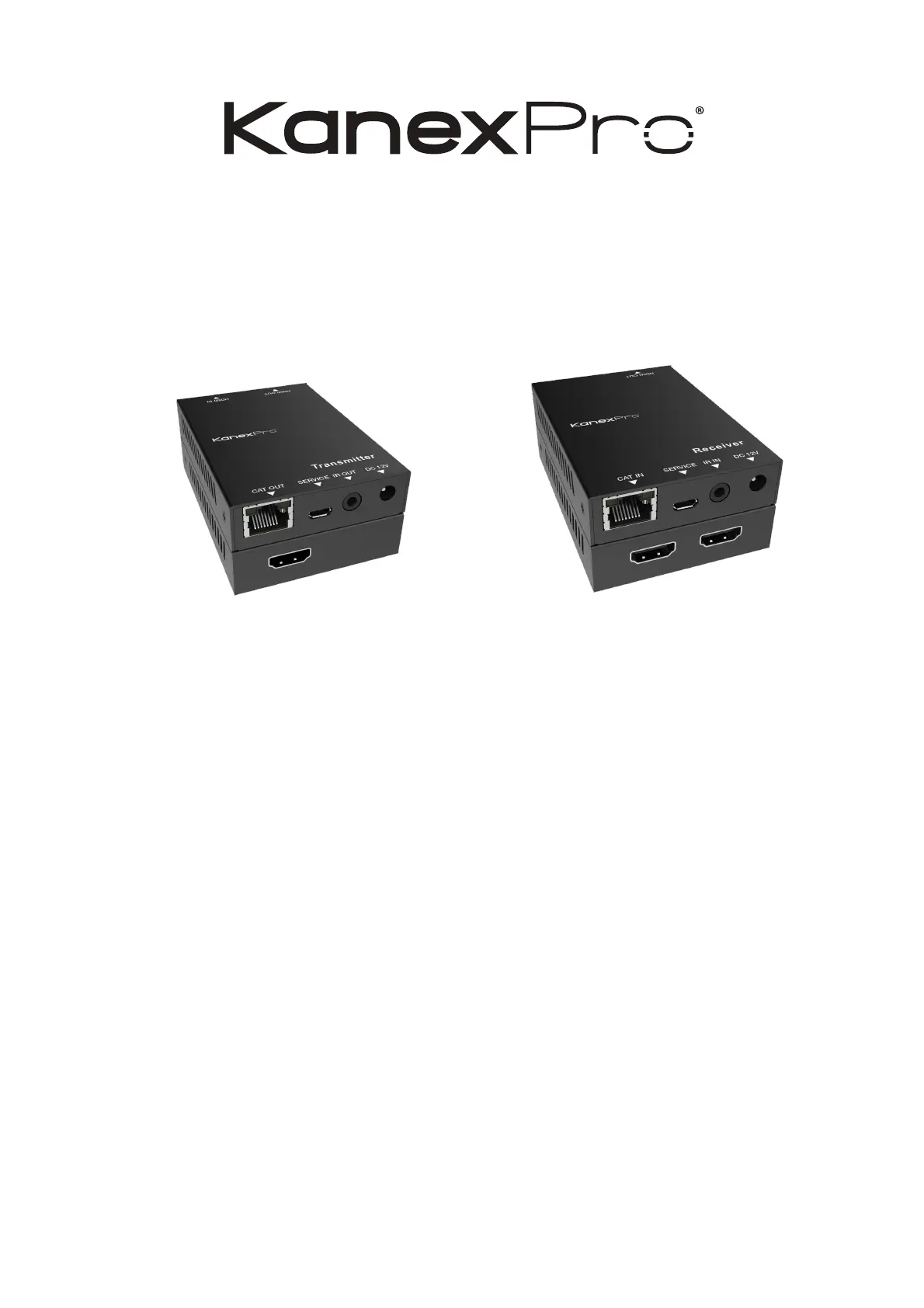

4K HDR HDMI 2.0 18G Extender 50M over Cat6

MPN: EXT-USB250M

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate this

equipment and before connecting the power supply. Please keep the following in

mind as you unpack and install this equipment:

• Always follow basic safety precautions to reduce the risk of fire, electrical

shock and injury to persons.

• To prevent fire or shock hazard, do not expose the unit to rain, moisture or

install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any openings

or empty slots in the unit, as you may damage parts inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if it is

damaged.

• Do not allow anything to rest on the power cabling or allow any weight to

be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or openings

in the unit housing that provide ventilation and allow for sufficient space

for air to circulate around the unit.

Table of Contents

1. Introduction ............................................................................................................................................. 3

2. Features .................................................................................................................................................... 3

3. Package Contents ............................................................................................................................... 3

4. Specifications ........................................................................................................................................ 4

5. Operation Controls and Functions .............................................................................................. 5

5.1 Transmitter Panel ....................................................................................................................... 5

5.2 Receiver Panel ............................................................................................................................ 5

5.3 IR Pin Definition ......................................................................................................................... 6

6. Application Example .......................................................................................................................... 7

7. Customer Service ................................................................................................................................. 8

Produkt Specifikationer

Mærke:	KanexPro
Kategori:	AV forlænger
Model:	EXT-50M18G
Type:	AV sender & modtager
Produktfarve:	Sort
Opbevaringstemperatur (T-T):	-25 - 70 °C
Relativ luftfugtighed ved opbevaring (H-H):	10 - 90 %
HDCP:	Ja
Driftstemperatur (T-T):	-10 - 55 °C
Maksimal opløsning:	- pixel
Forbindelsesteknologi:	Ledningsført
Modtager vægt:	155 g
Maksimal overførselsafstand:	50 m
HDMI-version:	2.0
HSMI-indgang:	2
RJ-45 indgangs-porte:	1
Antal HDMI-udgange:	1
Modtager dimensioner (BxDxH):	61 x 88 x 18 mm
HDCP-version:	2.2
Understøttede kabeltyper:	Cat5e, Cat6
Senderdimensioner (BxDxH):	61 x 88 x 18 mm
Transmitter vægt:	160 g
Båndbredde:	18 Gbit/sek.
RJ-45 udgangs-porte:	1
Udvidet display identifikationsdata (EDID):	Ja
Tovejs:	Ja
