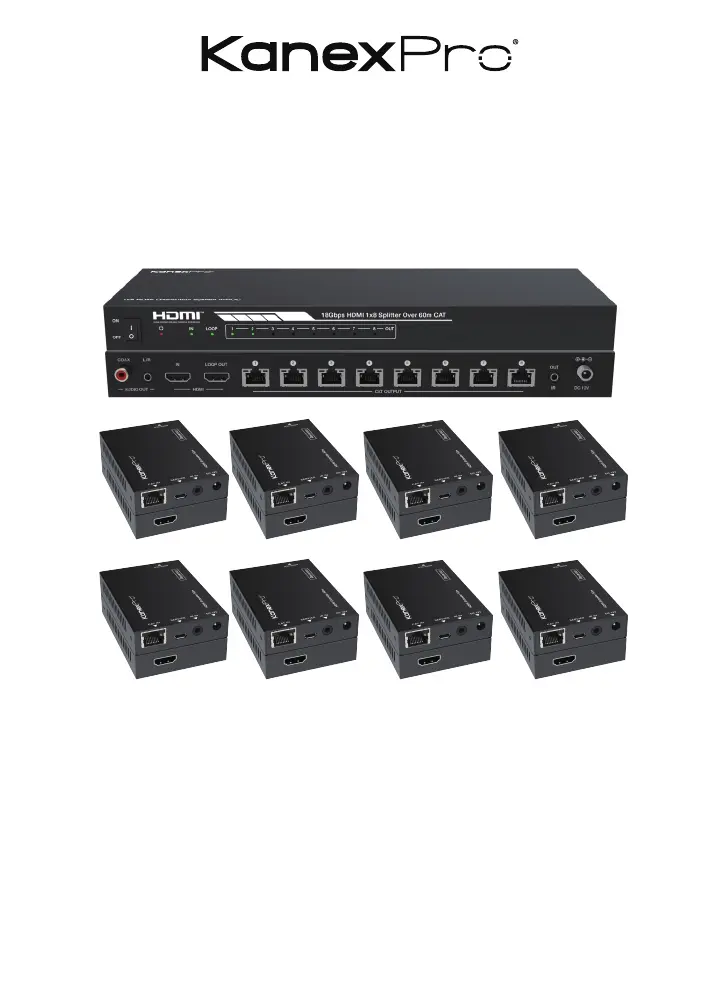

Side 1/7

1x8 Distribution Amplifier over

CAT5e/6 Outputs and PoC 60M

MPN: SP-HDPOC1X8

VER 1.0

All brand names and trademarks are properties of their respective owners

2 3

Thank you for purchasing this product

For optimum performance and safety, please read these instructions

carefully before connecting, operating or adjusting this product. Please

keep this manual for future reference.

Surge protection device recommended

This product contains sensitive electrical components that may be

damaged by electrical spikes, surges, electric shock, lighting strikes,

etc. Use of surge protection systems is highly recommended in order to

protect and extend the life of your equipment.

Table of Contents

1. Introduction. 2

2. Features. 3

3. Package Contents. 3

4. Speciﬁcations. 4

5. Operation Controls and Functions. 5

5.1 Transmitter. 5

5.2 CAT Receiver. 7

5.3 IR Pin Deﬁnition 7

6. EDID Mode. 8

7. ASCII Commands. 9

8. Application Example. 12

1. Introduction:

The KanexPro 1x8 Distribution Ampliﬁer (SP-HDPOC1X8) is a 18Gbps

HDMI 1x8 Splitter that can distribute a single HDMI source signal to any

8 display devices. Support video resolution up to 4K2K@50/60Hz 4:4:4.

It is designed with 1 HDMI loop output and 8 CAT outputs. It can extend

the signal transmission distance up to 35 meters at the resolution

of 4K2K@ 60Hz, or 50 meters at 4K2K@30Hz, or 60 meters at

1080P@60Hz via a single CAT6/6a/7 cable. The product supports one-

way IR control signal pass-through, audio extract function and advanced

EDID management.

2. Features:

• HDMI 2.0, HDCP 2.2 / 1.x and DVI 1.0 compliant

• Support 18Gbps video bandwidth

• Support video resolution up to 4K2K@50/60Hz 4:4:4

• Support 3D, HDR, HDR10+, HLG and Dolby vision

• Support up t

o 7.1CH HD audio pass-through

• Support digital and analog audio de-embedded output

• Extend the signal transmission distance up to 35 meters at the

resolution of 4K2K@60Hz, 50 meters at 4K2K@30Hz, 60 meters at

1080P@60Hz via a single CAT6/6a/7 cable

• Support 1 HDMI input, 1 HDMI loop output and 8 CAT outputs.

• Support one-way IR control signal pass-through

• Advanced EDID management

• Support one-way POC function (only from transmitter to receiver)

• Compact design for easy and ﬂexible installation

3. Package Contents:

• 1x 18Gbps 1x8 HDMI Splitter over 60m CAT

• 8x Receiver Units

• 1x IR Blaster Cable (1.5 meters)

• 8x 20K~60KHz IR Receiver Cable (1.5 meters)

• 1x 12V/2.5A DC Locking Power Adapter

• 1x User Manual

Produkt Specifikationer

Mærke:	KanexPro
Kategori:	AV forlænger
Model:	SP-HDPOC1X8
Type:	AV sender & modtager
Vekselstrømsindgangsspænding:	100-240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	300 mm
Dybde:	100 mm
Højde:	28 mm
Vægt:	823 g
Produktfarve:	Sort
HDCP:	Ja
Strømforbrug (typisk):	24.44 W
Driftstemperatur (T-T):	0 - 60 °C
Maksimal opløsning:	1920 x 1080 pixel
Forbindelsesteknologi:	Ledningsført
Certificering:	FCC, CE, UL
DC-in-stik:	Ja
Udgangsstrøm:	2.5 A
Modtager vægt:	155 g
Indgangsstrøm:	0.3 A
Driftsspænding:	12 V
Maksimal overførselsafstand:	60 m
Lyd (L, R) udgang:	1
HSMI-indgang:	1
RJ-45 indgangs-porte:	1
Antal HDMI-udgange:	1
Digital lyd koaksial indgang:	1
Modtager dimensioner (BxDxH):	88 x 61 x 18 mm
HDCP-version:	2.2
Understøttede kabeltyper:	Cat5e, Cat6
Båndbredde:	18 Gbit/sek.
RJ-45 udgangs-porte:	8
