Side 1/6

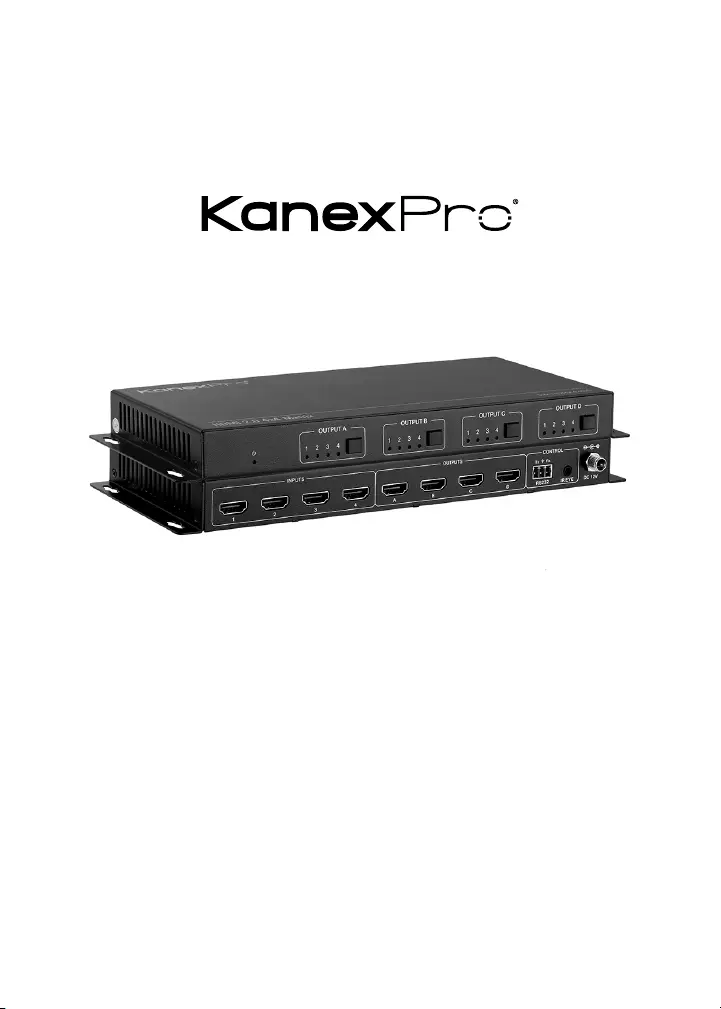

HDMI 2.0 4x4 Matrix Switcher

with 4K to 1080p Down-scaling

MPN: SW-HDMX44DS

VER 1.0

All brand names and trademarks are properties of their respective owners

2 3

Table of Contents

Introduction .........................................................................................................................................2

Features ................................................................................................................................................2

Package List . .........................................................................................................................................3

Panel Description .............................................................................................................................3

Front Panel ..........................................................................................................................................3

Rear Panel ...........................................................................................................................................3

System Diagram ................................................................................................................................4

IR Remote Control ............................................................................................................................4

RS232 Control ....................................................................................................................................5

System Command ............................................................................................................................5

Signal Switching ...............................................................................................................................6

Preset Setting ....................................................................................................................................7

Audio Setting ......................................................................................................................................7

EDID Management ............................................................................................................................8

HDCP Compliance ............................................................................................................................9

Video Resolution Down-scaling ..................................................................................................10

Specications ...................................................................................................................................11

Introduction

The KanexPro SW-HDMX44DS is an HDMI 2.0 compliant 4 input and 4 output

HDMI matrixing switcher. The matrix supports a mix of both 4K and 1080p

displays to be connected and operated at the same time. The built-in 4K ->

1080p downscaler will automatically downscale a 4K HDMI video signal to 1080p

to ensure compatibility and the best possible picture on all connected displays.

It supports resolutions up to 4K@60Hz 4:4:4, HDR10, Dolby Vision. It can be

controlled via front panel buttons, IR remote and RS232 commands.

Features

• Supports resolutions up to 4K@60Hz 4:4:4, HDR10, Dolby Vision, including

1080p 3D.

• Fully compliant with HDMI V2.0 and HDCP 2.2 specications.

• Supports 4K to1080p down-scaling for each independent output to

compatibility with the legacy 1080p displays.

• Smart EDID management.

• Supports front panel buttons, IR remote and RS232 control.

Package List

Please make sure all the items listed below are in the package. If anything is

missing or damaged, please contact your distributor for a replacement.

• 1x SW-HDMX44DS

• 4x Round Plastic Feet

• 1x RS232 Cable (3-pin to DB9)

• 1x IR Receiver

• 1x IR Remote

• 1x Power Adaptor (12VDC, 2A)

• 1x User Manual

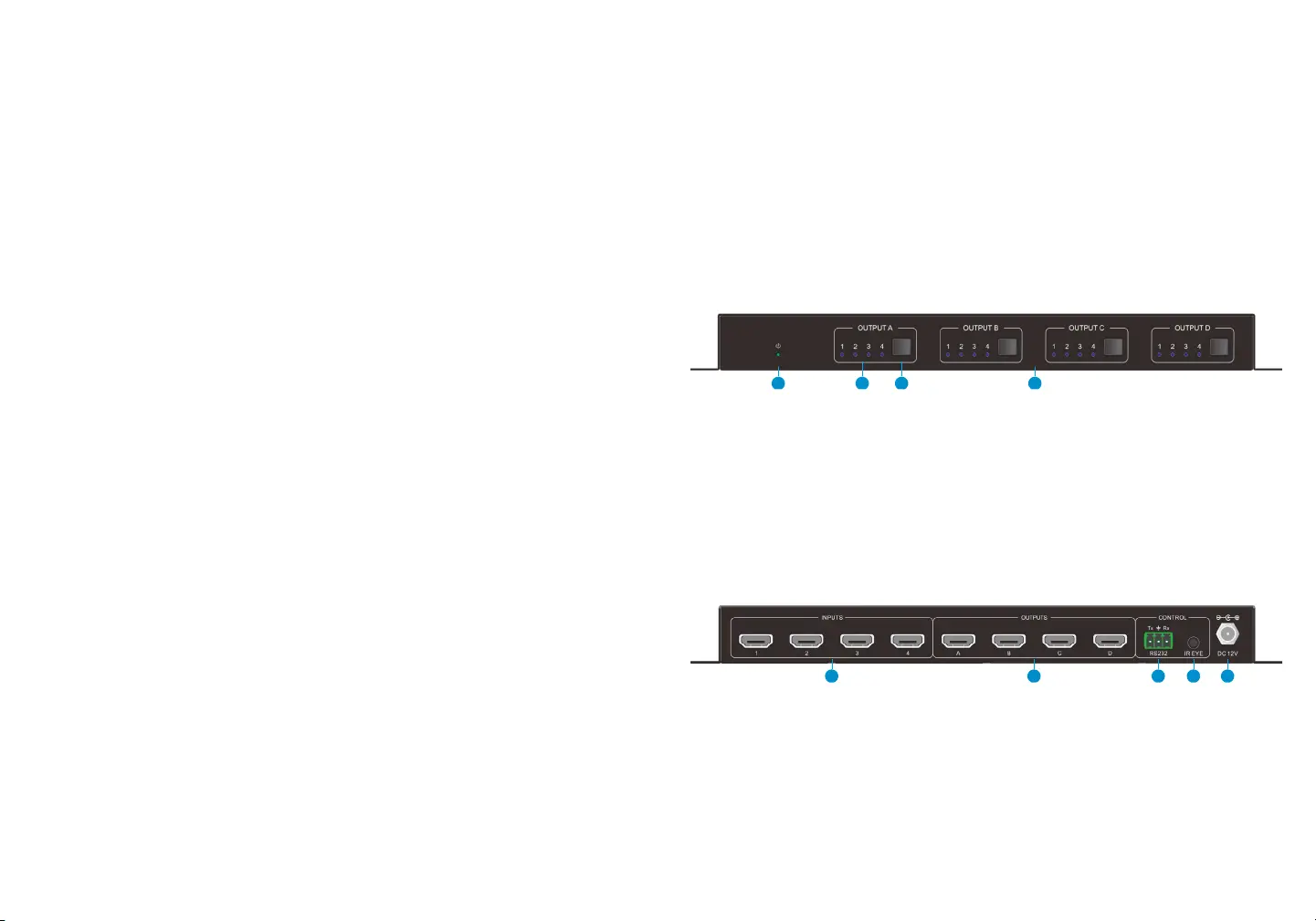

Panel Description

Front Panel

1. Power LED: Illuminates green when switcher is powered on.

2. Signal Switching Zone:

A. Total four output zones, and each zone is including four blue indicators for

four input sources, numbered from “1” to “4”. One of LED illuminates green

to indicate which source is selected for the output channel.

B. Total four output buttons. Press the button repeatedly to cycle through the

sources from inputs 1 to inputs 4.

Rear Panel

1. INPUTS (1~4): Four HDMI ports to connect HDMI source devices.

2. OUTPUTS (A~D): Four HDMI ports to connect HDMI display devices.

3. RS232: Connects to control device (e.g. PC) to control the matrix by sending

RS232 commands.

4. IR EYE: Connects to IR receiver to receive IR signals from IR remote to

control the matrix.

5. DC 12V: DC connector for the power adapter connection.

B 2
