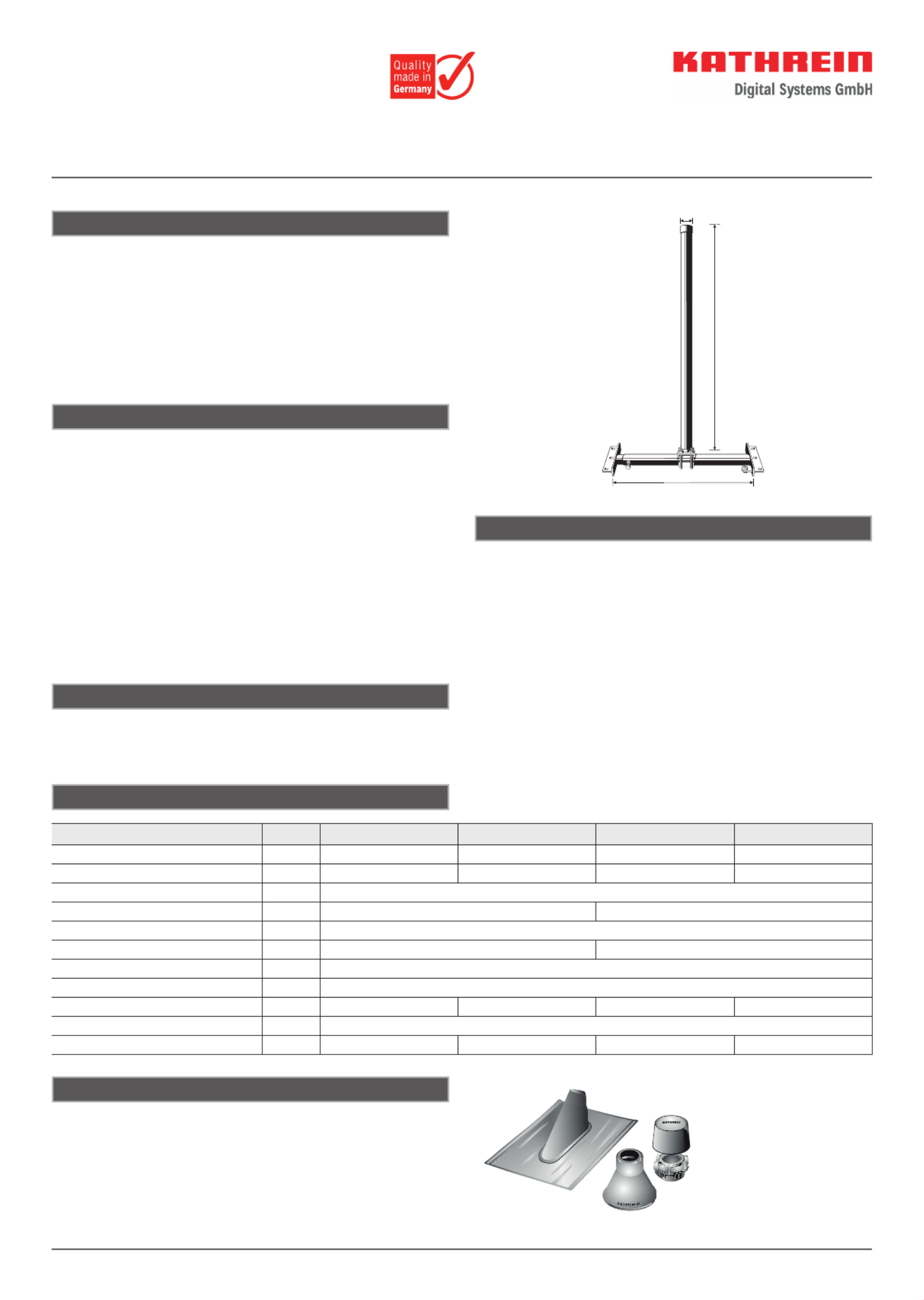

ZAS 40XS 214500011
ZAS 40XL 214500012
ZAS 41XS 214500013
ZAS 41XL 214500014
Rafter fasteners for the sat antennas CAS 06/60/80/90 and KEA 650/750/850/1000
About this guide
This document is part of the product.
►Do not install or use the device until you have read and understood
this document.
►Perform all operating steps described in this manual in the specifi ed
sequence.
►Keep this document for reference throughout the service life of the
device. Pass this document on to any new owner or user.
For the most up-to-date version of this document, go to
www.kathrein-ds.com.
Features
●ZAS 40XS/ZAS 40XL for one sat antenna
ZAS 41
XS/ZAS 41XL for one sat antenna
and an additional radio
antenna
■Mounting directly from the outside or through the battens onto the
rafter
■Flexibly adjustable to the gaps between the rafters by means of a
telescopic tube
■Continuously adjustable for any roof slope (limited only by the cover
plate)
■Hot-dip galvanised
■Cable is inserted through mast tip by means of the ZTC 08 (included
in the scope of delivery of the ZTS40/ZTS 41ro/ZTS 41sw)
■Designed to withstand lightning current (100kA, 10/350 µs according
to DIN VDE 0855-300)
The ZAS 40XS, ZAS 40XL, ZAS 41XS und ZAS 41XL are rafter fasteners for mounting parabolic antennas with a diameter of up to Ø100cm on the roof.
Any other use, or failure to comply with these instructions or documentation and instructions enclosed with the devices, will result in voiding of
warranty or guarantee.
Intended use
Technical data
Type Einheit ZAS40XS ZAS41XS ZAS 40XL ZAS 41XL
Order no. 214500011 214500013 214500012 214500014
Length mm 900 1300 900 1300
Diameter mm 48
Gaps between rafters mm 390 – 520 870 – 1100
Roof slope ° 0–90
Rafter frame dimensions mm 390 – 520x148x40 870 – 1100x148x40
Suitable for sat antennas CAS06/CAS60/CAS80/CAS90, KEA 650/750/850/1000
Suitable mounting accessories see „Mounting sets ZTS40/ZTS 41ro/ZTS 41sw“ on page 1
Packing unit mm 980 x 200 x 115 1380 x 200 x 115 980 x 200 x 115 1380 x 200 x 115
Perm. bending moment Nm 700
Packing unit/weight, approx. pc./kg 1/5,7 1/6,6 1/7,1 1/8,0
Scope of delivery
●Rafter fastener
●6wood screws 10x100mm
●Earthing terminal
●Mast cover
●4 nuts M10
●Fastening screw M10 x 20
●User manual
Mounting sets ZTS40/ZTS 41ro/ZTS 41sw
●For securing the rafter fasteners ZAS 4x
●Consists of:
–ZTB 61: Lead cover plate (410 x 410 mm)
ZTB 60ro/ZTB 60sw: Aluminium cover plate (500 x 450 mm)
–ZTC 08: Mast cap for insertion of eight or ten cables
–ZTC 48: Cover collar (ø 48mm)
900 mm (ZAS 40XS/ZAS 40XL)
1300 mm (ZAS 41XS/ZAS 41XL)
390 – 520 mm (ZAS 40XS/ZAS 41XS)
870 – 1100 mm (ZAS 40XL/ZAS 41XL)
∅ 48 mm
The items in the sets are
also available individually.
Please fi nd further moun-
ting accessories under
www.kathrein-ds.com
www.kathrein-ds.com | support@kathrein-ds.com 936500087/a/A4/STM/0421/GB | Subject to change.
KATHREIN Digital Systems GmbH | Anton-Kathrein-Str. 1–3 | 83022 Rosenheim | Germany | Phone +49 731 270 909 70
Installation
Safety instructions
WARNING!
Danger of falling during assembly work on the roof
.
►The equipment described may only be installed by trained specialist personnel.
►Make sure that the supporting structure has su cient load-bearing capacity.
►Wear stable shoes with non-slip soles.
►Make sure that the roof and climbing aid are dry, clean and non-slip.
►Mount the sat antenna (max. ø 100 cm) only up to a height of 800 mm (see sticker marking).
►For a mast length of 1300mm (ZAS 41XS/ZAS 41XL), install the refl ector below and the FM antenna above.
Required tools
●Drill bit Ø 6.5mm
●17 AF open-ended spanner
●Spirit level

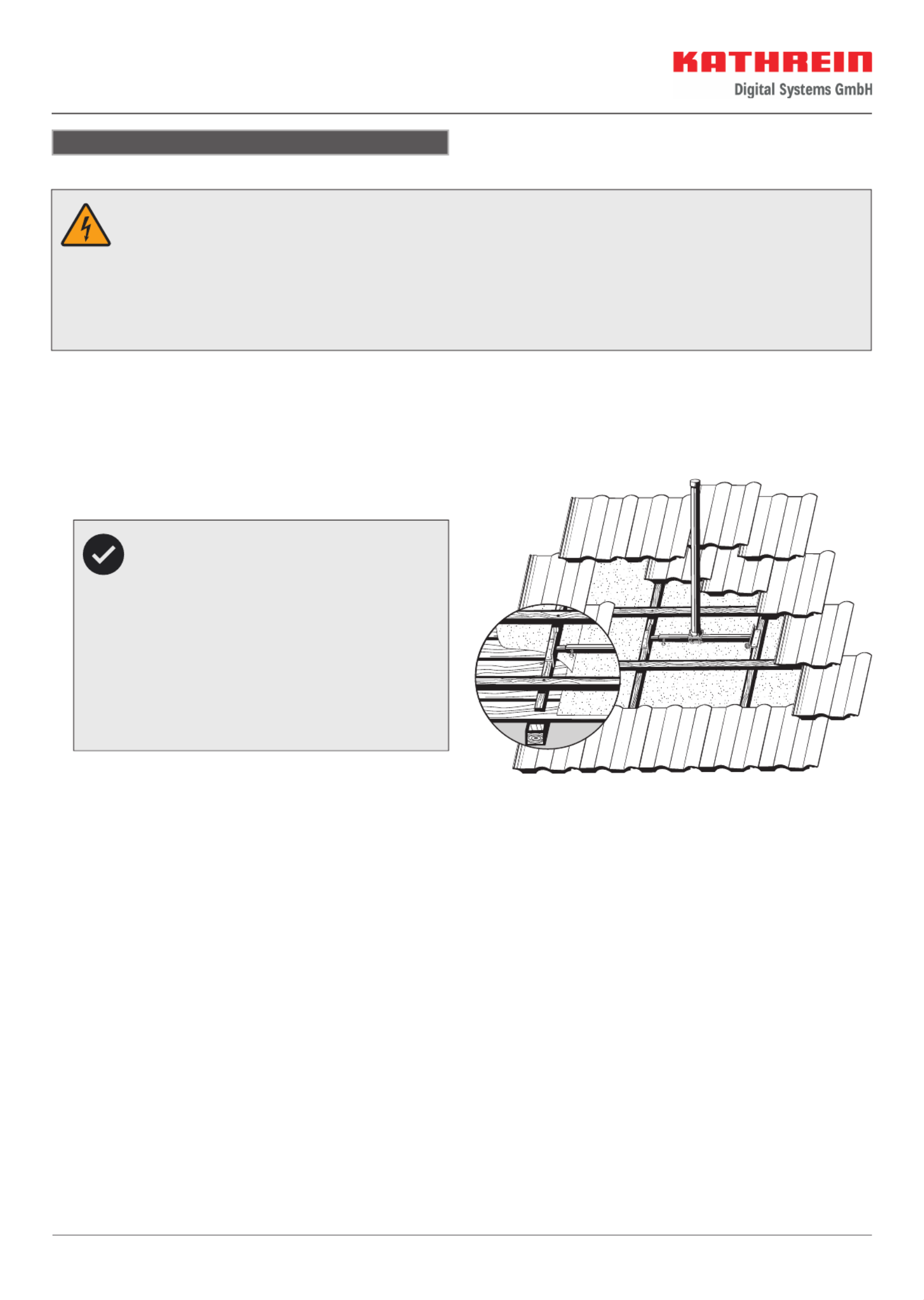

Installing the rafter fastener
1. Remove a su cient number of roof tiles.
2. Extend the rafter fastener to the width of rafters or counter battens.
Align the rafter fastener and the lead cover plate to
suit the covering materials of the roof. Take care to
leave enough overhang above and below the gap in
the roofi ng material.
The cross-tube of the ZAS 40 and ZAS 41 rafter faste-
ners has an o set of about 2 cm relative to the side
securing clips. Depending on the alignment, this
o set allows the rafter fastener to be moved upwards
or downwards within the roof space and, for instance,
in the conjunction with the rafter fastener installation
set ZTS 40, to achieve an optimum position relative
to the existing roof tiles. When installing on steeper
roofs, make sure the shorter securing section points
downwards relative to the slope of the roof.
3. Mark six screw holes on rafters or counter battens.
4. Pre-drill screw holes 50 mm deep using a Ø 6,5 mm drill bit.
5. Screw in the six wood screws 10 x 100 mm from above on the rafters
or counter battens using an A7 19 open-ended spanner. If the
counter battens are too thin, place a suitable piece of wood under-
neath the rafter bracket in the areas of the bolts.
6. Tighten the fastening screw of the telescopic tube using an AF 17
open-ended spanner.
7. Place the earthing wire (16 mm2 copper or 25 mm2 aluminium) into
the earthing terminal and tighten the nut.
8. Slide the mast along the telescopic tube in such a way that the
cover plate matches the joints of the roof tiles.
9. If you intend to lead cables through the mast tip, remove the mast
cap.
10. Swing the mast towards the gable and pull the cover plate and the
cover collar over the mast tip.
11. Mark six screw holes on rafters or counter battens.
12. Pre-drill screw holes 50 mm deep using a Ø 6,5 mm drill bit.
13. Screw in the six wood screws 10 x 100 mm from above on the rafters
or counter battens using an A7 19 open-ended spanner. If the
counter battens are too thin, place a suitable piece of wood under-
neath the rafter bracket in the areas of the bolts.
14. Tighten the fastening screw of the telescopic tube using an AF 17
open-ended spanner.
15. Place the earthing wire (16 mm2 copper or 25 mm2 aluminium) into
the earthing terminal and tighten the nut.
16. Slide the mast along the telescopic tube in such a way that the
cover plate matches the joints of the roof tiles.
17. If you intend to lead cables through the mast tip, remove the mast
cap.
18. Swing the mast towards the gable and pull the cover plate and the
cover collar over the mast tip
