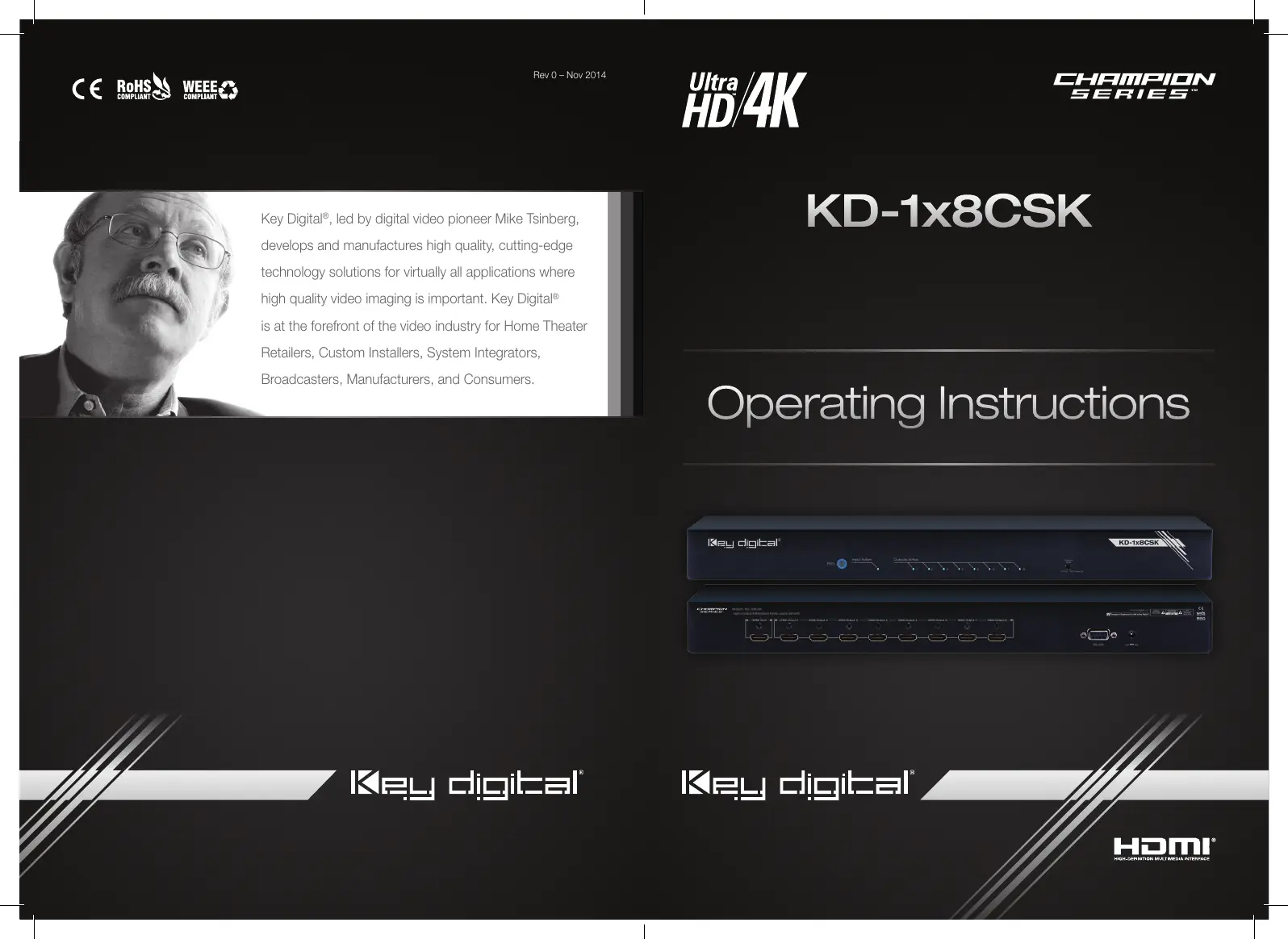

Side 1/6
1 Input to 8 Outputs HDMI
®
Distribution Amplifier,
supports Ultra HD/4K
The Experts in Digital Video Technology and Solutions
™
KD-1x8CSK
Operating Instructions
Key Digital
®
Systems :: 521 East 3rd Street :: Mount Vernon, NY 10553
Phone : 914.667.9700 Fax : 914.668.8666 Web : www.keydigital.com
Key Digital
®
, led by digital video pioneer Mike Tsinberg,
develops and manufactures high quality, cutting-edge
technology solutions for virtually all applications where
high quality video imaging is important. Key Digital
®
is at the forefront of the video industry for Home Theater
Retailers, Custom Installers, System Integrators,
Broadcasters, Manufacturers, and Consumers.
Rev 0 – Nov 2014
KD-1x8CSK_Manual_5.25x7.5.indd 2-3 11/13/14 10:52 AM
4 1
Introduction
Key Digital
®
Champion Series
™
KD-1x8CSK HDMI Distribution Amplifier is designed and
engineered to offer the best in quality, performance, and reliability while providing a cost
effective HDMI distribution solution. KD-1x8CSK is an EDID and HDCP buffering solution for
all digital video/audio distribution applications and support all HD and SD video standards,
including 1080p/60 and Ultra HD/4K. KD-1x8CSK Distribution Amplifier features status-
monitoring LEDs and support for advanced HDMI features (3D & Ultra HD/4K).
About the KD-1x8CSK
› Digital Distribution:
1 HDMI Input to 8 HDMI Outputs
› Resolution Support:
SD, HD, and VESA up to UHD/4K (4096x2160/60/30/24 or
3840x2160/60/30/24)
› Ultra HD/4K: Supports Ultra HD/4K Signal transmission
› 3D Ready:
Capability to pass 3D stereoscopic signal formats
› EDID Control:
Internal library with 16 default EDID configurations for each input,
including native EDID data for any Output/Display
› Full Buffer
™
System
: Manages TMDS re-clocking / signal re-generation, HDCP source &
display authentication, Hot Plug Management and EDID Control handshake
› Hot Plug Control:
Allows modifying HPD (Hot Plug Detection) protocol between
source and display.
› Lossless Compressed Digital Audio:
Dolby
®
TrueHD, Dolby
®
Digital Plus and DTS-HD
Master Audio
™
› Deep Color Support:
Up to 12 bits/color (up to 8 bits/color@4K/60)
› I2C Communication:
EDID and HDCP buffering between source and display
› Licensing:
Fully licensed and compatible with all HDMI and HDCP technologies
› Control:
RS-232
› Major Control System Support:
Compass Control
®
, AMX
®
, Control4
®
, Crestron
®
, KNX
®
,
RTI
®
, Savant, URC
®
, Honeywell
®
, HAI
®
, Leviton
®
, etc.
Accessories
› External power supply: 5V 3A
› HDMI Lacing Clips
› Rack Ears
› Warranty Card
Table of Contents
Introduction ..............................................................1
Quick Setup Guide ........................................................2
Installation and Operation ...................................................3
EDID Control Settings ......................................................3
Hot Plug Control ..........................................................4
RS-232 Commands .......................................................5
Specifications ............................................................6
Important Product Warnings & Safety Instructions .................................7
How to Contact Key Digital
®
.................................................8
Warranty Information .......................................................8
Always follow the instructions provided in this Operating Manual.
© 2014 Key Digital, Inc. All rights reserved.
KD-1x8CSK_Manual_5.25x7.5.indd 4-1 11/13/14 10:52 AM
