Side 1/6

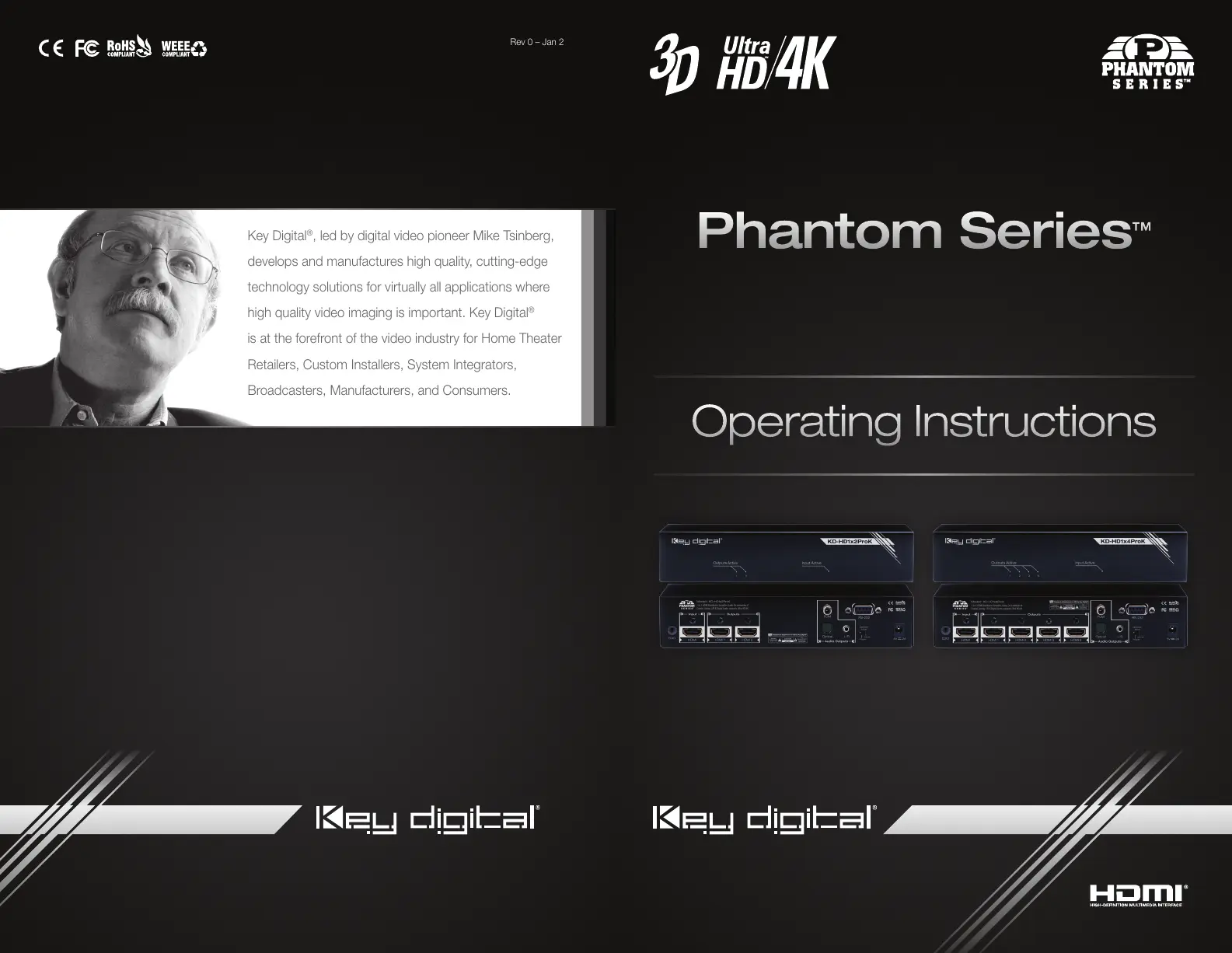

Key Digital

Systems :: 521 East 3rd Street :: Mount Vernon, NY 10553

Phone : 914.667.9700 Fax : 914.668.8666 Web : www.keydigital.com

The Experts in Digital Video Technology and Solutions

™

Key Digital

, led by digital video pioneer Mike Tsinberg,

develops and manufactures high quality, cutting-edge

technology solutions for virtually all applications where

high quality video imaging is important. Key Digital

is at the forefront of the video industry for Home Theater

Retailers, Custom Installers, System Integrators,

Broadcasters, Manufacturers, and Consumers.

Rev 0 – Jan 2015

HDMI Distribution Ampliﬁers,

Audio De-embedders of Coaxial Digital Audio

& Analog L/R, support Ultra HD/4K

Phantom Series

™

Operating Instructions

KD-HD1x2ProK KD-HD1x4ProK

KD-HD1x2_1x4ProK_Manual.indd 2-3 2/9/15 1:45 PM

4 1

Introduction

Key Digital

Phantom Series

™

HDMI Distribution Amps are designed and engineered to

offer best quality in class, performance, and reliability. Phantom Series

™

Distribution Amps

support all HD and SD video standards, including Ultra HD/4K, 3D and 1080p/60.

KD-HD1x2ProK / KD-HD1x4ProK units feature status-monitoring LEDs, and are capable

of de-embedding HDMI audio for external distribution. The Phantom Series

™

distribution

ampliﬁers support multiple unit expandability, and are individually addressable.

Key Features

› HDMI Distribution:

1 HDMI source to 2/4 HDMI outputs

› Resolution Support: SD, HD, and VESA up to UHD/4K (4096x2160/60/30/24 or

3840x2160/60/30/24)

› Ultra HD/4K: Supports Ultra HD/4K Signal transmission

› 3D Ready:

Capability to pass 3D stereoscopic signal formats

› Audio De-Embedder:

Can de-embed audio from the HDMI input and send it to

external digital or analog audio outputs

› Hot Plug Detection Control:

Enables integrator to choose if active signal voltage

is forced to connected input device

› Full Buffer System

™

Manages TMDS re-clocking / signal re-generation, HDCP

authentication to source & display, and EDID Control handshake

› EDID:

Internal library with 16 default EDID congurations for input,

in addition to native EDID data for any Output/Display

› Cascading Units:

Up to 64 outputs or displays

› Lossless Compressed Digital Audio:

Dolby

TrueHD, Dolby

Digital Plus and

DTS-HD Master Audio

™

› Deep Color Support:

Up to 12 bits/color

› I2C Communication:

EDID and HDCP authentication to Source

› Licensing:

Fully licensed and compatible with all HDMI and HDCP technologies

› Control:

Front status LEDs and RS-232 control

› Major Control System Support:

Compass Control

, AMX

, Control4

, Crestron

, Extron,

Leviton

, RTI

, Savant, URC

, etc.

› Signal rates:

up to 3.4 Gb per second

› Firmware upgradable

› Rack mountable

Accessories

› External power supply: 5V 2A

› HDMI Lacing Clips

› Rack Ears

› Operating Instructions

› Warranty Card

Always follow the instructions provided in this Operating Manual.

Table of Contents

Introduction ............................................................... 1

Quick Setup Guide .......................................................... 2

Installation and Operation .................................................... 3

DVI Applications ............................................................ 3

Settings .................................................................. 4

RS-232 Commands and Protocol .............................................. 6

Specications.............................................................. 7

Important Product Warnings & Safety Instructions:................................. 8

How to Contact Key Digital

.................................................. 9

Warranty Information ........................................................ 9

KD-HD1x2_1x4ProK_Manual.indd 4-1 2/9/15 1:45 PM
