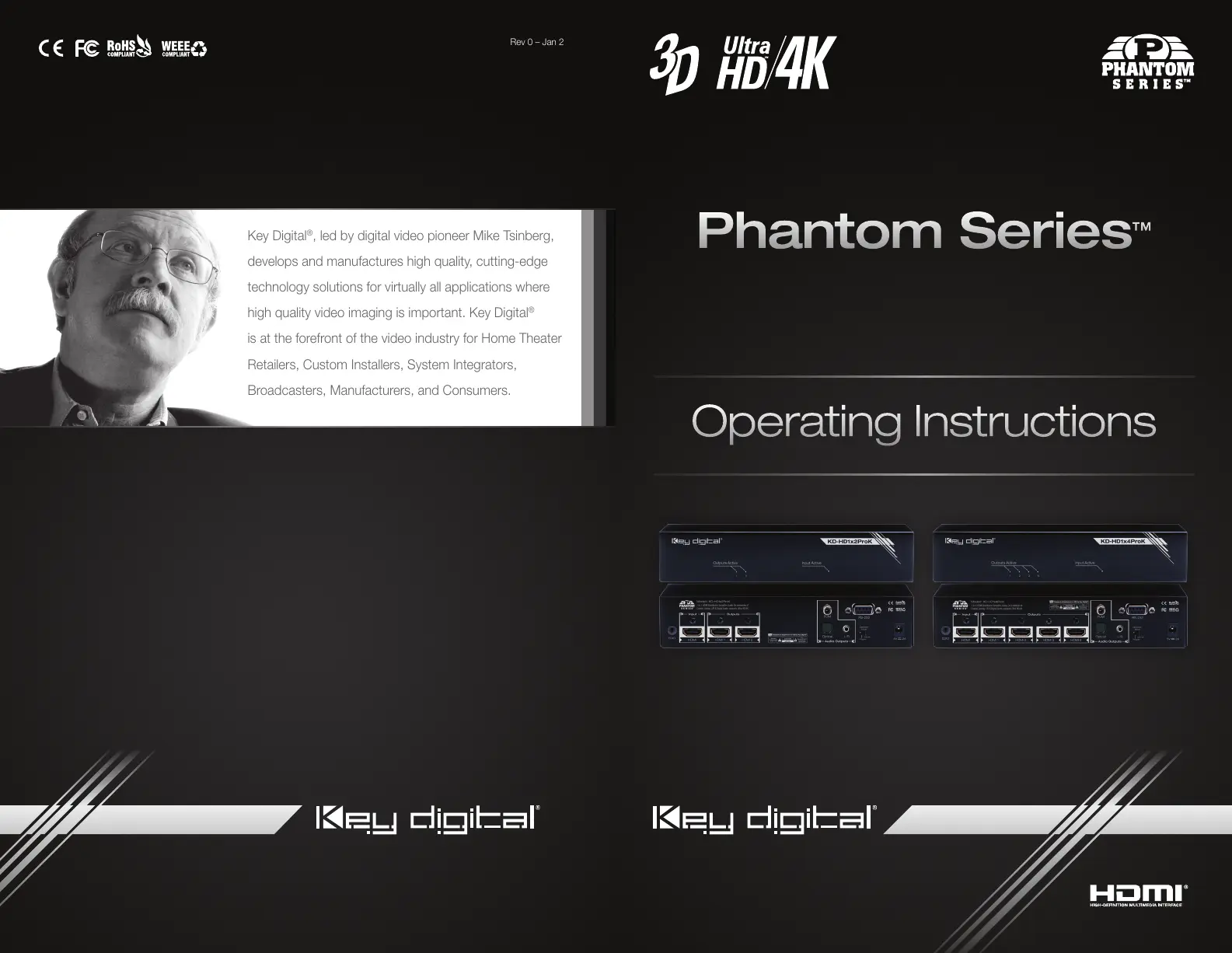

Side 1/6
Key Digital
®
Systems :: 521 East 3rd Street :: Mount Vernon, NY 10553
Phone : 914.667.9700 Fax : 914.668.8666 Web : www.keydigital.com
The Experts in Digital Video Technology and Solutions
™
Key Digital
®
, led by digital video pioneer Mike Tsinberg,
develops and manufactures high quality, cutting-edge
technology solutions for virtually all applications where
high quality video imaging is important. Key Digital
®
is at the forefront of the video industry for Home Theater
Retailers, Custom Installers, System Integrators,
Broadcasters, Manufacturers, and Consumers.
Rev 0 – Jan 2015
HDMI Distribution Amplifiers,
Audio De-embedders of Coaxial Digital Audio
& Analog L/R, support Ultra HD/4K
Phantom Series
™
Operating Instructions
KD-HD1x2ProK KD-HD1x4ProK
KD-HD1x2_1x4ProK_Manual.indd 2-3 2/9/15 1:45 PM
4 1
Introduction
Key Digital
®
Phantom Series
™
HDMI Distribution Amps are designed and engineered to
offer best quality in class, performance, and reliability. Phantom Series
™
Distribution Amps
support all HD and SD video standards, including Ultra HD/4K, 3D and 1080p/60.
KD-HD1x2ProK / KD-HD1x4ProK units feature status-monitoring LEDs, and are capable
of de-embedding HDMI audio for external distribution. The Phantom Series
™
distribution
amplifiers support multiple unit expandability, and are individually addressable.
Key Features
› HDMI Distribution:
1 HDMI source to 2/4 HDMI outputs
› Resolution Support: SD, HD, and VESA up to UHD/4K (4096x2160/60/30/24 or
3840x2160/60/30/24)
› Ultra HD/4K: Supports Ultra HD/4K Signal transmission
› 3D Ready:
Capability to pass 3D stereoscopic signal formats
› Audio De-Embedder:
Can de-embed audio from the HDMI input and send it to
external digital or analog audio outputs
› Hot Plug Detection Control:
Enables integrator to choose if active signal voltage
is forced to connected input device
› Full Buffer System
™
:
Manages TMDS re-clocking / signal re-generation, HDCP
authentication to source & display, and EDID Control handshake
› EDID:
Internal library with 16 default EDID congurations for input,
in addition to native EDID data for any Output/Display
› Cascading Units:
Up to 64 outputs or displays
› Lossless Compressed Digital Audio:
Dolby
®
TrueHD, Dolby
®
Digital Plus and
DTS-HD Master Audio
™
› Deep Color Support:
Up to 12 bits/color
› I2C Communication:
EDID and HDCP authentication to Source
› Licensing:
Fully licensed and compatible with all HDMI and HDCP technologies
› Control:
Front status LEDs and RS-232 control
› Major Control System Support:
Compass Control
®
, AMX
®
, Control4
®
, Crestron
®
, Extron,
Leviton
®
, RTI
®
, Savant, URC
®
, etc.
› Signal rates:
up to 3.4 Gb per second
› Firmware upgradable
› Rack mountable
Accessories
› External power supply: 5V 2A
› HDMI Lacing Clips
› Rack Ears
› Operating Instructions
› Warranty Card
Always follow the instructions provided in this Operating Manual.
© 2015 Key Digital, Inc. All rights reserved.
Table of Contents
Introduction ............................................................... 1
Quick Setup Guide .......................................................... 2
Installation and Operation .................................................... 3
DVI Applications ............................................................ 3
Settings .................................................................. 4
RS-232 Commands and Protocol .............................................. 6
Specications.............................................................. 7
Important Product Warnings & Safety Instructions:................................. 8
How to Contact Key Digital
®
.................................................. 9
Warranty Information ........................................................ 9
