If drilling a new door, use the supplied template and the complete
door drilling instructions available at www.kwikset.com/doorprep.
Consult the deadbolt drilling instructions at
www.kwikset.com/doorprep.
or
backset
the door is either 2-1/8 in (54 mm) or
1-1/2 in (38 mm).
either 2-3/8 or 2-3/4 in ( 60 or 70 mm).
60 or 70 mm
2-3/8 or 2-3/4 in
35 – 44 mm
1-3/8 – 1-3/4 in
the door edge is 1 in (25 mm).
Measure to conrm that the door is
between 1-3/8 and 1-3/4 in (35 mm and
44 mm) thick.
A
B
C
B C D
Is the door edge chiselled?
54 mm
2-1/8 in
38 mm
1-1/2 in
25 mm
1 in
C
door frame
D
Install strike on the door frame.
Make sure the hole in the door frame is drilled a
minimum of 1 in (25 mm) deep.
1
Prepare the door and check dimensions
2
Install the latch and strike
1 / 4
ENGLISH

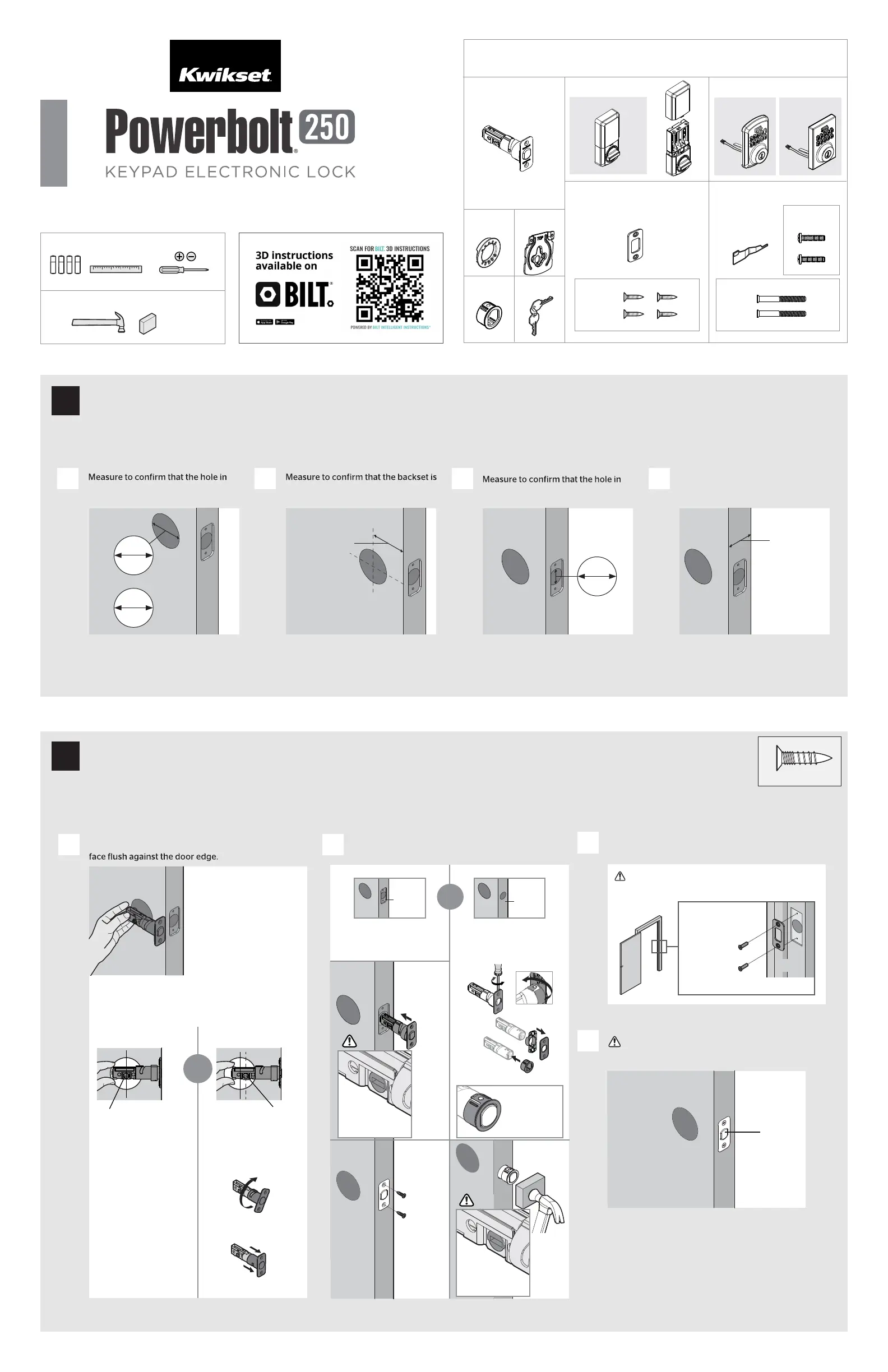

Installation and User Guide
Required tools
Ruler
Hammer Wood block
Additional Tools (depending on application)
Kwikset Technical Support | 1-800-327-5625 | www.kwikset.com
A
Is the rectangular shaped hole centered in the
door hole?
Hold the latch in front of the door hole, with the latch
YES NO
No adjustment is required.
Proceed to next step.
Rectangular shaped holeRectangular shaped hole
Rotate latch face as
shown to extend latch.
or
actual size
53648
For Latch /
Strike Bag
(4x)
53648
(2x)
(For Latch/
Strike Bag
)
Latch
Strike
Keys
Exterior Assembly
Adapter
Ring
Mounting
Plate
Parts in the box
For Latch / Strike For Lock
Interior Assembly
SmartKey
Tool
Transitional Contemporary
53648
52367
52502
Batteries
Collar
53732-001
Rev 01
9250
Note: Please contact customer service if door
thickness exceeds 1-3/4 in for a thick door kit.
180°
YES NO
Install latch in door with
supplied screws.
Install latch in
door with wood
block and
hammer.
chiseled
not
chiseled
Use a athead screwdriver to remove
latch face. Once removed, grip the
latch with one hand and with the
other hand twist collar o. Install
drive-in collar.
unlocked
IMPORTANT: Make sure the latch bolt is fully
retracted (in the unlocked position).
53648
(2x)
(For Latch/
Strike Bag
)
Make sure
slotted hole is at
bottom of latch.
Make sure
slotted hole is at
bottom of latch.
Ensure collar
snaps into place.
Pull collar to test
for tight t.
Align tabs with
holes in collar.
or
Note: Additional door preparation may be
required for doors with 1-1/2 in (38 mm) holes.
Screwdrivers
