KEW Windows for KEW2510
Quick Start Guide
Starting KEW Windows for KEW2510
Next page
Data Analysis
Analysis of data stored in KEW2510
P.6
Analysis of downloaded data
P.9
Data analysis
P.11
Data save to PC
Data import from KEW2510 internal memory to PC
P.18
KEW2510 Setting
Showing KEW2510 setting window on PC
P.21
Setting data readout from KEW2510
P.22
Reflecting edited setting data on KEW2510
P.23
Other Functions
Saving data in CSV format
P.24
Saving data in Excel format
P.25
Environmental Setting
Changing application settings
P.28
Trouble-shooting
P.29

Starting KEW Windows for KEW2510
Environmental requirements
System requirements:
CPU
Memory
OS
HDD
: Pentium 4 1.6GHz or more
: 1Gbyte or more (for Windows 10 / 8.1)
: Windows 10 / 8.1
(32bit/64bit)
: 1Gbyte or more
(including size of .NET Framework redistributable package)
(Hard-disk space required)
CD or DVD drive
: For installing applications
Display
: 1024 x 768 dots, 65536 colors or more
Version of Excel : Microsoft Excel 2007 or later
Recommended system:
Pentium processor of 2GHz or more
- 2 -

Starting KEW Windows for KEW2510
Without connecting PC and KEW2510:
Can perform:
[Data Analysis (P.6)]
STEP 1
Start "KEW Windows".
1
Double-click the short-cut icon on the desktop, or
click "Start" -> "All programs" -> "KEW" -> "KEW WindowsV2".
STEP 2
Start "KEW Windows for KEW2510 ".
1
Click [Start ] button for KEW2510.
- 3 -

Starting KEW Windows for KEW2510
With PC and KEW2510 connected:
Can perform the followings:
[Data Analysis (P.6)]
[Saving data to PC (P.38)]
[KEW2510 Setting (P.46)]
STEP 1
Connect KEW2510 and PC.
1
Power on KEW2510.
2
Connect KEW2510 and PC via Bluetooth.
STEP 2
Start "KEW Windows" .
1
Double-click the short-cut icon on the desktop, or
click "Start" -> "All programs" -> "KEW" -> "KEW WindowsV2" .
- 4 -

Starting KEW Windows for KEW2510
STEP 3
Start "KEW Windows for KEW2510 ".
1
Click [Start ] button for KEW2510.
If "ON" is not displayed for the connected status although KEW2510 is being connected to PC,
click [Re-detect] .
If "ON" is still not displayed, see "Trouble-shooting".
- 5 -

Data Analysis
Analysis of data stored in KEW2510
STEP 1
Open the Menu
1
Click [Open menu] icon on "Data management viewer" .
STEP 2
Show the list of data stored in PC
1
Click [Analyze recorded data] icon.
- 6 -

Data Analysis
STEP 3
View the data stored in KEW2510
1
Click [Data Download] icon.
2
Click on the serial no of KEW2510 for analysis, and then click [Start downloading] icon.
- 7 -

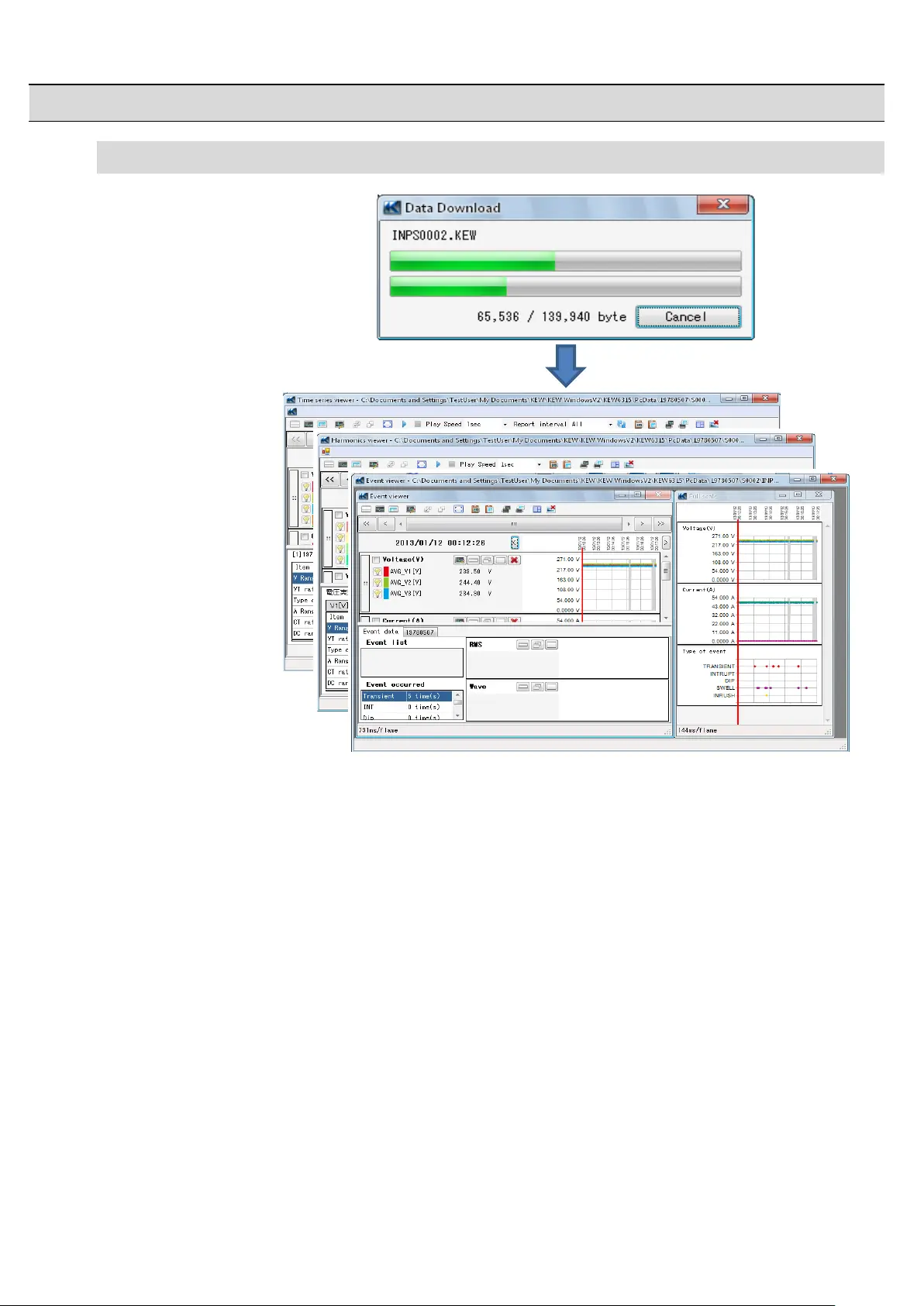

Data Analysis
3
Data Analysis Window will appear when data download to PC completes.
- 8 -

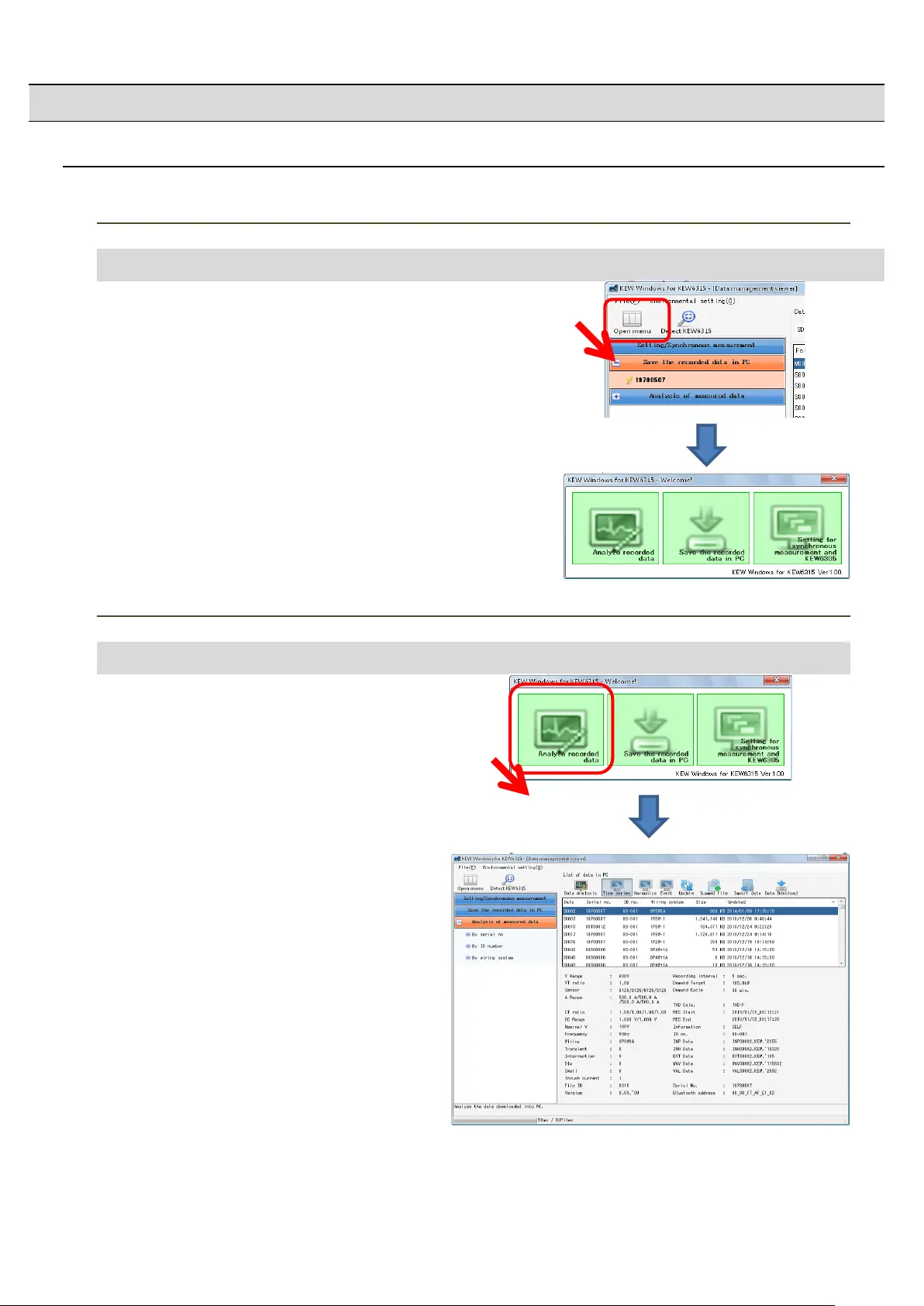

Data Analysis
Analysis of downloaded data
STEP 1
Open the Menu
1
Click [Open menu] icon on "Data management viewer" .
STEP 2
Show the list of data stored in PC
1
Click [Analyze recorded data] icon.
- 9 -

Data Analysis
2
Select the items to be analyzed.
3
Click [Data Analysis] icon.
- 10 -

Data Analysis

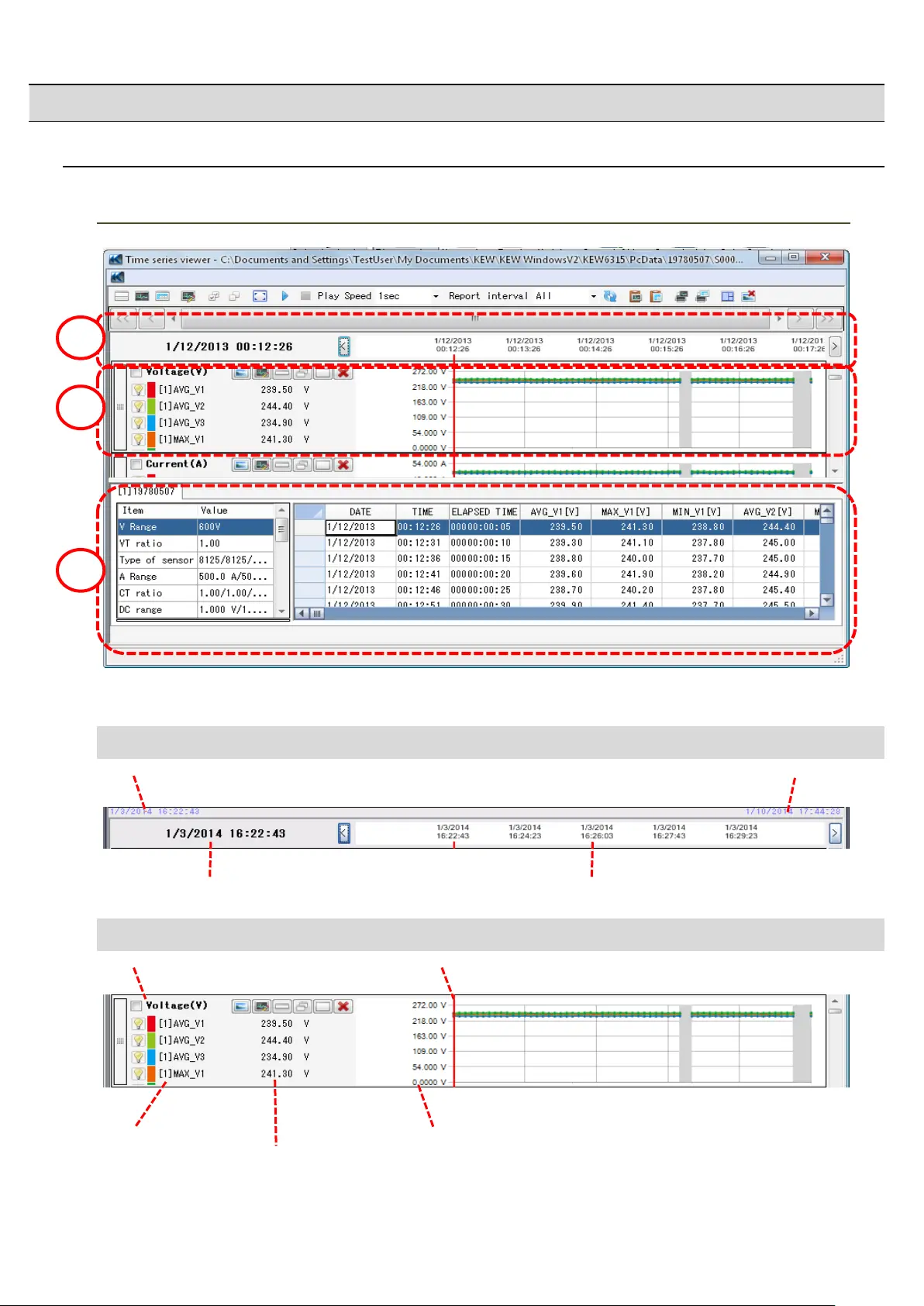

Data Analysis
STEP 1
Displayed items
1 Data recorded time
Time when the oldest data recorded Time when the latest data recorded
Time for the cursor location. Time axis on the graph
2 Time Series Graph
Graph Name
Cursor
Parameter Measured value axis
Values where cursor is located.
1
2
3
- 11 -

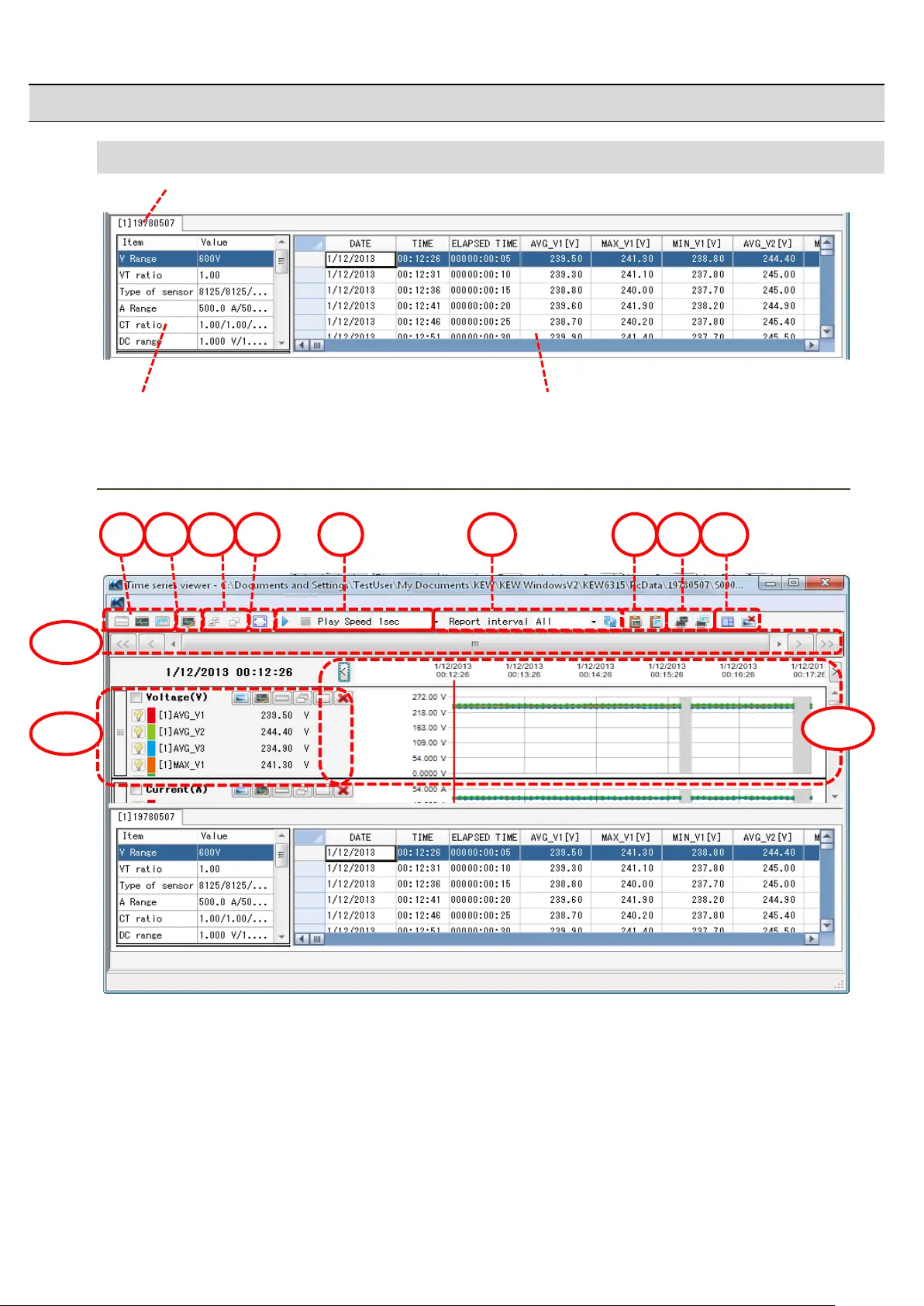

Data Analysis
3 Time Series List
Serial no of KEW2510
Measurement info Time Series List
STEP 2
Functions
1
2
3
4
5
6
7
8
9
11
10
12
- 12 -

Data Analysis

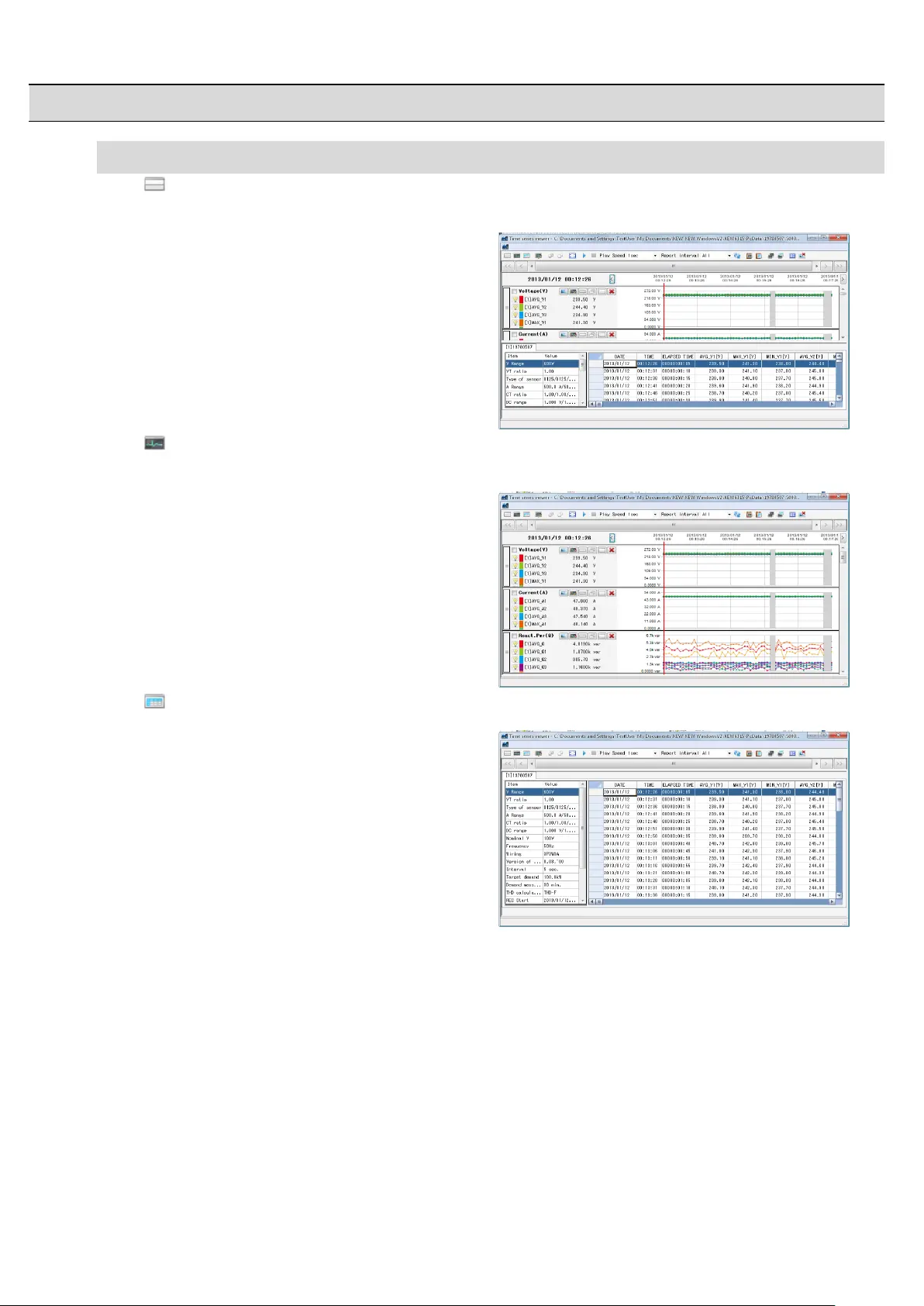

1 Changing the display layout.
To display graph and list on one screen at the same time:
Split the screen in two sections and display Time Series graph in the upper area and
list data in the lower area.
To display graph only
Time Series graphs are arranged and
displayed on one screen.
To display list only
Show the list data on one screen.
- 13 -

Data Analysis
2 Displaying graph in full-scale
To display the selected graphs in full-scale.
All data recorded in the specific period can be displayed on graphs.
*Depending on the size of the recorded data,
it may take a long time to create full-scale data.
3 Copying to clipboard
To copy graph:
Copy all the displayed Time Series graphs to the clipboard as an image.
To copy list:
Copy the selected list data to the clipboard with headers for each item
as tab-delimitated text data.
4 Printing
To print graph:
Print all the displayed Time Series graphs.
To print list:
Print the lists of the specified time period.
Target time period for
print/ save
Print the list.
- 14 -

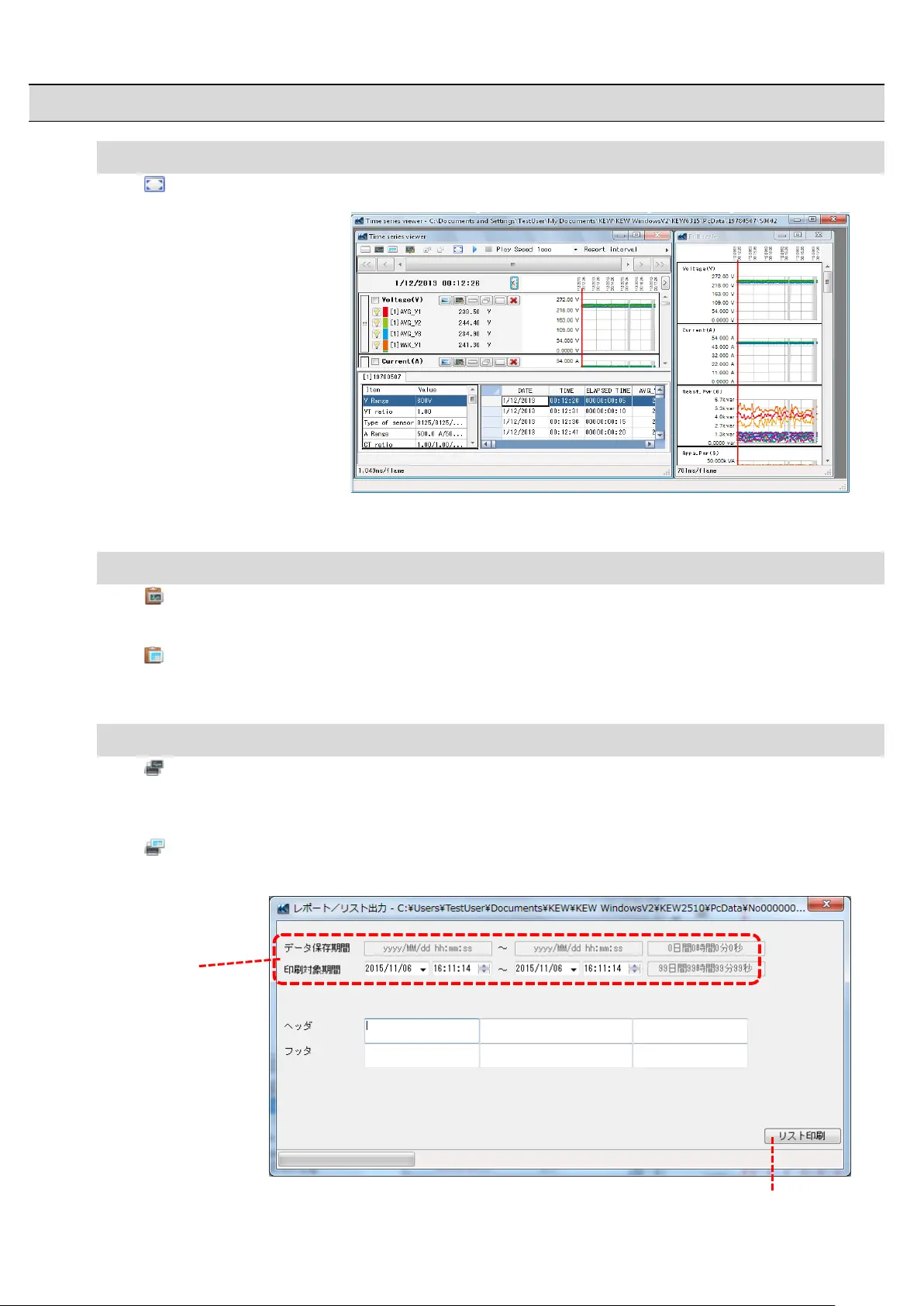

Data Analysis

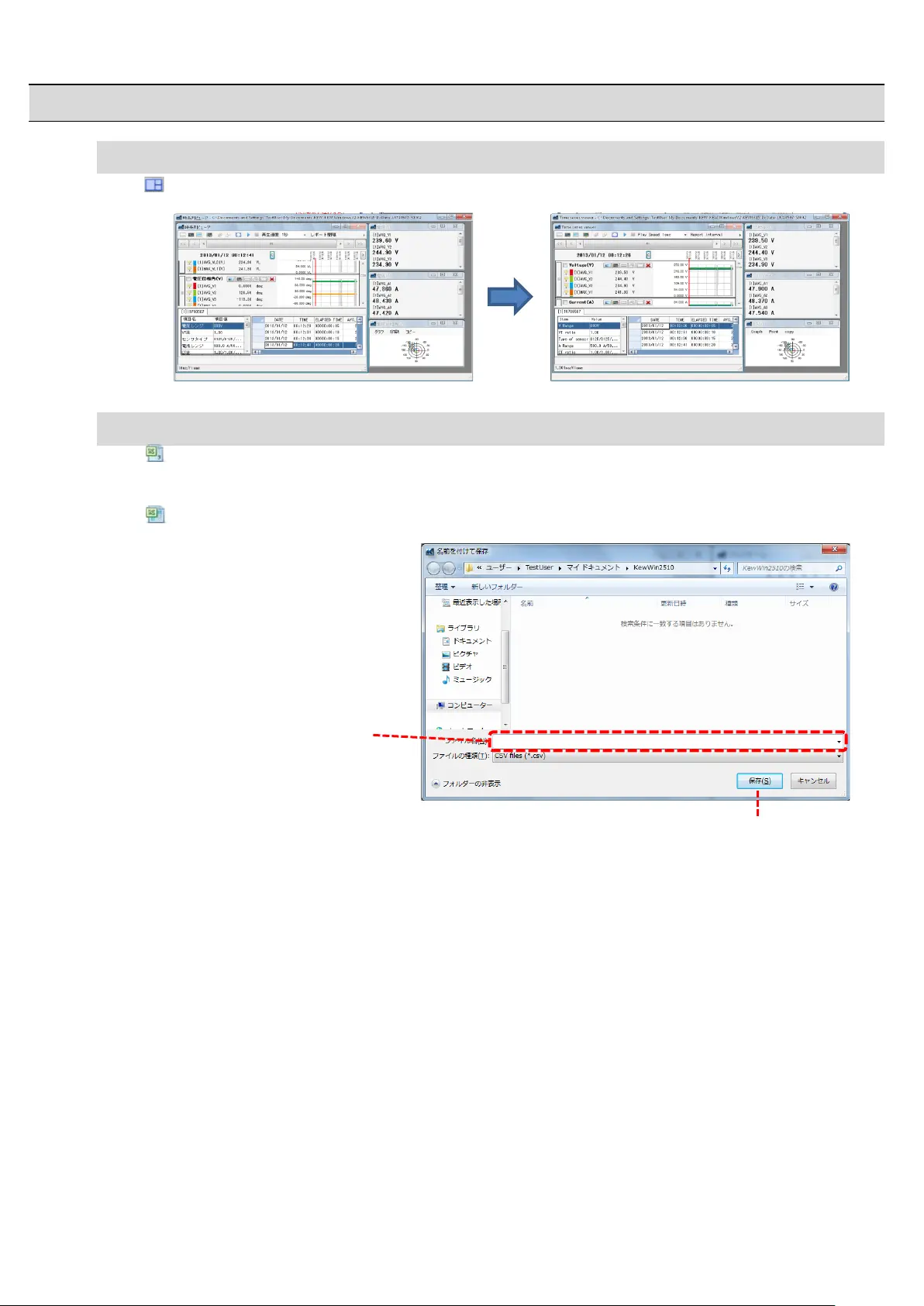

5
Arranging sub-graphs
To arrange the displayed sub-graphs:
Tidy up the displayed Time Series viewers and sub graphs.
6 Saving files
To save CSV files
Save the currently displayed data in CSV format.
To save Excel files
Save the currently displayed data in Excel format.
Name the file.
Save
- 15 -

Data Analysis

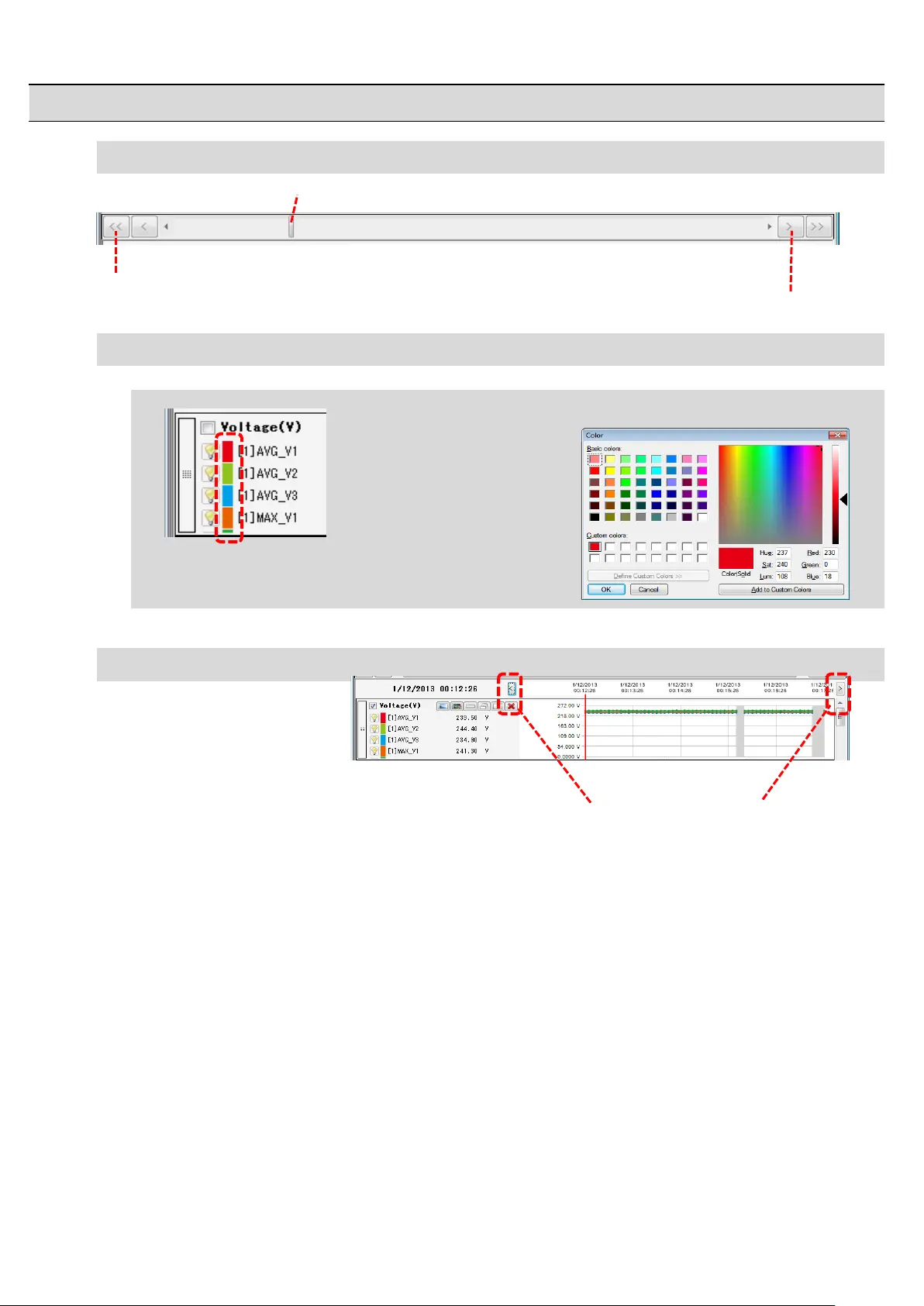

7 Scrolling graph
Slide the cursor to the right and left.
Scroll half of the screen.
Scroll a quarter of the screen.
8 Changing the graph display format
To change the color of parameter temporally:
Click the colored boxes for each parameter to show the dialog box
for color setting.
9 Moving cursor
Move the cursor by one interval back and forth.
- 16 -

Data Analysis

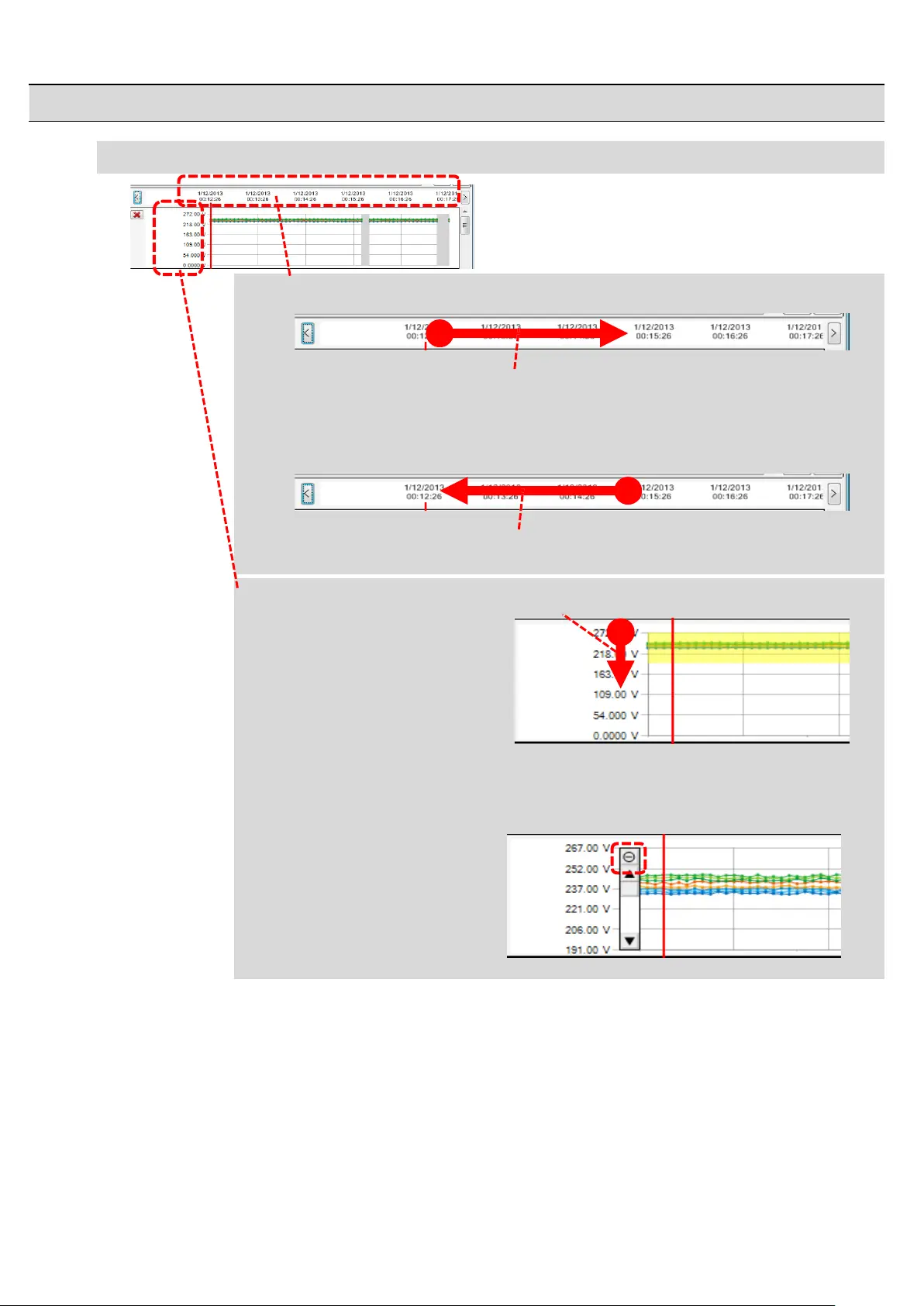

10 Changing the graph display area
Enlarge the time axis
(Shorten the period to be displayed.)
Click and drag the tick to right.
Shorten the time axis
(Expand the period to be displayed.)
Click and drag the tick to left.
Enlarge the measured value axis
Click and drag the tick to down or up.
* The yellow area will be enlarged.
Restore the enlarged axis to the original scale.
- 17 -

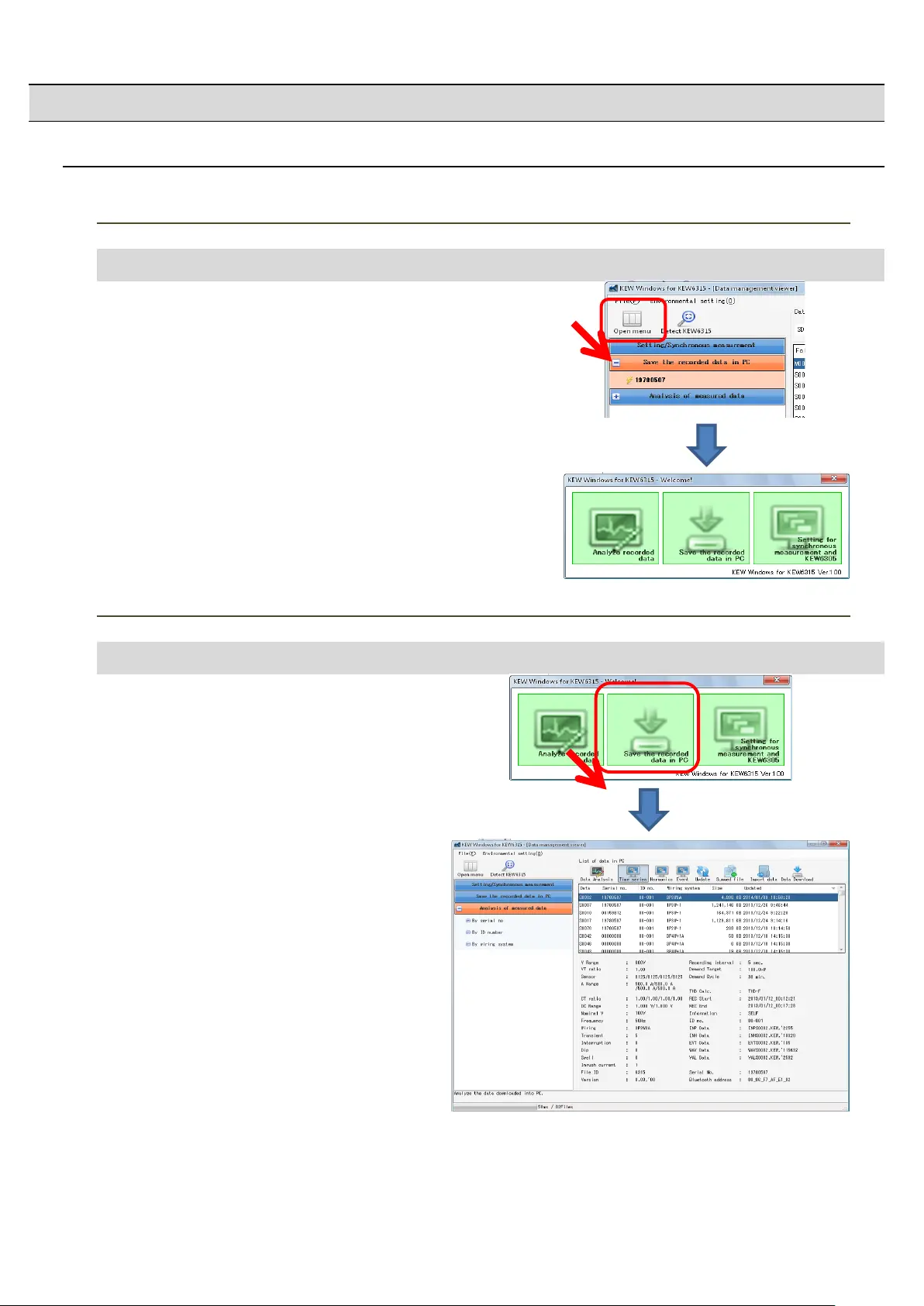

Data save to PC
Data import from KEW2510 internal memory to PC
STEP 1
Open the Menu
1
Click [Open menu] icon on "Data management viewer" .
STEP 2
Show the list of data stored in the internal memory.
1
Click [KEW2510 Info] icon.
- 18 -

Data save to PC
STEP 3
Save the recorded data to PC.
1
Select the data you want to save to PC, and click [Start downloading] .
2
Name the file and click [Save].
- 19 -

Data save to PC
3
A list of saved files will be displayed when data download completes.
- 20 -

KEW2510 Setting
Setting data readout from KEW2510
STEP 1
Readout the Setting data from KEW2510.
1
Select the serial no. of target KEW2510, and click [Receive] icon.
2
Setting data will be displayed.
- 22 -

KEW2510 Setting
Reflecting edited setting data on KEW2510
STEP 1
Edit setting data of KEW2510.
1
Select the serial no. of target KEW2510, and click [Receive] icon.
STEP 2
Reflect the edited setting to KEW2510.
1
Edit settings, and then click [Send ] icon.
- 23 -

Other Functions
Saving data in CSV format
STEP 1
Opening Time series viewer window
1
Open Time series viewer window.
2
Click [Save as CSV ] button.
- 24 -

Other Functions
Saving data in CSV format
3
Name the file, and click [Save ].
4
Click [Yes ] on confirmation window.
- 25 -

Other Functions
Saving data in Excel format
STEP 1
Opening Time series viewer window
1
Open Time series viewer window.
2
Click [Save as Excel ] button.
- 26 -

Other Functions
Saving data in Excel format
3
Name the file, and click [Save ].
4
Click [Yes ] on confirmation window.
- 27 -

Environmental Setting
Changing the Operation setting for KEW Windows for KEW2510
STEP 1
Show the Environmental setting change screen.
1
Click [Environmental Setting] on Menu bar.
STEP 2
Change the Environmental settings.
1
Change the destination to save each data.
Click on [Save to:] tab.
Downloaded data:
...Destination to save the data downloaded from KEW2510 to PC
Specify the folder to save the data.
Open explorer and go to the folder to save the data.
- 28 -
