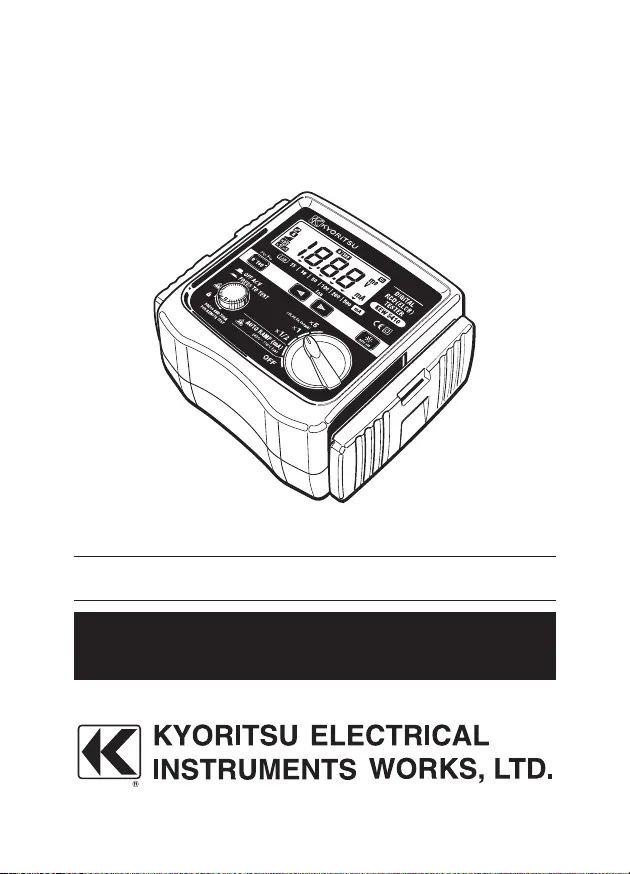

DIGITAL RCD(ELCB) TESTER

KEW 5410

INSTRUCTION MANUAL

Contents

1. Safety Warnings ………………………………………………….………….. 1

2. Procedure of removing Cover …………………………………………….… 4

2-1 Method of removing the Cover ………………………………………… 4

2-2 Method of storing the Cover ……………………………………….…. 4

3. Feature…………….…………………………………..…………………….…. 5

4. Specification ……………………………………………..…..…………….…. 6

5. Instrument Layout …………………………………………………………… 9

6. Measurement principle……………………………………………………

.... 11

7. Preparation ……………………………………………………………

……... 12

-1 Connection of Test Leads ………………………………………….… 12

7-2 Setting of Measurement Range …………………………………….... 12

7-3 Setting of IΔn……………………………………………………….….. 13

7-4 Setting of Test Polarity …………………………………………….…. 13

7-5 Backlight ………………………………………………………………... 13

8. Measurements ……………………………………………………………... 14

8-1 Connection ………………………………………………………….…. 14

8-2 Voltage Measurement ……………………………………………….... 14

8-3 RCD Test ………………………………………………………..……... 15

8-4 Re

mote Te

st ……………………………………………………...….…. 15

8-5 Operating time ………………………………………………..……..…. 19

9. Battery Replacement …………………………………………………….... 20

10. Strap Belt Assembly ……………………………………………………..… 21



1. Safety Warnings

This instrument has been designed, manufactured and tested according to

following standards, and delivered in the best condition after passing quality

control tests.

● IEC61010-1 Measurement Category CATIII 300V / CATll 400V

Pollution degree 2

● IEC61010-031

● IEC61557-1, 6

● IEC60529 IP54

This instruction manual contains warnings and safety rules which have

to be observed by

the user to ensure safe operation of the instrument

and to maintain it in sa

fe condition. Therefore, read through these

perating instructions before using the instrument.



WARNING

● Read through and understand the instructions contained in this manual

before using the instrument.

●

Keep the manual at hand to enable quick reference whenever necessary.

● The instrument is to be used only in its intended applications.

●

Understand and follow all the safety instructions contained in the manual.

●

The symbol



indicated on the instrument means that the user must refer to the

related parts in the manual for safe operation of the instrument. It is essential to

read the instructions wherever the



symbol appears in the manual.



DANGER is reserved for conditions and actions that are likely to

cause serious or fatal injury.



WARNING is reserved for conditions and actions that can cause

serious or fatal injury.



CAUTION is reserved for conditions and actions that can cause injury

or instrument damage.

● IEC61010-2-030

It is essential that the above instructions are adhered to. Failure to follow

the instructions may cause injury, instrument damage and/or damage to

equipment under test. Kyoritsu is by no means liable for any damage

resulting from the instrument in contradiction to this cautionary note.
