LTBATELIM-H
Battery Eliminator (for LT, M2R, M2Ra, DCHR, DCHT, DBU, DBu-LEMO)
TECHNICAL DATA
Rio Rancho, NM, USA
www.lectrosonics.com
P/N 28615 (2-56 1/8)
P/N 28623
(2-56 5/16)
This battery eliminator replaces the batteries and door
on the unit, allowing it to be powered from an external
DC source. The battery eliminator is supplied in a kit
including mounting screws.

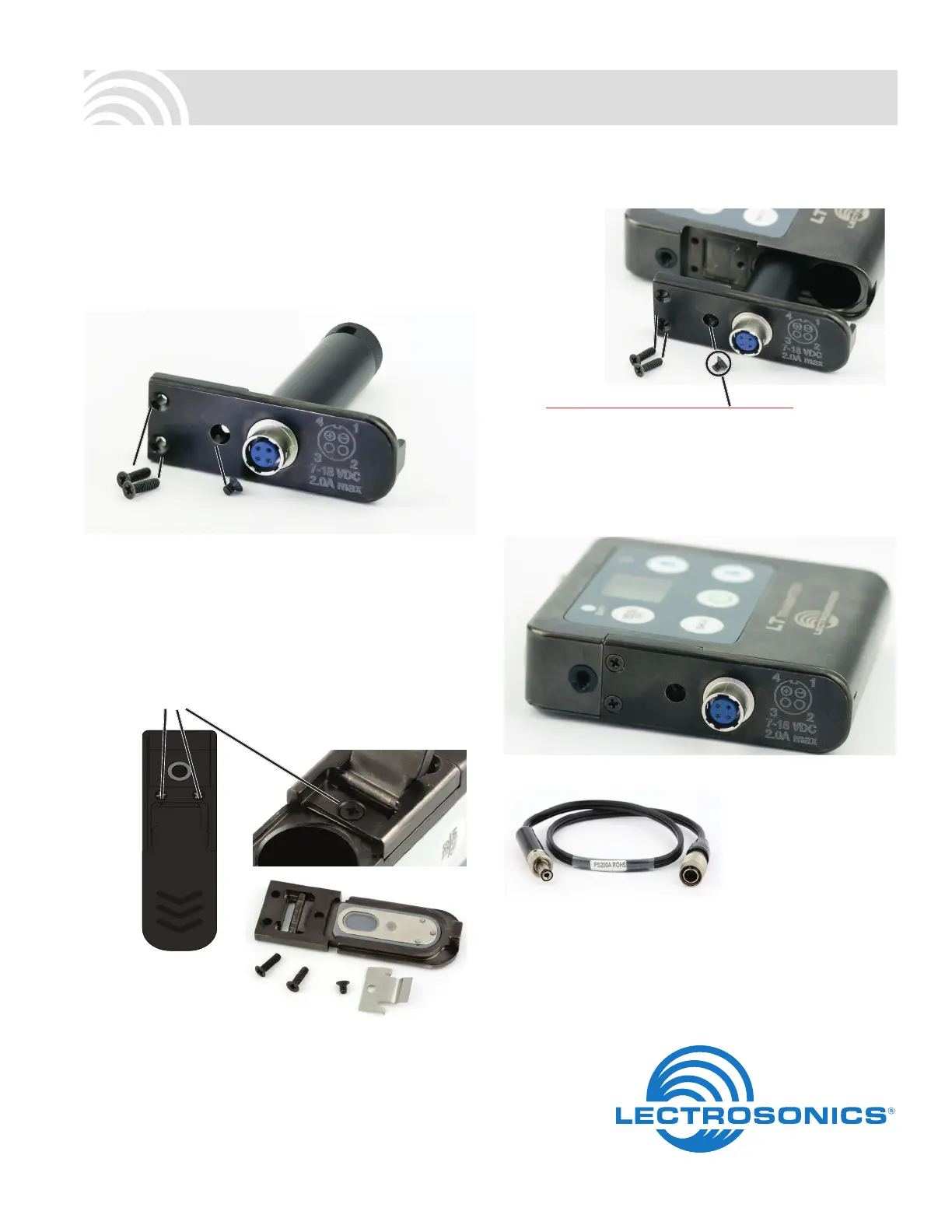

Removing the Battery Door
Remove these screws.
The battery door assembly includes the mechanical
parts shown above. Keep these parts with each other in
case you want to re-install the door later.
Insert the battery eliminator as shown below and fasten
it with the supplied screws.
P/N 28623
(2-56 5/16)
CAUTION: Use only the shorter screw
P/N 28515 (2-56 1/8 in.) in the hole near
the connector. The longer screws may
damage circuit board component.
Tighten all three screws snugly, but be careful not to
overtighten them and damage the threads.
Optional power cable:
PS200A - 15” power cable, Hirose 4 to DC locking con-
nector with .365 in (9.3mm) plug.
Save the door assembly parts
for re-installation later
2 December 2024
581 Laser Road NE • Rio Rancho, NM 87124 USA • www.lectrosonics.com
(505) 892-4501 • (800) 821-1121 • fax (505) 892-6243 • sales@lectrosonics.co
m

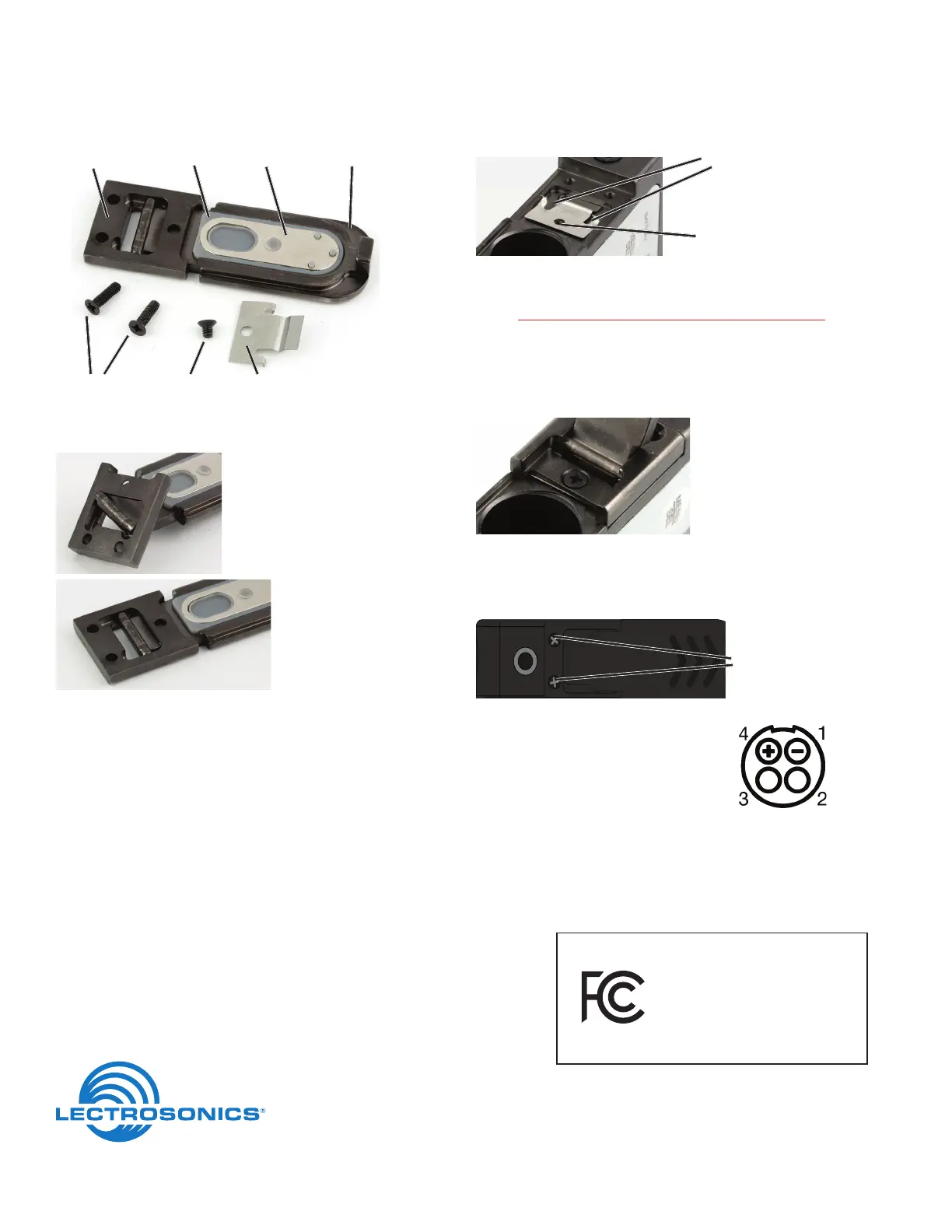

Replacing the Battery Door - LT-MDOR Kit
Separate part numbers for the battery door assembly are
as follows:
P/N 28623
2-56 5/16”
P/N 27033
spring detent
P/N 28615
2-56 1/8”
Assemble the battery door and latch plate.
Place the spring detent on the housing with the tabs
facing upward and the screw hole aligned with the one in
the housing.
Mount the latch plate and door assembly on top of the
spring detent and align the screw holw. Insert the short-
est screw (P/N 28615 2-56 1/8” into the hole and tighten.
CAUTION: Use only the 1/8” screw. The longer
ones may damage the circuit board inside.
As you tighten the screw, the latch plate and door pivot
will align the spring detent. Tighten the screw snugly, but
not so tight it damages the threads.
Close the door and make sure it latches correctly. If so,
then insert and tighten the two screws on the outside of
the housing. Use the longest screws (P/N 28623 2-56
5/16”).
Tighten the
two screws
on the
outside of
the housing.
Tabs
Allign holes
FCC NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. The
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installa-
tion. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from
that which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
Changes or modications to this equipment not expressly approved by
Lectrosonics, Inc. could void the user’s authority to operate it.
LTBATELIM-H
Tested to comply
With FCC Standards
FOR HOME OR OFFICE USE
Specications
Input voltage range: 5 to 25 VDC
Current consumption: 310mA @ 5V, 130mA @ 12V, 65mA @25V
Dimensions: 53 x 60 x 21 mm (2.09 x 2.38 x .84 inches)
Weight: 23 grams (0.81 ozs.)
External DC Power Supply
External power is required via
Hirose 4 locking connector wired
per the diagram.
