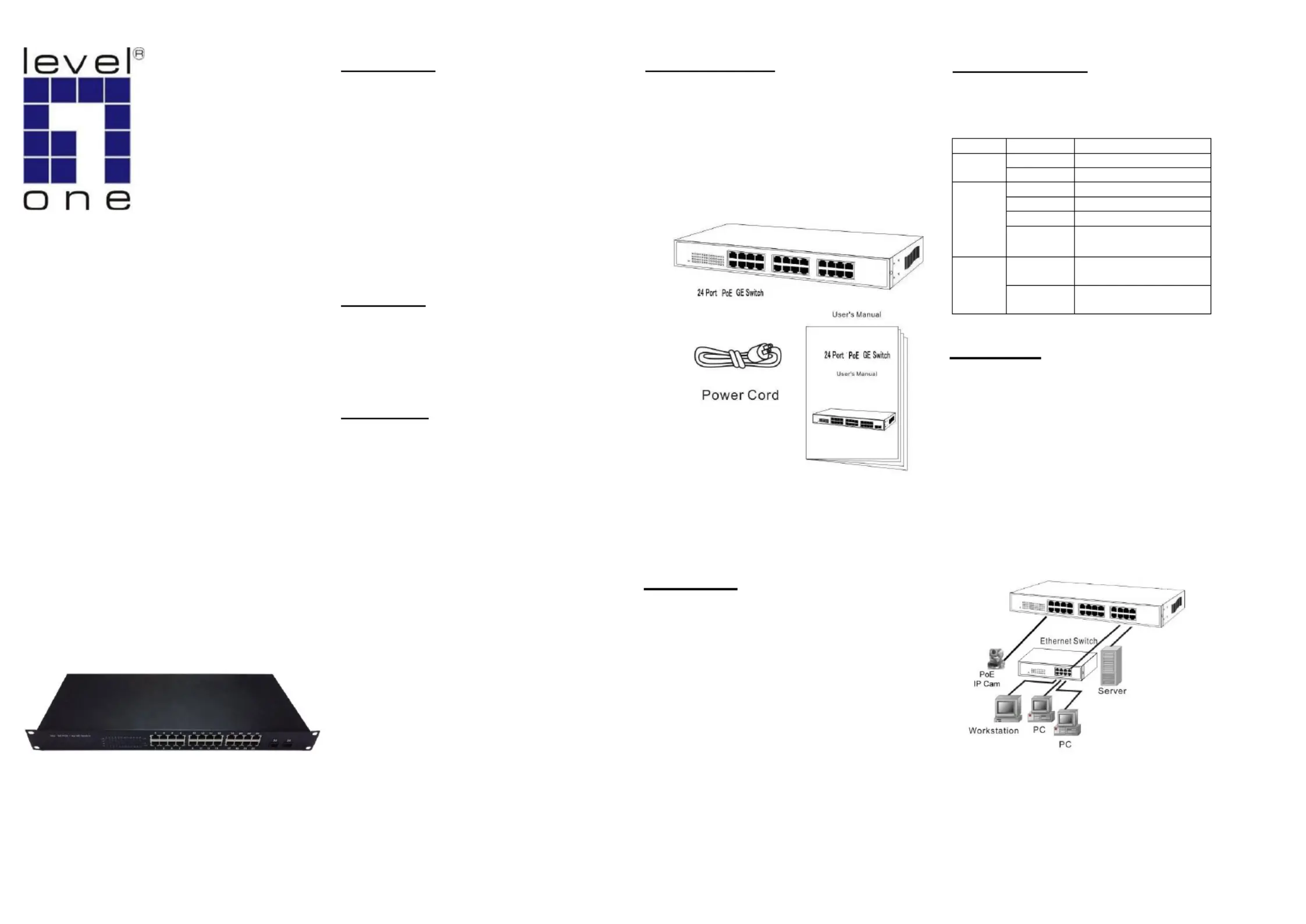

GEP-2622 Series

26-Port Gigabit PoE Switch,

2 x SFP, 24 PoE Outputs,

802.3af/at PoE

User’s Manual

FCC Warning

This device has been tested and found to

comply with limits for a Class A digital device,

pursuant to Part 15 of FCC Rules. These

limits are designed to provide reasonable

protection against harmful interference when

the equipment is operated in a commercial

environment. This equipment generates

and radiates radio frequency energy and, if

not installed and used in accordance with the

user’s manual, it may cause interference in

which case users will be required to correct

interference at their own expenses.

CE Warning

This is a Class A product. In a domestic

environment, this product may cause radio

interference in which case the user may be

required to take adequate measures.

Introduction

This switch provides /100/1000M UTP 24 10

and 2 100/1000M SFP ports. was designed It

for easy installation and high performance in

an environment where trafc is on the network

and the number of users increases

continuously.

It consists of PSE/PoE ports. That can 24

solve the limitation of the power outlet

location and oer the system designer a

exible solution to locate the network device

everywhe re.

The rack-mount size was specically

designed for medium to large workgroups.

The Switch can be installed where space is

limited; moreover it provides smooth network

migration and easy upgrade to network

capacity. The 19” size can be rack-mount on

19” cabinet.

Package Contents

Before you start to install th switch, please is

verify your package that contains the following

items:

 One PoE Giga Ethernet Switch

 One Power Cord

 One User’s Manual

Note: If any of these items is found missing or

damaged, please contact your local supplier

for replacement.

Key Features

 Port 10/100/1000M Nway 24

(Auto-negotiation) Switch with 2 Ports SFP

 PSE/PoE function ports 24

 Supporting the power Max. W for each 30

PSE/PoE port

 -mount size 19” rack

 Auto-learning of networking congurations

 Auto-detect full/half-duplex modes for any

port

 Dedicated full-duplex 2Gbps bandwidth

 Store- -Forward switching methods and

 IEEE 802.3x ow control for full-duplex and

back-pressure ow control for half-duplex

 Non-blocking & Non- - -line blocking head of

full wire speed forwarding

 Auto-MDI/MDI-X function for any port

 Smart plug & play

Front Panel (LEDs)

LED Indicators of Port PoE 24

10/100/1000M Switch 2 Port SFP

LED

Status

Description

Power

Power is on.

O

Power is off.

L AN

Green On

Connect in 1000Mbps.

Yellow On

Connect in 10/100Mbps

O

No connection.

Flashing

Data is transmitting or

receiving

PoE

Yellow On

Port is linked to Power

Device

O

No Power Device is

connected

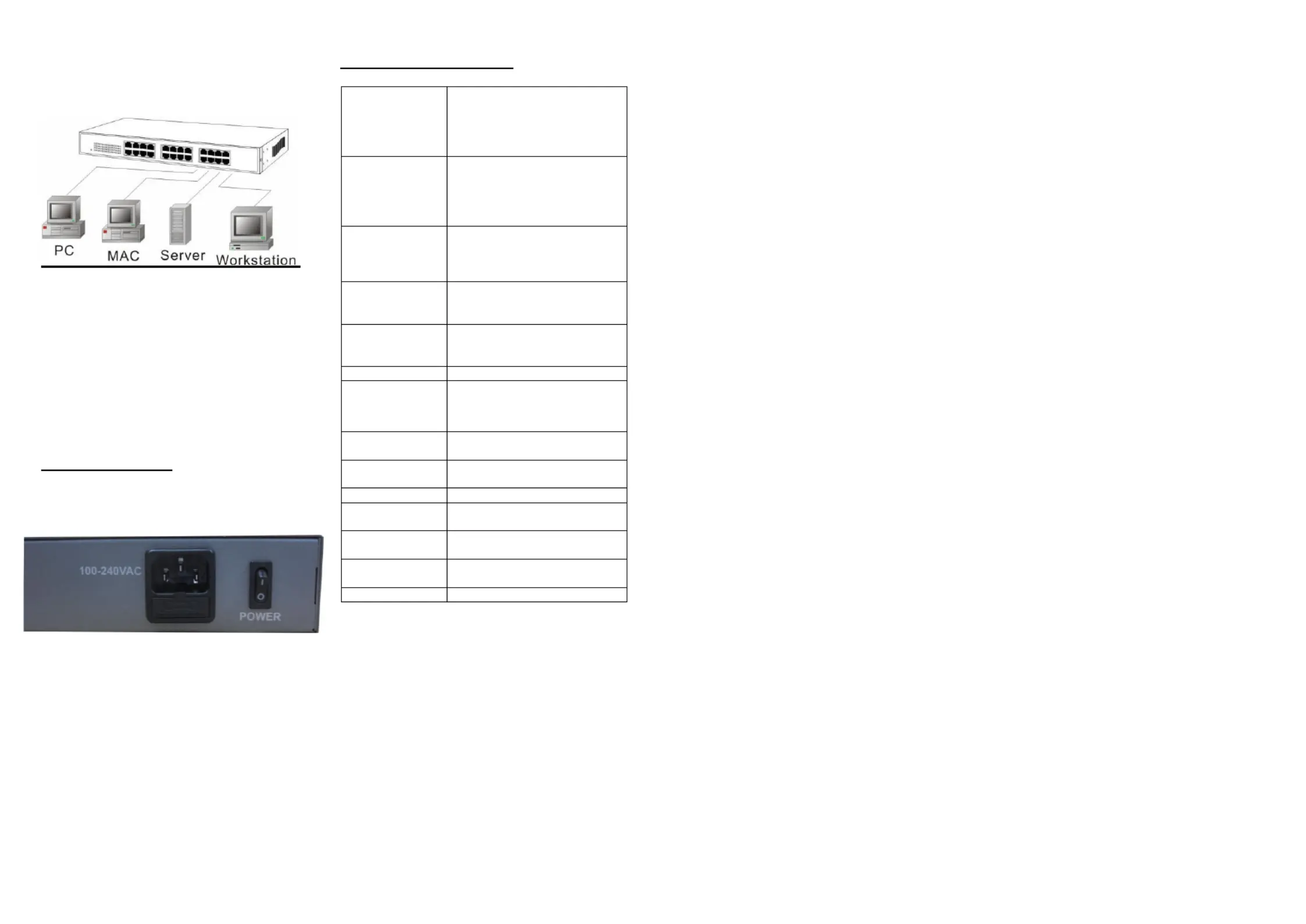

Connections

Switch/Hub to this Port Giga 24 PoE

Ethernet Switch and 2 Port SFP

This switch provides automatic crossover

detection functionality for any port. It is

simple and friendly to up-link to another

switch without crossover cable.

PC/Other devices to this Ports Giga 24

Ethernet Switch

Via a twisted pair cable straight through, this

switch can be connected to PCs, servers and

other network devices.

Power Device to this Port PoE Giga 24

Ethernet Switch and getting V power 56

source through Cat 5 cables .

Using Cat. twisted-pair cable to connect Power 5

Device to the port of this switch and then 1~24 ,

this switch will supply 56V power to Power

Device over Cat twisted-pair cable. Please be . 5

noted Power Device should also comply with

IEEE 802.3at(30w per PoE port) and 802.3a f.

Rear Panel (Power)

AC input

AC input ( 0~240V/AC, 50~60Hz) 10

Technical Specications

Standards

IEEE 802.3at/802.3af

IEEE 802.3 10BaseT

IEEE 802.3u 100Base-TX

IEEE 802.3ab 1000Base- TX

IEEE 802.3x Flow control

Features

Number of Ports: PSE/PoE 24

Ports

MAC Address: 8K

Buer Memory: 256KB

Method: Store and Forward

Filtering/

Forwarding

Rates

1000Mbps port –

1,480,000pps

100Mbps port 148,800pps –

10Mbps 14,880pps –

Transmission

Media

10BaseT Cat. 3, 4, 5 UTP/STP

100/1000BaseTX Cat. 5

UTP/STP

LED

Indicators

Per Port: LINK/ACT, PoE

ACT/Status

Per Unit: Power

Power Input

100~240V/AC, 50~60Hz

Power

Output

56V/DC Per Port Output –

30 W Max Per Port

Supported

Power

Consumption

150/ 502 /380/500/630

Watts (Max)

Dimensions

480 × 200 × 44 mm

(L x W x H)

Weight

2.85 kg

Operating

Temperature

0 to 40℃

Storage

Temperature

-20 to 70 ℃

Humidity

10 to 90% RH

(non-condensing)

Certications

FCC Class A, CE

Produkt Specifikationer

Mærke:	LevelOne
Kategori:	bryter
Model:	GEP-2622W250
Vekselstrømsindgangsspænding:	100 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	200 mm
Dybde:	44 mm
Højde:	440 mm
Vægt:	2900 g
Brugervejledning:	Ja
Produktfarve:	Sort
Pakkevægt:	3500 g
Pakkedybde:	95 mm
Pakkebredde:	260 mm
Pakkehøjde:	540 mm
Opbevaringstemperatur (T-T):	-20 - 70 °C
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Strømforbrug (typisk):	250 W
Driftstemperatur (T-T):	-5 - 55 °C
Pakketype:	Kasse
Udgangseffekt:	30 W
Netværksstandarder:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
LED-indikatorer:	LAN, PoE, Power, Uplink
Udgangsspænding:	56 V
Harmoniseret systemkode (HS):	85176990
Hovedkassen højde (udvendigt):	555 mm
Hovedkassens længde (udvendigt):	280 mm
Hovedkassens bruttovægt (udvendigt):	18000 g
Hovedkassens bredde (udvendigt):	510 mm
Oprindelsesland:	Taiwan
Produkter pr. hovedkasse (udvendigt):	5 stk
Fuld duplex:	Ja
Strøm over Ethernet (PoE):	Ja
Gennemsnitstid mellem fejl (MTBF):	43300 t
Switch-type:	Ikke administreret
Power over Ethernet (PoE) effekt pr. port:	30 W
10G understøttelse:	Ingen
Auto MDI/MDI-X:	Ja
Flowkontrol support:	Ja
Kobber ethernet kabelteknologi:	10BASE-T, 100BASE-TX, 1000BASE-TX
Basis omskiftning RJ-45 Ethernet porte, antal:	24
Basis omskiftning RJ-45 Ethernet porttype:	Gigabit Ethernet (10/100/1000)
MAC adresselabel:	8000 entries
Switch kapacitet:	52 Gbit/sek.
Jumbo Frames support:	Ja
Jumbo rammer:	10000
Stativ-montering:	Ja
Antal SFP modulslots:	2
Sikkerhed:	FCC Class A, CE
Power over Ethernet (PoE) porte, antal:	24
MAC-adresse auto-indlæring understøttet:	Ja
MAC-adresse auto-forældelse understøttet:	Ja
Auto-forhandling:	Ja
DHCP funktioner:	DHCP snooping, DHCP relay
Pakke bufferlager:	4.1 MB
Rack monteringskit:	Ja
Understøttede kabeltyper:	Cat3, Cat4, Cat5, Cat5e, Cat6, Cat7
SSH/SSL support:	Ja
Pakke videresendelsesrate (1 Gbps):	1488000 pps
Pakke videresendelsesrate (100 Mbps):	148800 pps
Pakke videresendelsesrate (10 Mbps):	14880 pps
Statisk rute:	Ja
Gummifødder:	Ja
Myndighedsgodkendelser:	EMI: EN55032:2012+AC:2013, EN55022:2010+AC:2011, AS/NZS CISPR 22 Amdt. (2010), EN61000-3-2:2014, EN61000-3-3:2013, EMS: EN55024:2010, IEC61000-4-2:2008, IEC61000-4-3:2006+A1:2007+A2:2010, IEC61000-4 4:2012, IEC61000-4-5:2005, IEC61000-4-6:2013, IEC61000-4-8:2009, IEC61000-4-11:2004
sFlow:	Ja
