OWNER’S MANUAL
AIR CONDITIONER
Please read this manual carefully before operating
your set and retain it for future reference.
www.lg.com
TYPE : CEILING CASSETTE
Model :
ATNQ18GPLE3, ATNQ21GPLE3, ATNQ24GNLE3, ATNQ36GMLE3,
ATNQ42GMLE3, ATNQ48GML3, ATNQ54GMLE3
AUUQ18GH1(ATUQ18GPLE3), AUUQ21GH1(ATUQ21GPLE3)
AUUQ24GH1(ATUQ24GNLE3), AUUQ36GH1(ATUQ36GMLE3)
AUUQ42GH1(ATUQ42GMLE3), AUUQ48GH1(ATUQ48GMLE3)
AUUQ54GH1(ATUQ54GMLE3)
P/NO : MFL42763414
ENGLISH
ESPAÑOL
PORTUGUESE
2
TIPS FOR SAVING ENERGY
ENGLISH
TIPS FOR SAVING ENERGY
Here are some tips that will help you minimize the power consumption when you use the air
conditioner. You can use your air conditioner more efficiently by referring to the instructions
below:
• Do not cool excessively indoors. This may be harmful for your health and may consume more
electricity.
• Block sunlight with blinds or curtains while you are operating the air conditioner.
• Keep doors or windows closed tightly while you are operating the air conditioner.
• Adjust the direction of the air flow vertically or horizontally to circulate indoor air.
• Speed up the fan to cool or warm indoor air quickly, in a short period of time.
• Open windows regularly for ventilation as the indoor air quality may deteriorate if the air con-
ditioner is used for many hours.
• Clean the air filter once every 2 weeks. Dust and impurities collected in the air filter may block
the air flow or weaken the cooling / dehumidifying functions.
For your records
Staple your receipt to this page in case you need it to prove the date of purchase or for warranty
purposes. Write the model number and the serial number here:
Model number :
Serial number :
You can find them on a label on the side of each unit.
Dealer’s name :
Date of purchase :
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
Always comply with the following precautions to avoid dangerous situations and ensure peak
performance of your product
WARNING
It can result in serious injury or death when the directions are ignored
CAUTION
It can result in minor injury or product damage when the directions are ignored
WARNING
• Installation or repairs made by unqualified persons can result in hazards to you and others.
• The product shall be installed according to the Wiring regulations of the corresponding coun-
try.
• The information contained in the manual is intended for use by a qualified service technician
familiar with safety procedures and equipped with the proper tools and test instruments.
• Failure to carefully read and follow all instructions in this manual can result in equipment mal-
function, property damage, personal injury and/or death.
Installation
• Do not use a defective or underrated circuit breaker. Use this appliance on a dedicated circuit.
There is risk of fire or electric shock.
• For electrical work, contact the dealer, seller, a qualified electrician, or an Authorized Service
Center. Do not disassemble or repair the product. There is risk of fire or electric shock.
• Always ground the product. There is risk of fire or electric shock.
• Install the panel and the cover of control box securely. There is risk of fire or electric shock.
• Always install a dedicated circuit and breaker. Improper wiring or installation may cause fire or
electric shock
• Use the correctly rated breaker or fuse. There is risk of fire or electric shock.
• Do not modify or extend the power cable. There is risk of fire or electric shock.
• Do not install, remove, or re-install the unit by yourself (customer). There is risk of fire, electric
shock, explosion, or injury.
• Be cautious when unpacking and installing the product. Sharp edges could cause injury. Be
especially careful of the case edges and the fins on the condenser and evaporator.
• For installation, always contact the dealer or an Authorized Service Center. There is risk of
fire, electric shock, explosion, or injury.
• Do not install the product on a defective installation stand. It may cause injury, accident, or
damage to the product.
• Be sure the installation area does not deteriorate with age. If the base collapses, the air condi-
tioner could fall with it, causing property damage, product failure, and personal injury.
• Do not let the air conditioner run for a long time when the humidity is very high and a door or
a window is left open. Moisture may condense and wet or damage furniture.
!
!
!
3
ENGLISH
4
IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
Operation
• Take care to ensure that power cable could not be pulled out or damaged during operation.
There is risk of fire or electric shock.
• Do not place anything on the power cable. There is risk of fire or electric shock.
• Do not plug or unplug the power supply plug during operation. There is risk of fire or electric
shock.
• Do not touch(operate) the product with wet hands. There is risk of fire or electrical shock.
• Do not place a heater or other appliances near the power cable. There is risk of fire and elec-
tric shock.
• Do not allow water to run into electric parts. It may cause There is risk of fire, failure of the
product, or electric shock.
• Do not store or use flammable gas or combustibles near the product. There is risk of fire or
failure of product.
• Do not use the product in a tightly closed space for a long time. Oxygen deficiency could
occur.
• When flammable gas leaks, turn off the gas and open a window for ventilation before turn the
product on. Do not use the telephone or turn switches on or off. There is risk of explosion or
fire
• If strange sounds, or small or smoke comes from product. Turn the breaker off or disconnect
the power supply cable. There is risk of electric shock or fire.
• Stop operation and close the window in storm or hurricane. If possible, remove the product
from the window before the hurricane arrives. There is risk of property damage, failure of
product, or electric shock.
• Do not open the inlet grill of the product during operation.(Do not touch the electrostatic filter,
if the unit is so equipped.) There is risk of physical injury, electric shock, or product failure.
• When the product is soaked (flooded or submerged), contact an Authorized Service Center.
There is risk of fire or electric shock.
• Be cautious that water could not enter the product. There is risk of fire, electric shock, or
product damage.
• Ventilate the product from time to time when operating it together with a stove, etc. There is
risk of fire or electric shock.
• Turn the main power off when cleaning or maintaining the product. There is risk of electric
shock.
• When the product is not be used for a long time, disconnect the power supply plug or turn off
the breaker. There is risk of product damage or failure, or unintended operation.
• Take care to ensure that nobody could step on or fall onto the outdoor unit. This could result
in personal injury and product damage.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
Installation
• Always check for gas (refrigerant) leakage after installation or repair of product. Low refrigerant lev-
els may cause failure of product.
• Install the drain hose to ensure that water is drained away properly. A bad connection may cause
water leakage.
• Keep level even when installing the product. To avoid vibration or water leakage.
• Do not install the product where the noise or hot air from the outdoor unit could damage the neigh-
borhoods. It may cause a problem for your neighbors.
• Use two or more people to lift and transport the product. Avoid personal injury.
• Do not install the product where it will be exposed to sea wind (salt spray) directly. It may cause cor-
rosion on the product. Corrosion, particularly on the condenser and evaporator fins, could cause
product malfunction or inefficient operation.
Operation
• Do not expose the skin directly to cool air for long periods of time. (Don't sit in the draft.) This could
harm to your health.
• Do not use the product for special purposes, such as preserving foods, works of art, etc. It is a con-
sumer air conditioner, not a precision refrigeration system. There is risk of damage or loss of prop-
erty.
• Do not block the inlet or outlet of air flow. It may cause product failure.
• Use a soft cloth to clean. Do not use harsh detergents, solvents, etc. There is risk of fire, electric
shock, or damage to the plastic parts of the product.
• Do not touch the metal parts of the product when removing the air filter. They are very sharp! There
is risk of personal injury.
• Do not step on or put anyting on the product. (outdoor units) There is risk of personal injury and fail-
ure of product.
• Always insert the filter securely. Clean the filter every two weeks or more often if necessary. A dirty
filter reduces the efficiency of the air conditioner and could cause product malfunction or damage.
• Do not insert hands or other objects through the air inlet or outlet while the product is operated.
There are sharp and moving parts that could cause personal injury.
• Do not drink the water drained from the product. It is not sanitary and could cause serious health is-
sues.
• Use a firm stool or ladder when cleaning or maintaining the product. Be careful and avoid personal
injury.
• Replace the all batteries in the remote control with new ones of the same type. Do not mix old and
new batteries or different types of batteries. There is risk of fire or explosion
• Do not recharge or disassemble the batteries. Do not dispose of batteries in a fire. They may burn or
explode.
• If the liquid from the batteries gets onto your skin or clothes, wash it well with clean water. Do not
use the remote if the batteries have leaked. The chemicals in batteries could cause burns or other
health hazards.
• If you eat the liquid from the batteries, brush your teeth and see doctor. Do not use the remote if
the batteries have leaked. The chemicals in batteries could cause burns or other health hazards.
!
5
ENGLISH
6
TABLE OF CONTENTS
ENGLISH
TABLE OF CONTENTS
2 TIPS FOR SAVING
ENERGY
3 IMPORTANT SAFETY
INSTRUCTIONS
7 BEFORE USE
7 Preparing for operation
7 Usage
7 Cleaning and maintenance
7 Service
8 PRODUCT
INTRODUCTION
8 Name and function of parts
9 Operation Indication Lamps

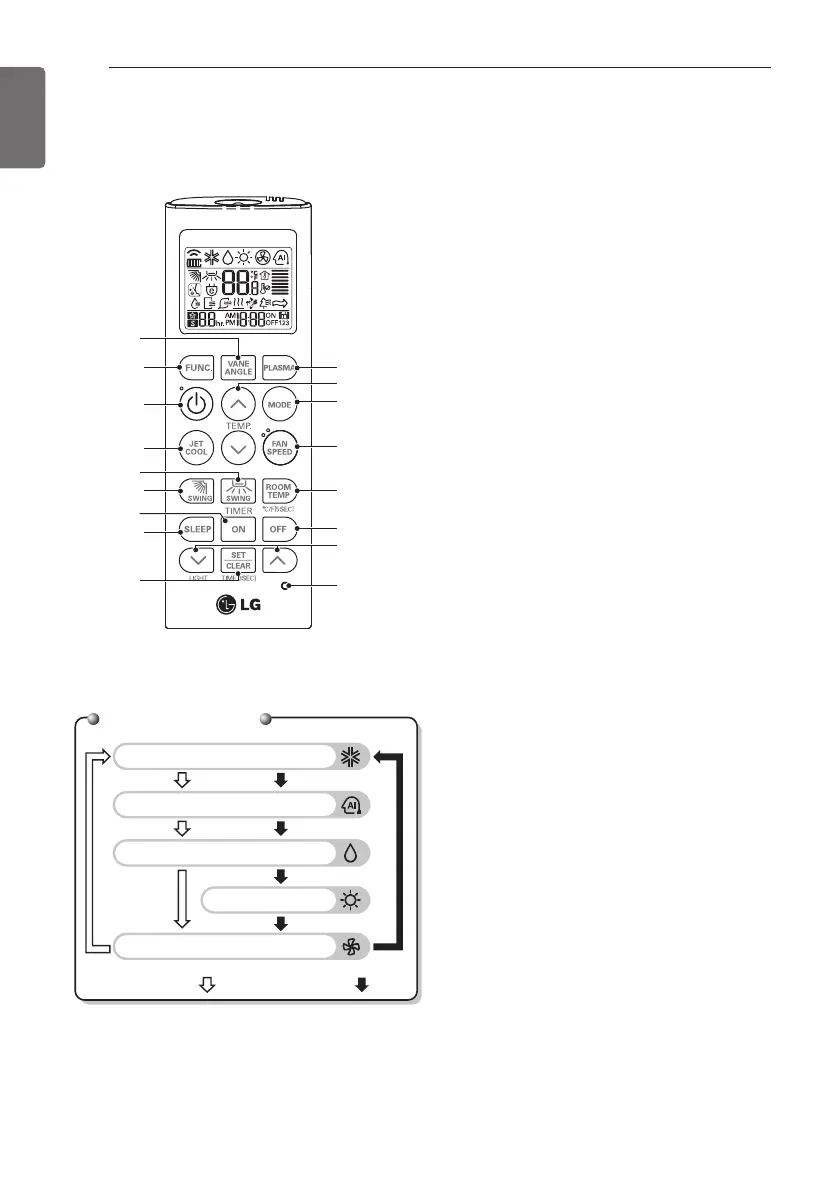

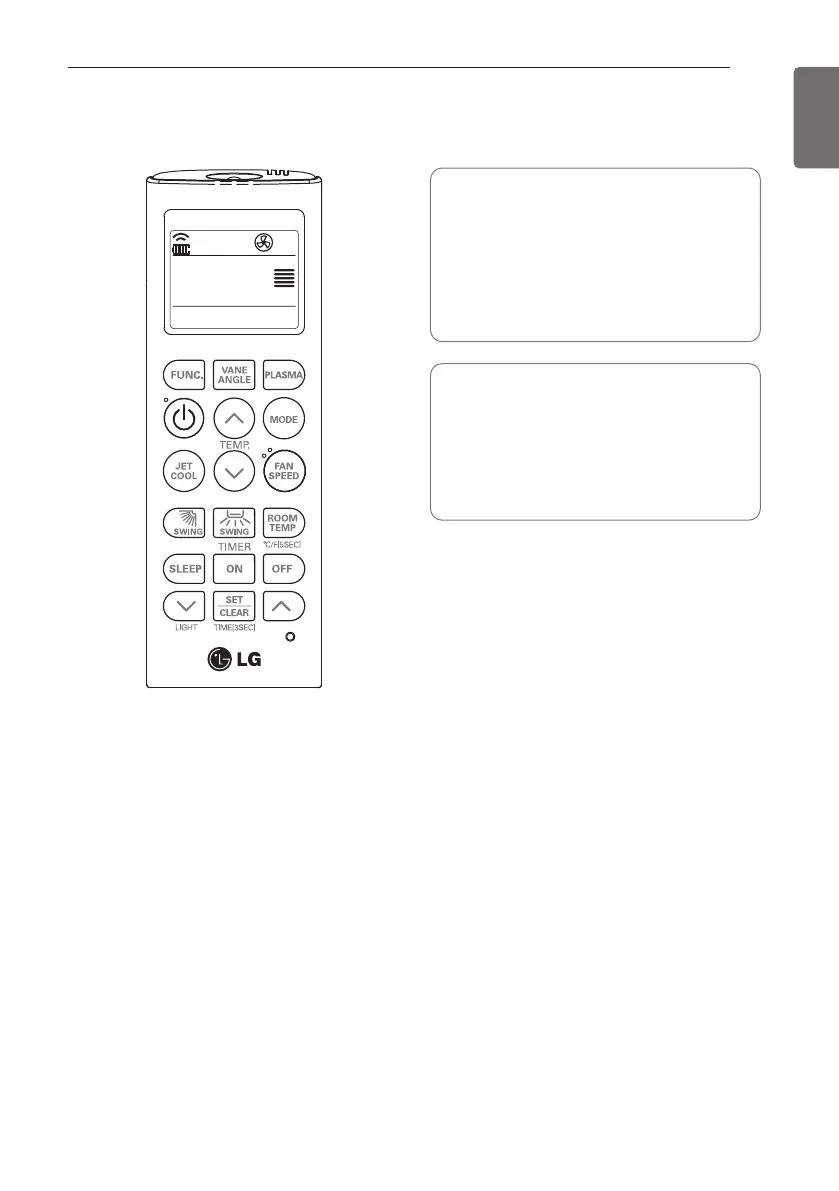

10 Wireless Remote Controller
12 OPERATING
INSTRUCTION

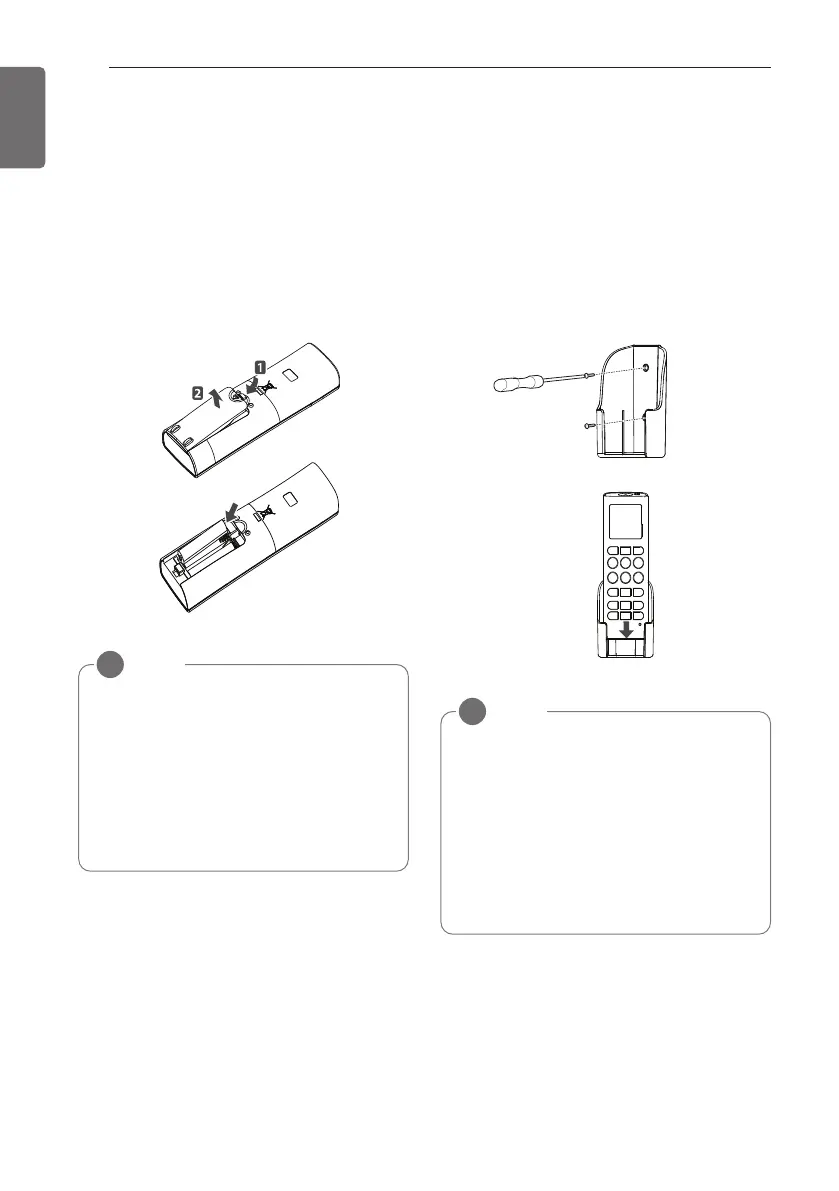

12 How to insert the Batteries
12 Wireless Remote Controller
Maintenance
13 INSTALLATION
INSTRUCTIONS
13 Installer Setting -
How to enter installer setting mode

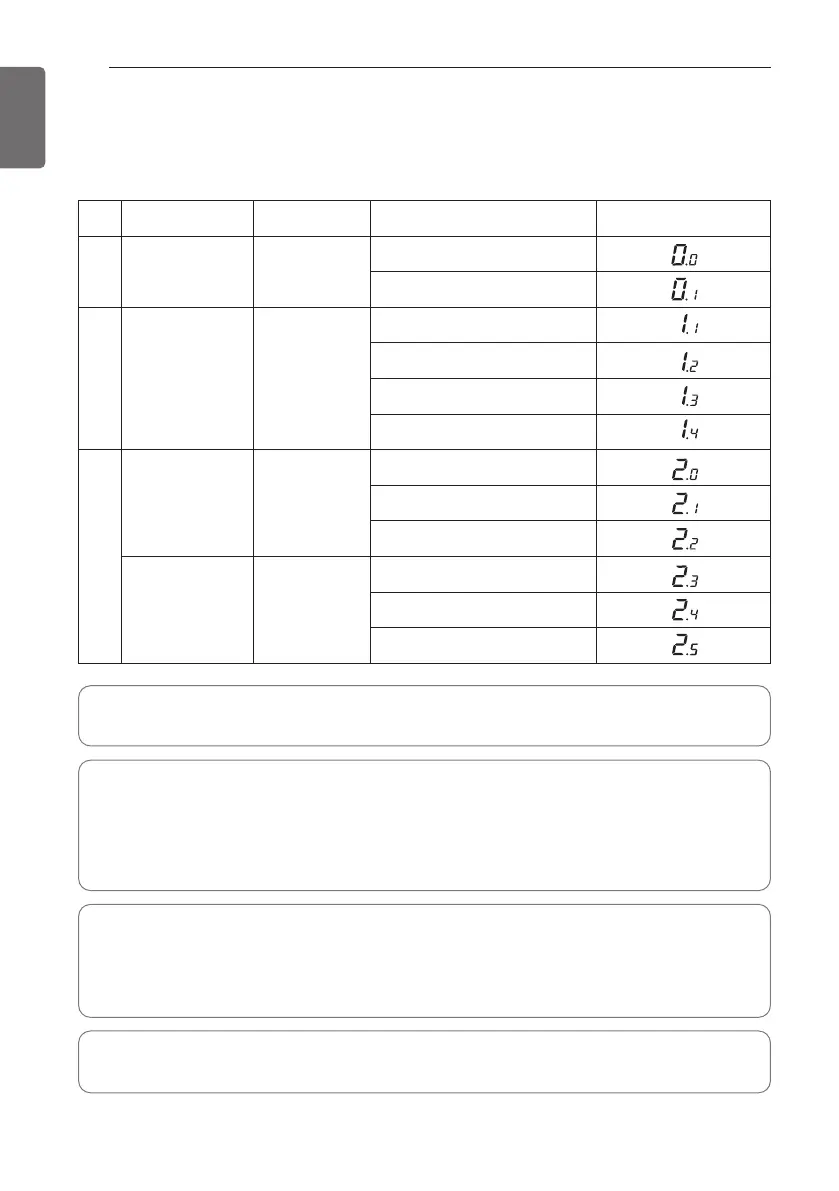

14 Installer Setting -
Installer Setting Code Table
15 Installer Setting -
Setting Address of Central Control
15 Installer Setting -
Checking Address of Central Control
16 OWNER'S
INSTRUCTION

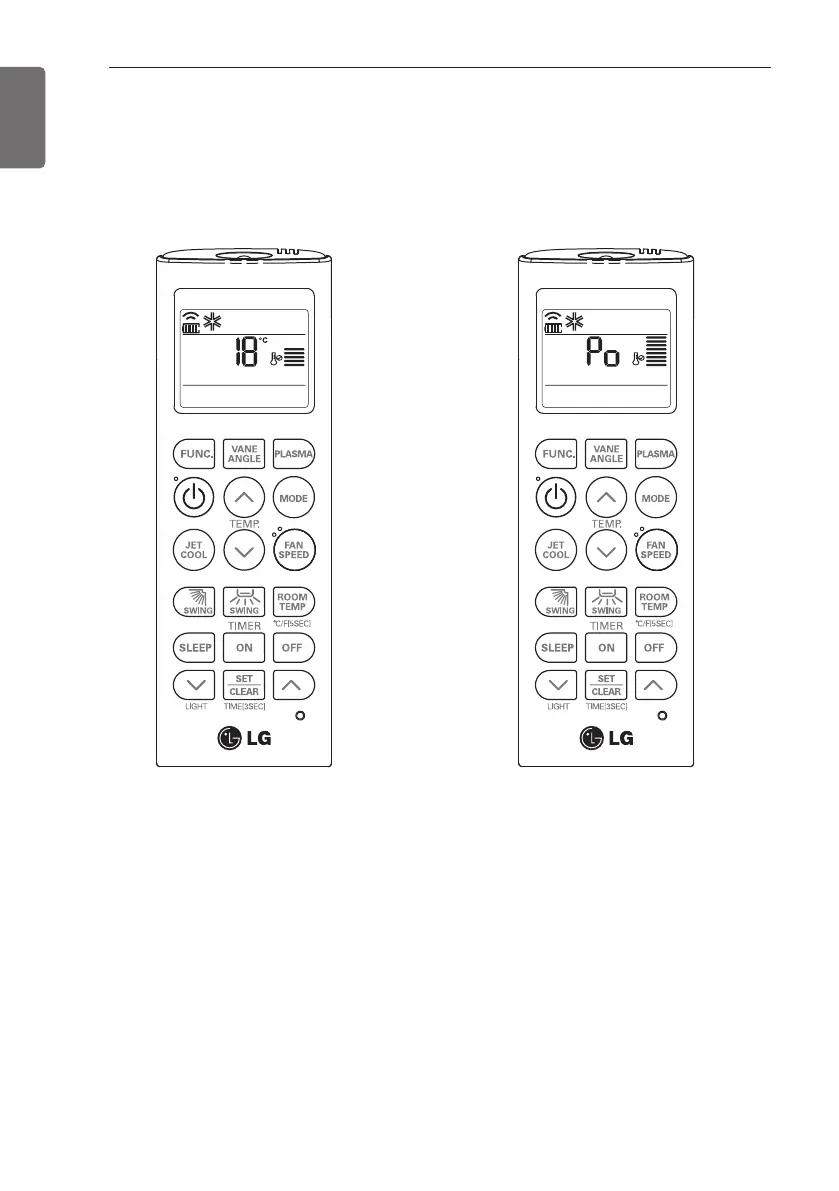

16 Cooling Mode - Standard Operation
16 Cooling Mode - Power Cooling

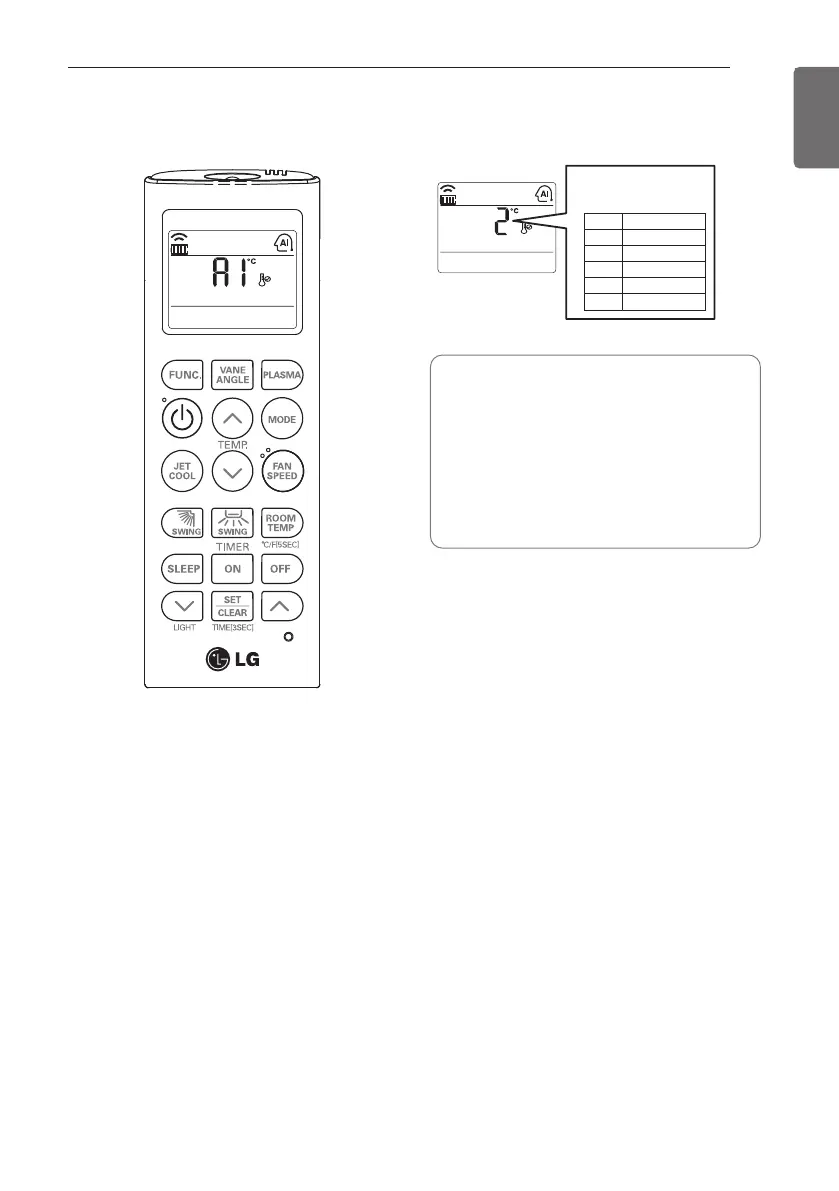

17 Auto Operation Mode

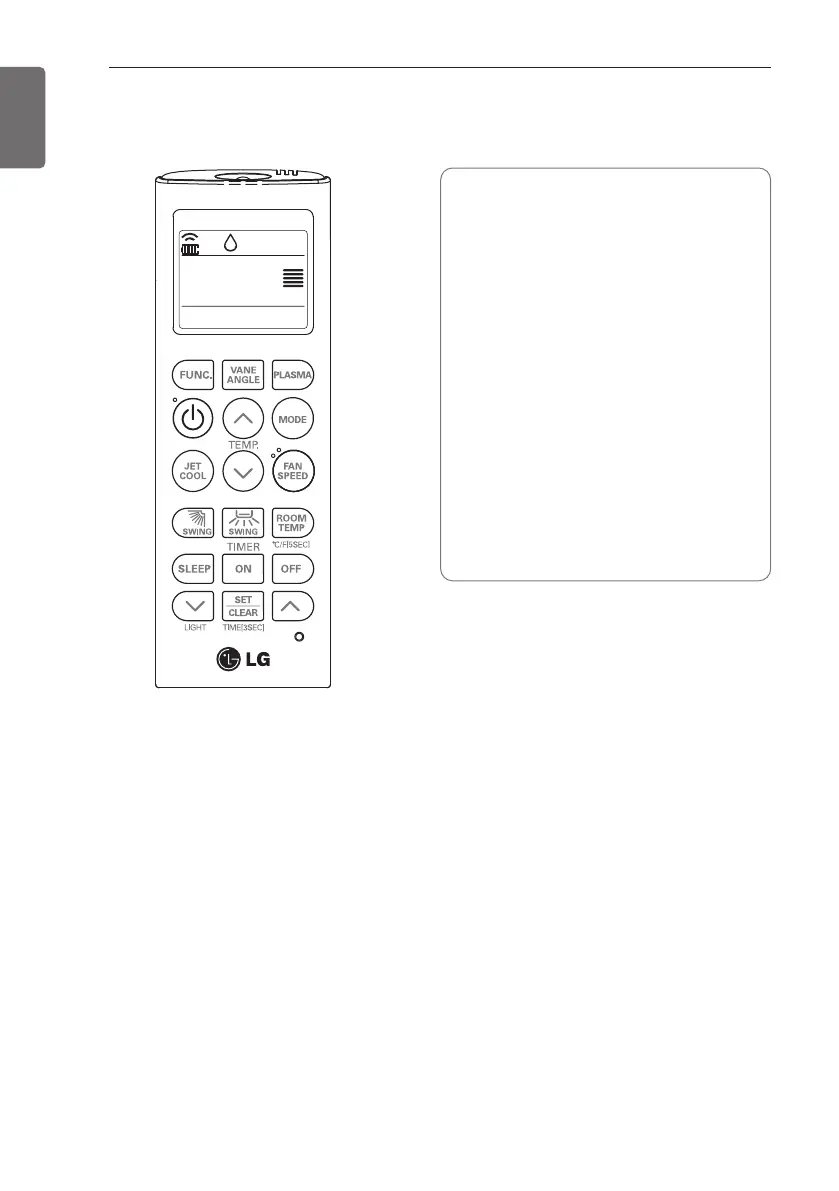

18 Dehumidification Mode
19 Fan Mode

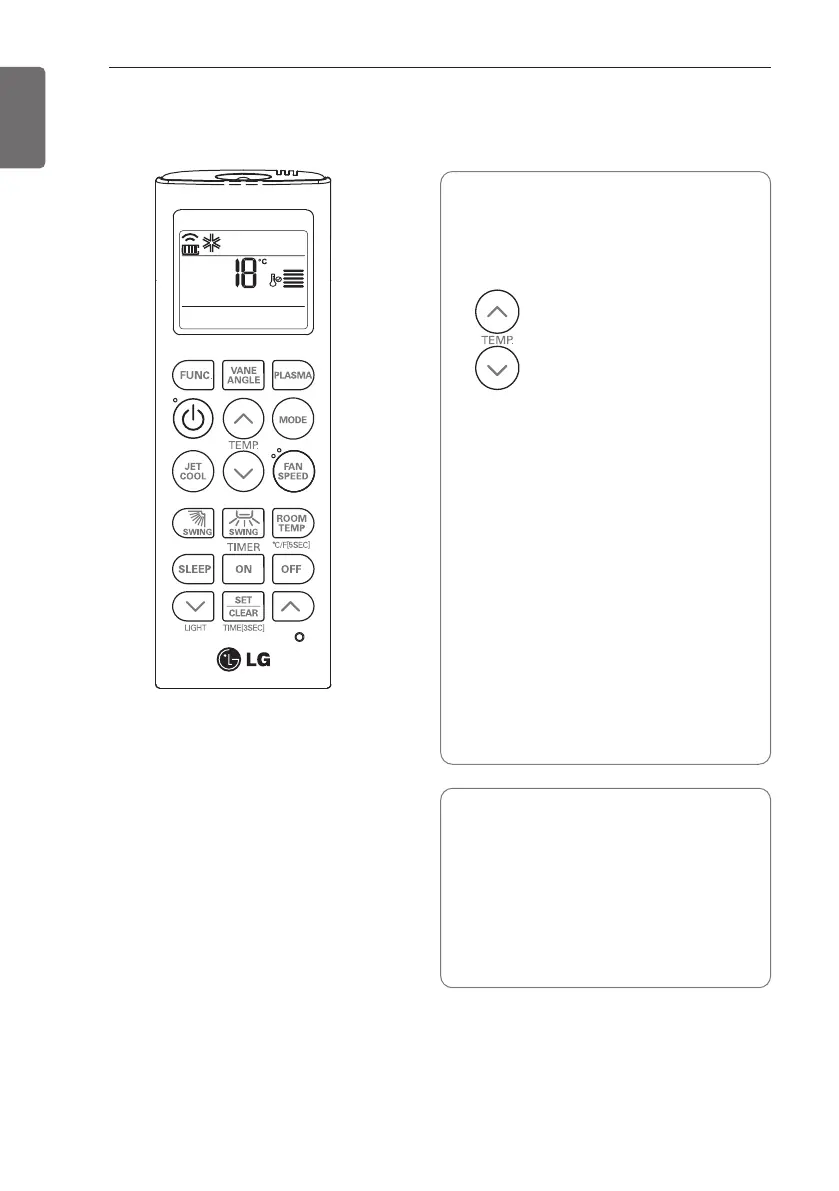

20 Temperature Setting/
Room Temperature checking
21 Airflow Setting
22 Plasma Purification(Optional)
22 Celsius/Fahrenheit Switching
23 Individual vane angle control

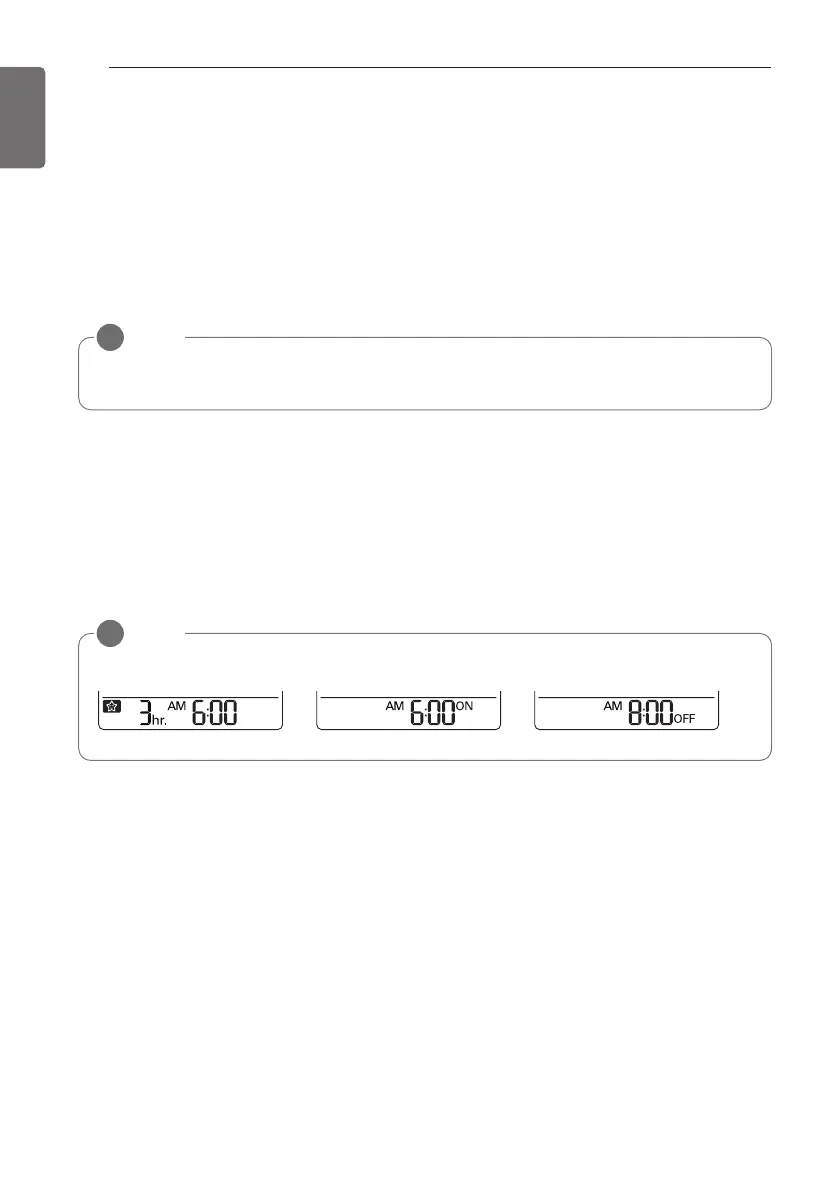

24 Timer
25 MAINTENANCE AND
SERVICE

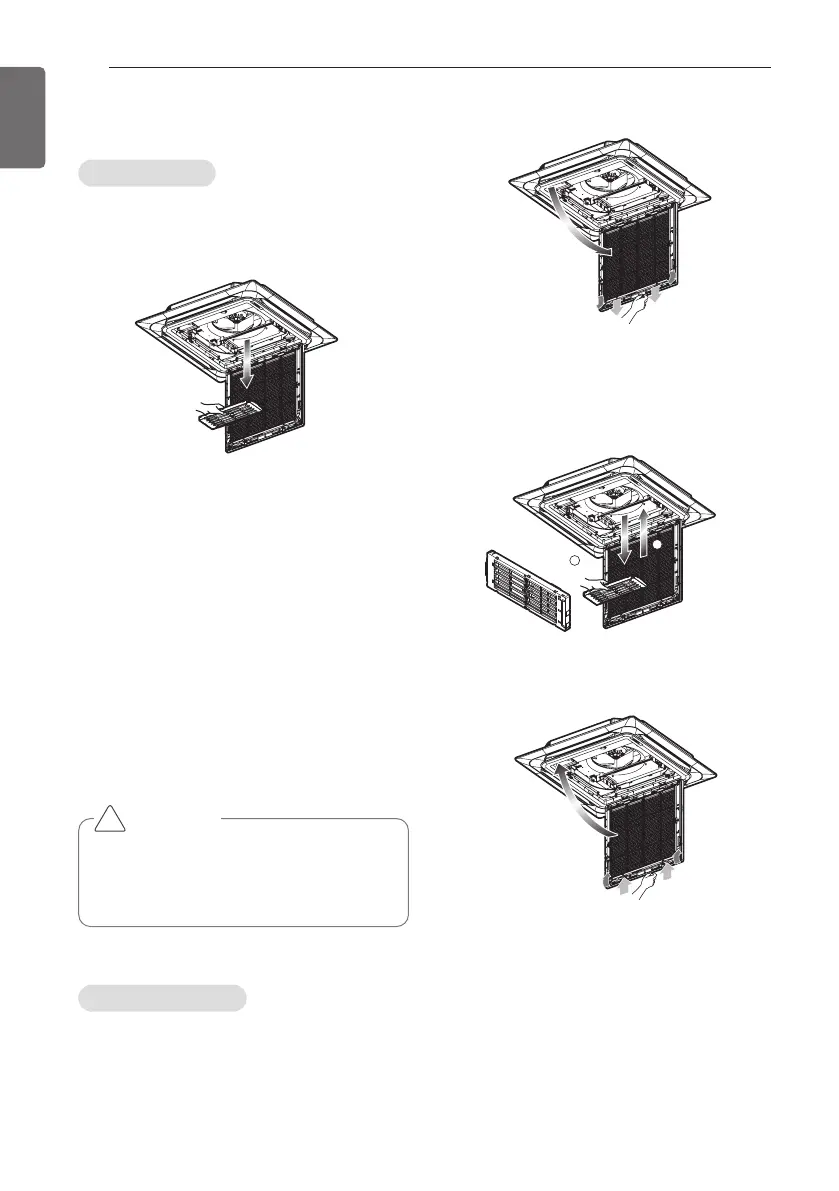

25 Indoor Unit
26 Purifying filter(Optional)
27 Operation Tips!
27 When the air conditioner is not
going....
28 Troubleshooting Tips! Save time and
money!
28 Call the service immediately in the
following situations
BEFORE USE
7
ENGLISH
Preparing for operation
- Contact an installation specialist for installation.
- Use a dedicated circuit.
Usage
- Being exposed to direct airflow for an extended period of time could be hazardous to your
health. Do not expose occupants, pets, or plants to direct airflow for extended periods of time.
- Due to the possibility of oxygen deficiency, ventilate the room when used together with stoves
or other heating devices.
- Do not use this air conditioner for non-specified special purposes (e.g. preserving precision de-
vices, food, pets, plants, and art objects). Such usage could damage the items.
Cleaning and maintenance
- Do not touch the metal parts of the unit when removing the filter. Injuries can occur when han-
dling sharp metal edges.
- Do not use water to clean inside the air conditioner. Exposure to water can destroy the insula-
tion, leading to possible electric shock.
- When cleaning the unit, first make sure that the power and breaker are turned off. The fan ro-
tates at a very high speed during operation. There is a possibility of injury if the unit’s power is
accidentally triggered on while cleaning inner parts of the unit.
Service
For repair and maintenance, contact your authorized service dealer.
BEFORE USE
8
PRODUCT INTRODUCTION
ENGLISH

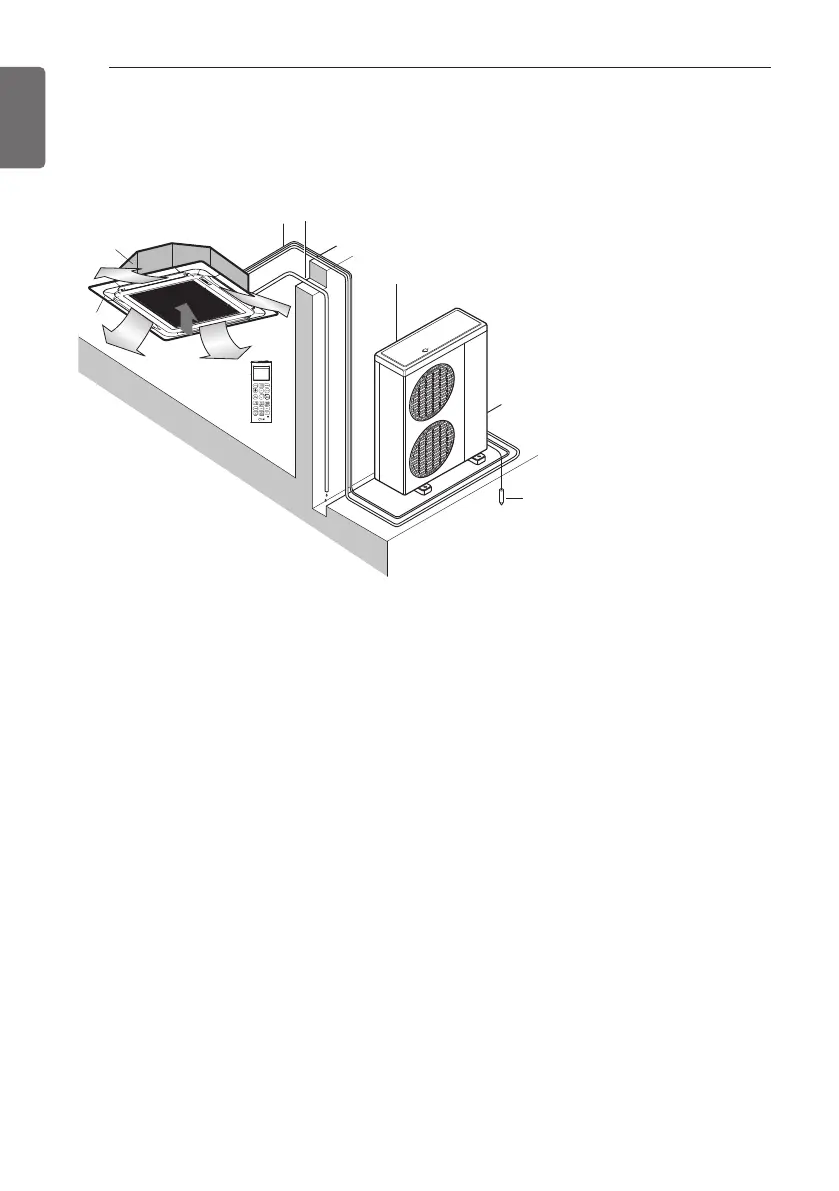

Name and function of parts
1 Indoor unit
2 Outdoor unit
3 Remote controller
4 Inlet air
5 Discharge air
6 Refrigerant piping, connection electric wire
7 Drain pipe
8 Ground wire
Wire to ground outdoor unit to prevent electrical shocks.
PRODUCT INTRODUCTION
3
7
2
8
6
1
5
4
4
PRODUCT INTRODUCTION
9
ENGLISH

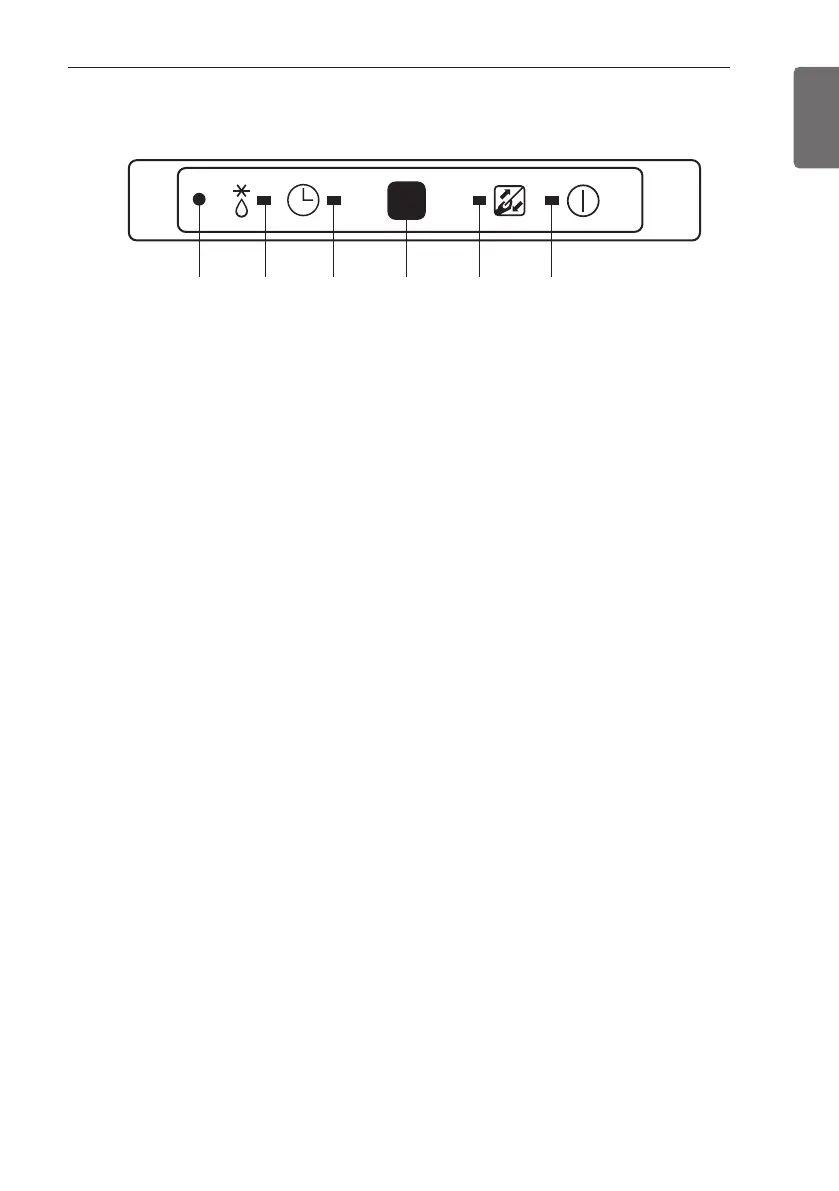

Operation Indication Lamps
123 456
1 Forced operation : Operation procedures when remote control can’t be used.
2 Defrost Mode : Lights up during defrost mode or hot start operation.
(heat pump model only)
3 Timer : Lights up during timer operation.
4 Signal Receptor : Receives the signal from remote control (signal receiving sound: two short
beeps and one long beep)
5 Filter sign : Lights up after 2400 hours from the time of first operation.
6 On/Off : Lights up during system operation.
10
PRODUCT INTRODUCTION
ENGLISH
Wireless Remote Controller
This air-conditioner is equipped with wireless remote controller basically. But if you want to be
available with wired remote controller, you pay for it.
1 VANE ANGLE Button
Used to set each vane angle.
2 FUNCTION SETTING Button
Used to set or clear Auto Clean, Smart Clean,
Electric heater or Individual vane angle con-
trol.
3 ON/OFF Button
Used to turn on/off the unit.
4 JET COOL Button
Speed cooling operates super high fan
speed.
5 LEFT/RIGHT AIRFLOW Button (OPTIONAL)
Used to set the desired left/right(horizontal)
airflow direction.
6 UP/DOWN AIRFLOW Button
Used to stop or start louver movement and
set the desired up/down airflow direction.
7 ON TIMER Button
Used to set the time of starting operation.
8 SLEEP TIMER Button
Used to set the time of sleeping operation.
9 SET / CLEAR Button
Used to set/clear the timer.
Used to set the current time(if it input for
3sec.)
10 PLASMA Button (OPTIONAL)
Used to start or stop the plasma-purification
function.
11 ROOM TEMPERATURE SETTING Button
Used to select the room temperature.
12 OPERATION MODE SELECTION Button
Used to select the operation mode.
13 INDOOR FAN SPEED SELECTION Button
Used to select fan speed in four steps low,
medium, high and chaos.
14 ROOM TEMPERATURE CHECKING Button
Used to check the room temperature.
15 OFF TIMER Button
Used to set the time of stopping operation.
16 TIMER SETTING(Up/Down)/LIGHT Button
Used to set the timer.
Used to adjust the brightness.(if it is not
time adjust mode)
17 RESET Button
Used to reset the remote controller.
Cooling Mode
Auto Mode or Auto Changeover
Dehumidification mode
Heating Mode
Fan Mode
•
Cooling Model( ), Heat Pump Model( )
Operation Mode
3
4
6
8
9
5
7
14
15
17
16
10
12
13
11
2
1
PRODUCT INTRODUCTION
11
ENGLISH
NOTE
!
-
The wireless remote controller do not
operate the swirl mode.(4Way Type)
-
For more details refer to the Wireless
Remote Control Accessory manual.
-
The actual product can be different from
above contents depending upon model
type.
CAUTION
Caution of handling the Remote Controller
- Aim at the signal receiver on the wired re-
mote controller so as to operate.
- The remote control signal can be received
at a distance of up to about 7m.
- Be sure that there are no obstructions be-
tween the remote controller and the sig-
nal receptor.
- Do not drop or throw the remote con-
troller.
- Do not place the remote controller in a lo-
cation exposed to direct sunlight, or near
the heating unit, or any other heat source.
- Block a strong light over the signal recep-
tor with a curtain or etc. so as to prevent
the abnormal operation. (ex:electronic
quick start, ELBA, inverter type fluores-
cent lamp)
!
12
ENGLISH
How to insert the Batteries
Remove the battery cover by pulling it accord-
ing to the arrow direction.
Insert new batteries making sure that the (+)
and (-) of battery are installed correctly.
Reattach the cover by sliding it back into posi-
tion.
Wireless Remote Controller
Maintenance
Choose a suitable place where its safe & easy
to reach.
Fix the holder to wall etc with the supplied
screws firmly.
Slide the remote controller inside the holder.
OPERATING INSTRUCTION
NOTE
!
- Always use/replace both batteries of
same type.
- If the system is not to be used for a
long time, remove the batteries to save
their working life.
- If the display screen of remote con-
troller starts, fading replace both of the
batteries.
NOTE
!
- Remote controller should never be ex-
posed to direct sunlight.
- Signal transmitter & receiver should al-
ways be clean for proper communica-
tion. Use a soft cloth to clean them.
- In case some other appliances also get
operated with remote control, change
their position or consult your service-
man.
OPERATING INSTRUCTION
13
ENGLISH

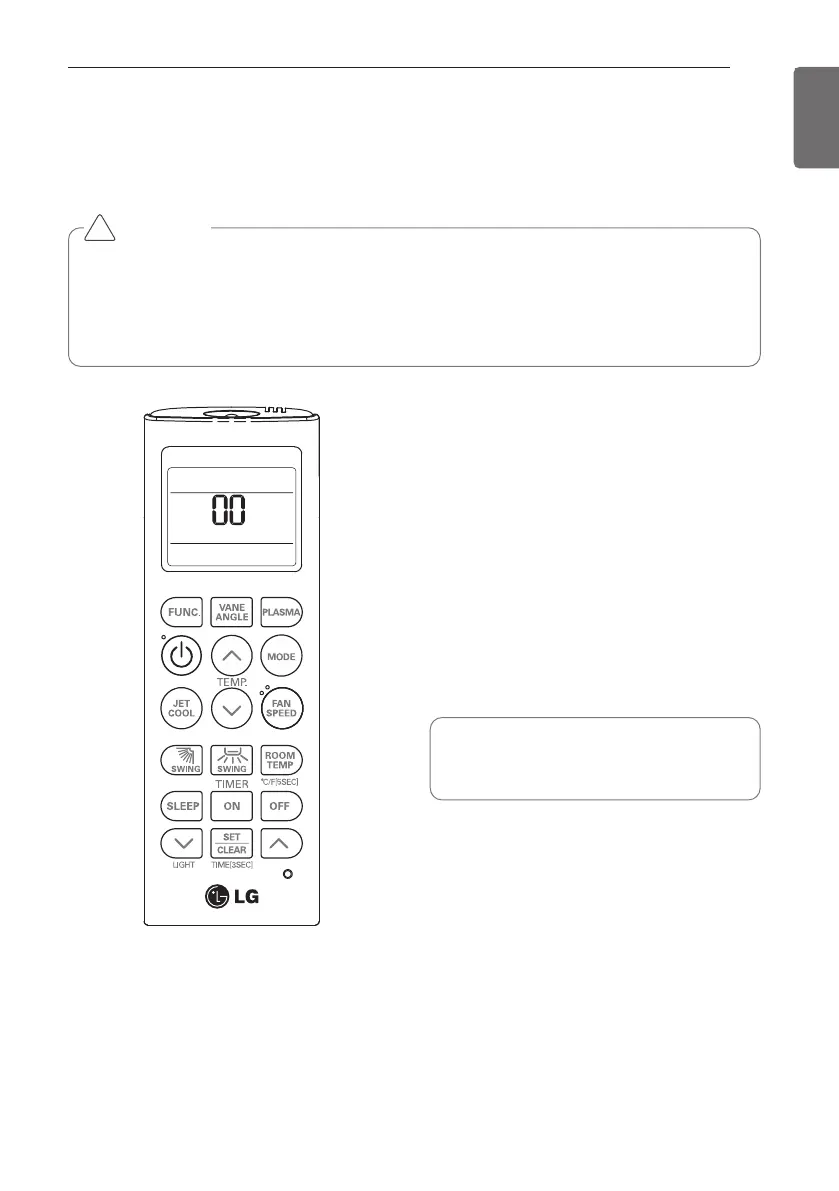

1 With the JET COOL button pressed, press
the RESET button.
2 By using the TEMPERATURE SETTING
button, set function code and setting
value. (Please refer the Installer Setting
Code Table.)
3 Press the ON/OFF button toward the in-
door unit 1 time.
4 Reset the remote controller to use the
general operation mode.
CAUTION
Installer setting mode is to set the detail function of the remote controller.
If the installer setting mode is not set correctly, it can cause problems to the product, user
injury or property damage. This must be set by an certificated installer, and any installation
or change that is carried out by a non-certificated person should be responsible for the re-
sults. In this case, free service cannot be provided.
!
Refer to the Installer Setting Code Table
on the next page.
INSTALLATION INSTRUCTIONS
Installer Setting - How to enter installer setting mode
INSTALLATION INSTRUCTIONS
14
INSTALLATION INSTRUCTIONS
ENGLISH
Mode Override
This Function is only for Non-Auto Changeover H/P model.
Ceiling Height Selection
Our products provide variety of air volumes and capacities according to the selection of ceil-
ing heights.
Cooling/Heating performance is enhanced with relation to ceiling height.
- The highest/cooling heating performance and efficiency are provide at super high.
(Some noise may be generated according to the level height setting.)
Group Control
This function is only for group control. Please don’t set this function in case of non-group
control.
After setting Group Control of the product, turn off the power then turn it back on after 1
minute.
Auxiliary heater
This function is only applied to models with Auxiliary Heater function being activated.
Installer Setting - Installer Setting Code Table
Installer Setting Code Table
No. Function Function Code Setting Value Remote Controller LCD
0 Mode Override
0
0 : Set to Master
1 : Set to Slave
1
Ceiling Height
Selection
1
1 : Standard
2 : Low
3 : High
4 : Super High
2
Group Control
2
0 : Set to Master
1 : Set to Slave
2 : Check Master/Slave
Auxiliary heater
2
3 : Set to Auxiliary heater
4 : Cancel Auxiliary heater
5 :
Check Auxiliary heater Installation
INSTALLATION INSTRUCTIONS
15
ENGLISH
Installer Setting - Setting Address of Central Control
Installer Setting - Checking Address of Central Control
1 With the FUNC. button pressed, press the RESET button.
2 Press the ON/OFF button toward the indoor unit 1 time, and the indoor unit will display the
set address in the display window.
- The address display time and method can differ by the indoor unit type.
3 Reset the remote controller to use the general operation mode.
1 With the MODE button pressed, press the
RESET button.
2 By using the temperature setting button,
set the indoor unit address.
• Setting range : 00 ~ FF
3 After setting the address, press the
ON/OFF button toward the indoor unit 1
time.
4 The indoor unit will display the set address
to complete the address setting.
- The address display time and method can
differ by the indoor uint type.
5 Reset the remote controller to use the
general operation mode.
16
OWNER'S INSTRUCTION
ENGLISH
Cooling Mode -
Standard Operation
1 Press the ON/OFF button.
The unit will respond with beep sound.
2 Press MODE button to select Cooling
Mode.
3 Set the desired temperature by pressing
TEMP button.
Press ROOM TEMPERATURE CHECKING
button to check the room temperature.
When setting the desired temperature is
higher than room temperature, cooling
wind isn’t blow out.
- Setting Temp. Range : 18~30°C(64~86°F)

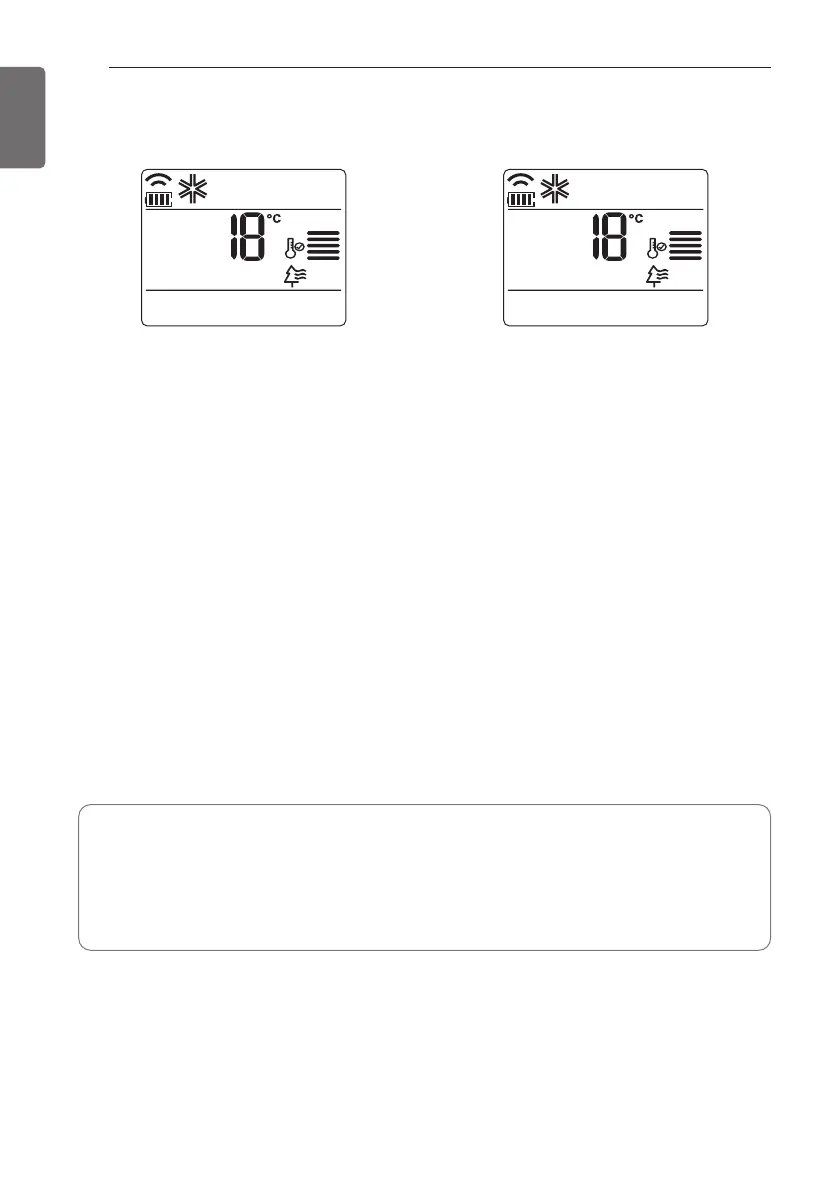

Cooling Mode - Power Cooling
1 Press the ON/OFF button.
The unit will respond with beep sound.
2 Press MODE button to select Cooling
Mode.
3 Press the JET COOL button. The unit will
operate in super high fan speed in cooling
mode.
- Wall mounted models operate power
cooling mode for 30 minutes.
4 To cancel the Power cooling Mode press
the Jet Cool button or the fan button or the
room temperature setting button again and
the unit will operate in high fan speed in
cooling mode.
OWNER'S INSTRUCTION
OWNER'S INSTRUCTION
17
ENGLISH
Auto Operation Mode
1 Press the ON/OFF button.
The unit will respond with beep sound.
2 Press MODE button to select Auto Opera-
tion Mode.
3 Set the desired temperature.
<For Cooling Model>
The temperature and fan speed are auto-
matically set by the electronic controls
based on the actual room temperature.
If you feel hot or cold, press TEMPERA-
TURE SETTING buttons for more cooling
or heating effect.
You cannot switch the indoor fan speed. It
has already been set by the Auto Opera-
tion Mode rule.
Code Feel
2 Cold
1 Slightly cool
0 Neutral
-1 Slightly warm
-2 Warm
❈ Please select the code
depend on your feeling.
During Auto Operation Mode
- If the system is not operating as de-
sired, manually switch to another mode.
The system will not automatically
switch from the cooling mode to the
heating mode, or from heating to cool-
ing, then you must set the mode and
the desired temperature again.
18
OWNER'S INSTRUCTION
ENGLISH
Dehumidification Mode
1 Press the ON/OFF button.
The unit will respond with beep sound.
2 Press MODE button to select Dehumidifi-
cation Mode.
3 Set the fan speed. You can select the fan
speed in four steps - low, medium, high, or
chaos. Each time the button is pressed,
the fan speed mode is shifted.
During Dehumidification Mode
- If you select the dehumidification mode
on the operation selection button, the
indoor unit starts to run the dehumidifi-
cation function, automatically setting
the room temp. and air volume to the
best condition for dehumidification
based on the sensed room temp.
In this case, the setting temp. is not dis-
played in the Remote Controller and you
are not able to control the room temp.
either.
- During the healthy dehumidification
function, the air volume is automatically
set according to the algorithm respond-
ing to the current room temp. and
makes the room condition healthy and
comfortable even in the high humidity
season.
OWNER'S INSTRUCTION
19
ENGLISH
Fan Mode
1 Press the ON/OFF button.
The unit will respond with beep sound.
2 Press MODE button to select Fan Mode.
3 Set the fan speed again. You can select
the fan speed in four steps–low, medium,
high, or chaos. Each time the button is
pressed, the fan speed mode is shifted.
Natural Wind by the chaos Logic
- For more fresh feeling than other fan
speed, press the Indoor Fan Speed Se-
lector and set to chaos mode. In this
mode, the wind blows like natural
breeze by automatically changing fan
speed according to the chaos logic.
During Fan Mode
- The outdoor compressor doesn't work.
Have a function to circulate the indoor
as it sends out the air that doesn't have
much temperature difference with in-
door.
20
OWNER'S INSTRUCTION
ENGLISH
Temperature Setting/Room Temperature checking
We can simply adjust the desired tem-
perature
- Press the buttons to adjust the desired
temperature
: Increase 1˚C or 1˚F per one
time pressing
: Decrease 1˚C or 1˚F per one
time pressing
Room temp: Indicate the current room
temperature
Set temp: Indicate the temperature that
user want to set
<Cooling Mode>
The cooling mode doesn't work if desired
temperature is higher than room temper-
ature Please lower the desired tempera-
ture
<Heating Mode>
The heating mode doesn't work if de-
sired temperature is lower than room
temperature Please increase the desired
temperature
Whenever press button, the room tem-
perature will be displayed within 5 sec-
onds.
After 5 seconds, it turns to display the
desired temperature.
Because of location of remote controller,
the real room temperature and the this
displayed value can be different.
OWNER'S INSTRUCTION
21
ENGLISH
Up/Down Airflow Direction Control (Optional)
The up/down airflow (Vertical Airflow) can be adjusted by using the remote controller.
1 Press the ON/OFF button to start the unit.
2 Press up/down airflow button and the louvers will swing up and down.
Press the up/down airflow button again to set the vertical louver at the desired airflow direc-
tion.
Left/Right Airflow Direction Control (Optional)
The left/right(horizontal) airflow can be adjusted by using the remote control.
1 Press the ON/OFF button to start the unit.
2 Press the LEFT/RIGHT AIRFLOW button and the louvers will swing left and right. Press the
Horizontal Airflow Direction Control Button again to set the horizontal louver at the desired air-
flow direction.
- Up/Down and Left/Right Airflow function isn’t shown on display of remote controller.
Airflow Setting
NOTE
!
- If you press the UP/DOWN AIRFLOW button, the horizontal airflow direction is changed au-
tomatically based on the Auto Swing algorithm to distribute the air in the room evenly and
at the same time to make the human body feel more comfortable, as if enjoying a natural
breeze.
- Always use the remote controller to adjust the up/down airflow direction. Manually moving
the vertical airflow direction louver by hand, could damage the air conditioner.
- When the unit is shut off, the up/down airflow direction louver will close the air outlet vent
of the system.
22
OWNER'S INSTRUCTION
ENGLISH
Plasma Purification(Optional)
Celsius/Fahrenheit Switching
1 Press the ON/OFF button.
The unit will respond with beep sound.
2 Press the PLASMA button. Plasma Purifi-
cation will start when the button is
pressed and stop when the button is
pressed again.
If you press the PLASMA button, Plasma Pu-
rification operates.
- Plasma filter is a technology developed by
LG to get rid of microscopic contaminants in
the intake air generating a plasma of high
charge electrons. This plasma kills and de-
stroys the contaminants completely to pro-
vide clean and hygienic air.
- This function can be used in any operation
mode and any fan speed can be used while
plasma filter is functioning.
Press the °C/°F SWITCH button to change from Celsius to Fahrenheit or from Fahrenheit to
Celsius.
Whenever press TEMPERATURE SETTING button in Fahrenheit mode, the temperature
will increase/drop 1°F.
OWNER'S INSTRUCTION
23
ENGLISH

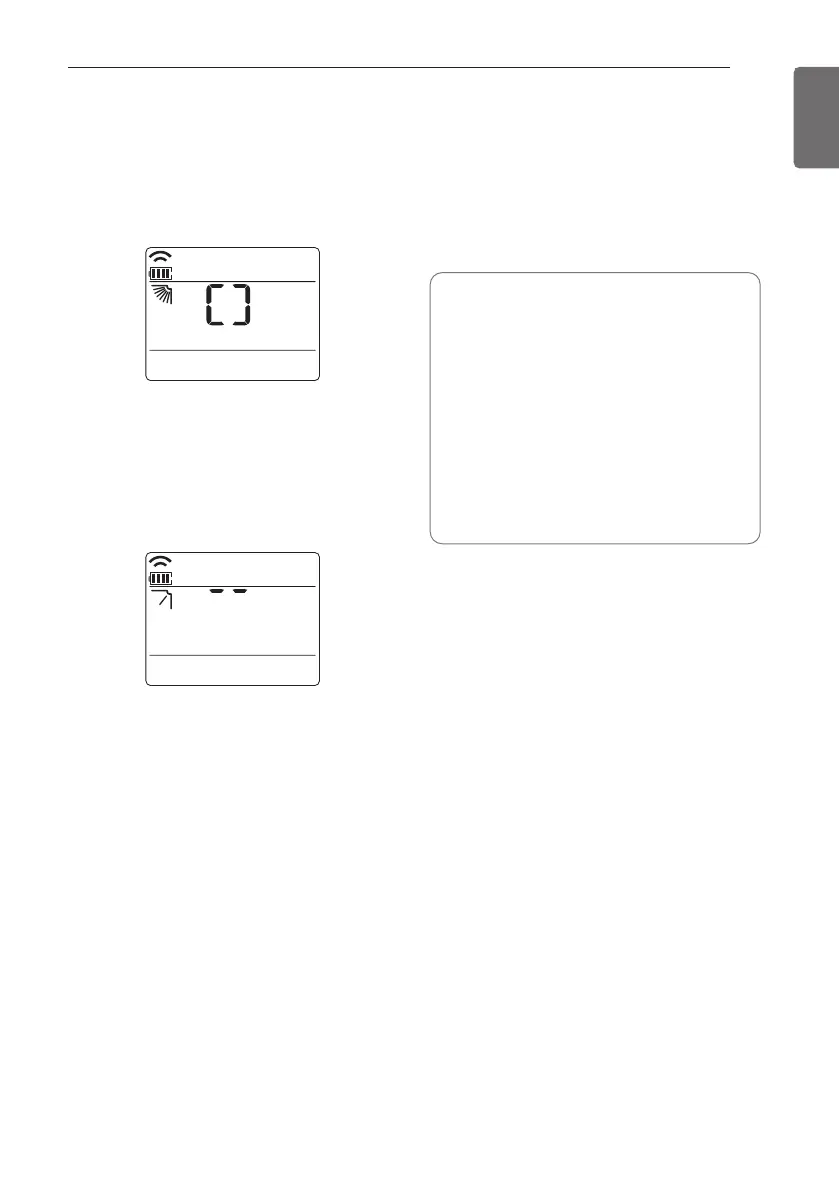

Individual vane angle control
It is the function that can control 4 vane an-
gles individually in the ceiling type 4Way cas-
sette product group.
1 Press the VANE ANGLE button.
Individual vane angle control symbol will
blink.
- If you press the VANE ANGLE button for
3 seconds in that time, all vanes are set
to standard angle.
2 Set each vane angle by pressing the VANE
ANGLE button.
- Every time the button is pressed, corre-
sponding vane angle and set values are
displayed.
- When up direction button is pressed, the
display window appears as of the figure in
the right, and the angle can be set to 1~6.
- Multi-V Console products can be con-
trolled by up key in the up/down control.
3. Press SET/CLEAR button to reserve or can-
cel the individual vane angle control func-
tion.
- There may be differences between
wireless remote controller
up/down/left/right buttons and the wind
discharge port directions.
- Set desired angle with checking the
vane angle movement of the product.
- The individual vane control function is
an additional function of a product, and
it may not work in some products.
24
OWNER'S INSTRUCTION
ENGLISH
Setting the Current Time
1 Press the SET/CLEAR button for 3 seconds.
2 Press TIME SETTING buttons until the desired time is set.
3 Press the SET / CLEAR button.
Timer Setting
1 Press the TIMER button to turn timer on or off.
2 Press TIME SETTING buttons until the desired time is set.
3 Press the SET / CLEAR button.
To cancel the Timer Setting
- If you wish to cancel all timer setting, press the SET/CLEAR button.
- If you wish to cancel each timer setting, press the TIMER button to turn timer sleep or on or off
as you want.
And then press the SET/CLEAR button aiming the remote controller at the signal receptor.
(The timer lamp on the air conditioner and the display will go off.)
Timer
NOTE
!
Check the indicator for A.M. and P.M.
NOTE
!
Select one of the following 3 types of operation.
Timer Sleep Timer ON Timer OFF
MAINTENANCE AND SERVICE
25
ENGLISH

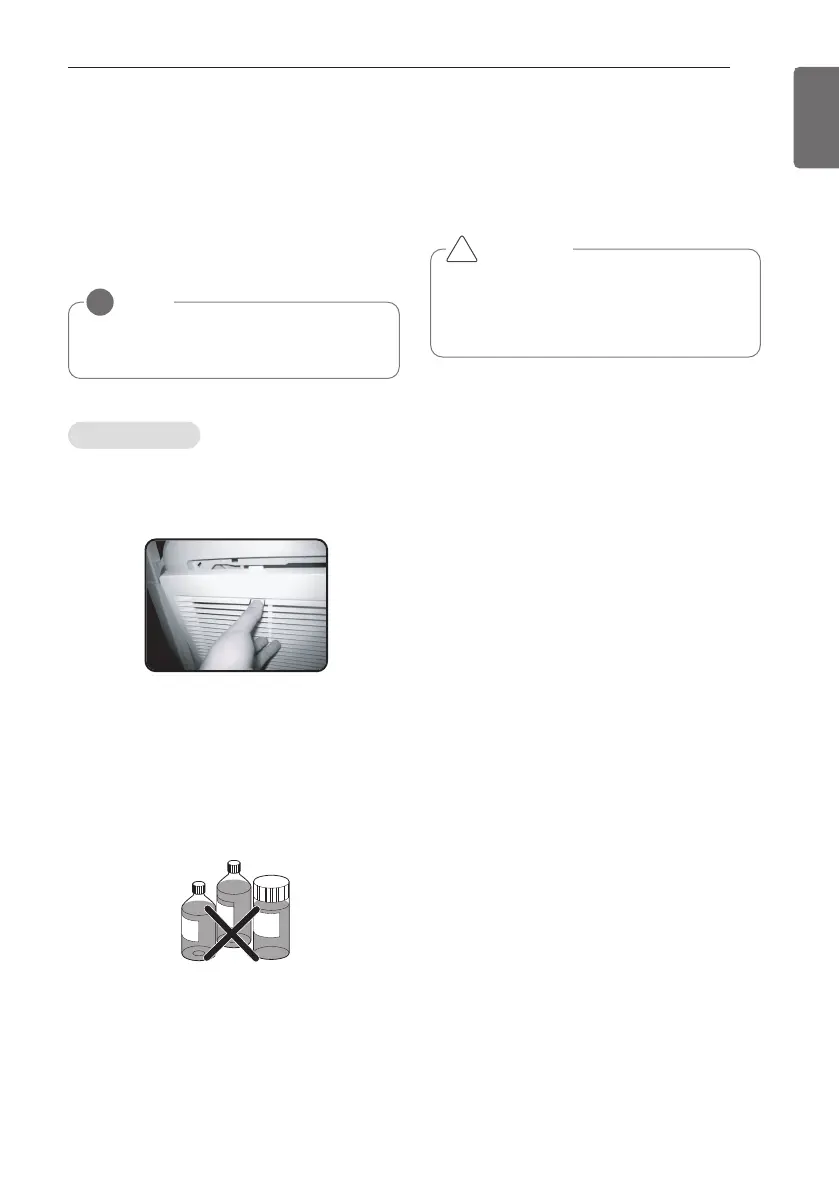

Indoor Unit
Grille, Case and Remote Control
- Turn the system off before cleanining, To
clean, wipe with a soft, dry cloth. Do not use
bleach or abrasives.
The air filters behind the front grille should be
checked and cleaned once every 2 weeks or
more often if neccessary.
- Never use any of the followings:
Water hotter than 40°C.
Could cause deformation and/or discol-
oration.
Volatile substances.
Could damage the surfaces of the air condi-
tioner.
- Remove the Air filters.
Take hold of the tab and pull slightly forward
to remove the filter.
- Clean dirt from the air filter using a vacuum
cleaner or washing with water.
If dirt is conspicuous, wash with a neutral
detergent in lukewarm water.
If hot water (50°C or more) is used, it may
be deformed.
- After washing with water, dry well in the
shade.
Do not expose the air filter to direct sunlight
or heat from a fire when drying it.
- Install the air filter.
NOTE
!
Supply power must be disconnected be-
fore cleaning the indoor unit.
CAUTION
When the air filter is to be removed, do
not touch the metal parts of the indoor
unit.
It may cause an injury.
!
Air Filters
B
e
n
z
e
n
e
S
C
O
U
R
I
N
C
L
B
A
R
G
E
S
I
N
N
E
R
MAINTENANCE AND SERVICE
26
MAINTENANCE AND SERVICE
ENGLISH
Cleaning
CAUTION
When the air filter is to be removed, do
not touch the metal parts of the indoor
unit.
It may cause an injury.
!
Purifying filter(Optional)
The PLASMA filter behind the air filters should
be checked and cleaned once every 3 months
or more often if necessary.
- After removing the air filters, pull slightly for-
ward to remove the PLASMA filter.
- Dip the PLASMA filter into the water mixed
with neutral detergent, for 20~30 minutes.
- Dry the PLASMA filter in the shade for a day
(Especially, the humidity must be removed
perfectly on this parts).
- Note the cuts of electric discharge lines.
- Re-install the PLASMA filter to the original
position.
The PLASMA filter behind the air filters should
be checked and cleaned once every 3 months
or more often if necessary.
- Open front panel and remove air filter.
- Remove air purifying filter.
- Insert new air purifying filter.
- Reinsert air filter and close front panel.
Replacement
1
2
MAINTENANCE AND SERVICE
27
ENGLISH
Do not overcool the room.
This is not good for the health
and wastes electricity.
Keep blinds or curtains closed.
Do not let direct sunshine
enter the room when the air
conditioner is in operation.
Keep the room temperature
uniform.
Adjust the vertical and hori-
zontal airflow direction to en-
sure a uniform temperature in
the room.
Make sure that the doors
and windows are shut tight.
Avoid opening doors and win-
dows as much as possible to
keep the cool air in the room.
Clean the air filter regularly.
Blockages in the air filter re-
duce the airflow and lower
cooling and dehumidifying ef-
fects. Clean at least once
every two weeks.
Ventilate the room occasion-
ally.
Since windows are kept
closed, it is a good idea to
open them and ventilate the
room now and then.
When the air conditioner is not
going....
When air conditioner is not going to
be used for a long time.
- Operate the air conditioner at the following
settings for 2 to 3 hours.
Type of operation: Fan operation
mode.(Refer to page 19.)
This will dry out the internal mechanisms.
- Turn off the breaker.
- Remove the batteries from the Remote Con-
troller.
Helpful information
The air filters and your electiric bill.
If the air filters become clogged with dust, the
cooling capacity will drop, and 6% of the elec-
tricity used to operate the air conditioner will
be wasted.
When the air conditioner is to be
used again.
- Clean the air filter and install it in the indoor
unit. (Refer to page 25 for cleaning it.)
- Check that the air inlet and outlet of the in-
door/outdoor unit are not blocked.
- Check that the ground wire is connected cor-
rectly. It may be connect to the indoor unit
side.
CAUTION
Turn off the breaker when the air condi-
tioner is not going to be used for a long
time.
Dirt may collect and may cause a fire.
!
Operation Tips!
28
MAINTENANCE AND SERVICE
ENGLISH
Call the service immediately in the following situations
- Anything abnormal such as burning smell, loud noise etc. happen. Stop the unit and turn the
breaker off. Never try to repair by yourself or restart the system in such cases.
- Main power cord is too hot or damaged.
- Error code is generated by self diagnosis.
- Water leaks from indoor unit even if the humidity is low.
- Any switch, breaker (safety, earth) or fuse fails to work properly
User must carry routine checkup & cleaning to avoid unit’s poor performance.
In case of special situation, the job must be carried out by service person only.
The air conditioner
does not operate.
- Have you made a
mistake in timer op-
eration?
- Has the fuse blown
or has the circuit
breaker been
tripped?
The room has a pecu-
liar odor.
- Check that this is not
a damp smell ex-
uded by the walls,
carpet, furniture or
cloth items in the
room.
It seems that conden-
sation is leaking from
the air conditioner.
- Condensation occurs
when the airflow
from the air condi-
tioner cools the
warm room air.
Air conditioner does
not operate for about
3 minutes when
restart.
- This is the protector
of the mechanism.
- Wait about three
minutes and opera-
tion will begin.
Does not cool or heat
effectively.
- Is the air filter dirty?
See air filter cleaning
instructions.
- The room may have
been very hot when
the room air condi-
tioner was first
turned on. Allow
time for it to cool
down.
- Has the temperature
been set incorrectly?
- Are the indoor unit's
air inlet or outlet
vents obstructed?
The air conditioner op-
eration is noisy.
- For a noise that
sounds like water
flowing.
* This is the sound
of freon flowing in-
side the air condi-
tioner unit.
- For a noise that
sounds like the com-
pressed air releasing
into atmosphere.
-
This is the sound of
the dehumidifying
water being
processed inside the
air conditioning unit.
Crack sound is heard.
- This sound is gener-
ated by the expan-
sion/ constriction of
the front panel, etc.
due to changes of
temperature.
Remote control dis-
play is faint, or no dis-
play at all.
- Are the batteries de-
pleted?
- Are the batteries in-
serted in the oppo-
site (+) and (-)
directions?
Filter sign lamp (LED)
is ON.
- Cleaning the filter,
press the Timer but-
ton and ◀ button of
wired remote con-
troller at the same
time for 3 sec.
Troubleshooting Tips! Save time and money!
Check the following points before requesting repairs or service.... If the malfunction persist,
please contact your dealer.
29
ENGLISH
Specifications.
Model Voltage / Hz
Max.
Current
ATNQ18GPLE3, ATNQ21GPLE3, ATNQ24GNLE3 220 V~ 50/60 Hz 0.6 A
ATNQ36GMLE3 220 V~ 50/60 Hz 1.0 A
ATNQ42GMLE3, ATNQ48GMLE3, ATNQ54GMLE3 220 V~ 50/60 Hz 1.0 A
AUUQ18GH1(ATUQ18GPLE3), AUUQ21GH1(ATUQ21GPLE3) 220 V~ 50/60 Hz 12.0 A
AUUQ24GH1(ATUQ24GNLE3) 220 V~ 50/60 Hz 14.0 A
AUUQ36GH1(ATUQ36GMLE3) 220 V~ 50/60 Hz 19.0 A
AUUQ42GH1(ATUQ42GMLE3), AUUQ48GH1(ATUQ48GMLE3) 220 V~ 50/60 Hz 26.0 A
AUUQ54GH1(ATUQ54GMLE3) 220 V~ 50/60 Hz 29.0 A
30
ENGLISH
Model / Modelo(s) : ATNQ18GPLE3, ATNQ21GPLE3, ATNQ24GNLE3, ATNQ36GMLE3,
ATNQ42GMLE3, ATNQ48GML3, ATNQ54GMLE3
AUUQ18GH1(ATUQ18GPLE3), AUUQ21GH1(ATUQ21GPLE3)
AUUQ24GH1(ATUQ24GNLE3), AUUQ36GH1(ATUQ36GMLE3)
AUUQ42GH1(ATUQ42GMLE3), AUUQ48GH1(ATUQ48GMLE3)
AUUQ54GH1(ATUQ54GMLE3)
LG Electronics México, S.A. de C.V
Sor Juana Inés de la Cruz No. 555
Col. San Lorenzo Industrial
Tlalnepantla de Baz, Estado de México
C.P. 54033
TEL. 5321 1919
Teléfono sin costo 01 800 347 1919
Página web http://www.lg.com.mx
Produkt Specifikationer
| Mærke: | LG |
| Kategori: | Aircondition |
| Model: | ATNQ42GMLE3 |
Har du brug for hjælp?
Hvis du har brug for hjælp til LG ATNQ42GMLE3 stil et spørgsmål nedenfor, og andre brugere vil svare dig
Aircondition LG Manualer
28 Marts 2025
26 Marts 2025
26 Marts 2025
26 Marts 2025
26 Marts 2025
20 Februar 2025
4 Januar 2025
4 Januar 2025
4 Januar 2025
4 Januar 2025
Aircondition Manualer
- Kärcher
- Medion
- Essentiel B
- Braemar
- Becken
- Bavaria
- D-Let
- Trisa
- AKAI
- Tarrington House
- B-Air
- Edy
- Daizuki
- Bonaire
- Rotel
Nyeste Aircondition Manualer
5 August 2025
3 August 2025
2 August 2025
2 August 2025
1 August 2025
1 August 2025
1 August 2025
6 Juli 2025
5 Juli 2025
13 Juni 2025
