INSTALLATION GUIDE
FAN CABLE INSTALLATION
UNI FAN SL
Revolutionized Daisy-Chain ARGB Fan
RGB
1
2
1
2
Fixed
Release
Fixed Release

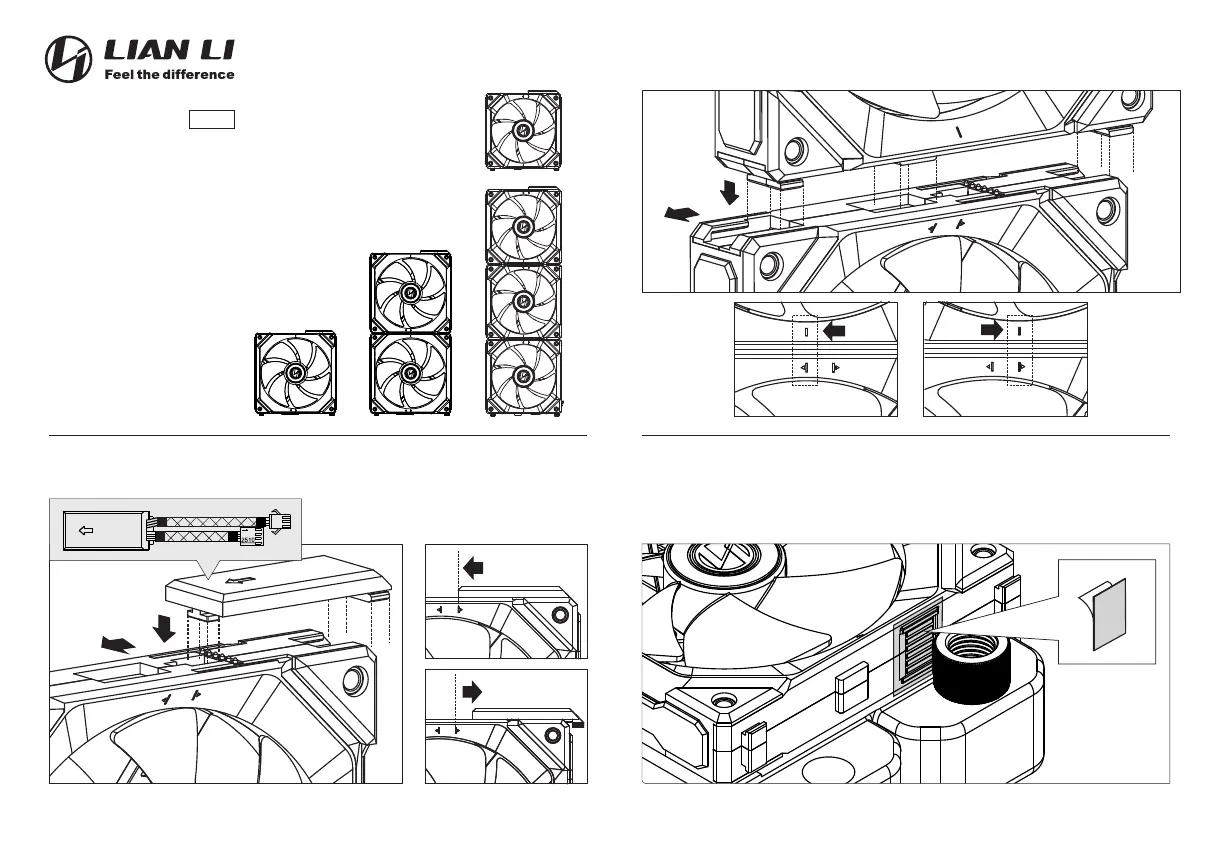

FAN TO FAN CONNECTION
Note! When using the UNI FAN AL in a custom water cooling configuration, make
sure that the fittings on the radiators do not interfere with the contact point on the
side of the fans. We suggest to use the insulating tape to isolate contact points.
在開式冷配置中UNI FAN AL,󰇽確保散󰆆器上的󰔞接頭不會干
擾風扇側面的接觸點,議絕緣膠帶隔󰔵接觸點。
意!
- 3 - - 4 -
Connect to PSU SATA 15 Pin

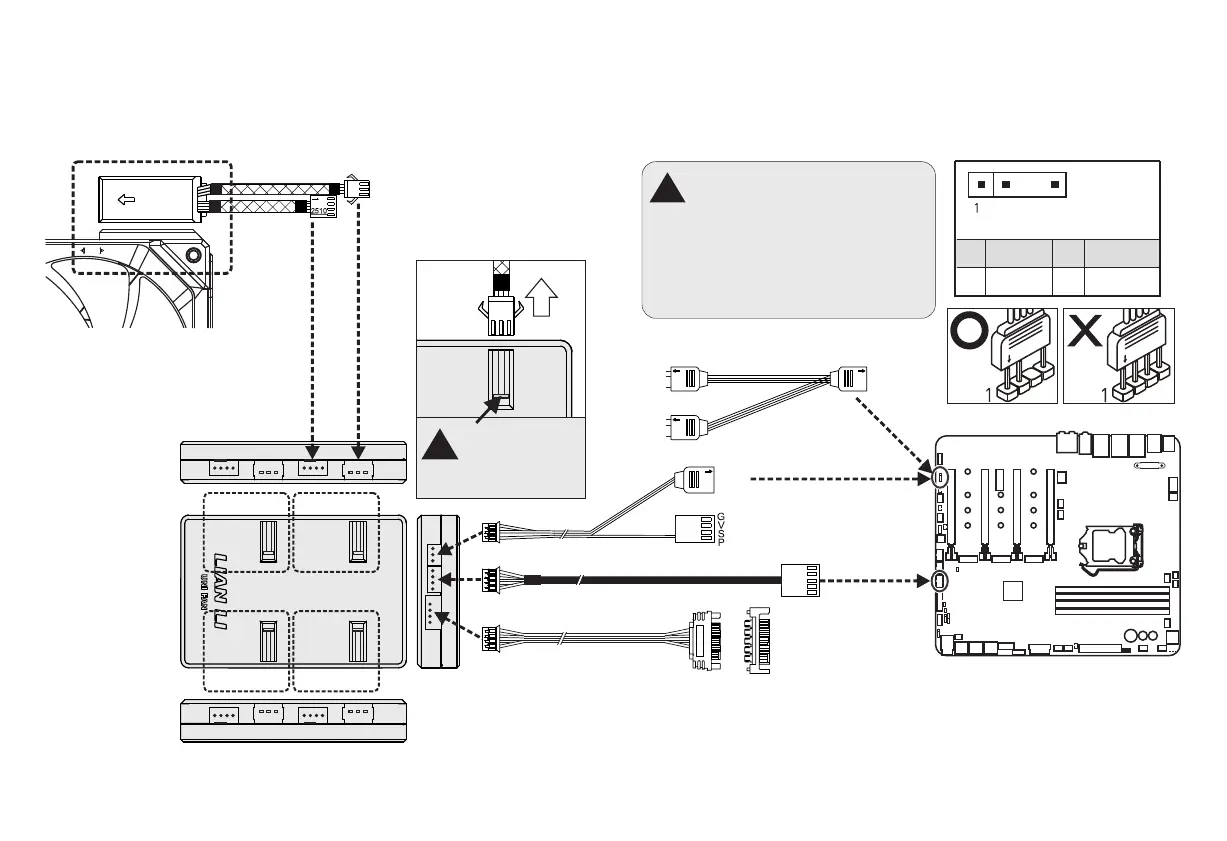

CONTROLLER CABLE CONNECTION
控制器線材連接
1 VCC
2
4 GND
DI
5V+/5V-
Serial ATA
1
15
P1
515
11
Connect to 5V ARGB
3 pin header
Connect to USB
Connect to fan
MOTHERBOARD 5V ADDRESS
LED HEADER
MOTHERBOARD SYNC
1 VCC
2
4 GND
DI
Split cable
1 VCC
2
4 GND
DI
1VCC
2
4 GND
DI
Controller
GROUP 2 GROUP 1
GROUP 4 GROUP 3
Connect to
GROUP 1, or
GROUP 2, or
GROUP 3, or
GROUP 4.
G50.12UF00.02
SL
告: 請不要連接錯誤類型的
LED 12V接頭,如果連接到 接口
將造成永久損壞。
Warning: Do not connect the
wrong type of LED connector. If it
is connected to the 12 V connector,
permanent damage will occur.
!
ADDRESS LED header
+5V1 2 Data
No Pin3 4 Ground
5 V 12 V
同步主板
Press and pull out
the connector to
release the cable
!
1
2
按下再拉出線材接頭。
