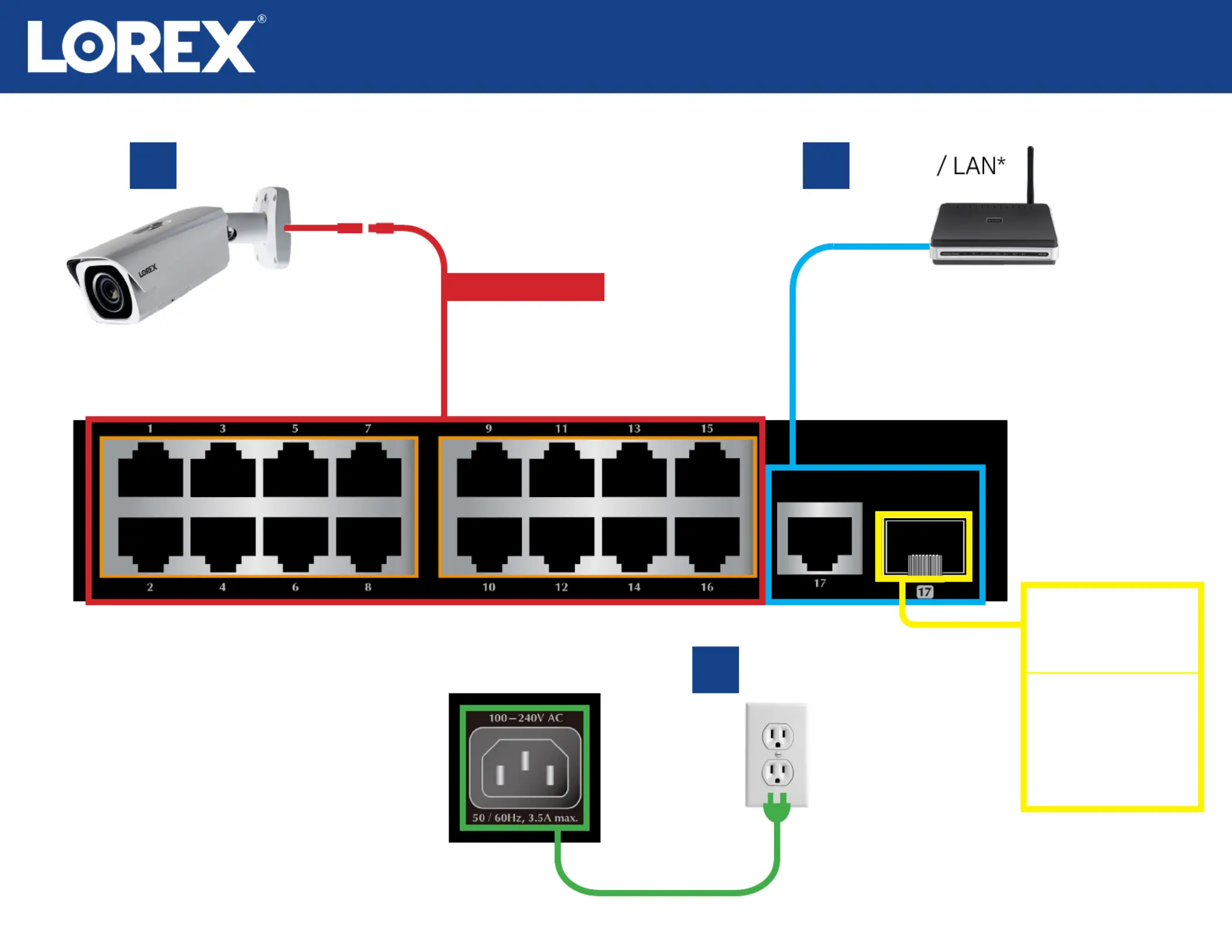

16+1 PoE+ Camera Switch Quick Start Guide
* Not included / sold separately.
Router
2
Power
3
Up to 300ft / 91m
1
Network Cameras*
Back Panel
ACCLPS263B_QSG_EN_R2
SFP port
Remove dust cap
to use.
NOTE: Use RJ45
or SFP to connect
to port 17. You
may not use both
simultaneously.
16+1 PoE+ Camera Switch Quick Start Guide
System
NAME COLOR MEANING
PWR Green
ON: The switch is receiving power.
OFF: The switch is not receiving power.
FCC Notice
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the Instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Technical Specifications
NAME SPECIFICATION
Ports
16× 10/100Base-TX RJ-45 Auto-MDI/MDI-X ports
1× 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X port
1× 1000Base-X SFP interfaces, shared with port 17
PoE Standard
IEEE 802.3af / 802.3at PoE
PoE Power Output
Per Port 51V DC, Max. 30.8W
Total Power Ouput
220W across ports 1~16 (at 104°F / 40°C)
200W across ports 1~16 (at 122°F / 50°C)
Standard Compliance
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
Operating Humidity
5 ~ 95% (non-condensing)
Operating Temperature
32° ~ 122°F / 0° ~ 50°C
Power Input
100~240V AC, 50/60Hz, 3.5A
Dimensions
(W×D×H)
17.4 × 8.2 × 1.7”
441 × 208 × 44mm
1U height
Weight
5.9lbs / 2.7kg

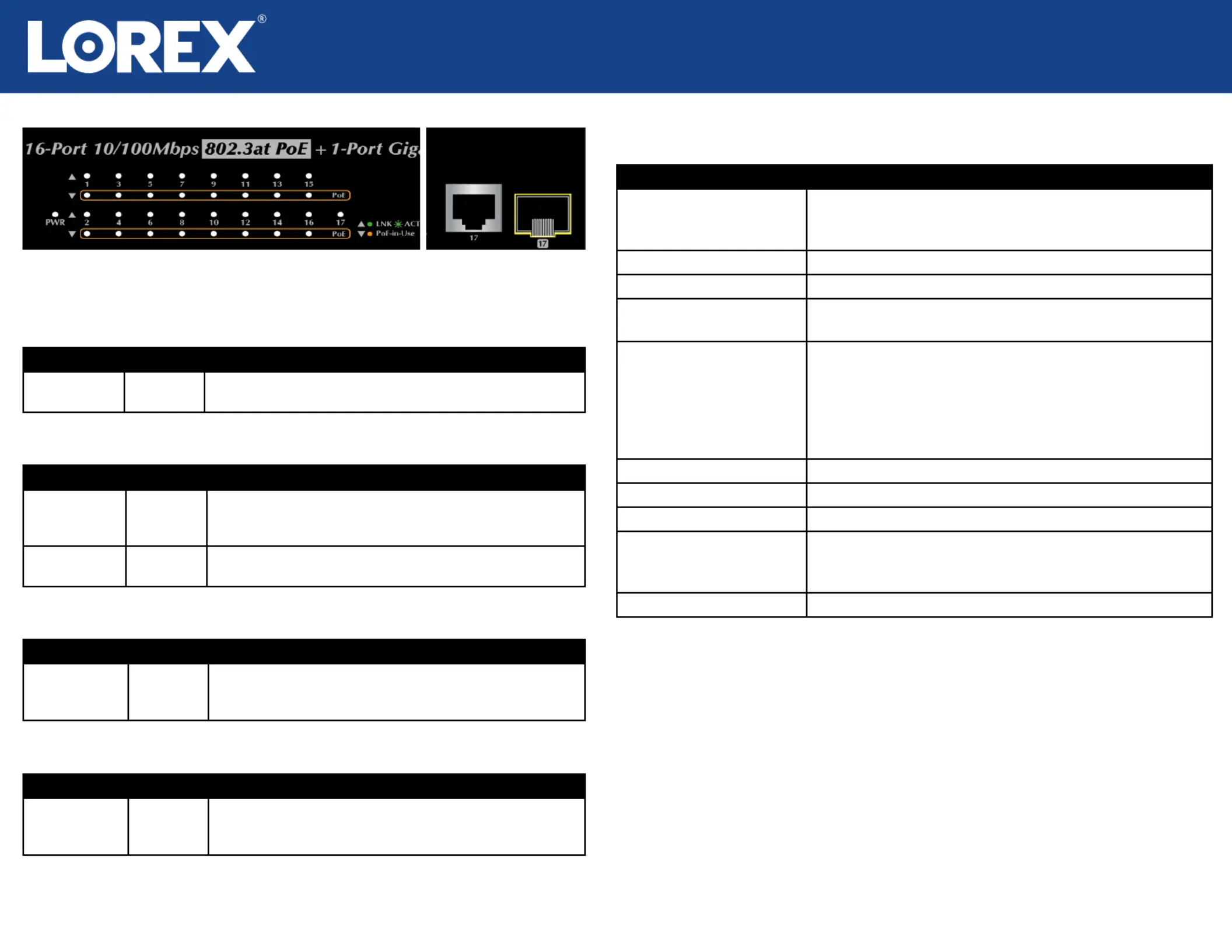

Port 1 ~ 16
NAME COLOR MEANING
LNK/ACT Green
ON: Successfully established link at 10/100Mbps.
FLASHING: Switch is sending/receiving data.
OFF: No connection.
PoE In-Use Orange
ON: Port is providing 51V DC in-line power.
OFF: Connected device is not a PoE Powered Device (PD).
Port 17 (RJ-45)
NAME COLOR MEANING
LNK/ACT Green
ON: Successfully established link at 10/100/1000Mbps.
FLASHING: Switch is sending/receiving data.
OFF: No connection.
ACCLPS263B_QSG_EN_R2
LED Indicators
Port 17 (SFP)
NAME COLOR MEANING
LNK/ACT Green
ON: Successfully established link at 1000Mbps
FLASHING: Switch is sending/receiving data.
OFF: No connection.
MEANING

Produkt Specifikationer

Mærke: Lorex
Kategori: bryter
Model: ACCLPS263B
