Pub. 988-0154-641
EP-90R Pressure
Electronic Sensor
Installation and Configuration Instructions
This document shows how to install an EP-90R Pressure sensor and
how to connect it to a NMEA 2000® network. It also provides
instructions on how to configure your pressure sensor with Lowrance
digital gauges (LMF-200 & LMF-400) and display units.
NMEA 2000 is the communication bus standard developed by the
National Marine Electronics Association (NMEA) for use in boats.
Lowrance has introduced a line of products that can communicate over
a NMEA 2000 network (LowranceNet).
All Lowrance NMEA 2000 capable devices are either NMEA 2000
certified or certification is pending.
CAUTION:
Installing LowranceNET NMEA 2000 devices is significantly
different from installing earlier Lowrance components without
NMEA 2000 features. You should read all of the installation
instructions before proceeding. Decide where you want to install
all components before drilling any holes in your vessel.
Some sonar or GPS display units may require a software upgrade to
display NMEA 2000 data correctly. For free software upgrades or
additional information on the LowranceNet NMEA 2000 ® network
system, visit our web site, www.lowrance.com.
EP-90R Pressure Sensor.
Hose barb
attachment
Red NMEA 2000
connector
2
The EP-90R consists of a red cable connector and the EP-90R housing
with standard size hose barb attachment.
The EP-90R Water Pressure sensor, like the other LowranceNet
Electronic Probe (EP) sensors, is designed for use with a NMEA 2000
DeviceNet Network. Your sensor, however, is also compatible with
LowranceNet blue connector networks. It can be added to a blue
connector network by using a red female to blue female adapter cable.
Your sensor MUST be connected to a NMEA 2000 network or it WILL
NOT function.

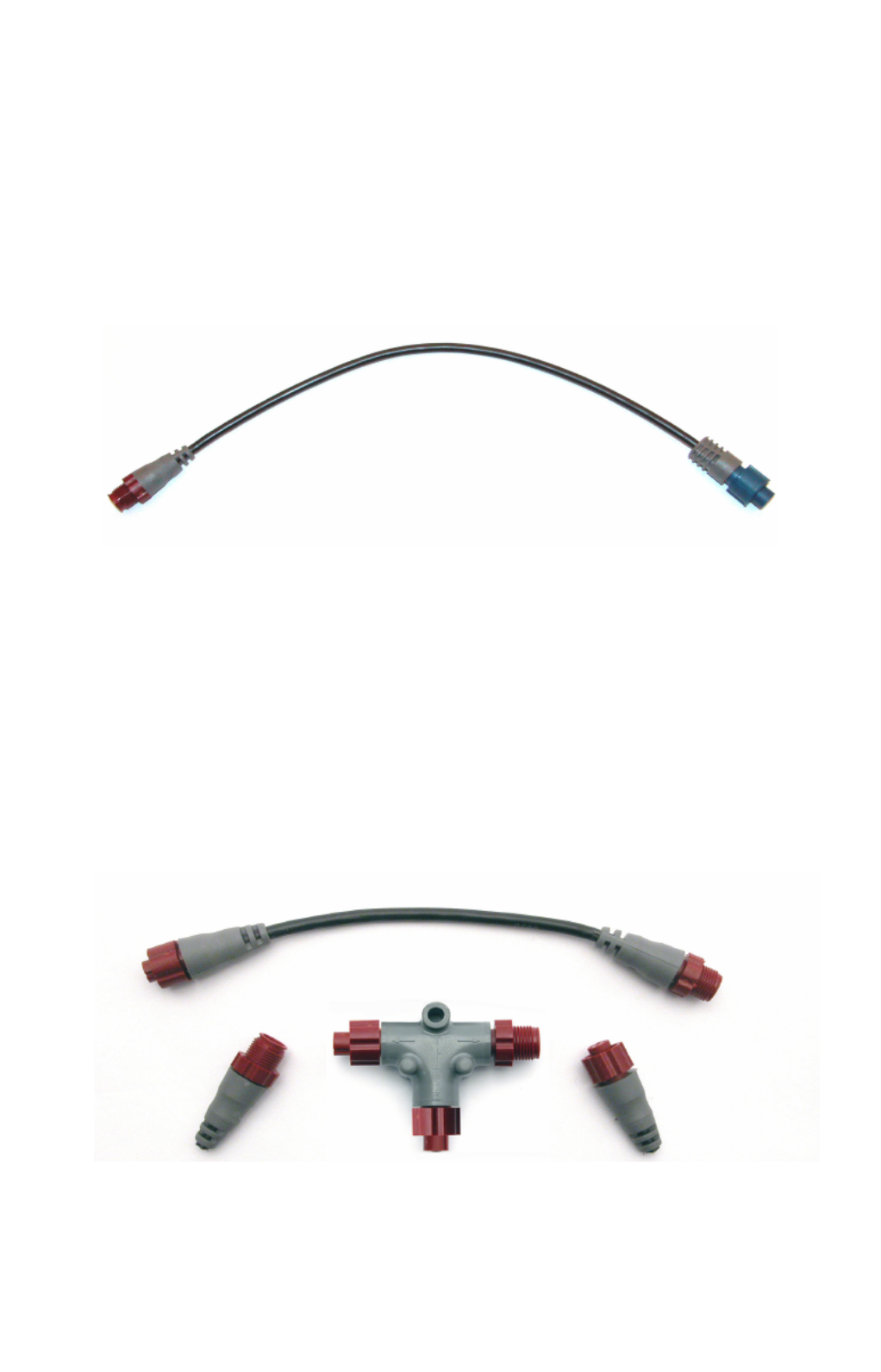

The NMEA 2000 red female to blue female adapter cable allows users
to add red connector devices to a blue connector network.
Tools and Supplies
Your EP sensor packs with a T connector needed to attach it to a
LowranceNET NMEA 2000 network. If this is the first sensor you are
connecting, you may also need a one-time purchase of a LowranceNET
Node Kit.
The following tools and supplies are NOT included. Required tools
include: a utility knife. For some installations, a Phillips screwdriver
will be needed. Supplies include: zip/cable tie.
LowranceNET Node Kit for a NMEA 2000 network. Includes a 2-foot
extension cable, T connector and two 120-ohm terminators.
