Side 1/2
60 mm
3 mm
19 mm
Supplied parts
Antenna mounting location
X X
X
X
Electromagnetic Interference
0.5 m (20”) Min 0.5 m (20”) Min
2 m (6 ft) Min
RADAR
Magnetic Field
Radio Transmitter
Surface mount the antenna Surface mount: Surface cable run
1
4
3
5
5
2
2
Lowrance Point-1 Simrad GS25 B&G ZG100
X 2 X 2 X 2 X 2 X 2 X 2
NMEA 2000 Drop
Cable 4.5 m (15 ft)
NMEA 2000 Drop
Cable 1.8 m (6 ft)
Attached NMEA 2000
Drop Cable 1.2 m (4 ft) +
NMEA 2000 Drop Cable
4.5 m (15 ft)
Surface cable run
1 2 3
6
Pole mount (external cable)
5
4
13
4
5
2
Pole mount (Internal cable)
X
*988-10439-002*
ENGLISH

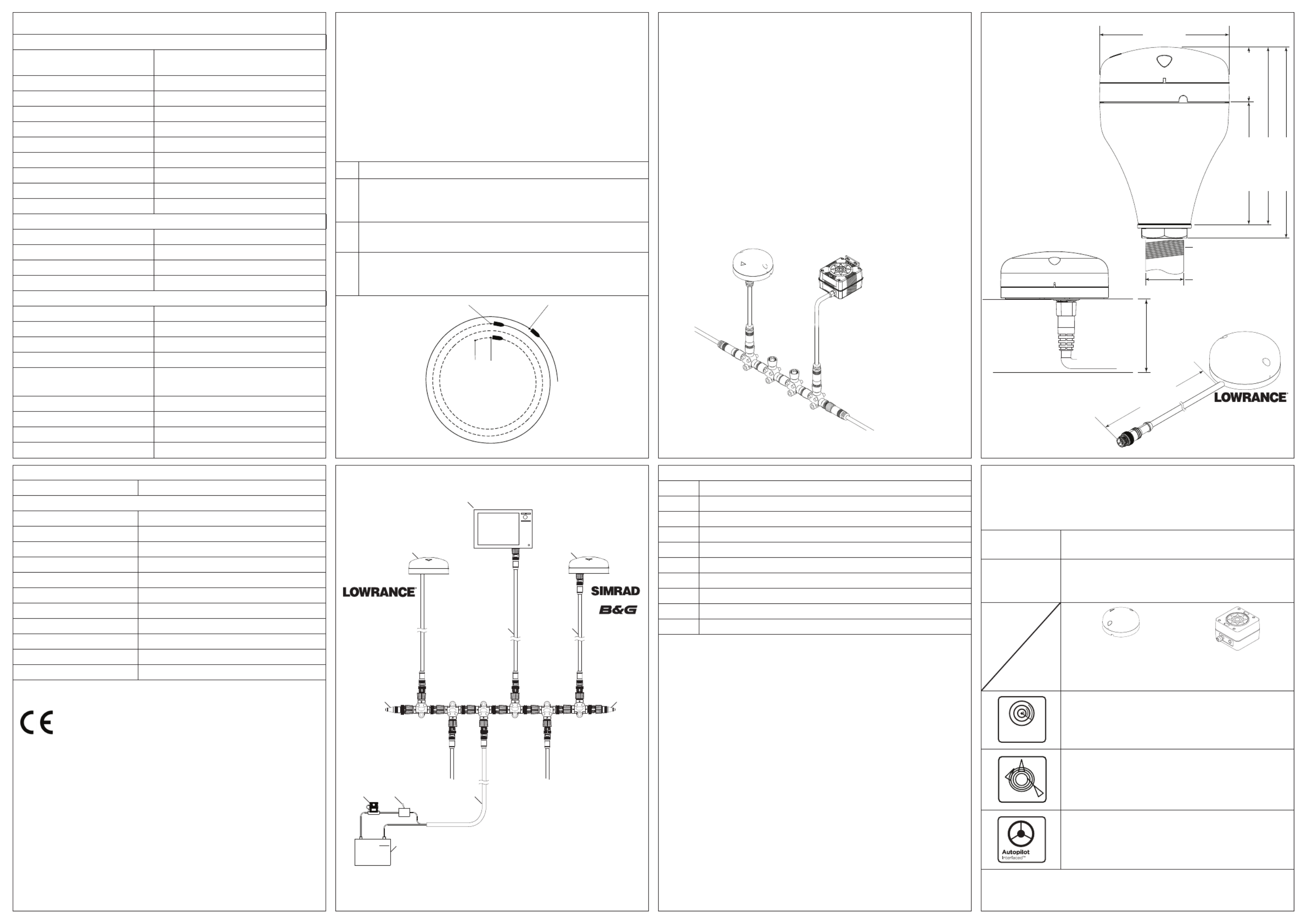

GPS Antenna
With built-in Heading
Sensor
Installation Guide
www.bandg.com | www.simrad-yachting.com | www.lowrance.com
38 mm (1.50")
90 mm (3.54")
38 mm (1.50")
14 Threads per inch
85 mm (3.35")
132.5 mm (5.22")
123 mm (4.84")
Dimensions
Connection
120
120
+
12 VDC
B C
D
E F
GH I
A
D
J
1.22 m (4 ft)
Specications
General
Receiver Type L1, C/A code, 1.575 GHz Frequency/L2 C/A
code, 1.602 GHz Frequency
Channels 32 channels
Position Update Rate Up to 10 Hz (1,5,10)
Horizontal Accuracy 3 m (9.8 ft)
Heading Accuracy +/- 3°
Rate of Turn +/- 3°
Pitch / Roll Accuracy @30 degrees 1 grade error
Cold Start 50 sec
Start-Up Time 3 sec
Satellite Reacquisition 5 sec
Environmental
Operating Temperature -25° C to +60° C
Storage Temperature -40° C to +85° C
Splash Proof IPX7
Humidity 40° C, 93%RH, operating
Electrical
Input Voltage 9 V DC - 18 V DC
Reverse Polarity Protection Yes
Power Consumption < than 2w
Current Consumption < 100 mA @ 12 V DC
Dimensions 90 mm (diam) x 38mm (height)
3.54” (diam) x 1.50” (height)
Weight 0.14 Kg (0.3 lbs) aprox
Power/Data Cable NMEA 2000 thru NMEA 2000 network
Antenna Connector NMEA 2000 Micro C
Mounting Flush mount / Standard Pole Mount
Communications
Data I/O Protocol NMEA 2000
NMEA 2000 PGNs
PGN Number PGN Title
126992 System Time
129025 Position, Rapid Update
129026 COG & SOG RU
129029 Position Data
129539 GNS DOP
129540 GNS Satellites in view
127258 Magnetic Variation
127250 Compass Heading (Vessel Heading)
127251 Rate of Turn
127257 Attitude
Compliance Statements
Lowrance Point-1, Simrad GS25 and B&G ZG100
Meet the technical standards in accordance with Part 15.103 of the FCC Rules.
Comply with CE under R&TTE directive 1999/5/EC
Comply with the requirements of level 2 devices of the Radio-communications (Elec-
tromagnetic Compatibility) standard 2008.
The relevant Declaration of Conformity is available in the following website under
model documentation section:
http://www.lowrance.com/
http://www.simrad-yachting.com
http://www.bandg.com
A Chart Plotter
B Lowrance Point -1 or Baja has molded cable 1.2 m (4 ft)
C Simrad GS25 or B&G ZG100 : Requires NMEA 2000 Drop Cable (D)
D NMEA 2000 drop cable max length 4.55 m (15 ft)
E 120 Ohm Terminator (Male)
F 120 Ohm Terminator (Female)
G Fuse (5 Amp)
H Switch
I NMEA 2000 Power cable 1.8 m (6 ft)
J 12 VDC Power supply
60 mm
B&G ZG100
Simrad GS-25
Heading sensor calibration
The built in heading sensor will need to be calibrated before use
to compensate for local magnetic fields on your vessel for accurate
chart with radar overlay.
Auto Calibrate mode
Before the heading sensor calibration is started, make sure that
there is enough open water around for the vessel to make multiple
full turns. The calibration should be done in calm sea conditions
and with minimal wind to obtain best results.
A Disconnect then re-connect the sensors NMEA 2000 cable.
B Make two consecutive turns of 360 degrees. The completion
of these two turns automatically activates the Auto Calibration
procedure.
C Continue with a smooth third turn and a quarter (of at least 390
degrees) within 2 to 5 minutes, to complete the calibration.
D Calibration should be complete. If the time is outside the limits,
the calibration is void and the radar overlay may not appear
accurate on your chart. Repeat steps A-D again.
AB
C D
Calibration from a Multifunction Display
Calibration can be performed from a compatible Multifunction
Display, instrument display or autopilot controller. (Please refer to
the operator/installation manual).
Multiple heading sensors on the network
WARNING:
If there are two Point-1 units (or an additional heading sensor) on
the network, the Point-1 antenna(s) will stop sending heading
information.
This does not apply to Simrad GS25 and B&G ZG100.
Heading sensor application
This sensor includes an electronic heading sensor to provide chart
stabilization, course over ground at low speeds, and overlay of radar
on charts.
Acceptable performance for the application
A rate stabilized heading sensor such as RC42N
will provide the most robust performance for
demanding applications.
Point-1
GS25
ZG100
RC42N Rate compass
Radar Overlay
 
MARPA
