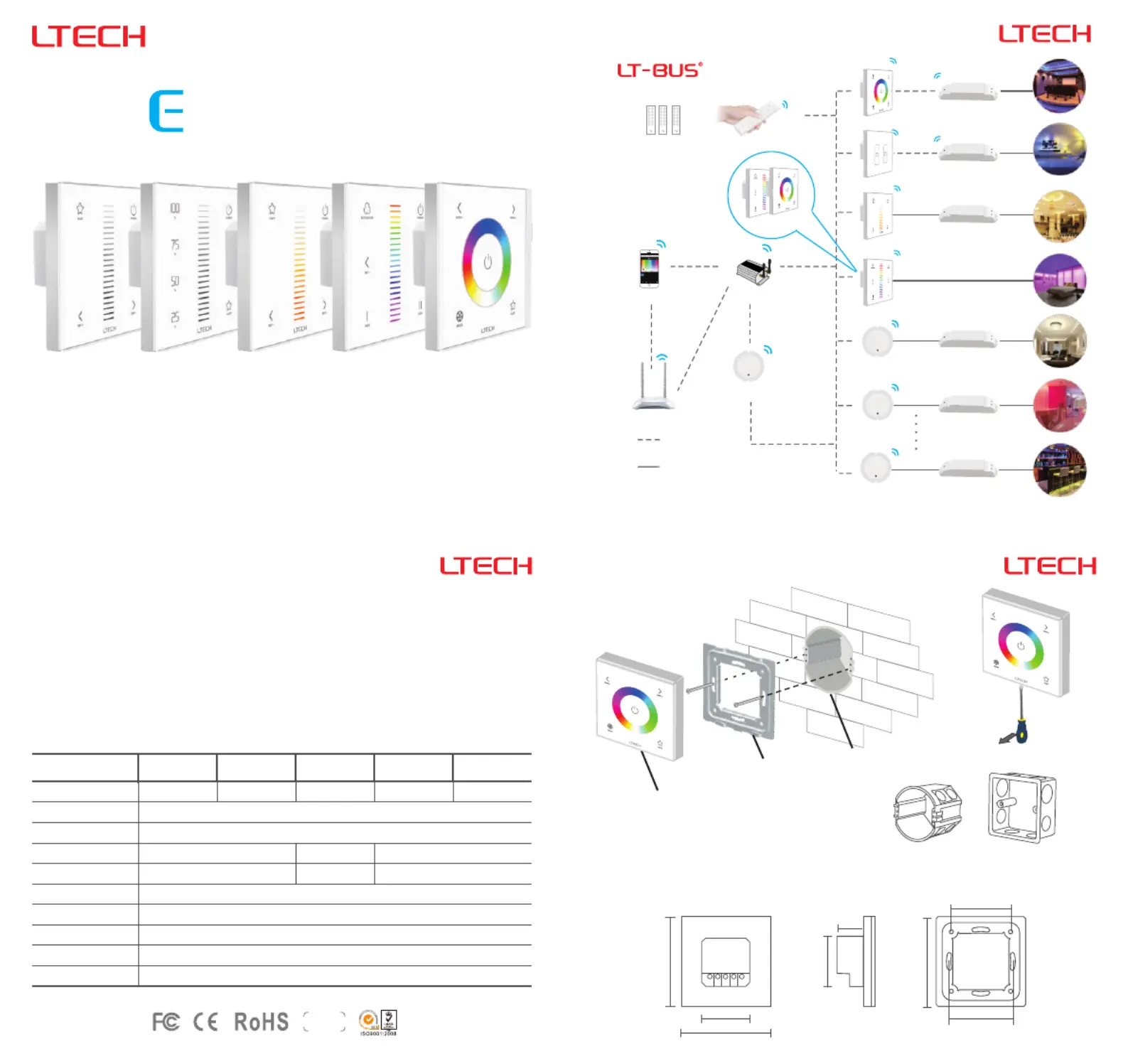

Series Touch Panel

(Dimming)

E1S

(Dimming)

(CT)

Ma ualn

www.ltech-led.com

Wireless remote

Direct connect

Mobile phone

WiFi gateway

Router

RF relay

Wireless

connection

Wired

connection

Wireless driver

DMX driver

RF DMX to

RF 10V to 0-

RF to phase-cut

Triac LED driver

0-10V LED driver

DMX LED driver

Product features

●

Touch keys with chord and LED indicator.

2 in 1 function: RF wireless control and PWM power output.

Power output, lamps can be connected directly, easy and convenient.

Touch panel can be controlled by remote directly or smart phone if add a gateway.

Adopts capacitive touch control technology on the full color circle makes LED dimming selection

more user-friendly.

Technical specs

Control type

12-24Vdc

Dimming Dimming

RGB RGB

4A×3CH Max. 12A

-20 55°C~°C

L86×W86×H36(mm)

L113×W112×H50(mm)

225g

(0 48W 96W)×3CH Max. 288W~ ...

RF 2.4GHz

4A×2CH Max. 8A

(0~48W...96W) ×2CH Max. 192W

Model

E1 E3

E1S E3S

Max. 4A

0 48W 96W~ ...

Input voltage

Wireless frequency

Current load

Output power

Protection

Working temp.

Dimensions

Package size

Weight(G.W.)

Short circuit / Over current protection, recover automatically.

Installation instruction

Touch panel

Baseplate

Base

Uninstall

Typical base as below:

European style

86 size

Product size

Unit: mm

E1S

E3S

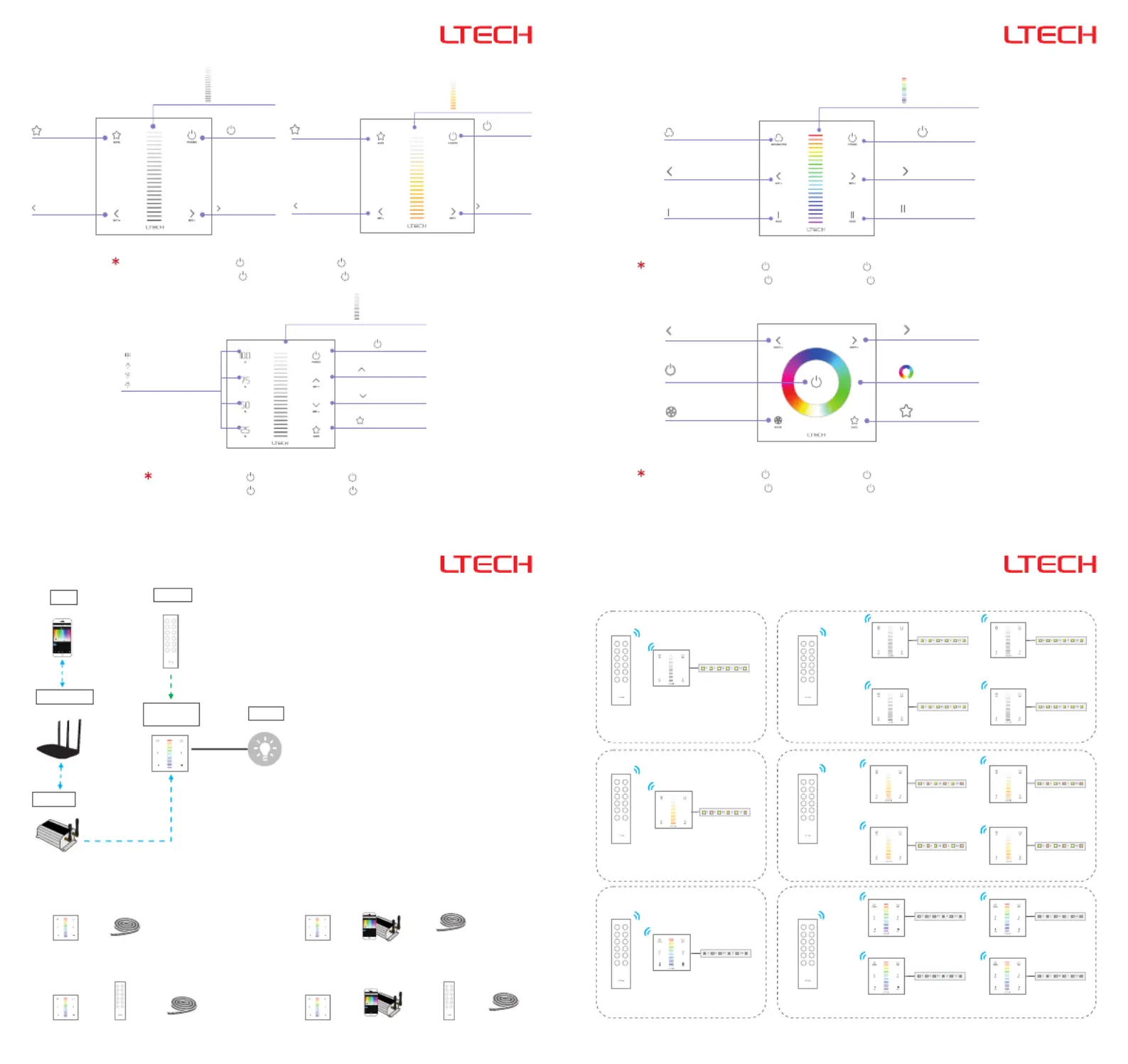

Key functions

Brightness-

Speed-

Brightness+

Speed+

Touch Color

Circle

Short press: play

Long press: save

Mode

ON/OFF

Static Red

Static Green

Static Blue

Static Yellow

Static Purple

Static Cyan

Static White

RGB Jumping

7 Colors Jumping

RGB Color Smooth

Full-color Smooth

10.

11.

Mode

Touch Slider

ON/OFF

Brightness+

Scene mode-

Short press: play

Long press: save

Saturation

Brightness-

Scene mode-

Short press: play

Long press: save

Brightness

Touch Slider

ON/OFF

Brightness+

Brightness-

Brightness

Shortcut Keys

Scene-mode

Short press: play

Long press: save

Short press: play

Long press: save

Brightness

Touch Slider

ON/OFF

Brightness+

Brightness-

Scene-mode

CT touch slider

ON/OFF

Brightness+

Brightness-

Scene-mode

Press: play

Long press: save

E3 panel’s 2 scene-mode

keys are corresponding

with WiFi-106 gateway

APP’s 1 & 2 scene-mode

key, the scenes can be

changed by APP or panel.

A PP

Lamps Lamps

LampsLamps

+ +

+ ++

+ +

Application composition

E series

touch panel

E series

touch panel

E series

touch panel

E series

touch panel

E series

touch panel

WiFi master

controller

WiFi master

controller

Remote Remote

Match code sequence

Remote

WiFi router

Lamps

Gateway

PS: No WiFi router needed when gateway work with phones

directly.

1. Configure with

phone to control lamps via .

2. Configure remote with touch panel, which enables remote to

control lamps.

gateway touch panel, which enables the smart

gateway

Match Code Sequence

RF wireless wiring

Single Zone Control

Multiple Zones Control

Single zone

remote F3

Single zone

remote F2

Single zone

remote F1

RGB

LED strip

RGB

LED strip

RGB

LED strip

RGB

LED strip

RGB

LED strip

Single color

LED strip

Single color

LED strip

Single color

LED strip

Single color

LED strip

Single color

LED strip

4 zones

remote F7

4 zones

remote F6

4 zones

remote F5

Zone 1

Zone 3

Zone 2

Zone 4

Touch panels can be sync controlled by multi remotes, please refer to the manual of remote's usage.

E3/E3S

E1/E1S

E3/E3SE3/E3S

E1/E1S

When blue status light of key is on, long press to turn on/off buzzer.

When white status light of key is on, long press to match code.

When blue status light of key is on, long press to turn on/off buzzer.

When white status light of key is on, long press to match code.

When blue status light of key is on, long press to turn on/off buzzer.

When white status light of key is on, long press to match code.

When status light of key is on, long press to turn on/off buzzer.

When status light of key is off, long press to match code.
