SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Caséta by Lutron Load Controls
369987l 1 2.24.23
Caséta Load Controls
The Caséta family of dimmers, switches, and fan
controls can be controlled directly and remotely
when paired with Pico remote controls providing
a system that delivers convenience and ease of
installation.
Caséta dimmers, switches, and fan controls use
Lutron patented Clear Connect RF Technology
which enables wireless communication with Pico
remote controls, Caséta motion sensors, and the
Lutron Smart Hub and Smart Hub PRO (formerly
Smart Bridge and Smart Bridge PRO).
Features
• Works with Pico remote control
• Works with Caséta motion sensor
• Works with the Lutron App (via a Smart Hub or
Smart Hub PRO)
1
• Lutron patented Clear Connect RF Technology
works through walls and floors
• Includes Front Accessible Service Switch (FASS) for
safe lamp replacement
• Works with Lutron Radio Powr Savr occupancy and
vacancy sensors in standalone applications (sensors
do not work with Smart Hub or Smart Hub PRO)

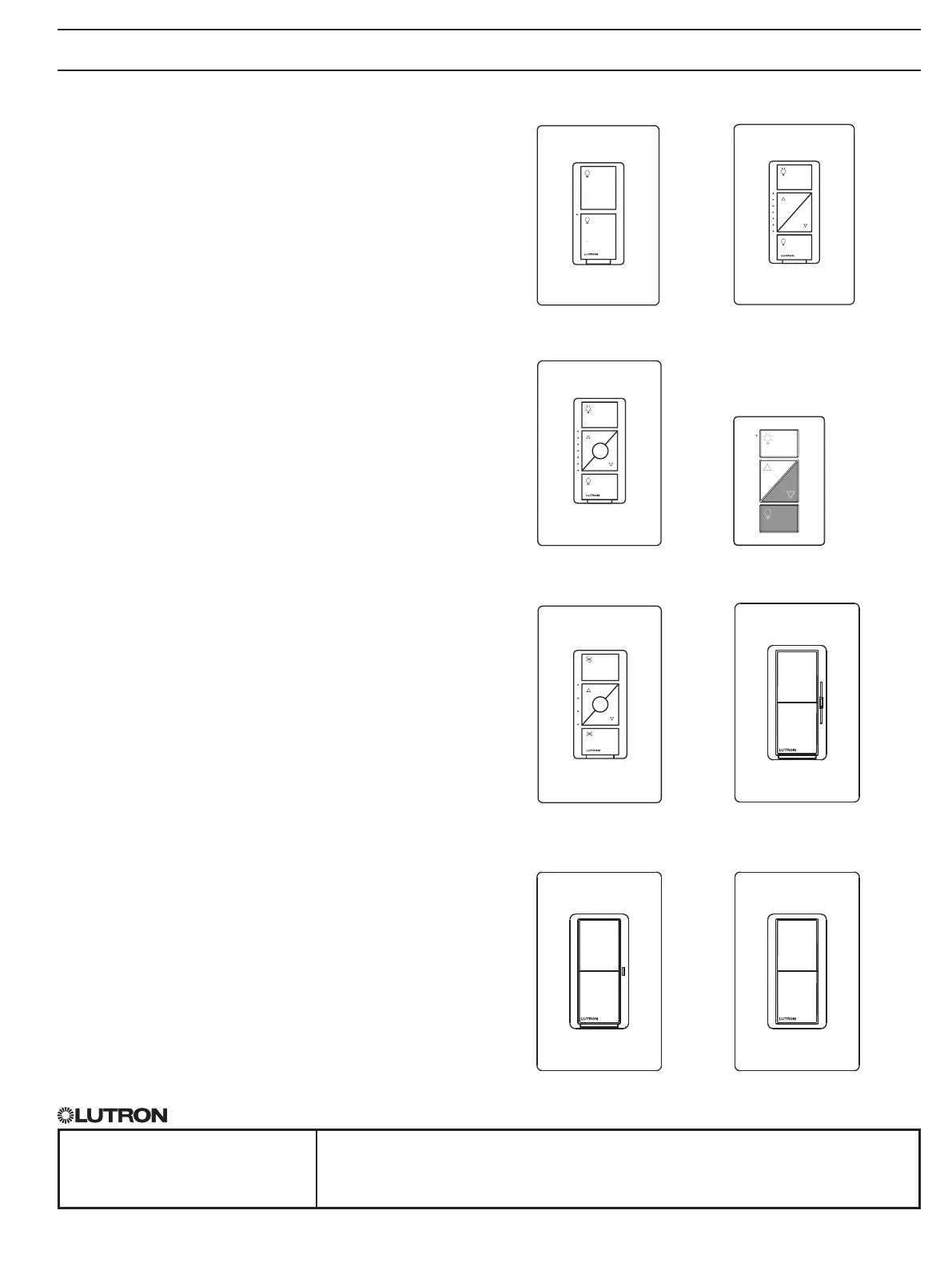

Figure 1:
Original Smart Switches
Figure 2:
Original Smart Dimmers
Figure 4: Caséta Plug-In
Lamp Dimmers
Figure 3: Original
ELV+ Smart Dimmers
Figure 5: Original
Smart Fan Controls
1
The Lutron App is required for setup and usage with the Smart Hub and Smart
Hub PRO. The Lutron App is compatible with iOSR devices version 8.0 or later
and AndroidT devices 4.0 or later.
Note: Certain models or load types will require a neutral connection
(see Load Type and Capacity sections).
Figure 6: Diva
Smart Dimmers
Figure 7: Claro
Smart Switches
Figure 8: Claro Smart
Accessory Switches
1
®
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Caséta by Lutron Load Controls
369987l 2 2.24.23
Specifications
Regulatory Approvals
• cULus Listed
• NOM Certified
• FCC Approved. Complies with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules
• Industry Canada Certified
• IFTEL Certified
• NEMA 410: PD (-5ANS, -6ANS, -5WS, -10NXD,
-5NE), DVRF (-6L, -5NS)
Power
Operating voltage:
• 120 V~ 50/60 Hz: PD (-3PCL, -6WCL, -10NXD,
-6ANS, -5ANS, -5NE, -FSQN), DVRF (-6L, -5NS, -AS)
• 120 / 277 V~ 50 / 60 Hz: -5WS-DV
Key Design Features
• Tested to withstand electrostatic discharge without
damage or memory loss, in accordance with
IEC 61000-4-2.
• Tested to withstand surge voltages without damage
or loss of operation, in accordance with IEEE
C62.41-1991 Recommended Practice on Surge
Voltages in Low-Voltage AC Power Circuits.
• Load controls always operate locally and do not
require system control.
• Power failure memory: should power be interrupted,
the control will return to its previously set level prior
to the interruption when power is restored.
• PD-5WS-DV, PD-5ANS, PD-6ANS, PD-10NXD,
DVRF-5NS, and DVRF-6L use conventional
3-way wiring.
• DVRF-6L and DVRF-5NS can also be wired with an
accessory switch, DVRF-AS.
• Uses Lutron Claro wallplates or designer-style
wallplates from other manufacturers. Wallplates are
sold separately.
• Lutron Claro wallplates snap on with no visible
means of attachment.
• Requires a 1-gang U.S. wallbox. 3
1
⁄2 in (89 mm)
depth recommended, 2
1
⁄4 in (57 mm) depth
minimum
1
.
Key Design Features (continued)
• PD- models use green status LED(s) to indicate
load status.
• DVRF-6L uses a white soft glow light bar and the
DVRF-5NS uses a white status LED to indicate
load status.
• PD-FSQN provides 4 quiet fan speeds plus OFF for a
single ceiling fan.
System Communications and Capacity
• Caséta switches, dimmers, and fan controls
communicate with Pico remote controls, Caséta
motion sensors, and the Lutron Smart Hub / Smart
Hub PRO through Radio Frequency (RF).
• The Caséta switches, dimmers, and fan controls
must be located within 60 ft (18 m) line-of-sight or
30 ft (9 m) through walls of a Lutron Smart Hub,
Smart Hub PRO, or Caséta Repeater.
• The Caséta switches, dimmers, and fan controls
must be located within 60 ft (18 m) line-of-sight or
30 ft (9 m) through walls of Pico remote controls
or Caséta motion sensors (with no Smart Hub
installed).
Device limits
• Pico remote controls and Caséta motion sensors:
up to 10devices (total) may be paired to each
Caséta switch/ dimmer (with no Smart Hub installed).
• Smart Hub or Smart Hub PRO system: up to 75total
wireless devices (Caséta dimmers / switches, Pico
remote controls, Caséta motion sensors, and
shades) are supported per system. Smart Hub or
Smart Hub PRO counts as one device. The Caséta
repeater counts as one device.
Environment
• Ambient operating temperature: 32°F to 104°F
(0°C to 40°C), 0% to 90% humidity,
non-condensing. Indoor use only.
• PD-5WS-DV, PD-5ANS, PD-6ANS, PD-10NXD,
DVRF-5NS, and DVRF-6L can be used with a
mechanical switch in 3-way applications.
1
PD-FSQN requires 2` in (63` mm) minimum depth.
2
