12988 S. Frontrunner Blvd, Ste 201, Draper, UT 84020-5490 | luxul.com | 801-822-5450

Other trademarks and registered trademarks are the property of their respective owners

LUX-QIG-SFP-Family-v6 0928180123

Fo ld Fo ld

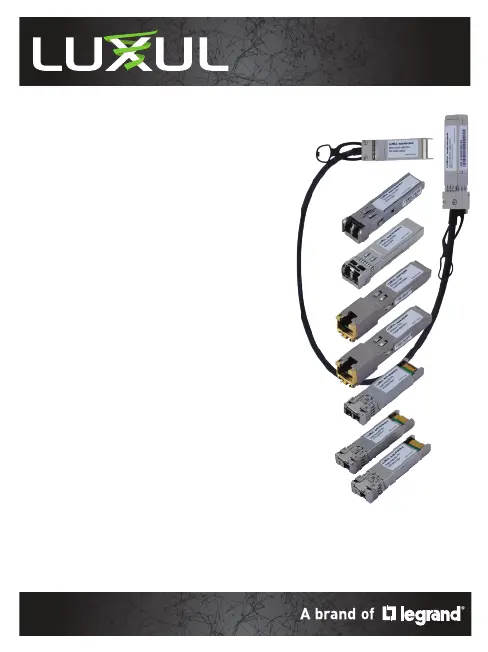

Use the SFP Module to:



Extend the distance of connected devices



Provide connectivity between switches

Quick Install Guide

10G-CAB-05

Direct-Attach Cable 0.5m 10G Copper Passive

1G-MM-DX-LC

1G Multimode Fiber Duplex SFP Module

850nm VCSEL

10G-MM-DX-LC

10Gb Multimode Fiber Duplex SFP+ Module

850nm VCSEL

1G-RJ45

1000Base-T RJ-45 SFP Module

10G-RJ45

10GBase-T RJ-45 SFP+ Module

10G-SM-DX-LC

10Gb Single-mode Fiber Duplex SFP+ Module

1310nm DFB Laser

10G-SM-SX-LC

10Gb Single-mode Fiber Simplex SFP+ Module

1310nm/1270nm DFB Laser

w WARNING!: Grasp module by the sides to install or

remove from SFP ports. Do not use the cable.

w WARNING!: Pulling, bending, kinking, or twisting ﬁber

optic cable will cause damage to the cable.

w WARNING!: Put on an electrostatic discharge (ESD) wrist

strap and attach the clip end to a metal

surface (such as an equipment rack) to act

as ground during installation.

INSTALLATION



Remove the SFP Module from its protective packaging



Gently insert the SFP Module into the SFP port of the Luxul switch

until it clicks into place. The SFP Modules are keyed to prevent

incorrect insertion. A tab on the bottom of the SFP Module locks it

to the front panel of the switch



Remove the protective covering from the port connectors of the SFP

Module and store the covering for future use



The SFP Module is now ready to receive the compatible cable

n NOTE: SFP Modules are hot swappable.

n NOTE: When connecting to devices that will require a

SFP Module, the same module must be used on

both sides of the connection (EX. a 1G-RJ45 SFP

Module on one side of the connection requires

that a 1G-RJ45 is used on the other side of the

connection). The exception is the 10G-SM-SX-LC,

which comes as a pair of compatible modules—

one for each side of the connection.

SFP MODULES HARDWARE FEATURES

Module Type Cable Type Mode Interface

10G-CAB-05 Cable N/A N/A N/A

1G-RJ45

UTP/

STP

Cat.5e or

Cat.6/7

UTP/STP

N/A

RJ-45

10G-RJ45

Cat.6/7

UTP/ST

N/A

1G-MM-DX-LC

Optical

Fiber

Duplex Fiber Multi

10G-MM-DX-LC Duplex Fiber Multi

10G-SM-DX-LC Duplex Fiber Single

10G-SM-SX-LC Simplex Fiber Single

Produkt Specifikationer

Mærke:	Luxul
Kategori:	Kabler til pc'er og periferiudstyr
Model:	10G-CAB-05
Produktfarve:	Sort
Kabellængde:	0.5 m
Ethernet-grænsefladetype:	10 Gigabit Ethernet
Stik 1:	SFP+
Stik 2:	SFP
Stik 1 køn:	Hanstik
Stik 2 køn:	Hanstik
Kernediameter:	- µm
Beklædning diameter:	- µm
