Fo ld Fo ld Fo ld
READ ME FIRST
QUICK INSTALL GUIDE

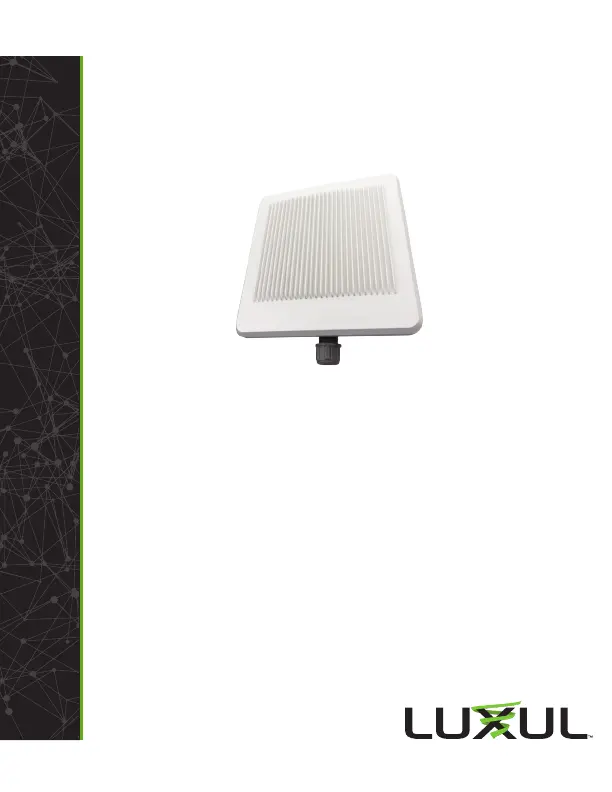

AC1200 Dual-Band Outdoor
Wireless Access Point
XAP-1440
Includes:
XAP-1440 Wireless Access Point
PoE Injector and Power Cord
Mounting Bracket and Hardware
Ethernet Cable
READ ME FIRST - CONTROLLER COMPATIBILITY
This XAP-1440 is compatible with the Luxul Wireless Controller for fast, easy
configuration and deployment of wireless networks with multiple APs.
n Note: If you’ll be using this AP with a Wireless Controller, refer to
the Quick Install Guide included with the Wireless Controller for
setup instructions.
AP SETUP AND CONFIGURATION
1
Physical Installation
The XAP-1440 access point is designed for simple and ecient installation.
However, due to the inherent complexity of outdoor installation, installation
should be be performed only by experienced professionals.
Because the signal generated by the XAP-1440 is directional, the unit should
be located at the perimeter of the desired coverage area, with the large flat
surface aimed toward the center.
Mounting the Access Point
Mounting the access point is a simple process outlined in the following steps.
1. Refer to the included Mounting Guide leaflet to assemble the mount and
secure the AP to a pole or wall mount.
2. Thread the Ethernet cable through the cable gland assembly as shown,
connect it to the Ethernet connector, secure the cable gland to the
threaded recess on the access point, then tighten the cable gland nut to
secure and seal the cable gland.
Cable gland exploded view
3. Adjust the access point for best performance. The vertical elevation
angle can be adjusted with the four hex screws on the mount, while the
horizontal angle can be adjusted by loosening the clamp and rotating the
assembly on the pipe.
c CAUTION: To comply with RF regulations, the AP should be adjusted
from 0 to -20 degrees (horizontal to downward-facing).
w Warning: Do not locate the access point where it can come into
contact with overhead power lines or other electric circuits. When
installing the antenna, take extreme care not to come into contact
with such circuits, as they may cause serious injury or death.
n Note: For proper installation and grounding of the antenna, please
refer to national and local codes (e.g. U.S.: NFPA 70, National
Electrical Code, Article 810, Canada: Canadian Electrical Code,
Section 54). Statement 280.
Sales
801-822-5450
sales@luxul.com
Technical Support
801-822-5450
support@luxul.com
LUX-QIG-XAP-1440-v1 05111701
Copyright and Trademark Notices
No part of this document may be modified or adapted in any way, for any purposes without permission in
writing from Luxul. The material in this document is subject to change without notice. Luxul reserves the
right to make changes to any product to improve reliability, function, or design. No license is granted, either
expressly or by implication or otherwise under any Luxul intellectual property rights. An implied license
only exists for equipment, circuits and subsystems contained in this or any Luxul product.
© Copyright 2017 Luxul. All rights reserved. The name Luxul, the Luxul logo, the Luxul logo mark and Simply
Connected are all trademarks and or registered trademarks of Luxul Wireless, Inc. All other trademarks and
registered trademarks are property of their respective holders.
