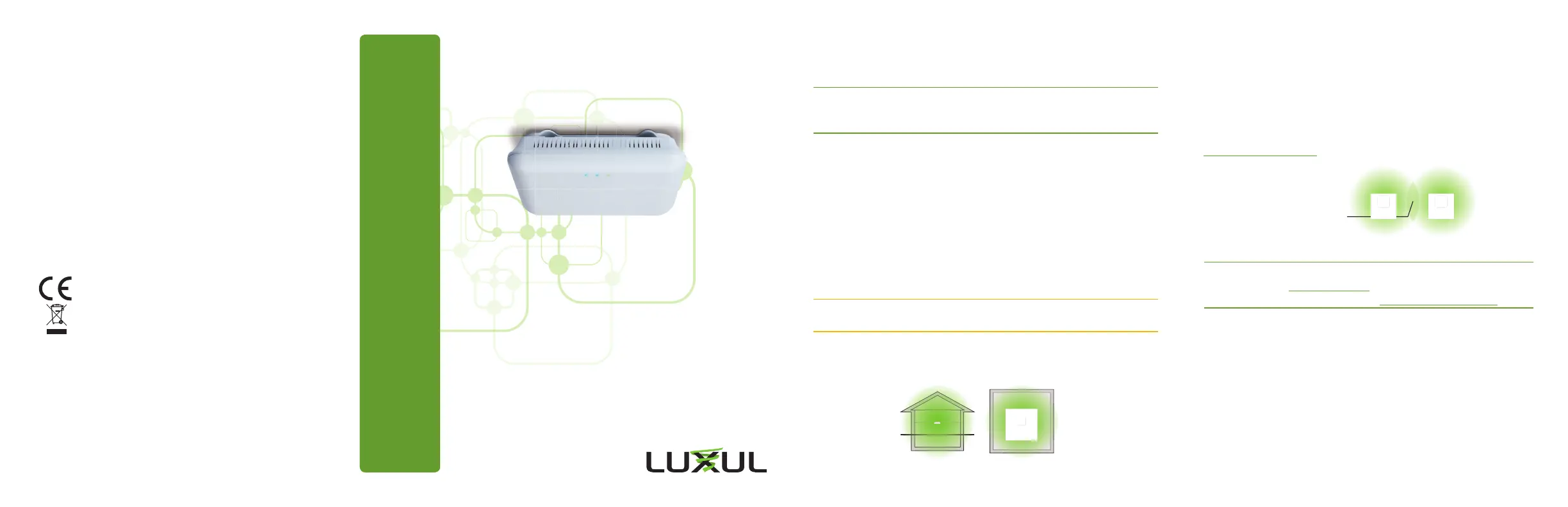

Side 1/2

READ ME FIRST

QUICK INSTALL GUIDE

High Power AC1900

Dual-Band Wireless Access Point

XAP-1510

Includes:

One: High Power AC1900 Dual-Band Wireless AP

Two: Mounting Brackets and Hardware

One: PoE Injector and Power Adapter

One: Ethernet Cables

READ ME FIRST - CONTROLLER COMPATIBILITY

This XAP-1510 is compatible with the Luxul Wireless Controller for fast, easy

conﬁ guration and deployment of wireless networks with multiple APs.

nNote: If you’ll be using this AP with a Wireless Controller, refer to

the Quick Install Guide included with the Wireless Controller for

setup instructions.

AP SETUP AND CONFIGURATION

1 Physical Installation

The XAP-1510 access point is designed for simple and efﬁ cient installation

and can be located one of three ways. First, the included mount is designed to

attach directly to several different regions’ standard electrical boxes. Second,

the XAP-1510 may be mounted on a ceiling or wall without a box by using the

included mount as a guide to mark attachment locations. Finally, the XAP-1510

can be placed on a ﬂ at surface by attaching the included rubber feet

to the mount.

cCaution: Attach the rubber feet to the mount and attach the mount to

the AP for ﬂ at surface placement to avoid overheating and failure.

uSingle Access Point Placement: Because the signal generated by the

XAP-1500 is omnidirectional, the unit should be located as near as possible

to the center of the desired coverage area.

XAP-1510 Single AP Coverage Pattern

uMultiple Access Point Placement: You may need to experiment with

AP placement to optimize the roaming experience. Place APs to ensure

adequate coverage, but not so far apart that there is no signal overlap.

Adjacent APs should overlap enough that the client device has a good

connection to the AP to which it is currently attached, but also sees the

next-nearest AP. Ideally, roaming clients should see signal strength of

two overlapping APs in the range of -60 to -70 dBm at the midway

point between two APs. To learn more about AP placement, visit

luxul.com/ap-placement.

Ideally, roaming clients should see

signal strength of two overlapping

APs in the range of -60 to -70 dBm at

the midway point between two APs

XAP-1510 Multiple AP Coverage and Overlap

nNote: Consider using Ekahau HeatMapper to assist with this process,

available from www.ekahau.com. Luxul also offers an informative

“How-To” video on HeatMapper at luxul.com/how-to-videos.

AP SETUP AND CONFIGURATION CONT.

2 Connecting Ethernet and Power

Ethernet and Power

To apply power and network simultaneously, simply connect one end of an

Ethernet cable to a PoE switch, and the other end to the XAP-1510 PoE port.

To connect power and Ethernet separately, ﬁ rst connect an Ethernet cable

from the supplied PoE Injector Data & PWR Out port to the PoE port on

the XAP-1510. An Ethernet cable length of up to 300 feet can be used.

LEGAL AND REGULATORY INFORMATION

No part of this publication, or any other publication may be modiﬁ ed or adapt-

ed in any way, for any purposes without permission in writing from Luxul. The

material in this manual is subject to change without notice. Luxul reserves the

right to make changes to any product to improve reliability, function, or design.

No license is granted, either expressly or by implication or otherwise under any

Luxul intellectual property rights. An implied license only exists for equipment,

circuits and subsystems contained in this or any Luxul product.

FCC Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference,

and (2) this device must accept any interference received, including interfer-

ence that may cause undesired operation.

FCC ID: W59XAP1510

IC: 8584A-XAP1510

FCC Statement—Wireless FCC 2.4GHz & 5GHz 802.11abgn

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules.

Hereby, Luxul, 14203 Minuteman Drive, Suite 201, Draper, Utah, 84020,

declares that this Luxul XAP-1510 is in compliance with the essential

requirements and other relevant provisions of Directive 1995/5/EC.

For a copy of this report send a self addressed stamped envelope

to: Luxul CE, 14203 Minuteman Drive, Suite 201, Draper, Utah, 84020.

Industry Canada (RSS-Gen Issue 4)

CAN ICES-3(B)/NMB-3(B)

Sales

P: 801-822-5450

E: sales@luxul.com

Technical Support

P: 801-822-5450 Option 3

E: support@luxul.com

Next, connect an Ethernet cable from your Router or Switch to the Data

IN port on the PoE Injector. Finally, connect the AC cord to the included

PoE Injector, then to the AC outlet.

nNote: Category-6 shielded twisted pair is recommended for best

results and stable data transmission at the highest data rates.

However, CAT5/CAT5e/CAT6 UTP cable can also be used.

PoE Injector Setup

uData In: Connect an Ethernet cable from your router or switch to the

Data In port of the included PoE Injector

uData & PWR Out: Connect an Ethernet cable from the Data & PWR Out

port of the included PoE Injector to the PoE Port of the XAP-1510

uAC Power: Connect the included AC Cord to the Power Input of the

Included Injector ﬁ rst and then to the AC outlet.

Power

Source

From your

Router or Switch

Luxul AP

DATA IN

DATA &

PWR OUT POE

Injector

PoE injector

3 Preparing for Access

IP Addressing

If the XAP-1510 is connected to a network with a 192.168.0.X address

scheme, and your computer shares a similar address on the same network,

you can skip to the next step, Access and Setup.

nNote: If another device on your network shares the 192.168.0.10

address, you’ll need to temporarily reassign or remove that

device while you conﬁ gure the XAP-1510.

If your network uses an address scheme other than 192.168.0.X, you’ll need

to set a temporary static IP address on the computer you’re using for conﬁ g-

uration. To do so, set the IP address of your computer to an address in the

192.168.0.X range, then set the Gateway/Router address to 192.168.0.10 (the

default IP address of the XAP-1510).

Once you’re ﬁ nished conﬁ guring the AP, you can return your computer’s IP

conﬁ guration to normal, typically “Obtain Automatically/DHCP.”

nNote: Visit http://luxul.com/ip-addressing to learn more about

changing your computer’s IP address and getting connected.

4 Access and Setup

Getting Connected

uConnecting Via an Ethernet Device: Use Ethernet cable to connect

your computer to the PoE switch or PoE injector to which the XAP-1510 is

connected. Ethernet is the preferred method of connection.

uConnecting Via a Wireless Device: Connect your client device to the

XAP-1510 default wireless network named Luxul1510. The wireless network

will run in Open Security mode, so no passphrase is required until Wireless

Security is conﬁ gured.

Logging In

To access the AP’s web conﬁ guration, open your web browser and enter the

AP’s default 192.168.0.10 IP address in the address ﬁ eld. Log in to the AP using

the default user name and password:

Default IP: 192.168.0.10

Username: admin

Password: admin

nNote: If another device on your network shares the 192.168.0.10 address,

you’ll need to temporarily reassign or remove that device while

you conﬁ gure the XAP-1510.

nNote: The XAP-1510 is not a router and will need to be connected to a

network with a router in order to deliver Internet access.

5 Hardware Operation

LED Indicators

Enclosure: If the green Power LED is on, the XAP-1510 is powered and working.

If the Power LED is OFF, the AP is not receiving power or the LED has been

turned off in the AP’s web interface. If the green Power LED is blinking, the

XAP-1510 is booting. The two blue LEDs indicate indicate each of the 2.4GHz

and 5GHz networks are conﬁ gured and broadcasting.

XAP-1510 LED’s

PoE Injector: If the PWR LED is On, Power is Connected to the injector. If

the PWR LED is Off, the injector is not receiving power.

Reset Button

The Reset button is located underneath the mount and

marked RESET. It may be used to reboot the AP or to restore

factory default settings.

Reboot the AP: With the XAP-1510 powered on, simply

press and release the Reset button.

Restore Factory Defaults: With the XAP-1510 powered on,

press and hold the Reset button for 10 seconds, then release

the button and the XAP-1500 will restore factory defaults and reboot.

cCAUTION: Holding the Reset button for more than a few seconds

will restore the AP to factory default and remove any

custom conﬁ guration.
