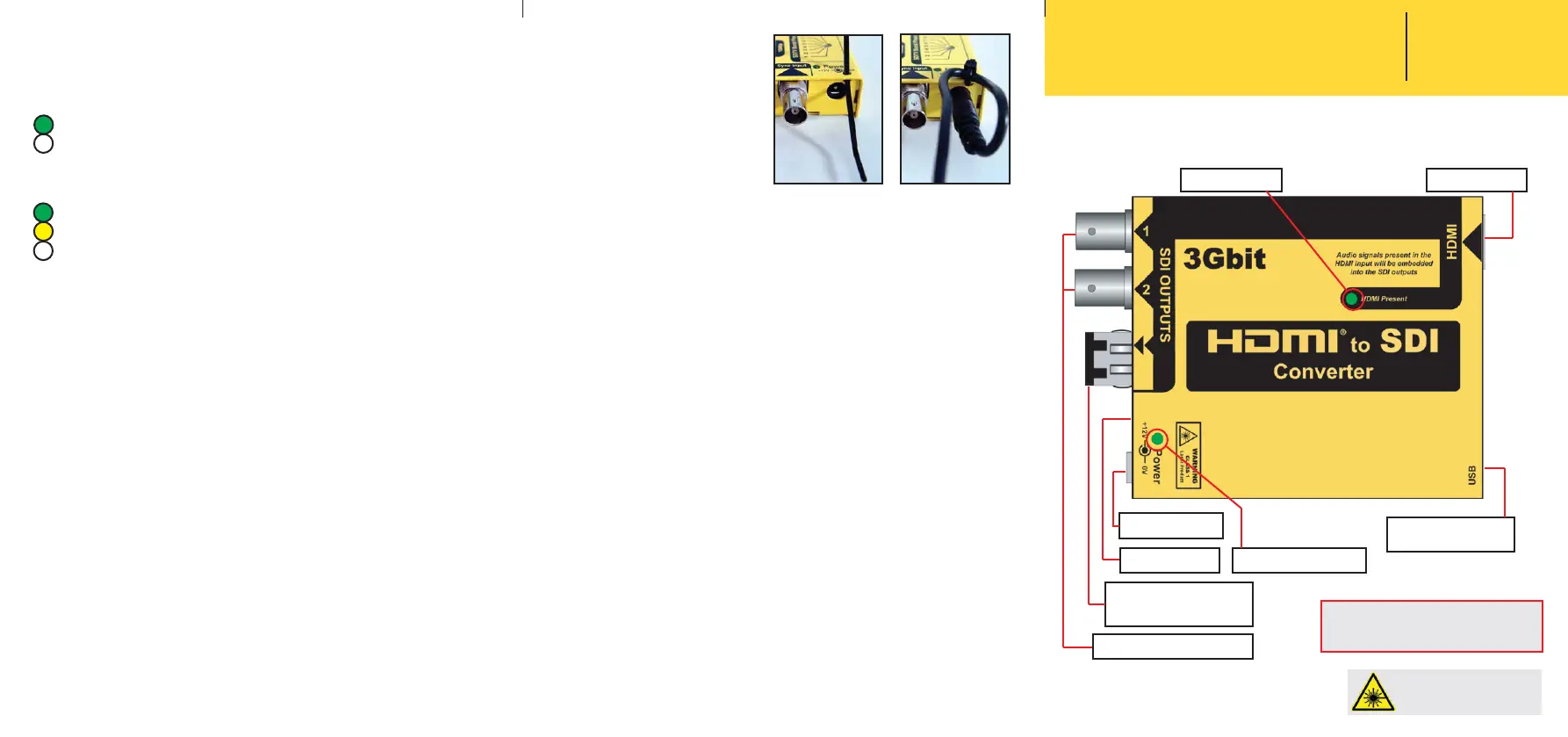

LYNXTechnik AG
yellobrik Quick
Reference
®
CHD 1802-1
HDMI to SDI Converter
USB Connection
(for yelloGUI control & updates)
Power In (12v)
SDI Fiber Output
(Option)
SDI Outputs (2)
HDMI Present
Warning
Class 1 Laser Product
HDMI Input
NOTE: This module will not convert HDMI
content which has embedded HDCP
copy protection.
Power / Status LED
Module LEDs
The module has several LEDs included to indicate status.
Function is described below:
HDMI Present LED
= Valid signal connected / converted
= (out) Signal not valid or missing (or if HDMI has HDCP protection)
Power / Status LED
= Power OK and no internal programmed settings are present
= Power OK and some programmed settings are active*
= (out) Power not present
* Some settings have been made using the yelloGUI and the LED indicates this
by turning yellow. The module can be reset to factory default using the yelloGUI
application, or by using the internal reset switch on the side of the module,
which can be accessed though a hole with a paperclip (or similar).
USB Port / Firmware Updates / yelloGUI
The USB interface on the module is used for rmware updates and for
control of the module using the yelloGUI software application.
To update a yellobrik, power it and connect it to the PC or Mac running
the yelloGUI software with the provided USB cable. The yelloGUI
software will indicate if a new rmware is available for the connected
module and will guide you through the update process.
Firmware updates are always free of charge.
For more information and to download the yelloGUI application please
goto: http://yellogui.lynx-technik.com
HDMI is connected but no SDI output ? - Common Causes
When two HDMI devices are connected together the EDID
communication protocol automatically determines the highest
resolution both devices support and congures the HDMI link to that
resolution. As the CHD 1802-1 supports video formats up to
1080p/60Hz the SDI output will typically default to 1080p/60 (3Gbit/s
SDI) which if used in a standard 1.5GHz or 270Mbit SDI environment will
not display an image. If 1.5Gbit or 270Mbit SDI output is needed, then
the HDMI source device should be manually set to output the desired
video resolution. Alternatively, it is possible to use the yelloGUI
application to force the CHD 1802-1 into the desired video format.   
                            
                            
The HDMI content may have HDCP copy protection, in which case the
HDMI present LED will be OUT and the module will block the conversion
and provide a black SDI output.
Note:                                  
                               
                              
                                     
Still Having Problems?
Please visit the support center on our website and browse or search the
knowledge base, or open a support ticket with your specic questions
                       
Power Lead Strain Relief
The module has a small hole in
the case located above the
power connection. To prevent
the power lead being
accidentally pulled out, use the
supplied tie-wrap and secure
the lead as shown opposite.
Reset (hole)
yellobrik
®
LYNXTechnik AG www.lynx-technik.com
We are constantly adding additional yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
Connections and Adjustments
All connections and adjustments are clearly indicated on the module
and self explanatory. Settings can be changed with the module
powered on or o. The ber SDI output is optional and can be added at
any time if needed using the socket provided (plug in SFP module).
Basic Operation
The CHD 1802-1 will auto-detect the connected HDMI input and the
HDMI Present LED will illuminate when a valid signal is detected. The
HDMI is converted to an SDI signal in its native resolution (no scaling).
Two identical electrical SDI outputs (not dual link) are provided as well
as an optional ber SDI output. Any audio present on the HDMI signal
will be automatically embedded into the SDI outputs.
Audio
Up to 8 channels of audio present on the HDMI input is automatically
embedded into the SDI outputs (AES channels 1, 2, 3, 4). Note: One AES
channel = two channels of audio.
The HDMI audio is not modied or decoded. If encoded audio is
present such as Dolby Digital then this encoded stream will be
embedded (transparently) into the SDI output. The module
automatically disables the sample rate converters if encoded audio is
detected.
Fiber Output (Optional)
An SDI ber output is provided via a removable SFP ber stick. This can
be a standard SDI Transmitter (1310nm) or if needed CWDM versions
are also available (18 wavelength choices). Please contact LYNX Technik
for more details on the ber options compatible with this module.
HDCP Copy Protection
The CHD 1802-1 WILL NOT convert any HDCP encrypted content. If a
HDMI source is connected and the “HDMI present” is then the OUT
HDMI content is most likely protected with HDCP.
yelloGUI Software Tool
The CHD 1802-1 is fully compatible with the yelloGUI software
application. This provides access to a variety of additional internal
settings and features. (Including setting 3D conversion mode, setting
frame sync delay and audio conguration)
Technical Specifications
HDMI Input 3D compatible input using type A connector
For a detailed list of supported formats please refer to the article in our knowledge base
( www.lynx-technik.com > support > tech.support )
Up to 8 channels embedded audio in HDMI is passed transparently
SDI Outputs
Power
2 x SDI video, 75 Ohm BNC. (both have the same signal - NOT dual link)
SMPTE 424M, SMPTE 292M, SMPTE 259M
3G Level A & B-DL & B-DS according to SMPTE ST 425-1 and ST 425-2 (3D) with
image formats 1280 x 720 and 1920 x 1080
For a detailed list of supported formats please refer to the article in our knowledge base
( www.lynx-technik.com > support > tech.support )
Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
Optional Mounting Bracket
The optional RFR 1001 mounting bracket can be used to permanently
mount the module on any at surface or on 19” rack rails.
